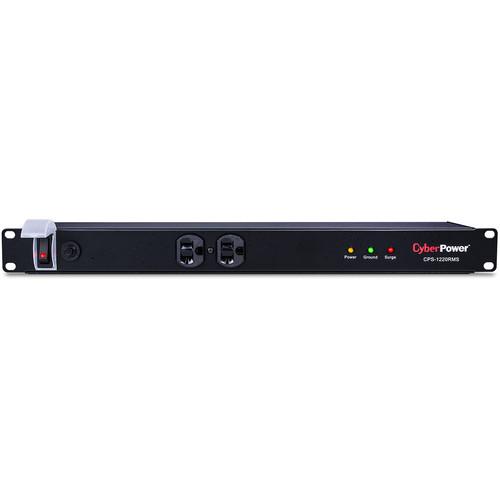

User Manual for CyberPower CPS1220RMS 12-Outlet Rackbar Surge Protector Click to enlarge the picture
Contents of the user manual for the CyberPower CPS1220RMS 12-Outlet Rackbar Surge Protector
- Product category: Power Strips CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower Power Strips
|
User manual for the CyberPower CPS1220RMS 12-Outlet Rackbar Surge Protector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|
Product description Engineered for demanding applications in environments such as data centers and network closets, the CPS1220RMS 12-Outlet Rackbar Surge Protector helps safeguard systems and networking equipment by absorbing spikes in energy cause by storms and electrical power surges. Although it has a 1 RU form factor meant for racks in network environments, the CPS1220RMS functions well in home offices. It is equipped with 12 NEMA 5-20R surge-protected outlets (2 front and 10 rear) and provides 1800 joules of surge suppression, a maximum surge current of 90,000A, and a maximum surge voltage of 6000V. It also features a 120 VAC / 20A electrical capacity at 60 Hz, an integrated 15' power cord with a NEMA 5-20P plug, EMI/RFI noise filtration between 150 kHz and 150 MHz with attenuation up to 50 dB, clamping voltage of 400V (N-H, N-G) or 500V (L-G), a response time of 1 ns, and a durable metal housing. Depending on your needs, this item can be mounted horizontally or vertically. Additionally, three LEDs alert users as to the status of the unit's power, ground, and surge protection status. General Features - Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage
- EMI/RFI Noise Filter
- Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality
- Versatile Rackmount Options
- Enables the Rackbar to be installed vertically or horizontally in a 1 RU rackmount
- Power Management Features
- Built with network-grade plugs and outlets, plus an AC power cord
- Industrial-Grade Metal Housing
- Prolongs model life with a rugged casing made of impact-resistant material for increased durability
Typical Applications - Network closets and devices
UPC: 649532893539 In the Box CyberPower CPS1220RMS 12-Outlet Rackbar Surge Protector Adjustable Mounting Brackets Limited 3-Year Warranty (from date of purchase) Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CPS1220RMS 12-Outlet Rackbar Surge Protector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CPS1220RMS Specs | | | Wall Plug Type | NEMA 5-20P (Straight) | | Outlets | 12 x NEMA 5-20R | | USB Ports | None | | Ethernet | None | | Coaxial | None | | RJ11 | None | | | | AC Input Power | 120 VAC, 60 Hz | | Rated Current | 20 A | | Circuit Breaker | Yes | | Surge Energy Rating | 1800 Joules | | Maximum Spike Current | 90,000 A | | Maximum Spike Voltage | 6000 V | | Clamping Voltage | 400 V (Neutral to Ground, Phase (Hot) to Neutral)
500 V (Line to Ground) | | EMI/RFI Noise Filtration | 50 dB (150 kHz to 150 MHz) | | | | Certifications | ETL, RoHS, UL, as per Manufacturer | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | | | Cable Length | 15' / 4.57 m | | Material of Construction | Metal | | Cable Management | None | | Dimensions (L x W x H) | 1.5 x 17.5 x 1.8" / 3.8 x 44.5 x 4.6 cm | | Weight | 6.4 lb / 2.9 kg | | | | Package Weight | 6.95 lb | | Box Dimensions (LxWxH) | 20.3 x 9.8 x 2.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
