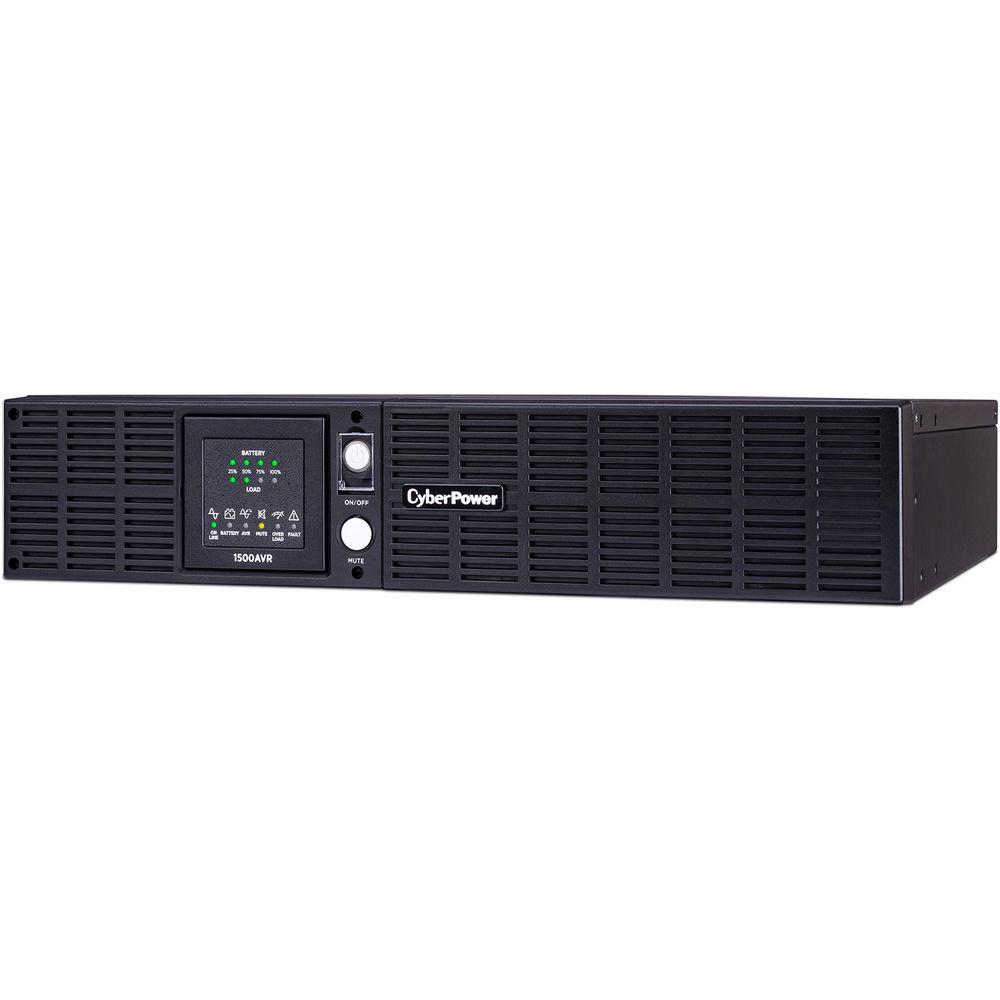

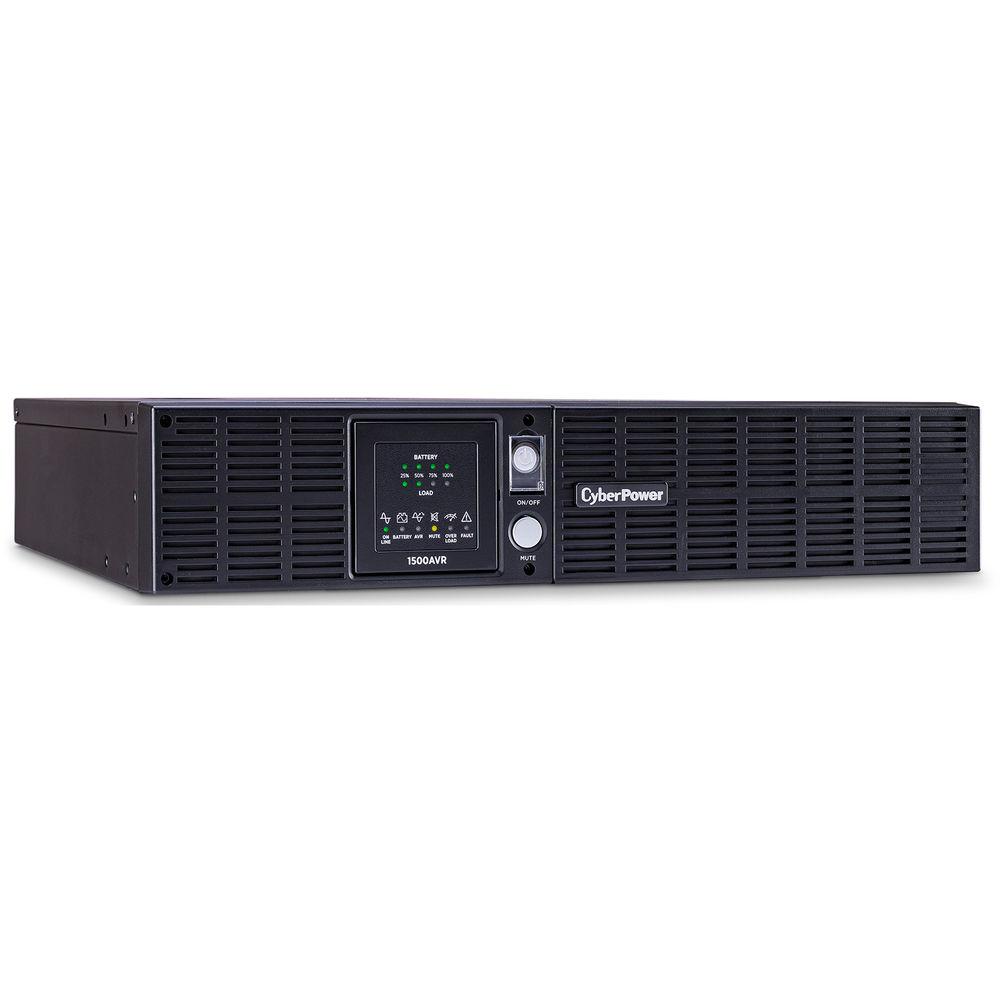

User Manual for CyberPower CPS1500AVR Smart App Equipped Uninterrupted Power Supply Click to enlarge the picture
Contents of the user manual for the CyberPower CPS1500AVR Smart App Equipped Uninterrupted
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower CPS1500AVR Smart App Equipped Uninterrupted contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

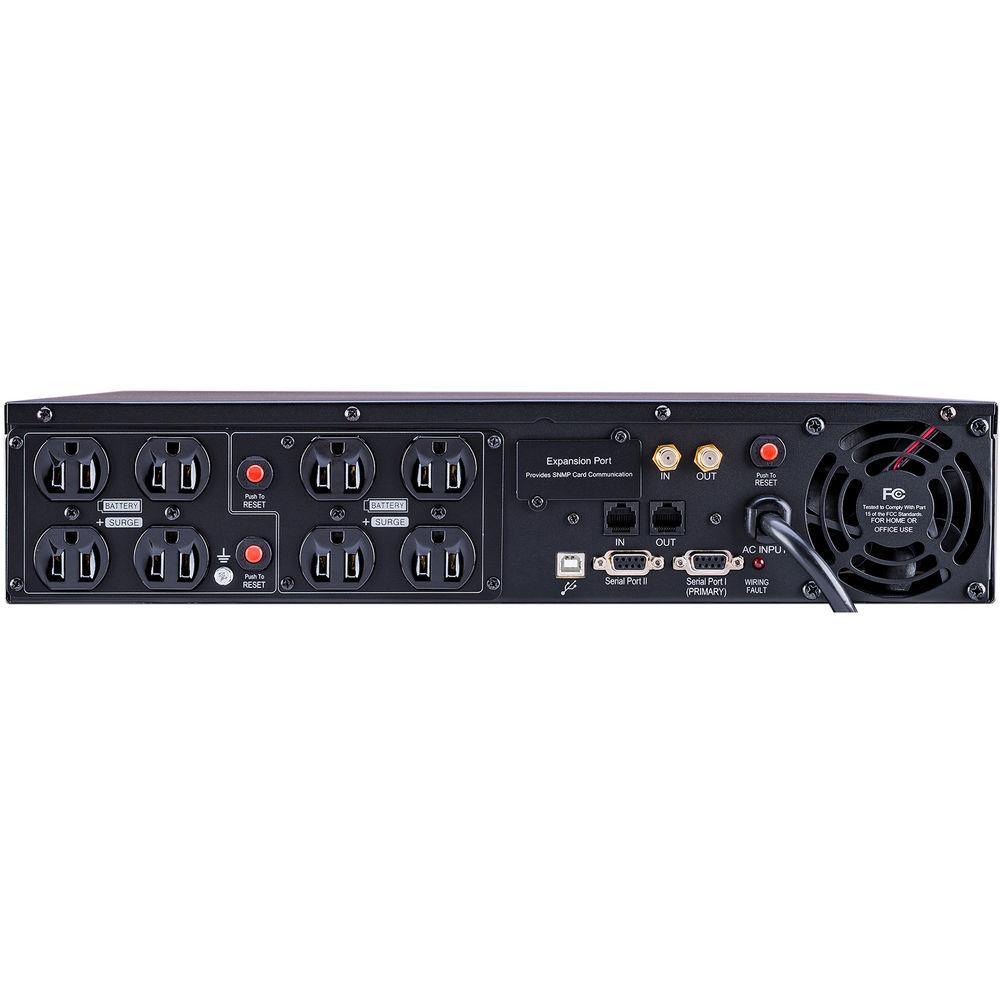

Product description The CPS1500AVR Smart App Equipped Uninterrupted Power Supply from CyberPower features eight battery- and surge-protected outlets complete with 900 watts of power. This uninterrupted power supply supports line-interactive technology to redirect the battery's DC current path from normal charging mode to supplying current when the power is lost. The replaceable battery provides up to 18 minutes of run time at half load and up to seven minutes of run time at full load, allowing your connected peripherals to be shut down properly. - Data Line Protection
- Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics
- Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage
- Line Interactive Topology
- Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery
- Automatic Voltage Regulation (AVR)
- Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations
- Simulated Sine Wave Output
- Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output
- Rack/Tower Versatility
- Allows for horizontal rack or vertical tower installation
- LED Status Lights
- Indicate Power On and Wiring Fault
- PowerPanel Business Edition Software (Included)
- Provides IT professionals with tools for monitoring and managing the UPS and backup power, also offers remote management functionality
- Applications
- Department servers, corporate servers, workstations, network devices, and telecom installations
UPC: 649532815005 In the Box CyberPower CPS1500AVR Smart App Equipped Uninterrupted Power Supply Rack Mount Brackets Telephone Cable PowerPanel Business Edition Software Download Card Serial Interface Cable (DB-9) USB A+B Type Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CPS1500AVR Smart App Equipped Uninterrupted Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CPS1500AVR Specs | | | Total Outlets | 8 x NEMA 5-15R | | Protected Outlets | 8 (Battery and Surge) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Coax Protection | 1-In
1-Out | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1840 Joules | | Maximum Wattage | 900 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Range | 90 to 140 VAC | | Input Frequency | 50/60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 1% | | Load Capacity | 1500 VA | | Waveform | Simulated Sine Wave | | | | Cells | 4 | | Capacity | 84 Wh (7 Ah / 12 V) | | Full-Load Runtime | 7 Minutes | | Half-Load Runtime | 18 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB1270X4F
RB1270X4E (With serial numbers beginning with 'BB') | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3048 m | | Storage Altitude | 50,000' / 15,240 m | | Certifications | FCC, UL, cUL, as per Manufacturer | | | | Cable Length | 10' / 3.05 m | | Dimensions (W x H x D) | 17.3 x 3.5 x 15.8" / 43.9 x 8.9 x 40.1 cm | | Weight | 50.5 lb / 22.9 kg | | | | Package Weight | 53.7 lb | | Box Dimensions (LxWxH) | 21.0 x 20.2 x 11.5" |
