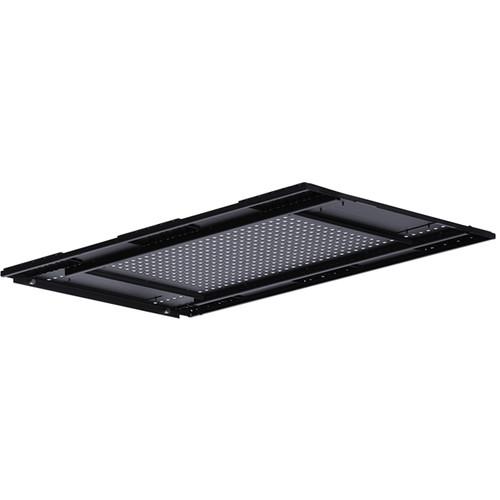

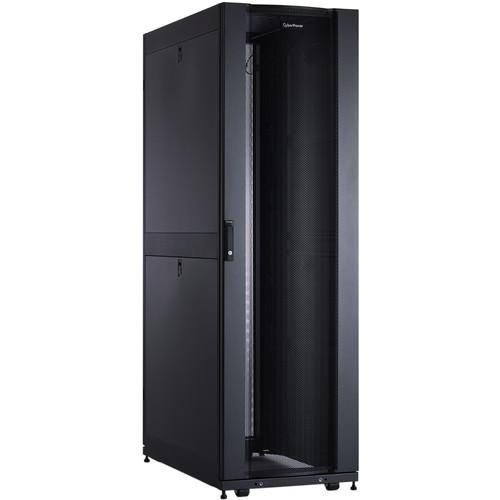

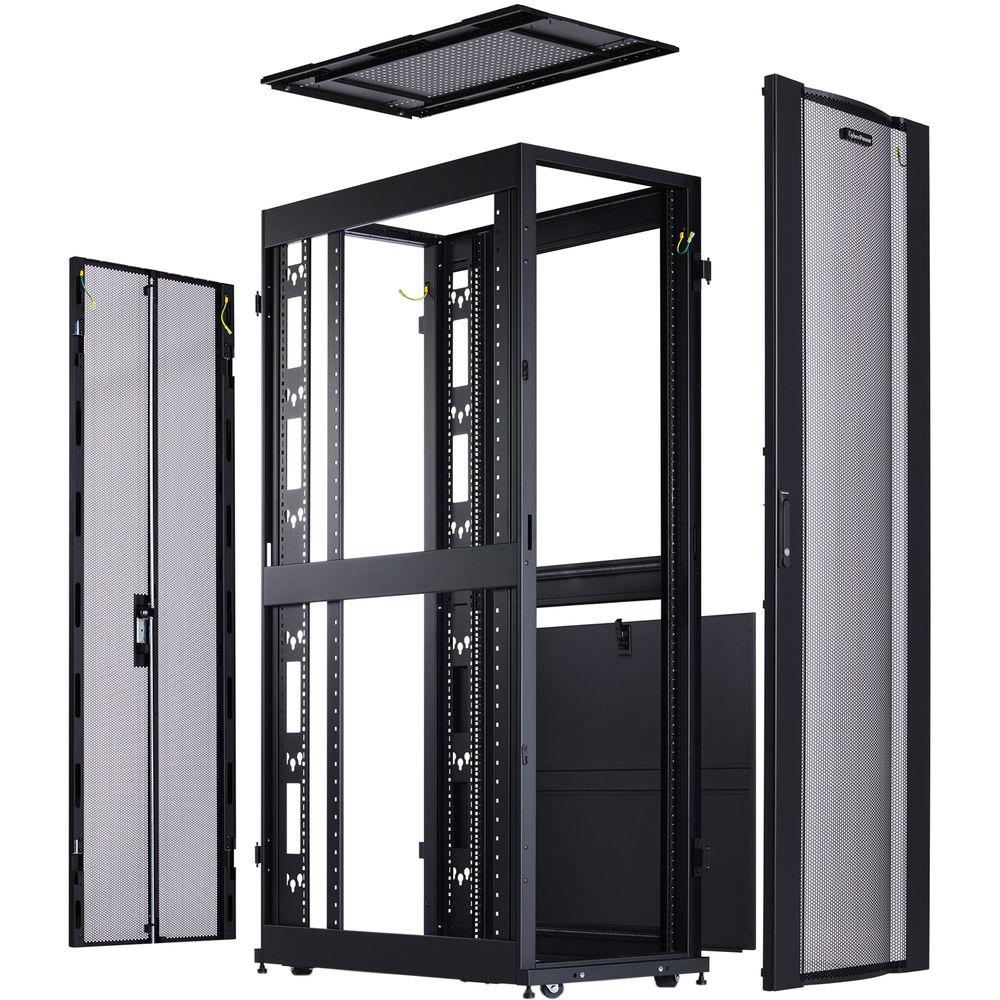

Product description The CR42U11001 from CyberPower is a 42 RU Carbon-Series rack enclosure designed to securely house and protect EIA-310 compliant 19” equipment for technicians and engineers in network applications, lab and test systems, and high-density server installations. The built-in rails provide 42 numbered rack spaces and adjustable rack angles.The roof, doors, and side panels can be removed to suit access or ventilation requirements. The front and rear doors are perforated metal, which provides airflow for equipment cooling. Split rear doors allow full door swing with only 12.5” of clearance. For increased security, the doors and side panels are lockable.Pre-installed casters and leveling feet deliver stability and ease of movement. Cable access openings and rear accessory channels greatly simplify cable management. The rack’s integrated electrical grounding features multiple points for facility grounding, and quick-release ground wires for the doors. - Removable Roof
- The roof can be removed easily with simple pull pin hinges for access during equipment installation-even with cabling already in place and routed through the cable openings

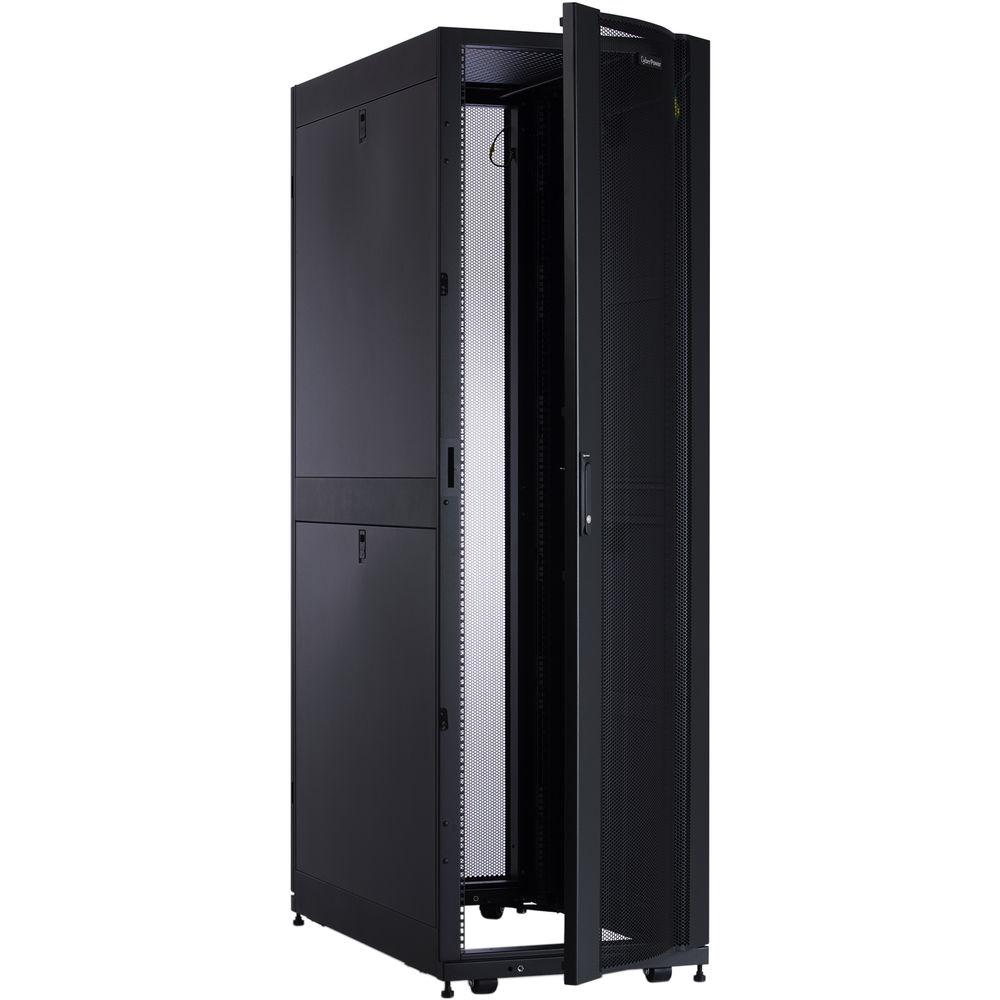

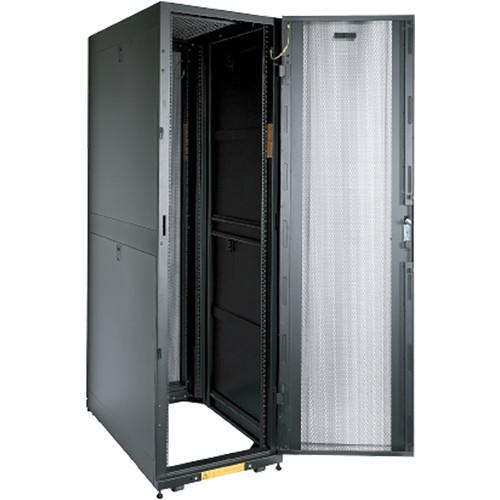

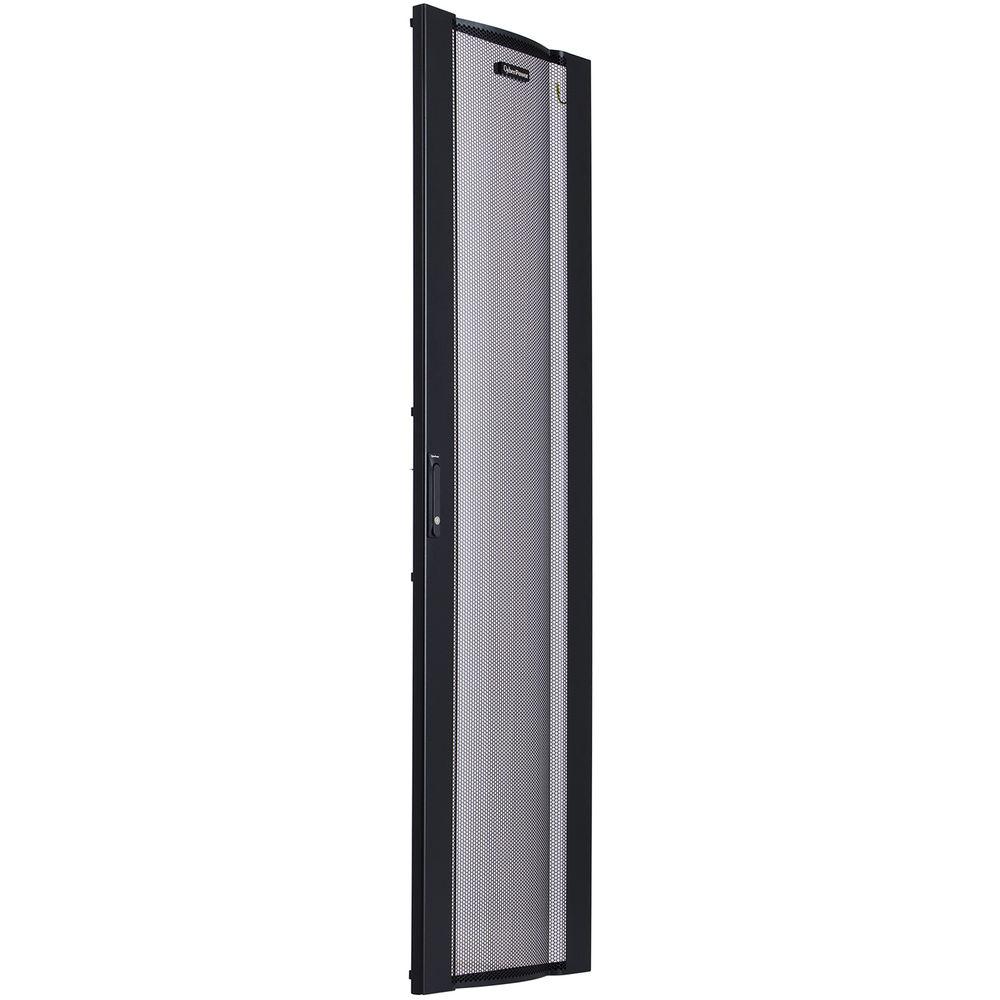

- Perforated Front Door with Curved Profile
- Perforated front and rear doors provide ventilation for servers and networking equipment
- Reversible Door
- The front door has a simple lift off design for easy removal and reverse installation
- Cable Access Openings
- Large toolless cable access slots in the roof provide access for overhead cable egress. The bottom design allows for unobstructed cable access through a raised floor
- Rack Mounting Compatibility
- Rack is compatible with all EIA-310 compliant 19" equipment

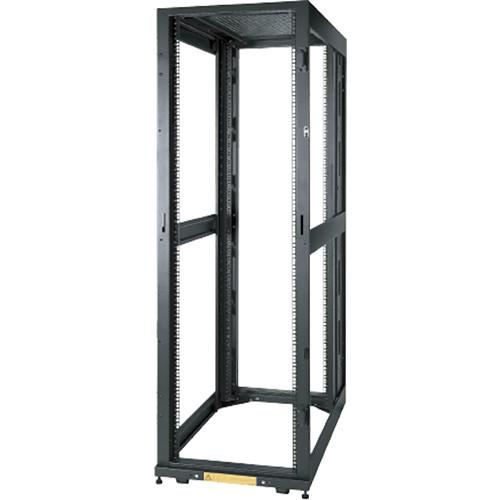

- Adjustable Rack Angles
- Vertical rack angles can be adjusted in 1/4" increments for mounting depth requirements up to 36". Depth index numbering ensures quick and consistent rail placement. Rack units are numbered front and back for easy equipment installation

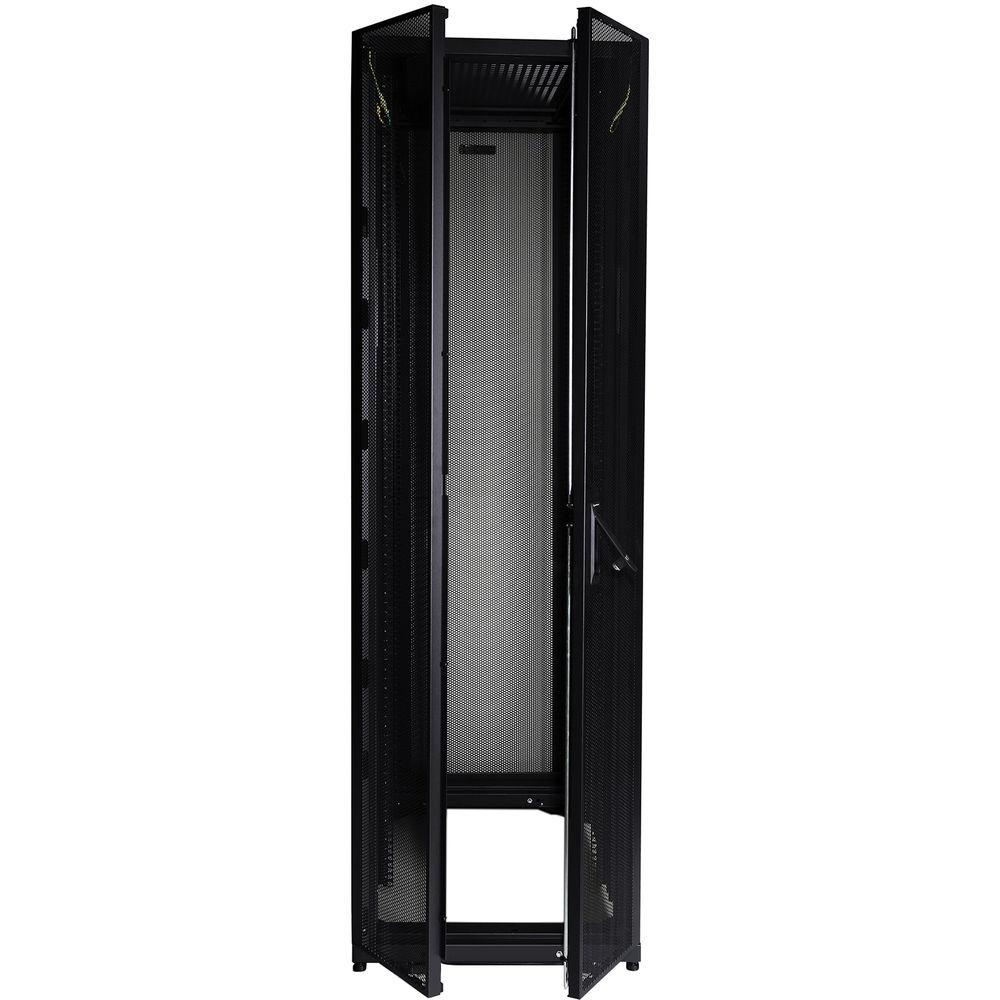

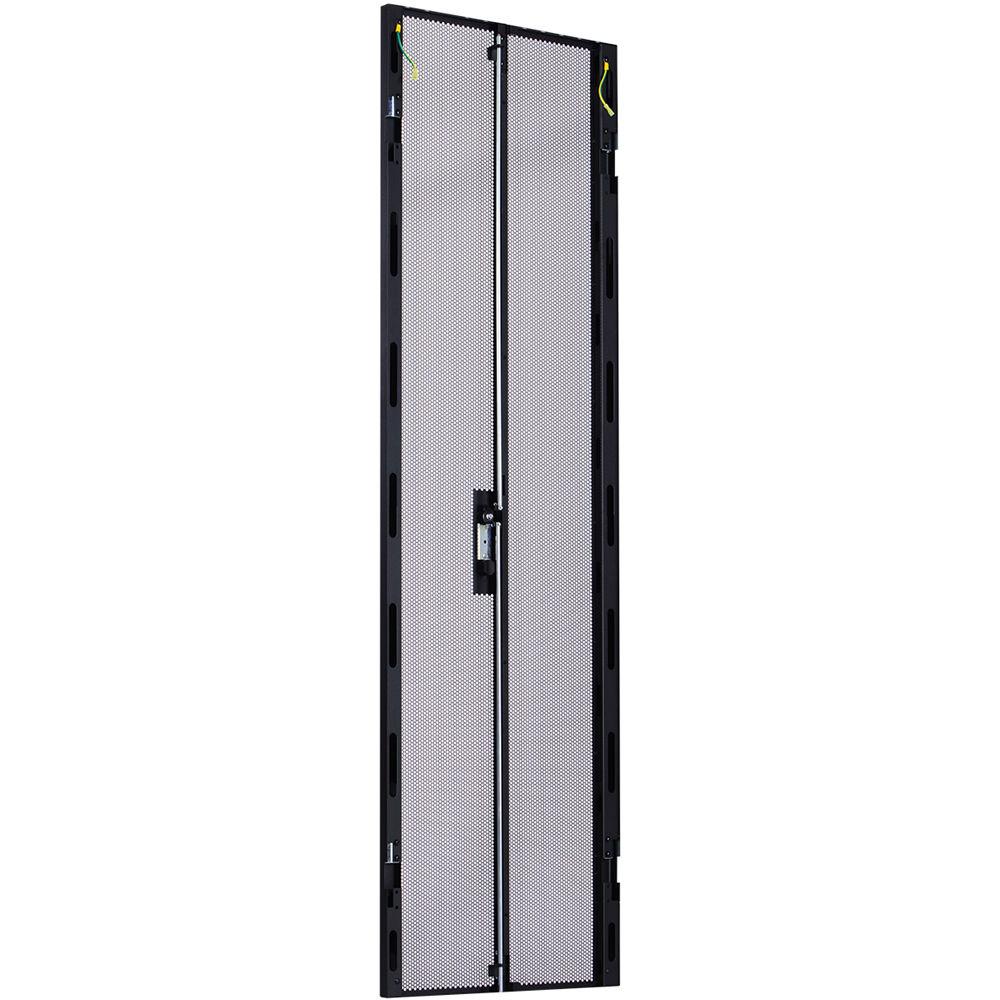

- Split Rear Doors
- Split rear doors improve equipment access and reduce floor space requirements. Only 12.5" of clearance is needed behind the enclosures to allow for door swing

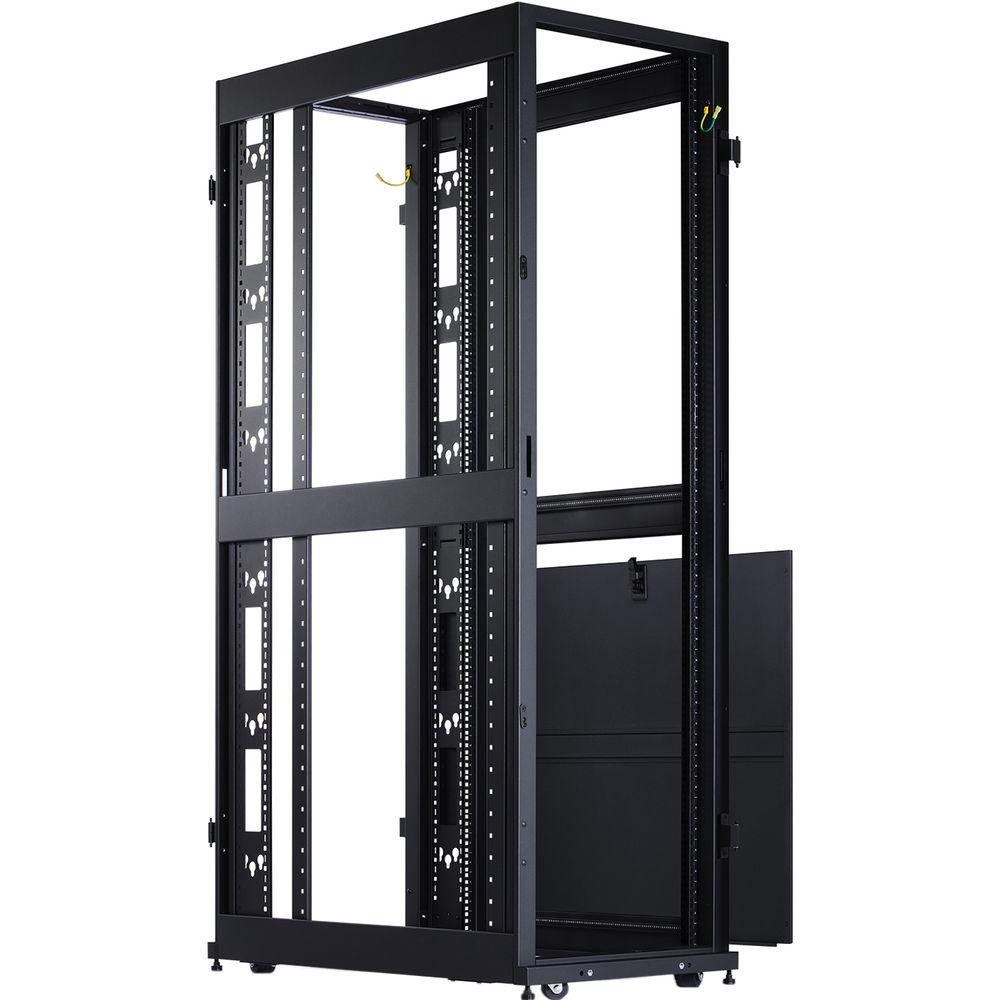

- Rear Accessory Channels
- Rear accessory channels extend the full height of the enclosure. These integrated, adjustable channels provide zero RU mounting locations for toolless accessories. Mounting slots are arranged in an industry-standard pattern compatible with a variety of accessories. Each channel can accommodate two vertical PDUs or cable managers side by side (four items per enclosure). Channels are pre-installed in the rear of the enclosure but can be moved to other locations
- Enhanced Stability Design
- A high-precision frame design, heavy-gauge mounting rails, and casters provide for 3000-lb static (leveling feet) and 2250-lb dynamic (caster) load ratings
- Rack Row Bolt Hardware
- Adjacent enclosures can be joined at 24" centers to match standard data center floor tiles
- Integrated Electrical Grounding
- The roof, side panels, and doors are grounded to the enclosure frame, which has multiple connections for facility grounding. Front and rear doors include quick-release ground wires
UPC: 649532616329 In the Box CyberPower CR42U11001 Carbon Series 42 RU Rack Enclosure Keys Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CR42U11001 Carbon Series 42 RU Rack Enclosure in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CR42U11001 Specs | Rack Height | 42 RU | | Color | Black RAL 9005 powder coat paint | | Door Type | Hex perforated metal door | | Mounting Holes | Square | | Weight Capacity | Stationary Load: 3000 lb / 1360.8 kg
Dynamic Load: 2250 lb / 1020.6 kg | | Mounting Depth | Factory Default: 28.3" / 72 cm
Minimum: 5.6" / 14.3 cm
Maximum: 35.6" / 90.5 cm | | Special Features | Numbered rack units
Pre-installed leveling feet
Pre-installed rolling casters
Stabilization brackets
In-row rack connection brackets
Removable roof
Removable doors and side panels
Reversible front door
Lockable doors and side panels
Perforated doors
Ventilated roof
PE grounding point | | Protection Class | IP20 | | Certifications | Safety: CE
Approvals: DIN41491, DIN41494, EIA/ECA-310-E, IEC 294-2, and RoHS | | Dimensions (W x H x D) | 23.6 x 78.4 x 42.1" / 60.0 x 199.2 x 107.0 cm | | Weight | 282 lb / 128 kg | | | | Package Weight | 322.0 lb | | Box Dimensions (LxWxH) | 83.0 x 44.0 x 25.0" |
