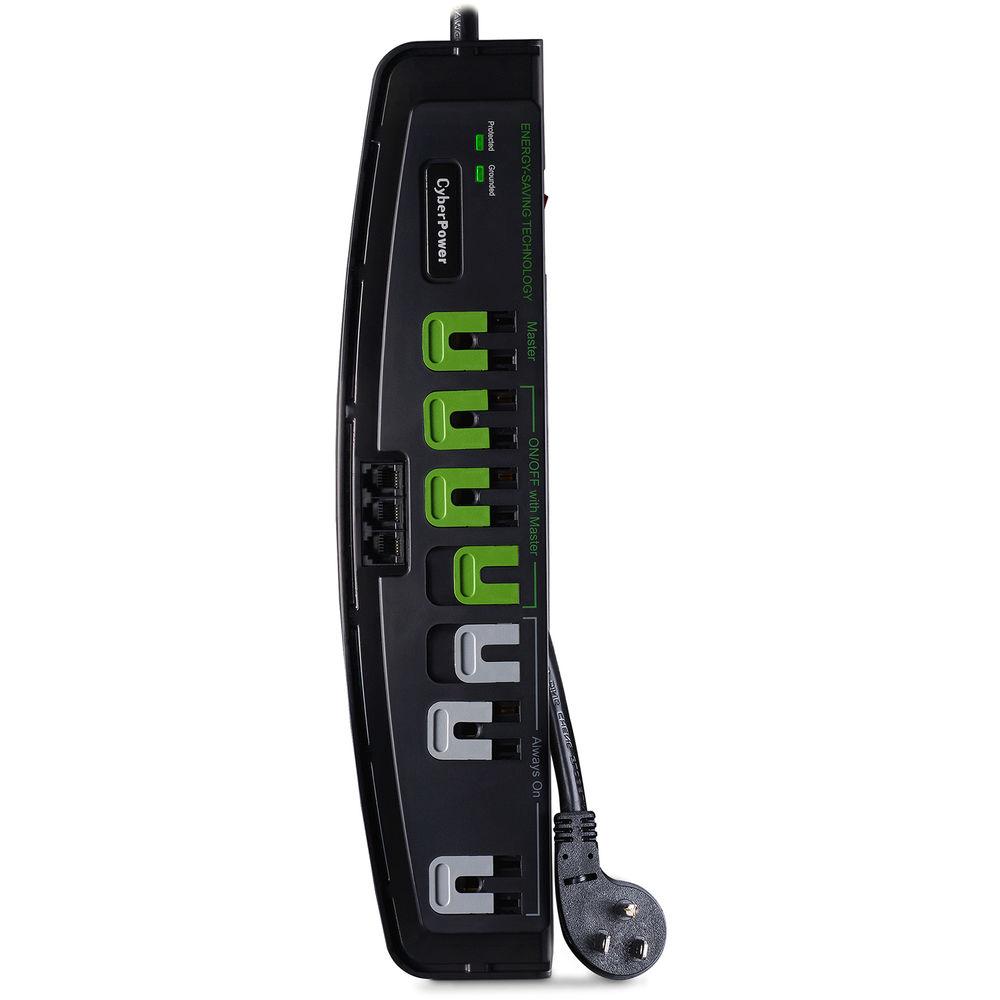

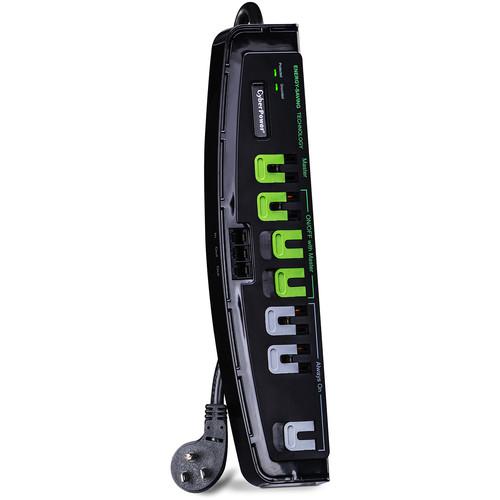

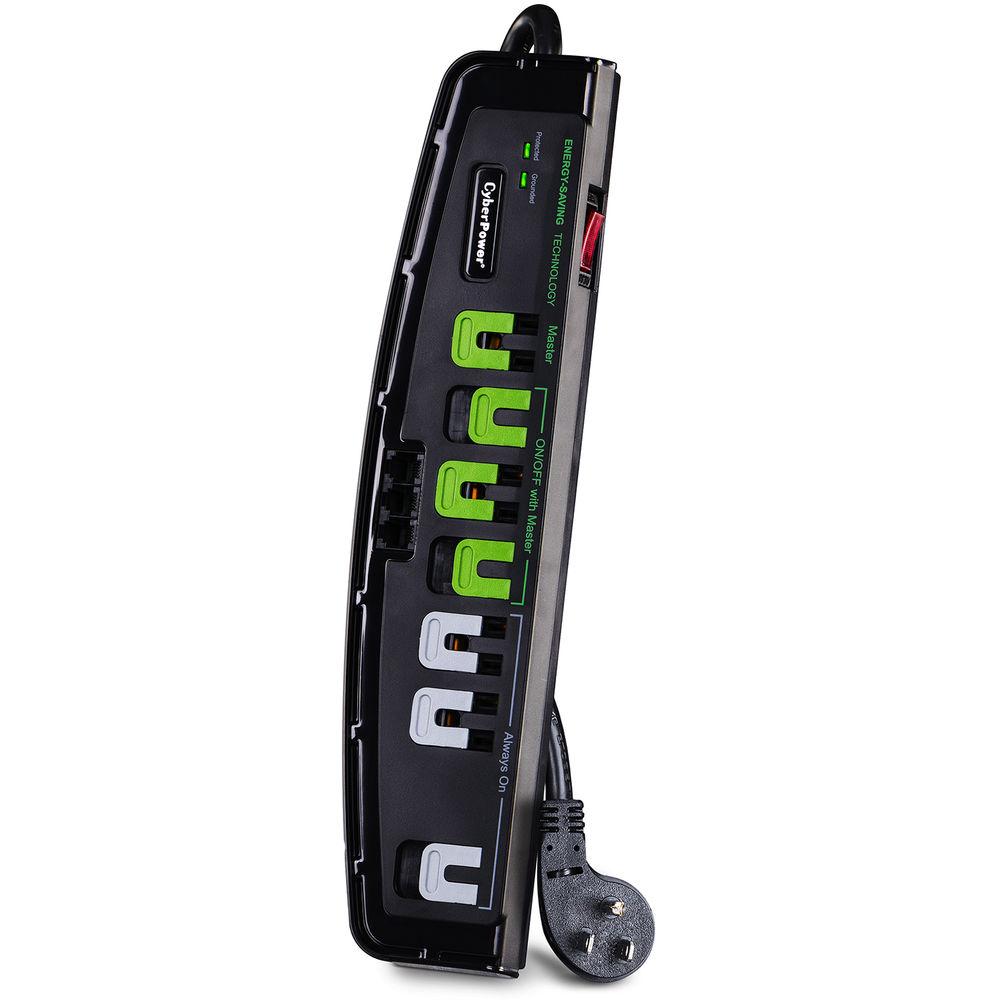

Product description Protect a variety of electrical equipment including computers, phones, fax machines, modems, and consumer electronics from harmful electrical spikes with the CSP706TG 7-Outlet Professional Surge Protector with Energy Saving Outlets from CyberPower. This seven outlet surge protector features 2250 joules of surge protection along with data line protection through the integrated RJ-11 phone jack. Three of the seven outlets are designed to shut off power to attached devices when the master outlet is triggered to save energy.
The CSP706TG also supports data line protection, comes in an impact-resistant casing, supports metal oxide varistor (MOV) technology, and comes with an EMI/RFI noise filter. The CSP706TG 7-Outlet Professional Surge Protector is covered by a limited lifetime warranty while the included Connected Equipment Guarantee covers connected equipment up to $175,000. - Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Automatic Shutdown
- Protects connected electronics with the integrated circuit breaker, which automatically switches off in the event of an overload that exceeds the model's ability to suppress the signal.
- EMI/RFI Noise Filter
- Maintains clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
- Metal Oxide Varistor (MOV) Technology
- Allows normal current to pass through the device while diverting any surges/spikes through the ground circuit to safeguard connected electronics and the surge suppressor.
- LED Indicators
- Light to indicate the model's status: Protected and Grounded.
- Energy-Saving Outlets
- Automatically shuts off power to attached devices to save energy when the master outlet is triggered.
- Transformer-Spaced Outlets
- Accommodates transformer-based plugs without compromising the access of other outlets.
- Cord Management System
- Keeps cords neat and organized.
- Keyhole Slots
- Enable the model to be placed on a wall, under a desk, and in other configurations to optimize space and keep power cords out of the way.
- Impact-Resistant Casing
- Ensures maximum durability and prolongs the life of the model.
- Connected Equipment Guarantee
- CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
- Limited Lifetime Warranty
- Covers defects in materials and workmanship in the product under normal use and conditions.
UPC: 649532603602 In the Box CyberPower CSP706T 7-Outlet Professional Surge Protector with Energy Saving Outlets Limited Lifetime Warranty More from Manufacturer wzzfcabqvwdadvxveeevwbav Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower CSP706T 7-Outlet Professional Surge Protector with Energy Saving Outlets in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CSP706TG Specs | Input | Voltage: 125 V
Plug Type: NEMA 5-15P
Plug Style: Right Angle, 45° Offset Right
Switch: Non Lighted On/Off - Reset
Circuit Breaker: 15 A
Cord Length: 6' / 1.8 m | | Output | Outlet Type: NEMA 5-15R
Total Outlets: 7
Widely Spaced Outlets: 1
Energy Saving Outlets: 3 | | Surge Protection and Filtering | Surge Suppression: 2250 joules
Maximum Surge Current: 105,000 amps
Maximum Surge Current H-N: 45,000 amps
Maximum Surge Current H-G: 30,000 amps
Maximum Surge Current N-G: 30,000 amps
Clamping Voltage:400 V (L-N, L-G, N-G)
Response Time: < 1 nanosecond
Phone Protection RJ-11: 1-In, 2-Out
EMI/RFI Filtration: 150 kHz - 100 MHz
Attenuation: Up to 43 dB | | Indicators | Protected (green)
Grounded (green) | | Certifications | Safety: UL1363 and UL1449 3rd Edition
cUL
Environmental: RoHS Compliant | | CEG Amount | Connected Equipment Guarantee: Lifetime
CEG Amount: $175,000 | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 13.8 x 4.6 x 2.2" |
