User Manual for CyberPower EC750G Ecologic Series Uninterruptible Power Supply Click to enlarge the picture
Contents of the user manual for the CyberPower EC750G Ecologic Series Uninterruptible Power
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower EC750G Ecologic Series Uninterruptible Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

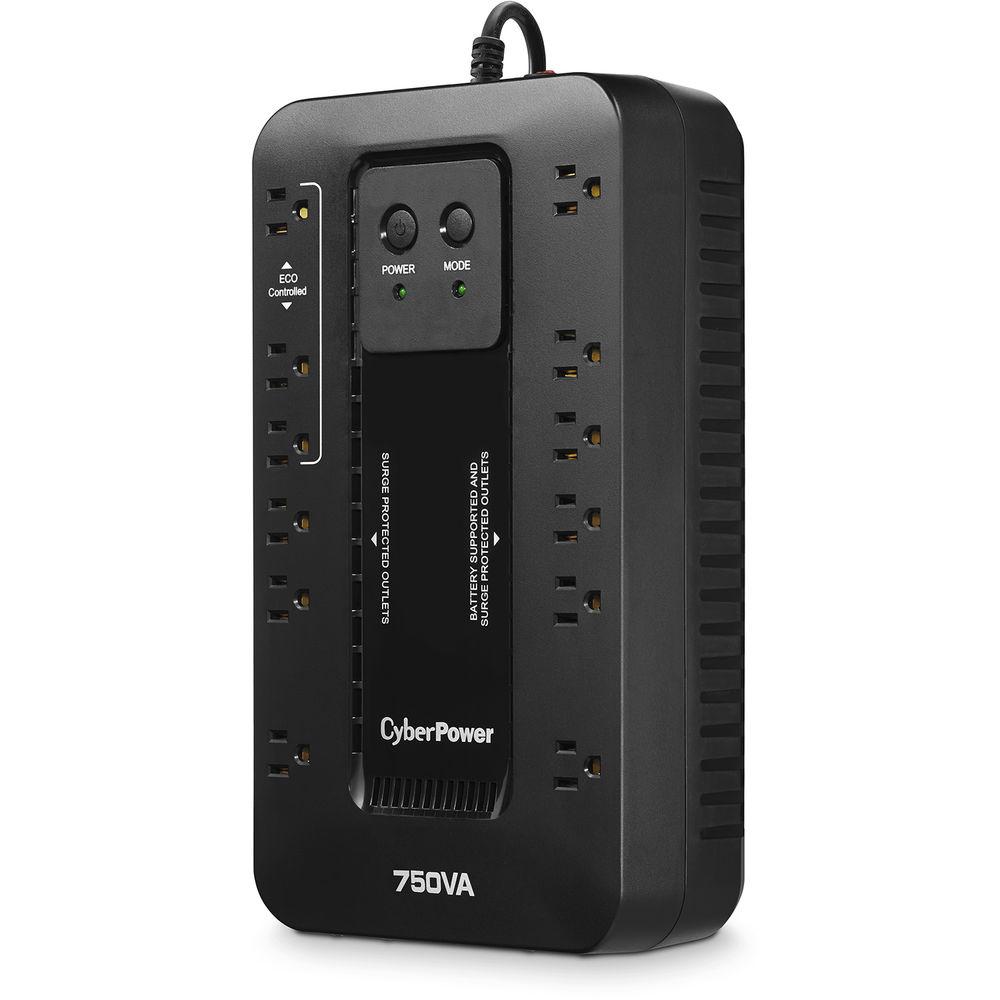

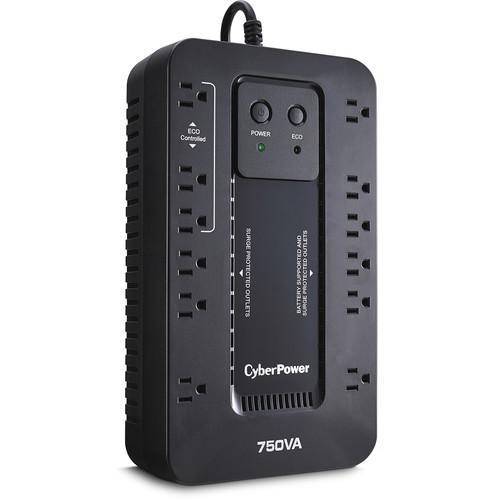

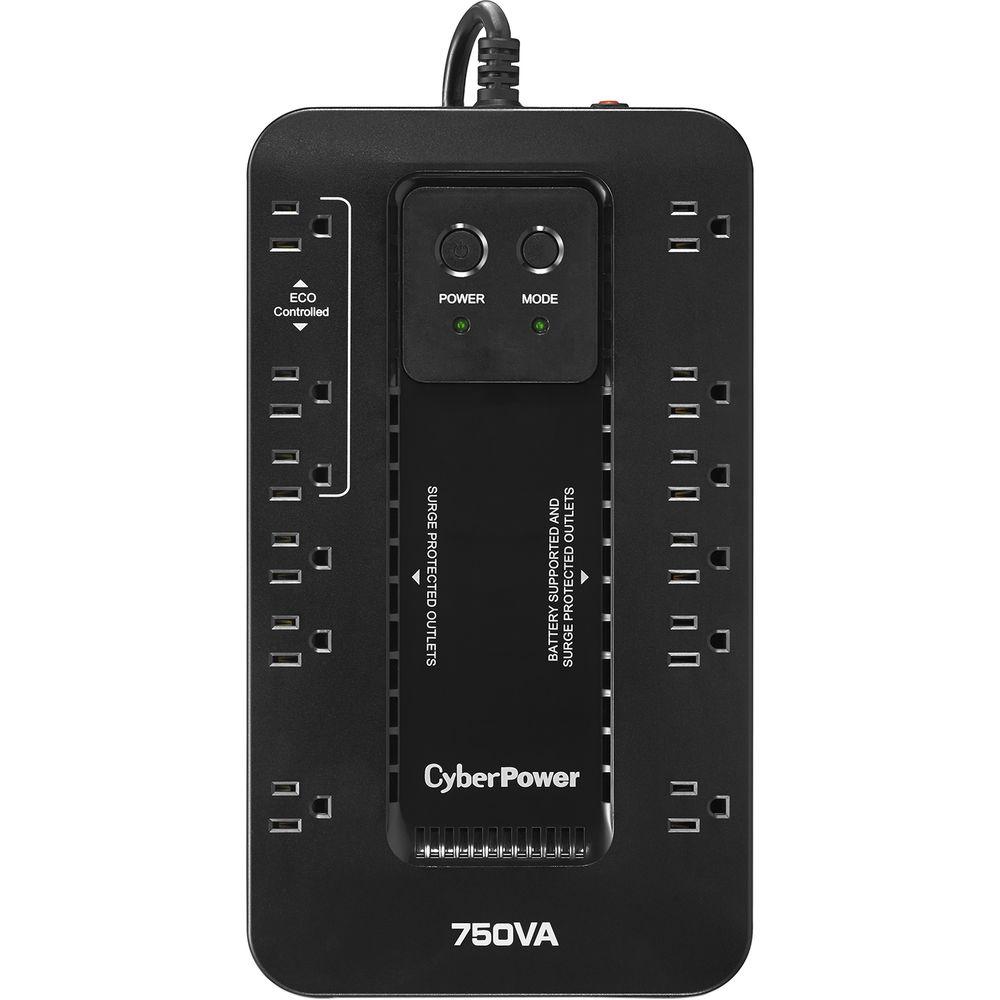

Product description The EC750G Ecologic Series Uninterruptible Power Supply from CyberPower comes equipped with twelve electrical outlets. Three of these outlets are eco controlled outlets designed to conserve energy by cutting power to USB connected peripherals when that computer is in sleep mode. This UPS also comes equipped with six battery- and surge-protected outlets and six surge-only protected outlets, providing both surge protection and battery backup in the case of a power interruption.
The included sealed lead-acid battery comes with a typical recharge time of 8 hours and is capable of an 8.8 minute run time at 225W and 1.7 minutes at 450W. The integrated surge protected outlets are capable of absorbing up to 526 Joules keeping your attached electrical devices safe from harmful spikes in electrical current. Also included with this UPS is CyberPower's own PowerPanel Personal Edition software. When this software is used with a compatible Windows-based PC, you can instruct the PowerPanel software to save open files, set the machine to hibernate mode, and eventually safely shut down the PC when the backup battery is depleted. - ECO Mode
- The user selectable ECO mode removes power to computer peripherals connected to the ECO designated outlets when the UPS detects the computer, connected to the UPS via USB, is turned off or in sleep mode. This results in additional cost savings by eliminating the power consumption of idle devices.
- Energy-Saving Technology
- This ENERGY STAR qualified UPS system utilizes CyberPower's own patented GreenPower UPS High Efficiency design to reduce power consumption by increasing power efficiency to greater than 98% to save costs and reduce emissions.
- Ultra-Quiet Operation
- This uninterruptable power supply comes with reduced sound emissions.
- EMI/RFI Filters
- Shielding against electromagnetic interference and radio frequency signals prevents line noise ("humming") over telephone lines or audio systems.
- Transformer-Spaced Outlets
- Widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets.
- USB Connectivity
- The integrated HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS.
- Convenient Mounting
- Compact size for mounting horizontal or vertical.
- LED Indicators
- LED status lights indicate Power-On and ECO on/off.
- Audible Alarms
- Distinctive tones identify when the unit is running on battery power, if it is overloaded or when the battery is low.
- Resettable Circuit Breaker
- The user may use this convenient unit reset switch in case of an overload.
- PowerPanel Personal Edition
- In the event of a power outage, PowerPanel Personal Edition saves open files and "hibernates" the PC to increase the run-time on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. Diagnostic screens display the status of the UPS, including silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging and scheduled shutdowns.
- Windows Compatibility
- The included PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008, and Server 2012.
UPC: 649532607587 In the Box CyberPower EC750G Ecologic Series Uninterruptible Power Supply Limited 3-Year Warranty More from Manufacturer ywtzwywrvedfysbtvbecew Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower EC750G Ecologic Series Uninterruptible Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower EC750G Specs | | | Total Outlets | 12 (4 Transformer-Sized) | | Protected Outlets | 6 (Battery and Surge)
6 (Surge Only) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Communications | USB | | Topology | Standby | | Transfer Time | 4 ms | | | | Surge Energy Rating | 526 Joules | | Maximum Wattage | 450 W | | Input Voltage Adjustable Range | 96 to 140 VAC | | Input Frequency | 50/60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 1% (Auto Sensing) | | Load Capacity | 750 VA | | Waveform | Simulated Sine Wave | | | | Chemistry | Lead-Acid | | Full-Load Runtime | 1 Minute | | Half-Load Runtime | 8 Minutes | | Charging Time | 8 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 5' / 1.5 m | | Dimensions (W x H x D) | 12.2 x 3.1 x 7.0" / 31.0 x 7.9 x 17.8 cm | | Weight | 7.7 lb / 3.5 kg | | | | Package Weight | 9.2 lb | | Box Dimensions (LxWxH) | 15.0 x 10.0 x 4.5" |
