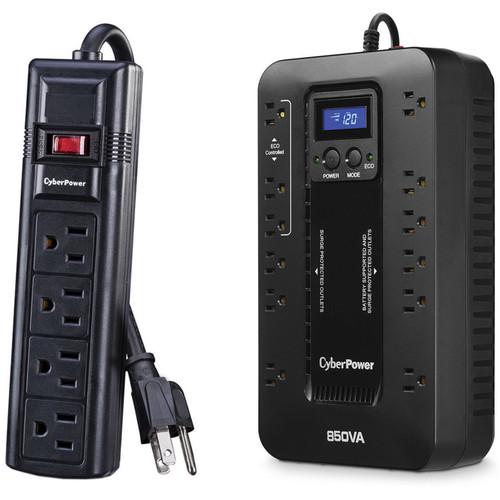

CyberPower EC850LCD Uninterruptible Power Supply and

User Manual for CyberPower EC850LCD Uninterruptible Power Supply and CyberPower CSB404 4-Outlet Surge Protector

• Product category: UPS Backup CyberPower
• Brand: CyberPower
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for CyberPower UPS Backup

Product description

• CyberPower EC850LCD Ecologic Series Uninterruptible Power Supply The EC850LCD Ecologic Series Uninterruptible Power Supply from CyberPower comes equipped with twelve electrical outlets. Three of these outlets are eco controlled outlets designed to conserve energy by cutting power to USB connected peripherals when that computer is in sleep mode. This UPS also comes equipped with six battery- and surge-protected outlets and six surge-only protected outlets, providing both surge protection and battery backup in the case of a power interruption. The integrated LCD display lets you view a variety of characteristics within the UPS including input and output voltage levels, battery capacity, load capacity, and more.

  The included sealed lead-acid battery comes with a typical recharge time of 8 hours along with a 10.4 minute run time at 210W and 2.15 minutes at 425W. The integrated surge protected outlets are capable of absorbing up to 526 Joules keeping your attached electrical devices safe from harmful spikes in electrical current. Also included with this UPS is CyberPower's own PowerPanel Personal Edition software. When this software is used with a compatible Windows-based PC, you can instruct the PowerPanel software to save open files, set the machine to hibernate mode, and safely shut down the PC when the backup battery is depleted.
  ECO Mode
  • The user selectable ECO mode removes power to computer peripherals connected to the ECO designated outlets when the UPS detects the computer, connected to the UPS via USB, is turned off or in sleep mode. This results in additional cost savings by eliminating the power consumption of idle devices.
  Intelligent Multifunction Diagnostic Display
  • With an integrated front panel display, you can view multiple UPS vitals including input voltage level, output voltage level, battery capacity, runtime estimate, load capacity, normal mode, battery mode, overload, and silent mode.
  Energy-Saving Technology
  • This ENERGY STAR qualified UPS system utilizes CyberPower's own patented GreenPower UPS High Efficiency design to reduce power consumption by increasing power efficiency to greater than 98% to save costs and reduce emissions.
  Ultra-Quiet Operation
  • This uninterruptable power supply comes with reduced sound emissions.
  EMI/RFI Filters
  • Shielding against electromagnetic interference and radio frequency signals prevents line noise ("humming") over telephone lines or audio systems.
  Transformer-Spaced Outlets
  • Widely-spaced outlets accommodate large transformer-based plugs without compromising the utility of other outlets.
  USB Connectivity
  • The integrated HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS.
  Convenient Mounting
  • Compact size for mounting horizontal or vertical.
  LED Indicators
  • LED status lights indicate Power-On and ECO on/off.
  Audible Alarms
  • Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low.
  Resettable Circuit Breaker
  • The user may use this convenient unit reset switch in case of an overload.
  PowerPanel Personal Edition
  • In the event of a power outage, PowerPanel Personal Edition saves open files and "hibernates" the PC to increase the run-time on the UPS unit. PowerPanel is easily installed on any Windows-based PC and uses minimal system resources. A siagnostic screen displays the status of the UPS, including silent operation mode, configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns.
  Windows Compatibility
  • The included PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008, and Server 2012.
  UPC: 649532607600
• CyberPower CSB404 4-Outlet Essential Series Surge Protector (Black) Protect and power up to four devices with the black 4-Outlet Essential Series Surge Protector from CyberPower. This surge protector provides 600 joules of protection to prevent damage from power surges and spikes to keep connected devices in your home or office safe. The 4' length of the power cord allows for a clean setup.
  Surge Protection
  • Diverts excess voltage away from electronic equipment during an AC power surge or spike to prevent damage
  Automatic Shutdown
  • Circuit breaker automatically switches off in the event of an overload
  EMI/RFI Noise Filter
  • Filters out electromagnetic and radio frequency interference to improve picture and sound quality
  Metal Oxide Varistor (MOV) Technology
  • Allows normal current to pass through the device, while diverting any surges and/or spikes through the ground circuit, to protect connected electronics and the surge suppressor
  Impact-Resistant Casing
  • Ensures durability and prolongs the life of the surge protector
  UPC: 649532603473

• EC850LCD Ecologic Series Uninterruptible Power Supply dyyceacrvdredf
• Limited 3-Year Warranty

• CSB404 4-Outlet Essential Series Surge Protector (Black)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CyberPower EC850LCD Ecologic Series Uninterruptible Power Supply

  Total Outlets	12 (4 Transformer-Sized)
  Protected Outlets	6 (Battery and Surge) 6 (Surge Only)
  Plug Type	NEMA 5-15P Offset Right-Angle
  Communications	USB
  Topology	Standby
  Transfer Time	4 ms

  Surge Energy Rating	526 Joules
  Maximum Wattage	510 W
  Input Voltage Adjustable Range	96 to 140 VAC
  Input Frequency	50/60 Hz ± 3 Hz
  Nominal Output Voltage	120 VAC
  Output Frequency	50/60 Hz ± 1% (Auto Sensing)
  Load Capacity	850 VA
  Waveform	Simulated Sine Wave

  Chemistry	Lead-Acid
  Full-Load Runtime	1 Minute
  Half-Load Runtime	6 Minutes
  Charging Time	8 Hours

  Operating Temperature	32 to 104°F / 0 to 40°C
  Operating Humidity	0 to 90%
  Storage Temperature	5 to 113°F / -15 to 45°C
  Storage Humidity	0 to 95%
  Operating Altitude	10,000' / 3000 m
  Storage Altitude	50,000' / 15,000 m
  Certifications	RoHS, as per Manufacturer

  Cable Length	5' / 1.5 m
  Dimensions (W x H x D)	12.2 x 3.1 x 7.0" / 31.0 x 7.9 x 17.8 cm
  Weight	7.7 lb / 3.5 kg

  Box Dimensions (LxWxH)	15.0 x 9.5 x 4.5"

• CyberPower CSB404 4-Outlet Essential Series Surge Protector (Black)

  Wall Plug Type	NEMA 5-15P
  Outlets	4
  USB Ports	None
  Ethernet	None
  Coaxial	None
  RJ11	None

  AC Input Power	125 VAC, 60 Hz
  Rated Current	15 A
  Surge Energy Rating	600 Joules
  Maximum Spike Current	30,000 A
  Clamping Response Time	< 1 ns
  EMI/RFI Noise Filtration	32 dB (150 kHz to 100 MHz)

  Cable Management	None

  Box Dimensions (LxWxH)	9.8 x 4.3 x 1.7"
