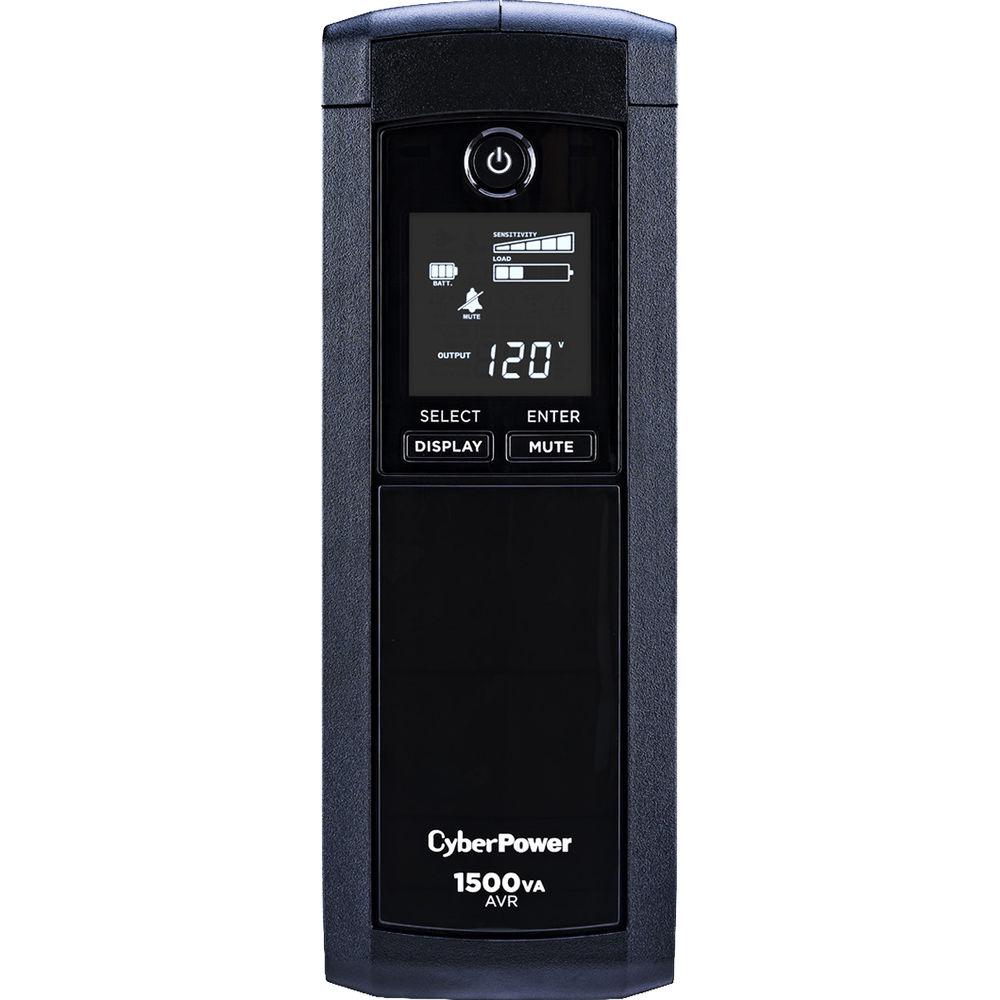

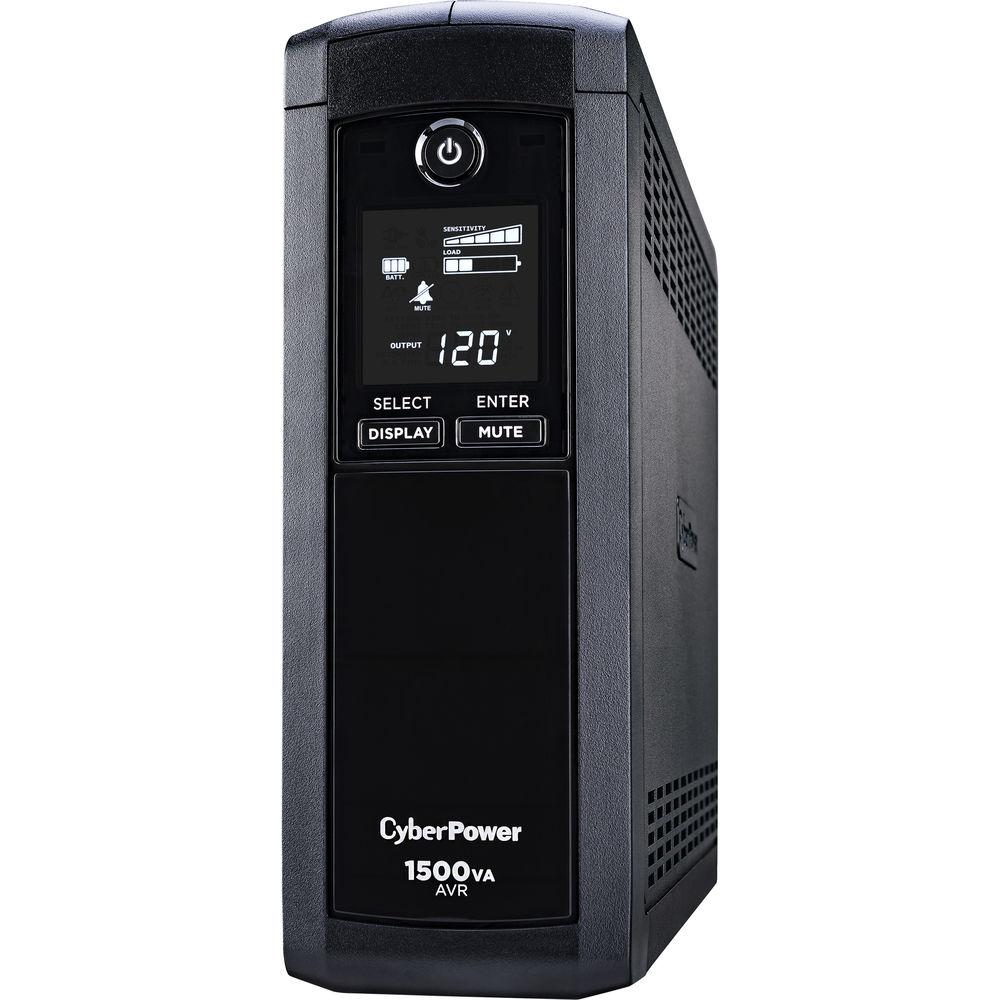

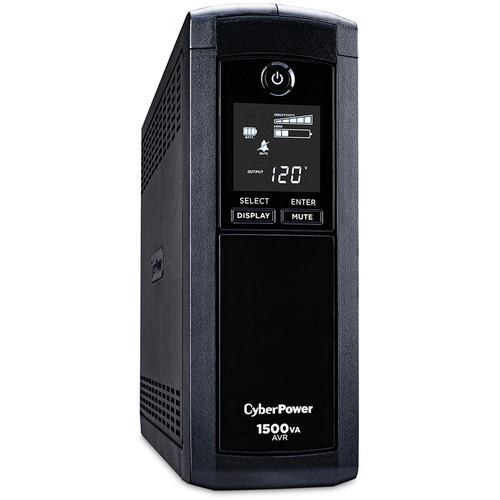

User Manual for CyberPower Intelligent LCD CP1500AVRLCD Uninterrupted Power Supply Click to enlarge the picture
Contents of the user manual for the CyberPower Intelligent LCD CP1500AVRLCD Uninterrupted Power
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower Intelligent LCD CP1500AVRLCD Uninterrupted Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|
Product description With a total of twelve outlets, the Intelligent LCD CP1500AVRLCD Uninterrupted Power Supply from CyberPower can handle your power needs for a variety of devices from computers to routers and modems, and much more. The twelve total outlets are broken down into six battery and surge protected outlets and six surge-only protected outlets. Among the twelve outlets, two are widely spaced, giving you the ability to use a variety of plug types with this uninterrupted power supply.
Once configured, you benefit from up to 12 minutes of runtime at half load and 3 minutes of run time at full load, with up to 1,500 joules of integrated surge protection. Aside from standard power outlets, this UPS also comes equipped with a 1-in, 1-out combo Phone RJ11 / Ethernet RJ45 port, a 1-in, 1-out coax port, a serial port, and a USB Type-B port. Included with this UPS is a USB Type-B to Type-A cable. General Features - Battery Backup
- Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Data Line Protection
- Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
- Line Interactive Topology
- Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation (AVR)
- Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
- Simulated Sine Wave Output
- Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power.
- GreenPower UPS Bypass Design
- Patented design allows utility power to bypass the UPS transformer when AC power is stable, which reduces energy consumption, noise, and heat buildup.
- Multifunction LCD Panel
- Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Quiet Design
- Minimizes noise during operation for a quieter work environment.
- PowerPanel Personal Edition Software
- Provides a user-friendly dashboard interface for controlling and monitoring the UPS. Free software download available.
- ENERGY STAR
- This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
- Three-Year Warranty
- CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date.
- Connected Equipment Guarantee
- CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
GreenPower UPS Technology - GreenPower
- GreenPower UPS Technology from CyberPower consists of three different energy-saving designs that improve operating efficiency, reduce heat generation, and consume less power than conventional UPS models.
- ECO Mode
- ECO Mode is a form of bypass technology that can be switched on full time, set for noncritical times (such as nights and weekends), or switched off. This flexibility can help conserve power and save money.
- Bypass Design
- Patented bypass design allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for substantial energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.
- High-Efficiency Design
- Decreases power consumption to create an ultra-efficient backup battery for home and office use.
Power Protection without the Noise - Power Protection
- CyberPower UPS systems harness high-efficiency ventilation, GreenPower UPS technology, and innovative system components to ensure ultra-quiet operation.
- Noise Filtering
- Noise filtering improves picture and sound quality in audio/video systems. CyberPower uses advanced EMI/RFI noise filtering coils to decrease problems caused by electromagnetic fields and radio frequency interference. The filters smooth minor current fluctuations which cause disruptive humming and static.
- Line Conditioning
- Line conditioning with automatic voltage regulation (AVR) prolongs the life of sensitive electronic equipment. AVR line conditioning adjusts the incoming AC voltage, keeping it within safe levels and reducing stress caused by power fluctuations.
Automatic Voltage Regulation (AVR) - Automatic Voltage Regulation
- Automatic Voltage Regulation (AVR) in line-interactive UPS systems stabilizes the incoming AC signal to maintain output power at a nominal 120V by controlling high and low voltages without resorting to battery power. This increases battery life and lessens the likelihood of data loss, memory freezes, and system crashes.
- How AVR Works in a Line Interactive UPS
- A line interactive UPS includes an AVR autotransformer, which is a special type of transformer designed to switch between powered coils of wire in response to variances in utility power input, thereby increasing or decreasing the magnetic field and the resulting output voltage to connected equipment.
This type of UPS tolerates undervoltage brownouts and overvoltage surges without consuming backup battery power by automatically selecting different power taps on the AVR autotransformer. During normal operation, incoming AC power bypasses the autotransformer (where voltage highs and lows are controlled) while also charging the battery. When the incoming voltage falls below the AVR range, the UPS switches to battery backup, and the DC-AC inverter circuitry is engaged. Power will continue to be supplied by the battery-inverter circuit until incoming voltage returns to the range manageable by the AVR. UPC: 649532015269 In the Box CyberPower Intelligent LCD CP1500AVRLCD Uninterrupted Power Supply USB Type-B to Type-A Cable $500,000 Connected Equipment Guarantee Limited Lifetime Connected Equipment Guarantee Limited 3-Year Warranty More from Manufacturer abdcxcutdyufuzdfwefrcbbsubawxeqxb Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower Intelligent LCD CP1500AVRLCD Uninterrupted Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower CP1500AVRLCD Specs | | | Total Outlets | 12 | | Protected Outlets | 6 (Battery and Surge) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Coax Protection | 1-In
1-Out | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1500 Joules | | Maximum Wattage | 900 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 90 to 142 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 1500 VA | | Waveform | Simulated Sine Wave | | | | Cells | 2 | | Capacity | 108 Wh (9 Ah / 12 V) | | Full-Load Runtime | 3 Minutes | | Half-Load Runtime | 12 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB1290X2 | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | | | Cable Length | 6' / 1.8 m | | Dimensions (W x H x D) | 3.9 x 11.0 x 14.0" / 9.9 x 27.9 x 35.6 cm | | Weight | 25.0 lb / 11.3 kg | | | | Package Weight | 26.5 lb | | Box Dimensions (LxWxH) | 16.9 x 13.9 x 7.5" |
