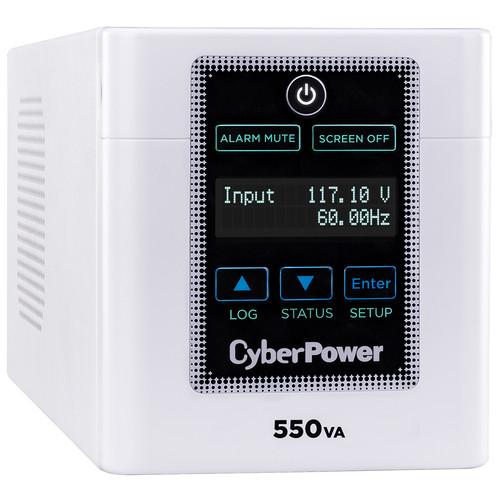

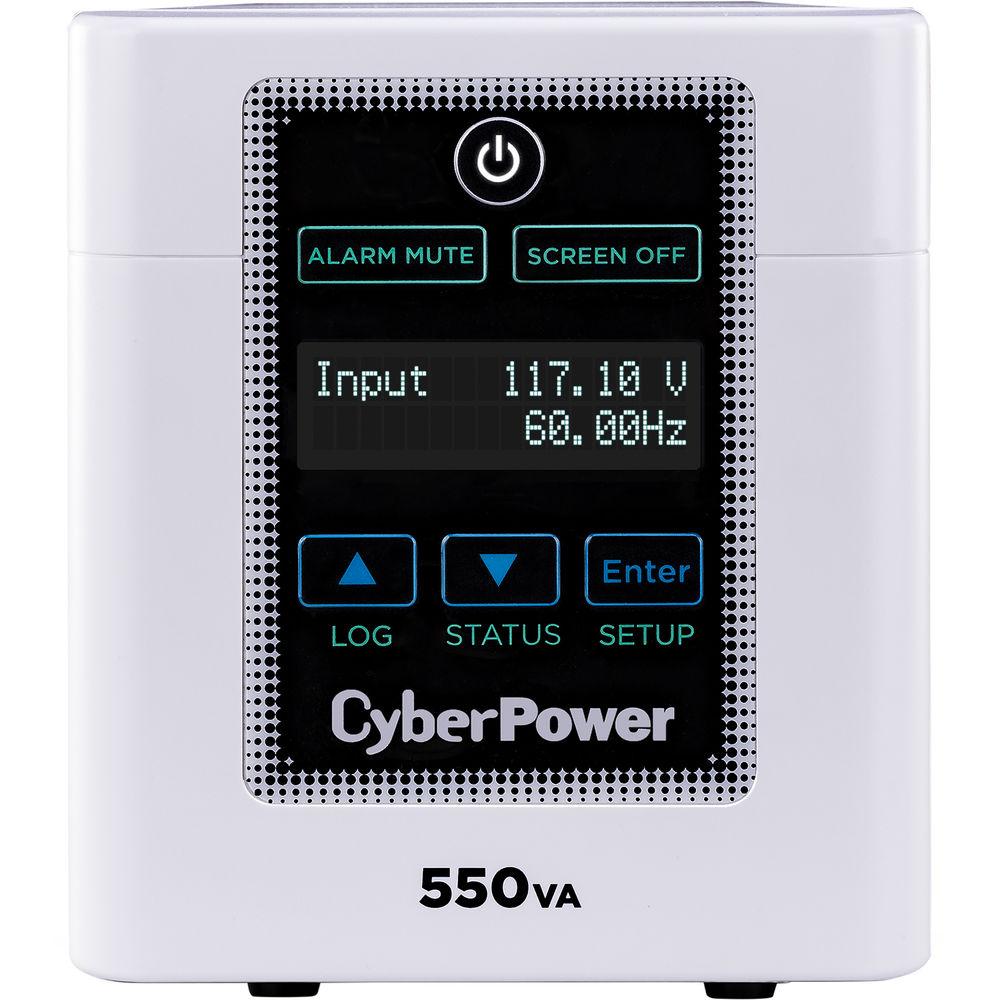

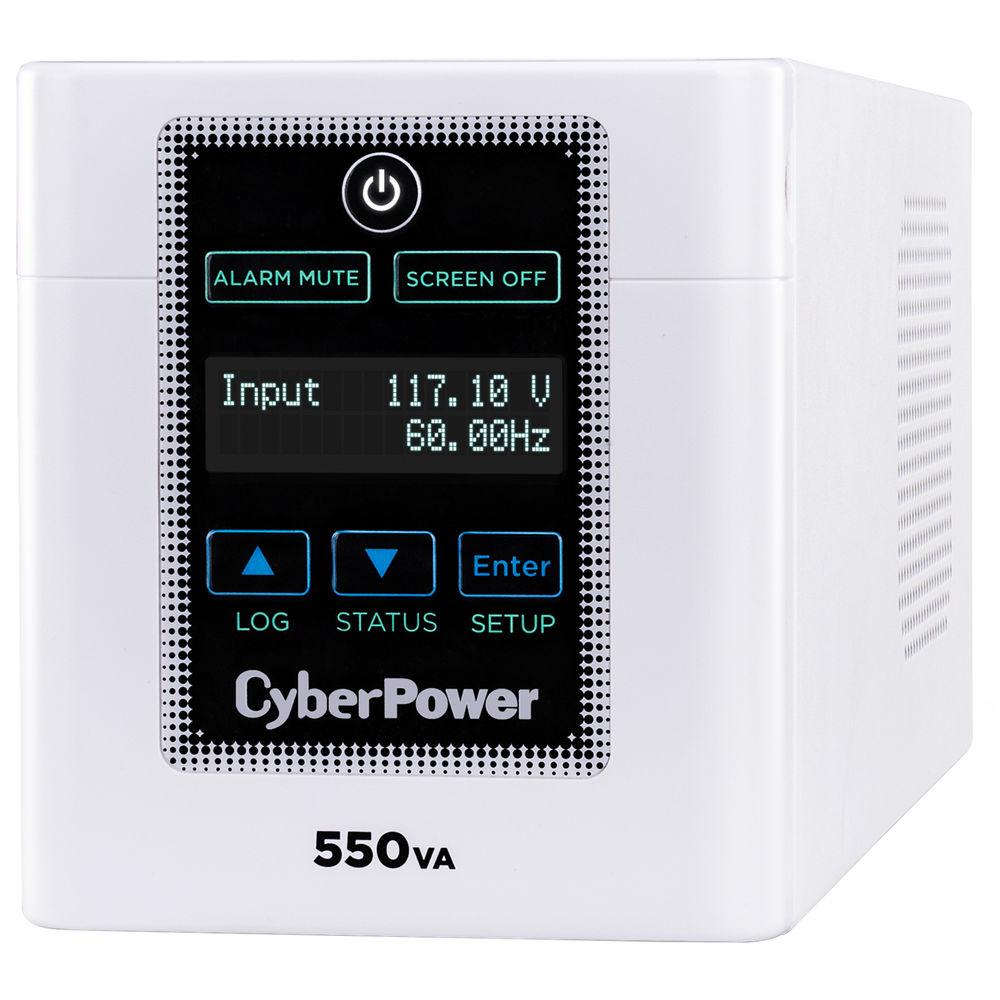

Product description The M550L Medical-Grade UPS from CyberPower delivers clean, consistent backup power to sensitive medical equipment in hospitals and healthcare facilities. Designed for use in patient care environments, the M550L has been tested to meet UL 60601-1 requirements and includes hospital-grade plugs and outlets. It also features a built-in isolation transformer to help minimize current leakage and eliminate line noise, plus a tip-resistant mini-tower design, replaceable batteries, and a sealed, spray-resistant LCD panel.
The M550L comes equipped with an output capacity of 550 VA / 440W, an input voltage range of 90-146 VAC @ 60 Hz, Automatic Voltage Regulation (AVR) to help correct minor power fluctuations, and also has integrated circuitry for EMI/RFI filters. The integrated LCD panel lets you monitor real-time UPS and battery vitals, alerting users to potential problems before they can affect critical equipment and cause downtime.

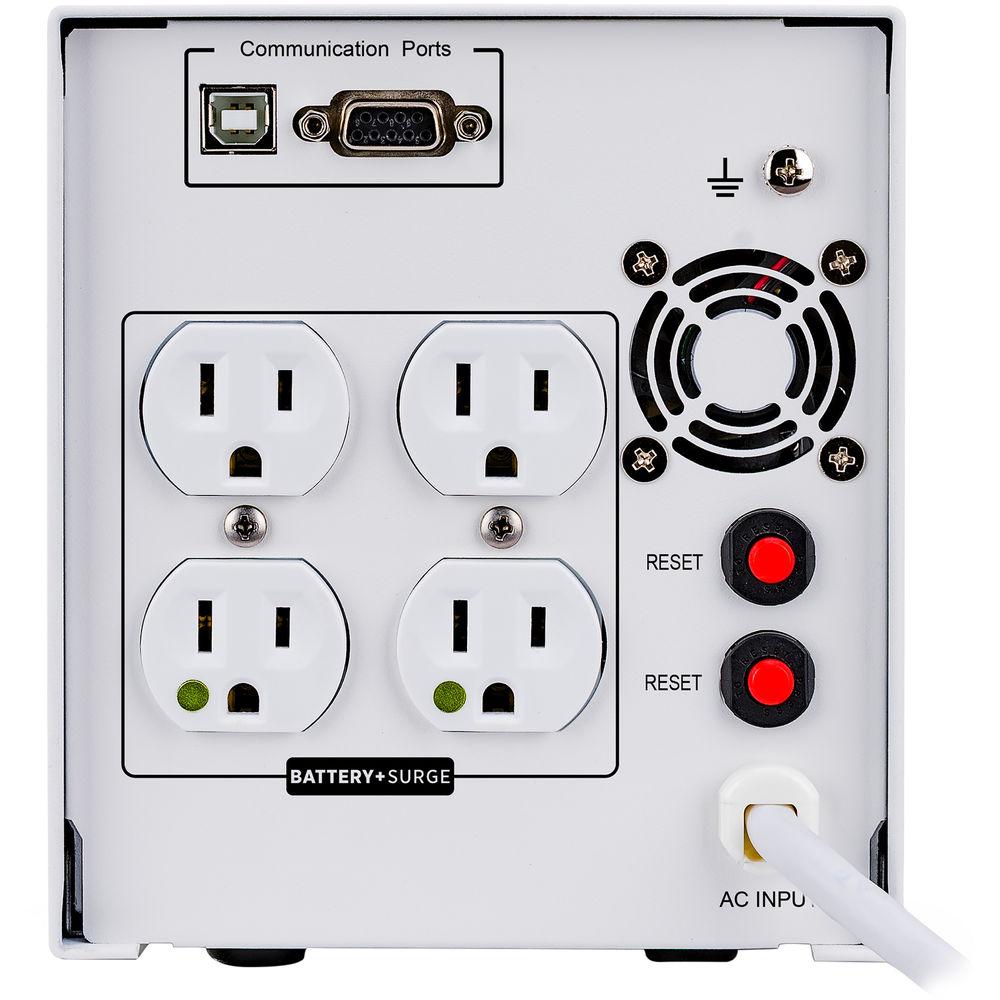

When running with a full load, this UPS can power devices for up to 8 minutes. When running with a half load, it can power devices for up to 25 minutes. It can be recharged up to 90% in around 8 hours and offers four total NEMA 5-15R-HG outlets, all of which are equipped with battery and surge protection and can absorb up to 1445 joules for keeping your devices safe against surges and spikes. Other connections offered are a NEMA 5-15P-HG input plug with a 6' cord, serial, and USB Type-B.
CyberPower's M550L Medical-Grade UPS is covered by a limited 3-year warranty, which covers the UPS and its batteries, and a limited lifetime $400,000 connected equipment guarantee. Included is a USB Type-B to Type-A cable and a serial cable. PowerPanel Business Edition UPS management software is available as a free download, which requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode.
Please note that this UPS is not intended for use in critical care or life support applications. General Features Typical Applications - Battery Backup
- Provides power to cover shorter outages and supplies power long enough for equipment to properly shut down when utility power fails for longer periods of time. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Line Interactive Topology
- Exists when a UPS has an autotransformer that regulates low voltages (brownouts) and over voltages (spikes) without having to switch to battery.
- Automatic Voltage Regulation (AVR)
- Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
- UL 60601-1 Tested
- Meets all UL 60601-1 requirements necessary for use in patient-care environments.
- Hospital-Grade Plugs & Outlets
- Offer an added degree of safety and reliability to the input/output connections of hospital-grade equipment.
- Isolation Transformer
- Minimizes the current leakage and cumulative shock potential of connected equipment to below 100μA and helps to alleviate line noise.
- Sealed LCD Screen
- Resists dirt, debris, and spray, and can withstand repeated cleaning procedures common to patient-care environments.
- Multifunction LCD Panel
- Displays detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- Quiet Design
- Minimizes noise during operation for a quieter patient environment.
- Replaceable Batteries
- Can be quickly accessed and replaced by a qualified technician. Batteries are hot-swappable to eliminate unnecessary downtime.
- PowerPanel Business Edition Software
- Available as a free software download, this provides a user-friendly dashboard interface for controlling and monitoring the UPS.
- Limited 3-Year Warranty
- CyberPower will repair or replace a defective UPS system, including the batteries, within three years of the purchase date.
- $400,000 Connected Equipment Guarantee
- CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
UPC: 649532618699 In the Box CyberPower M550L Medical-Grade UPS USB Type-B to Type-A Cable Serial Cable Limited Lifetime $400,000 Connected Equipment Guarantee Limited 3-Year Warranty from Date of Purchase (includes batteries) Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower M550L Medical-Grade UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower M550L Specs | | | Total Outlets | 4 x NEMA 5-15R | | Protected Outlets | 4 x NEMA 5-15R (Battery and Surge) | | Plug Type | NEMA 5-15P | | USB Charging Ports | None | | Communications | USB, Serial | | Topology | Standby | | Transfer Time | 10 ms | | | | Surge Energy Rating | 1445 Joules | | Maximum Wattage | 440 W at 120 VAC | | Nominal Input Voltage | 120 VAC | | Input Voltage Range | 90 to 146 VAC | | Input Voltage Adjustable Range | 88 to 150 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Voltage Range | 114 to 126 VAC | | Output Frequency | 60 Hz | | Circuit Breaker Rating | 6 A | | Waveform | Simulated Sine Wave | | | | Capacity | 84 Wh (7 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 8 Minutes | | Half-Load Runtime | 25 Minutes | | Charging Time | 8 Hours | | User Replaceable | No | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3048 m | | Certifications | CSA, FCC, RoHS, UL, as per Manufacturer | | | | Cable Length | 6' / 1.83 m | | Dimensions (W x H x D) | 6.4 x 5.4 x 13.7" / 16.3 x 13.7 x 34.8 cm | | Weight | 30.1 lb / 13.7 kg | | | | Package Weight | 32.0 lb | | Box Dimensions (LxWxH) | 18.5 x 10.5 x 10.25" |
