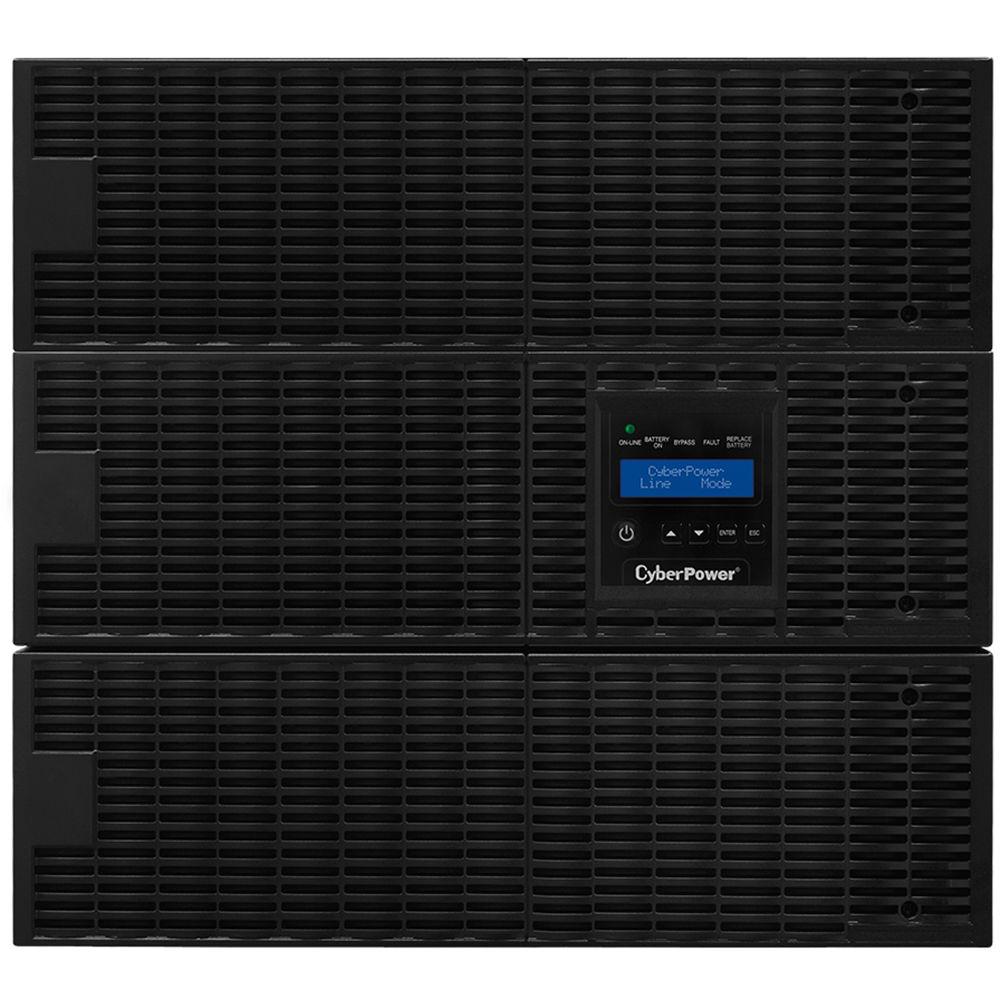

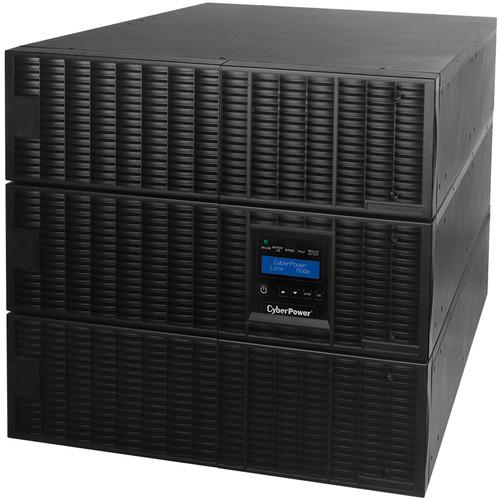

Product description The OL8000RT3UTF Smart App Online UPS (8000VA / 7200W) from CyberPower is a rack/tower uninterruptible power supply (UPS) with a step-down transformer, LCD control panel, and sine wave output. It can be used for safeguarding mission-critical servers, data center, VoIP, and telecom equipment, and inter-networking hardware that requires seamless power correction. The double conversion topology is generator-compatible and delivers consistent and clean AC power with zero transfer time, protecting connected equipment and preventing business interruptions. Configurable GreenPower UPS ECO mode improves UPS efficiency to 95% and reduces electrical and cooling costs. Smart Battery Management (SBM) uses a 3-cycle charging mode to improve battery life while reducing heat being generated. -
- 8000VA / 7200W supply
- Output: 200 to 240V UPS
- Double conversion topology
- Sine wave output with zero transfer time
- Step-down transformer
- SNMP options for remote monitoring
- Generator compatibility mode
- 19 Outlets / USB, Serial, EPO, and Dry Contact ports
- PowerPanel Business Edition Management Software
UPC: 649532602568 In the Box CyberPower OL8000RT3UTF Smart App Online UPS (8000VA / 7200W) 2 x Sets of Rackmount Ears (Stands) 2 x Rackmount Left and Right Rail Sets Tie Plate 16 x M5X8L Flat Head Screws 24 x M5X12L Pan Head Screws 16 x Plastic Washers 20 x Screw Hole Dust Covers USB Communication Cable Phone Line Power Cord Serial Interface Cable (RS-232) PowerPanel® Business Edition software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower OL8000RT3UTF Smart App Online UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

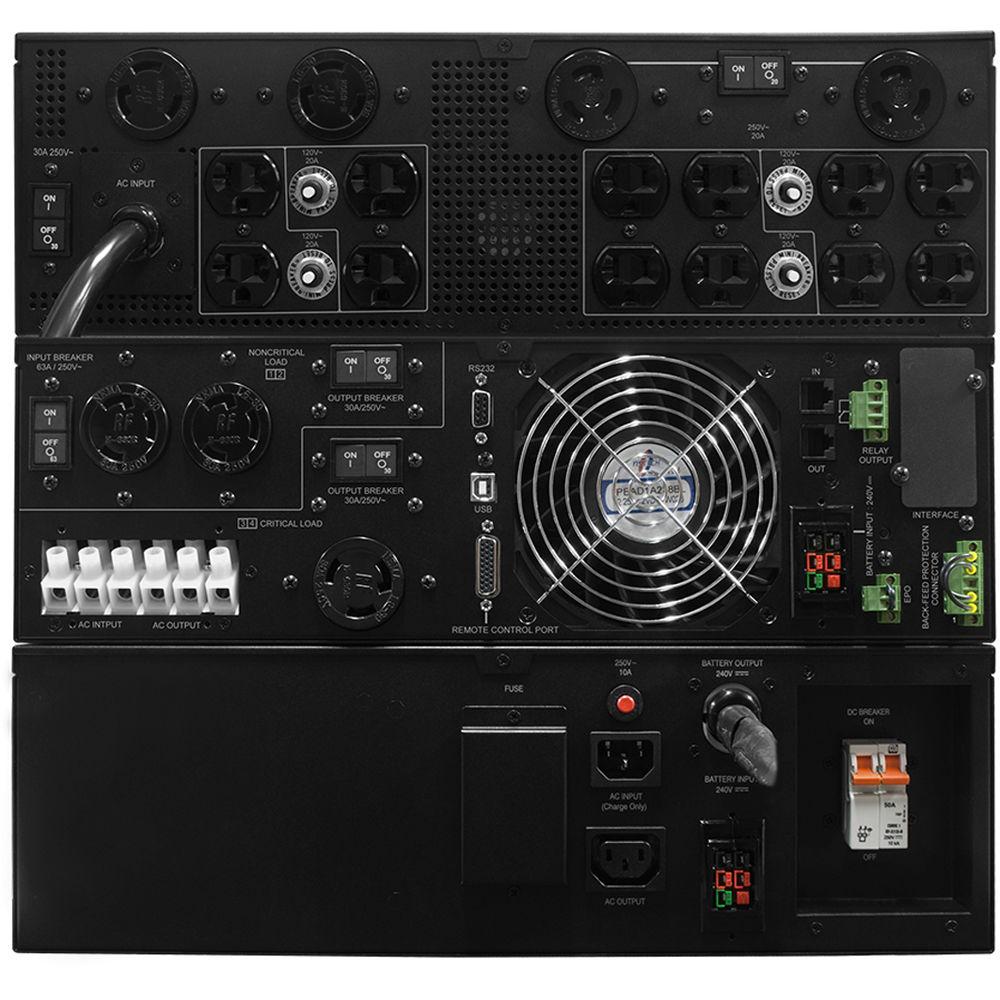

Technical parametersCyberPower OL8000RT3UTF Specs | | | Nominal Input Voltage | 200 to 240 VAC | | Input Frequency Range | 40 to 70 Hz (auto-sensing) | | Plug Style | Hardwire | | | | VA | 8000 | | Watts | 7200 | | On Battery Voltage | Configurable 120 VAC; 200, 208, 220, 230, 240 VAC ±2% | | On Battery Frequency | 50/60 Hz (auto-sensing or configurable) ±0.25 Hz | | On Battery Waveform | Sine wave | | Outlets | Total: 19
Type:
NEMA L6-30R (4), NEMA L6-20R (2), Hardwire Terminal Block (1), NEMA 5-20R (12) | | Power Factor | 0.9 | | Crest Factor | 3:1 | | Harmonic Distortion | THD <3% at linear load
< 5% at non-linear load | | Voltage Regulation | ECO Mode: ±10%, ±15% (Configurable) | | Bypass | Internal bypass (automatic and manual), maintenance bypass | | Transfer Time | 0 ms | | | | Runtime at Half Load | 13 minutes, minimum | | Runtime at Full Load | 5.6 minutes, minimum | | Battery Type | Sealed lead-acid | | User Replaceable | Yes | | Hot Swappable | Yes | | Typical Recharge Time | 4 hours (2.5 with Fast Charge technology) | | Power Management Modes | Smart Battery Management mode | | Battery Modules | BP240V30ART3U (not included) | | | | LCD Control Panel | 38 different settings or status options via the UPS Status menu, UPS Setup menu, and run Testing menus
Extendable LCD Control Panel:
Requires a separate DB26 cable | | USB Port | HID-compliant USB port | | Other Ports | Serial, EPO, Dry Contacts | | SNMP / HTTP Remote Monitoring | Yes; optional RMCARD302 or RMCARD303 card | | | | Topology | Double conversion | | Energy Saving | ECO mode
Efficiency: >95% | | Surge Suppression | 2670 Joules - IEC 61000-4-5 Level 3 | | | | Safety | UL1778, CSA C22.2 NO.107.3-05, FCC DOC Class A | | Environmental | RoHS compliant | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Relative Humidity | 0 to 90% non-condensing | | Operating Elevation | 0 to 10,000' / 0 to 3000 m | | Online Thermal Dissipation | 2730 BTU/hr | | Audible Noise | 55 dBa at 4.9' (1.5 m) from surface of unit | | | | Form Factor | Rack / Tower | | Rack Height | 9 RU installed | | Dimensions | 17.0 x 15.8 x 26.0" / 43.3 x 40.0 x 66.0 cm | | Weight | 384.1 lb / 174.6 kg |
