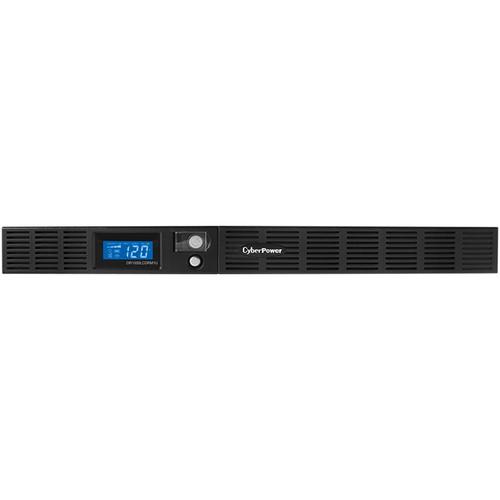

User Manual for CyberPower OR1000LCDRM1U Smart App LCD UPS Click to enlarge the picture
Contents of the user manual for the CyberPower OR1000LCDRM1U Smart App LCD UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
|
User manual for the CyberPower OR1000LCDRM1U Smart App LCD UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|
Product description The OR1000LCDRM1U Smart App LCD UPS from CyberPower is a rackmout device with line-interactive topology that provides surge protection and battery backup via simulated sinewave output for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. It comes equipped with an output capacity of 1000 VA / 600W, features an input voltage range of 90-140 VAC @ 57-63 Hz, Automatic Voltage Regulation, to help correct minor power fluctuations without switching to battery power, and also has integrated circuitry for EMI/RFI filters. This Smart App LCD UPS provides an integrated LCD panel for displaying real-time UPS vitals, such as the current/load level, runtime, battery level, input/output voltage, overload, silent/normal mode, and more.
When running with a load of 50W, this UPS can power devices for up to 145 minutes. When running with a load of 300W, it can power devices for up to 13 minutes and when running at 600W, up to 3 minutes. It can be recharged in around 8 hours and offers six total NEMA 5-15R outlets that can absorb up to 1030 joules for keeping your devices safe against surges and spikes. To keep your devices powered during blackouts and brownouts, four of the outlets provide battery power. Other connections offered are serial, USB Type-B, Ethernet RJ45, and Phone RJ11.
This power supply is ENERGY STAR qualified with GreenPower UPS Bypass technology for reducing energy consumption and heat buildup to help save energy costs. Included with the power supply is the PowerPanel Business Edition UPS management software, which requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode. When your PC is running in hibernation mode, the power supply will offer a longer runtime. This CyberPower UPS provides a lifetime connected equipment guarantee of up to $300,000. General Features - Data Line Protection
- Helps prevent power surges that travel through telephone and Ethernet lines from causing damage to electronics.
- Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to help prevent damage.
- Line-Interactive Topology
- Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery power.
- Automatic Voltage Regulation (AVR)
- Provides clean, consistent AC power by automatically boosting low voltage without using battery power when incoming utility power experiences minor fluctuations.
- Simulated Sine Wave Output
- Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
- GreenPower UPS Bypass Design
- Allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat build-up.
- Multifunction LCD Screen
- Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
- PowerPanel Business Edition Software
- Provides tools for monitoring and managing the UPS and backup power, also offers remote management functionality.
- ENERGY STAR
- ENERGY STAR certified Uninterruptible Power Supply (UPS) system.
- Connected Equipment Guarantee
- CyberPower will repair or replace up to $300,000 of properly connected equipment if it is damaged by a power surge.
UPC: 649532715053 In the Box CyberPower OR1000LCDRM1U Smart App LCD UPS 2 x Rackmount Brackets Telephone Cable Serial Interface Cable (DB-9) USB Type-A to Type-B Cable PowerPanel Business Edition Software CD Limited Lifetime $300,000 Connected Equipment Guarantee Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower OR1000LCDRM1U Smart App LCD UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower OR1000LCDRM1U Specs | | | Total Outlets | 6 x NEMA 5-15R | | Protected Outlets | 4 (Battery and Surge)
2 (Surge Only) | | Plug Type | NEMA 5-15P Right-Angle | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1030 Joules | | Maximum Wattage | 600 W | | Input Voltage Adjustable Range | 90 to 140 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 1000 VA | | Waveform | Simulated Sine Wave | | | | Cells | 4 | | Capacity | 42 Wh (7 Ah / 6 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 3 Minutes | | Half-Load Runtime | 13 Minutes | | Charging Time | 8 Hours | | Replacement Battery | RB0670X4 | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 0 to 95% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 10' / 3 m | | Rack Form Factor | 1 RU | | Dimensions (W x H x D) | 17.2 x 1.8 x 15.8" / 438.2 x 44.5 x 400.1 mm | | Weight | 35.5 lb / 16.1 kg | | | | Package Weight | 38.4 lb | | Box Dimensions (LxWxH) | 21.2 x 20.2 x 6.2" |
