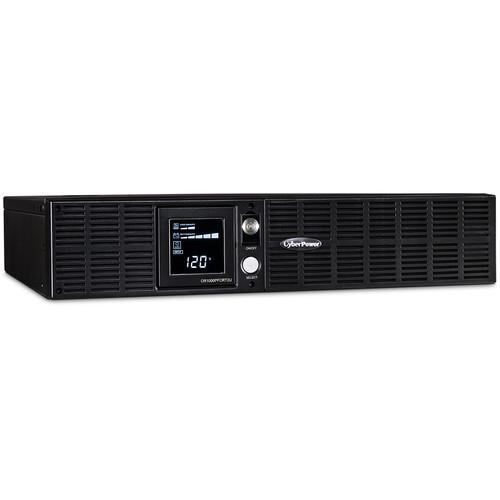

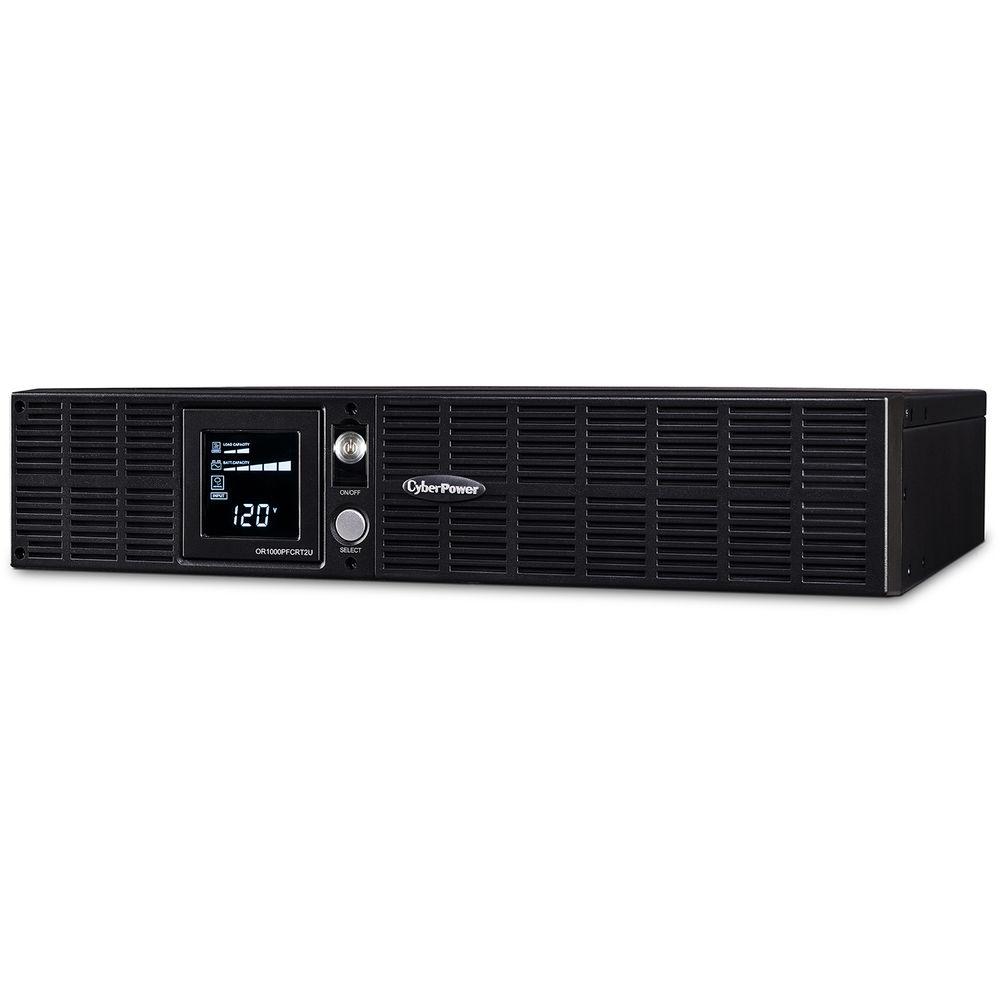

Product description The OR1000PFCRT2U PFC Sinewave UPS from CyberPower is a 2 RU rackmount convertible device with line-interactive topology that provides surge protection and battery backup via sinewave output for department servers, workgroup servers, network devices, and telecom equipment requiring Active PFC power source compatibility. It comes equipped with an output capacity of 1000 VA / 700W, features an input voltage range of 86-142 VAC at 60 Hz to help correct minor power fluctuations without switching to battery power, which helps extend battery life and is useful in areas where power fluctuations occur. This UPS provides an integrated LCD panel for displaying immediate and detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.

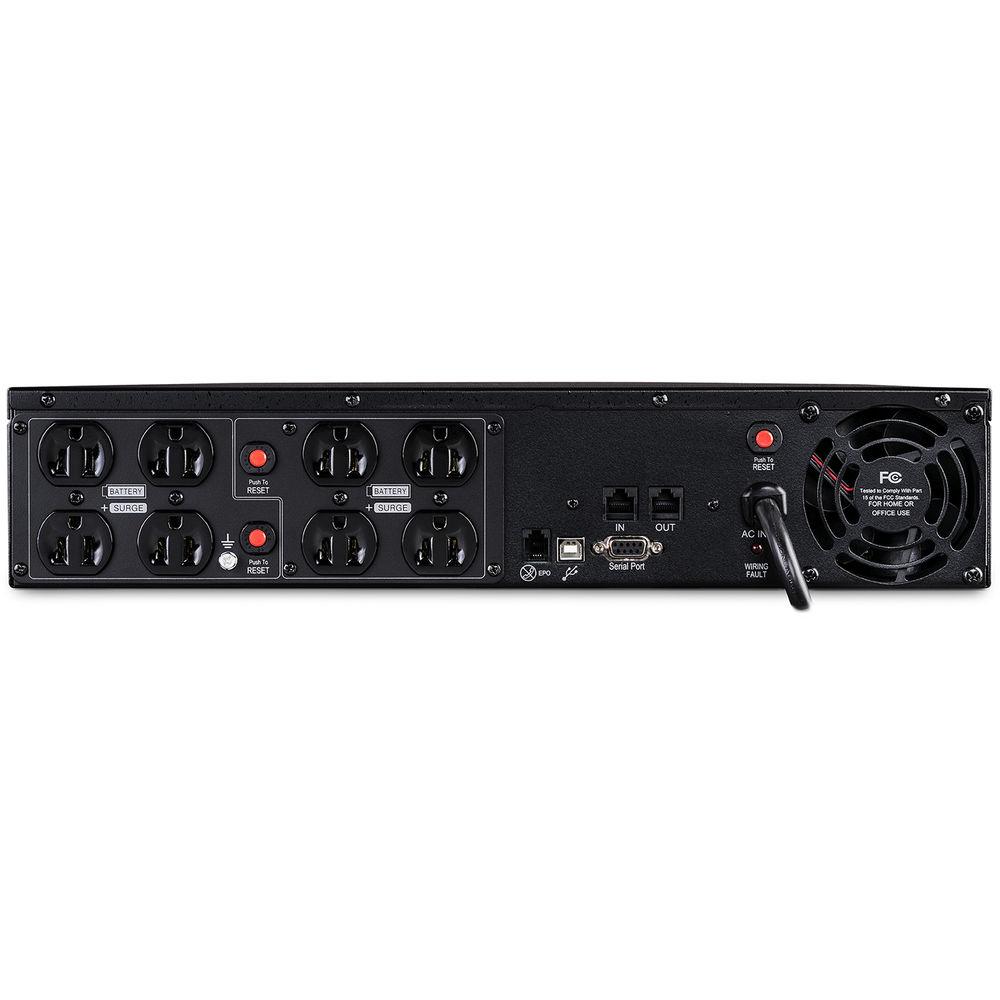

When running with a full load, this UPS can power devices for up to 6.6 minutes. When running with a half load of 350W, it can power devices for up to 17.9 minutes. It can be recharged in around 10 hours and offers eight total NEMA 5-15R outlets that can absorb up to 1470 joules for keeping your devices safe against surges and spikes. To keep your devices powered during blackouts and brownouts, all eight outlets also provide battery power. Other connections offered are serial, USB Type-B, RJ11 phone and RJ45 10/100 Ethernet (1-in, 1-out), and an Emergency Power Off (EPO) port.
This power supply is ENERGY STAR qualified with GreenPower UPS Bypass technology for reducing energy consumption and heat buildup to help save energy costs. Included with the power supply is the PowerPanel Business Edition UPS management software, which enables centralized power management, monitoring, control, and configuration. It also provides for the safe shutdown of connected servers, workstations, and other devices via a standard web browser or network management system (NMS), as well as allows admins to remotely manage each aspect of the UPS, facilitate the orderly automatic shutdown of connected equipment, prioritize outlets, and increase battery backup runtimes for the most critical equipment in the event of an extended power outage. This CyberPower UPS provides a limited lifetime connected equipment guarantee of up to $300,000, a limited 3-year product warranty and includes two rackmount brackets, two vertical stands, a telephone cable, an EPO cable, and a USB Type-A to Type-B cable. General Features - Battery Backup
- Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to help prevent damage.
- Data Line Protection
- Helps prevent power surges that travel through telephone and Ethernet lines from causing damage to electronics.
- Line-Interactive Topology
- Exists when a line-interactive UPS has an auto-transformer that regulates low voltages, such as brownouts, and over voltages, such as spikes, without having to switch to its battery.
- Automatic Voltage Regulation (AVR)
- Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
- Sine Wave Output
- Provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.
- GreenPower UPS Bypass Design
- This is a patented design that allows utility power to bypass the UPS transformer when AC power is stable, which helps reduce energy consumption, noise, and heat buildup.

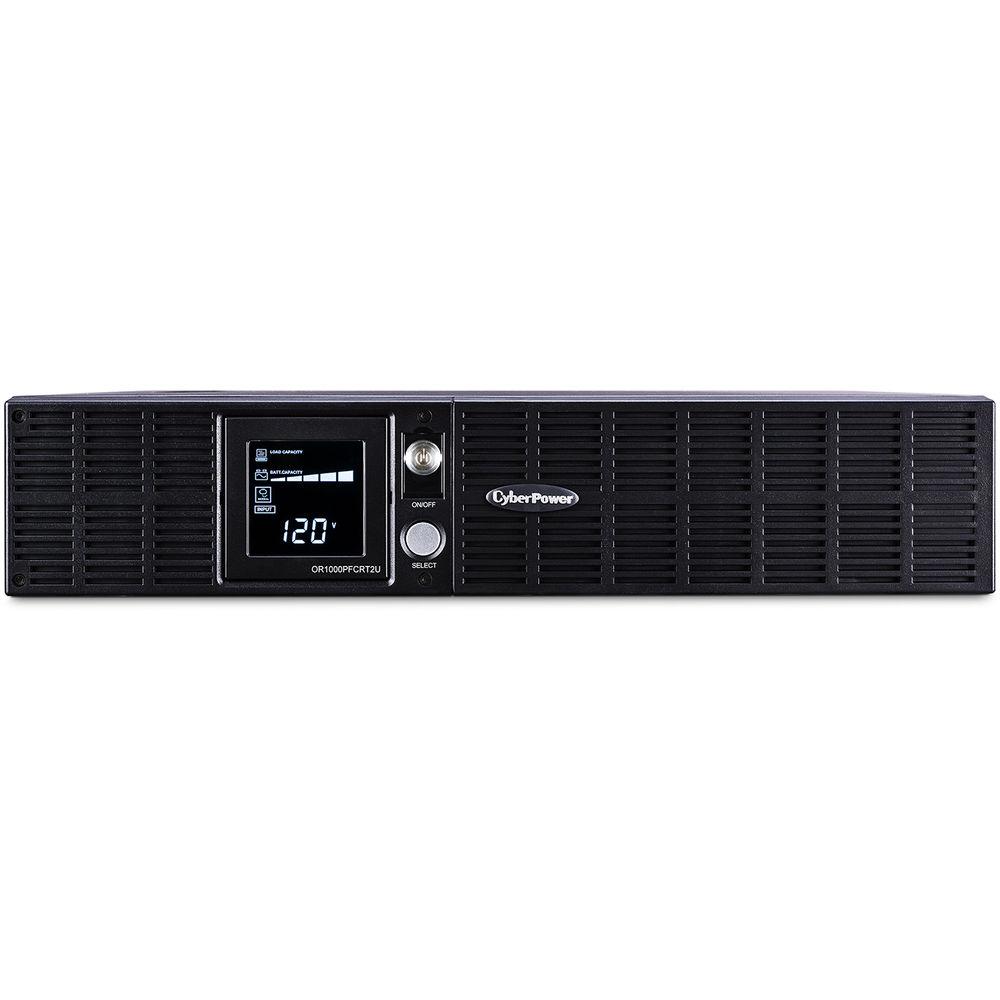

- Rotatable Multi-Function LCD Panel

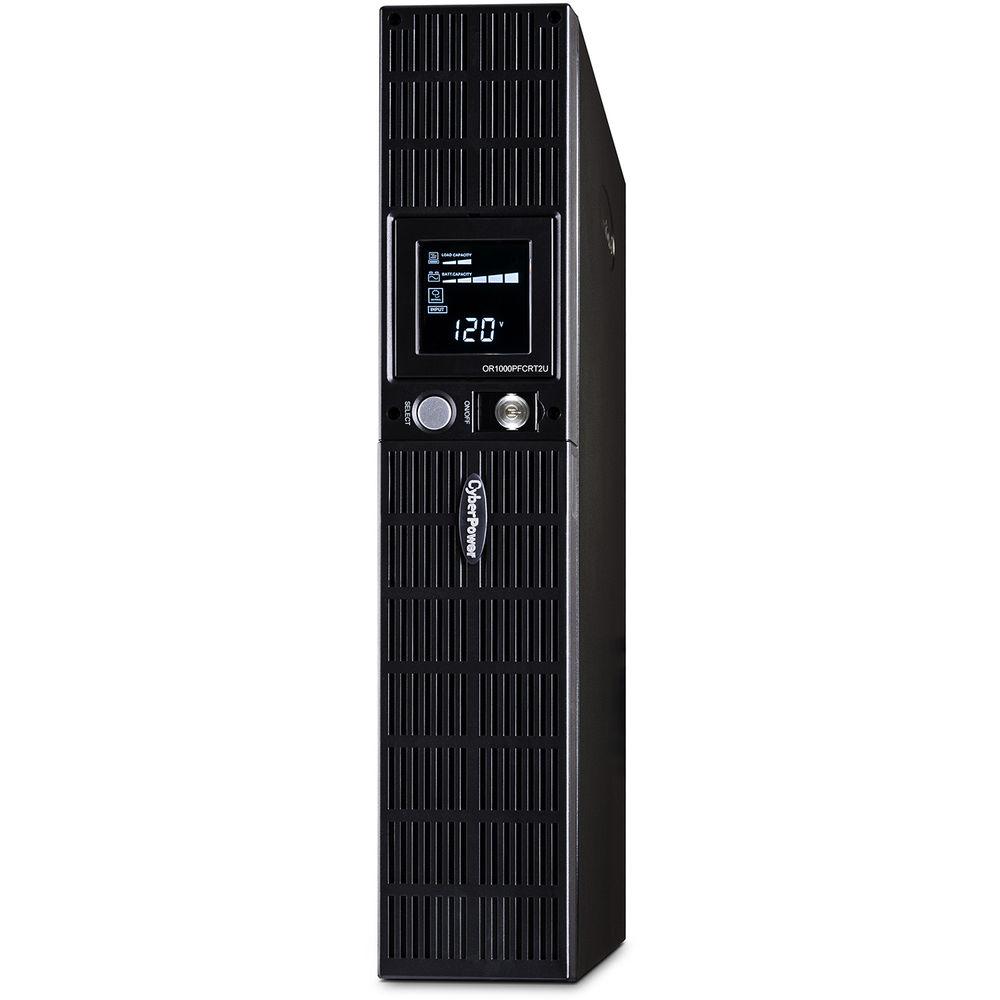

- Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower.
- Quiet Design
- Helps minimize noise during operation for a quieter work environment.
- PowerPanel Business Edition Software
- Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality.
- Limited 3-Year Warranty
- CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date.
- Connected Equipment Guarantee
- CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
UPC: 649532616473 In the Box CyberPower OR1000PFCRT2U PFC Sinewave UPS 2 x Rackmount Brackets 2 x Vertical Stands Telephone Cable Emergency Power Off Cable USB Type-A to Type-B Cable PowerPanel Business Edition Software CD Limited Lifetime $300,000 Connected Equipment Guarantee Limited 3-Year Warranty More from Manufacturer fyfuzbzddarzttbsaava Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower OR1000PFCRT2U PFC Sinewave UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower OR1000PFCRT2U Specs | | | Total Outlets | 8 x NEMA 5-15R | | Protected Outlets | 8 x NEMA 5-15R (Battery and Surge) | | Plug Type | NEMA 5-15P | | USB Charging Ports | None | | SmartSlot Interface | None | | Coax Protection | None | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1470 Joules | | Maximum Wattage | 700 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Range | 88 to 139 VAC | | Input Voltage Adjustable Range | 86 to 142 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 1000 VA | | Thermal Dissipation | 447 BTU/Hour | | Waveform | Sine Wave | | | | Capacity | 108 Wh (9 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 6.6 Minutes | | Half-Load Runtime | 17.9 Minutes | | Charging Time | 10 Hours | | User Replaceable | Yes | | Replacement Battery | RB1290X2C | | Hot-Swap Support | Yes | | External Battery Connection | None | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 0 to 10,000' / 0.00 to 3048 m | | Storage Altitude | 0 to 50,000' / 0.00 to 15,240 m | | Noise Level | 48.5 dBA | | Certifications | FCC, RoHS, UL, cUL, as per Manufacturer | | | | Cable Length | 10' / 3.05 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.0 x 3.5 x 15.3" / 43.2 x 8.9 x 38.9 cm | | Weight | 37.4 lb / 17 kg | | | | Package Weight | 44.53 lb | | Box Dimensions (LxWxH) | 20.3 x 11.6 x 6.6" |
