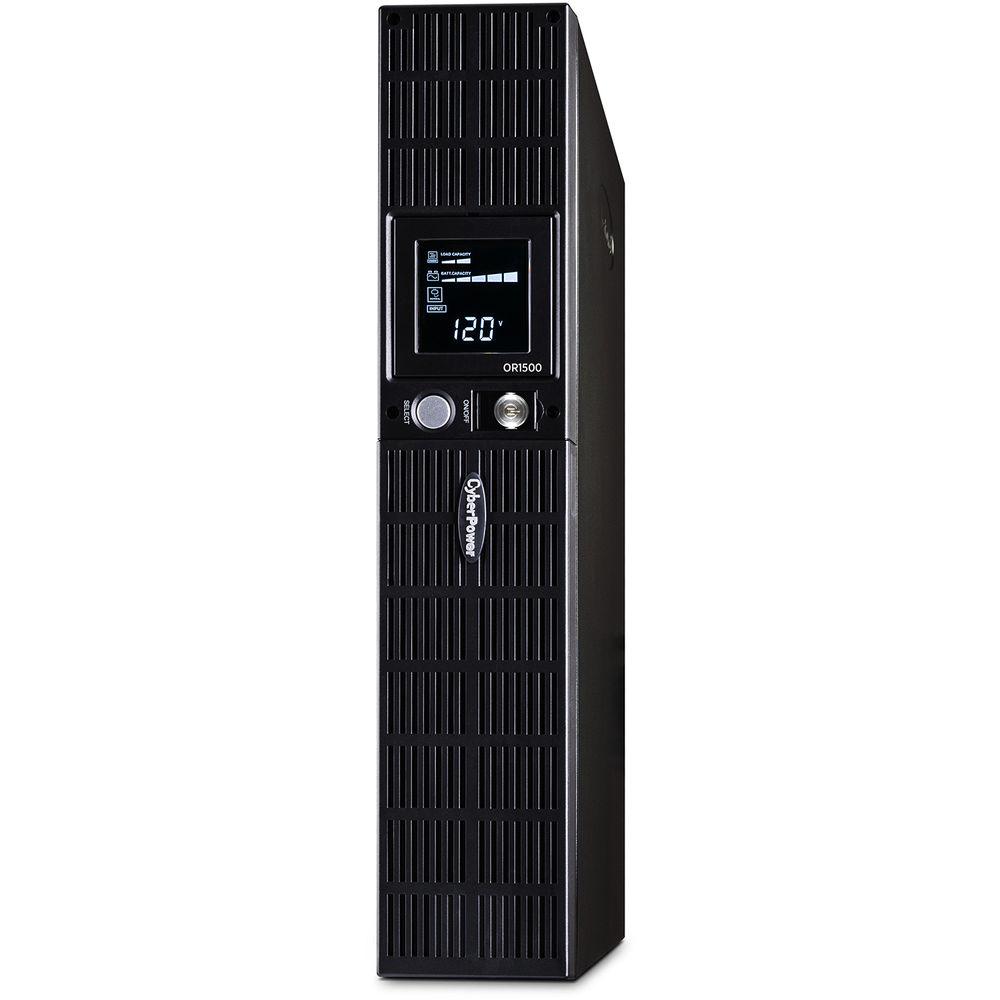

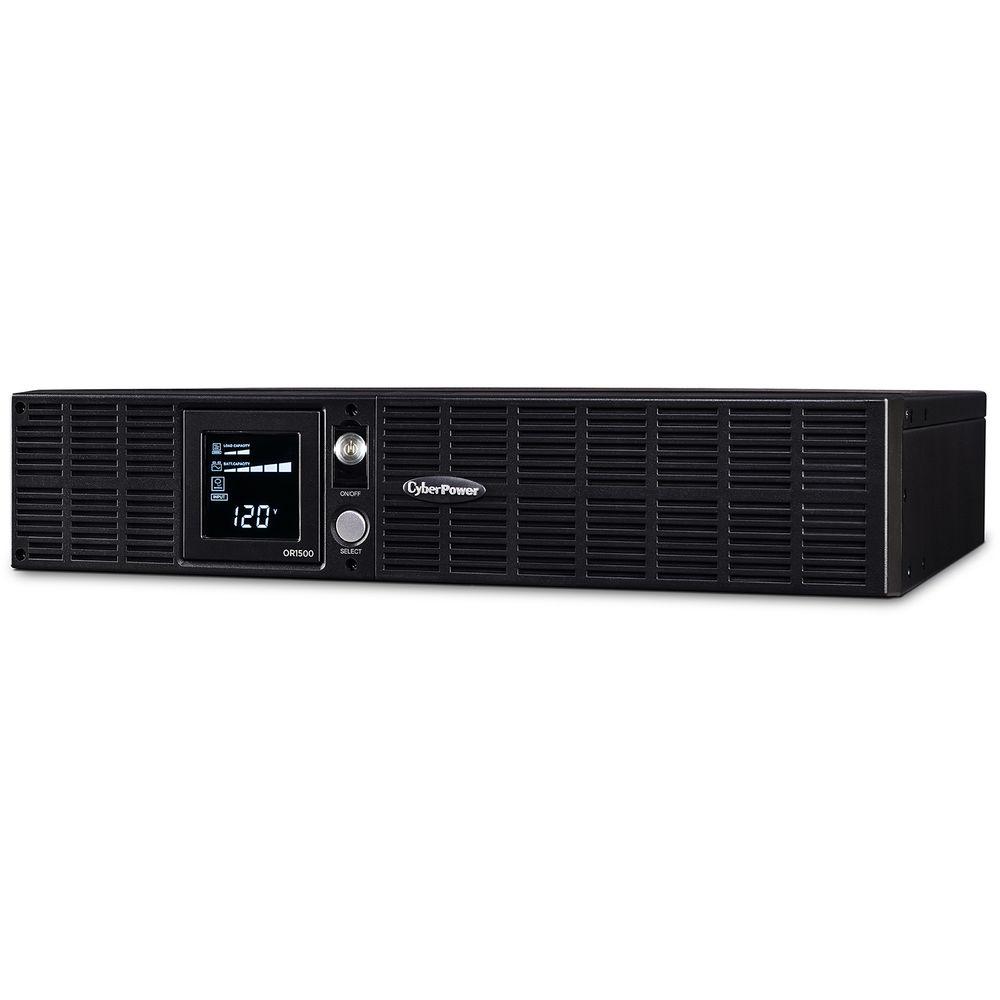

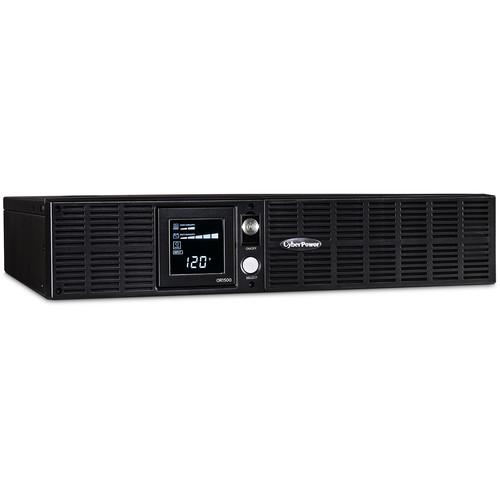

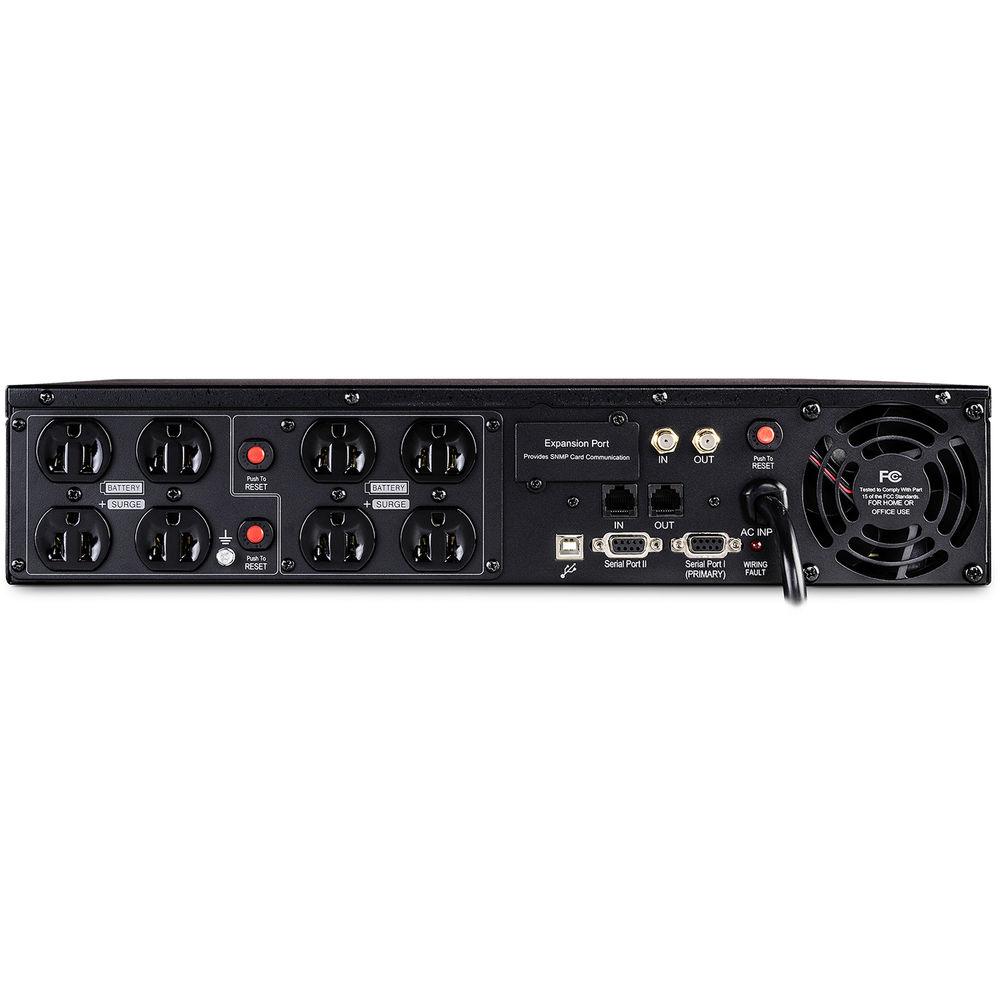

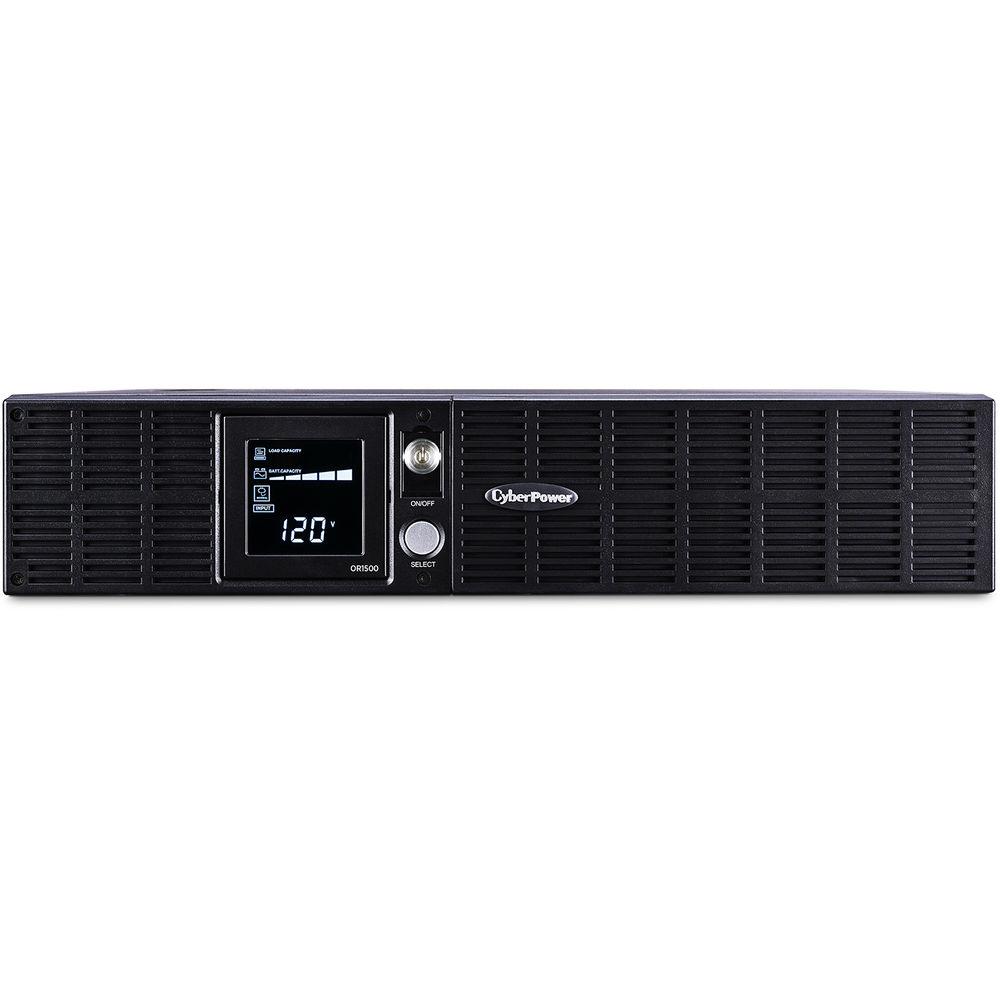

User Manual for CyberPower OR1500LCDRT2U Smart App Intelligent LCD Equipped Uninterrupted Power Supply Click to enlarge the picture
Contents of the user manual for the CyberPower OR1500LCDRT2U Smart App Intelligent LCD
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower OR1500LCDRT2U Smart App Intelligent LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|
Product description The OR1500LCDRT2U Smart App Intelligent LCD Equipped Uninterrupted Power Supply from CyberPower features eight battery and surge protected outlets complete with 900 watts of power. This uninterrupted power supply supports line-interactive technology to redirect the battery's DC current path from normal charging mode to supplying current when the power is lost. The integrated sealed lead-acid user replaceable battery provides up to 18 minutes of run time at half load and up to 6 minutes of run time at full load, allowing your connected peripherals to be shut down properly.
This Smart App Intelligent LCD Equipped Uninterrupted Power Supply also comes equipped with CyperPower's own PowerPanel Business Edition software. Receive up to the minute notifications via email, Windows Messenger, and XMPP alerting you to the status of your power supply. You can also avoid data loss as PowerPanel Business Edition automatically shuts down your system in the event of a power loss to help avoid data loss or damage to critical hardware components. - Intelligent LCD Diagnostic Display
- The front panel LCD can be used to display detailed information on the UPS status and current power conditions. The LCD hosts 11 different diagnostics: AVR status, estimated runtime, battery capacity, load level, input & output voltage levels, output frequency, on-battery, overload, fault, and silent mode
- Automatic Voltage Regulator (AVR)
- AVR takes irregular AC power and converts it into a consistent sine wave so sensitive electronic equipment can achieve its optimal performance. This technology will increase low voltages without switching to battery-mode. This conserves battery life, and delivers a more stable signal to your connected equipment
- Reduce Energy Cost and Energy Loss
- This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. Users can save up to 75% when compared to competitive models
- Microprocessor-Based Digital Control
- Digital routing is maintained through a network of integrated circuitry and discrete values used for internal system processing, which significantly increases efficiency and responsiveness
- EMI/RFI
- Provides shielding against electromagnetic interference and radio frequency signals. Most commonly, this is used to prevent line noise or "humming" that occurs over telephone lines or stereo electronics
- USB Connectivity
- An HID-compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux, and Mac OS X
- Metal Housing
- Rigid metal construction allows for placement in areas with a demanding environment
- Audible Alarms
- Audible tones identify when the unit is running off battery power, unit overloads, and low battery
- Resettable Circuit Breaker
- Convenient unit reset switch in case of an overload
- Windows Compatibility
- Take advantage of PowerPanel power management software that has been fully tested and is compatible with Windows 8 32/64-bit, Windows 7 32/64-bit, Windows Vista 32/64-bit, Windows XP 32/64-bit, Windows 2000, Windows 2003, Windows Server 2008 and 2012
- PowerPanel Business Edition Software
- • Remote management and configuration of UPS via Web Browser
• Multiple Alert Notification options: Email, Windows Messenger, and XMPP
• Supports multiple protocols: TCP/IP, UDP, SNMP, HTTP protocols
• Flexible Event Action setting
• Auto-shutdown to protect servers/workstations from data loss due to power failure
• Remote scheduling of shutdown, startup, and reboot of UPS
• Event logging to record UPS operation history
• Quick installation and user friendly interface
• Security management UPC: 649532610044 In the Box CyberPower OR1500LCDRT2U Smart App Intelligent LCD Equipped Uninterrupted Power Supply Rack Mount Brackets Stands Telephone Cable PowerPanel Business Edition Software CD Serial Interface Cable (DB-9) USB A+B Type Cable Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower OR1500LCDRT2U Smart App Intelligent LCD Equipped Uninterrupted Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower OR1500LCDRT2U Specs | | | Total Outlets | 8 | | Protected Outlets | 8 (Battery and Surge) | | Plug Type | NEMA 5-15P | | Coax Protection | 1-In
1-Out | | Data Line Protection | RJ45 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1840 Joules | | Maximum Wattage | 900 W | | Input Voltage Adjustable Range | 90 to 140 VAC | | Input Frequency | 50/60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 1% | | Load Capacity | 1500 VA | | Waveform | Simulated Sine Wave | | | | Cells | 4 | | Capacity | 84 Wh (7 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 6 Minutes | | Half-Load Runtime | 18 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB1270X4F | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 0 to 95% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 10' / 3 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.2 x 3.5 x 15.8" / 43.8 x 8.9 x 40.0 cm | | Weight | 48.4 lb / 22.0 kg | | | | Package Weight | 56.0 lb | | Box Dimensions (LxWxH) | 21.4 x 20.3 x 11.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
