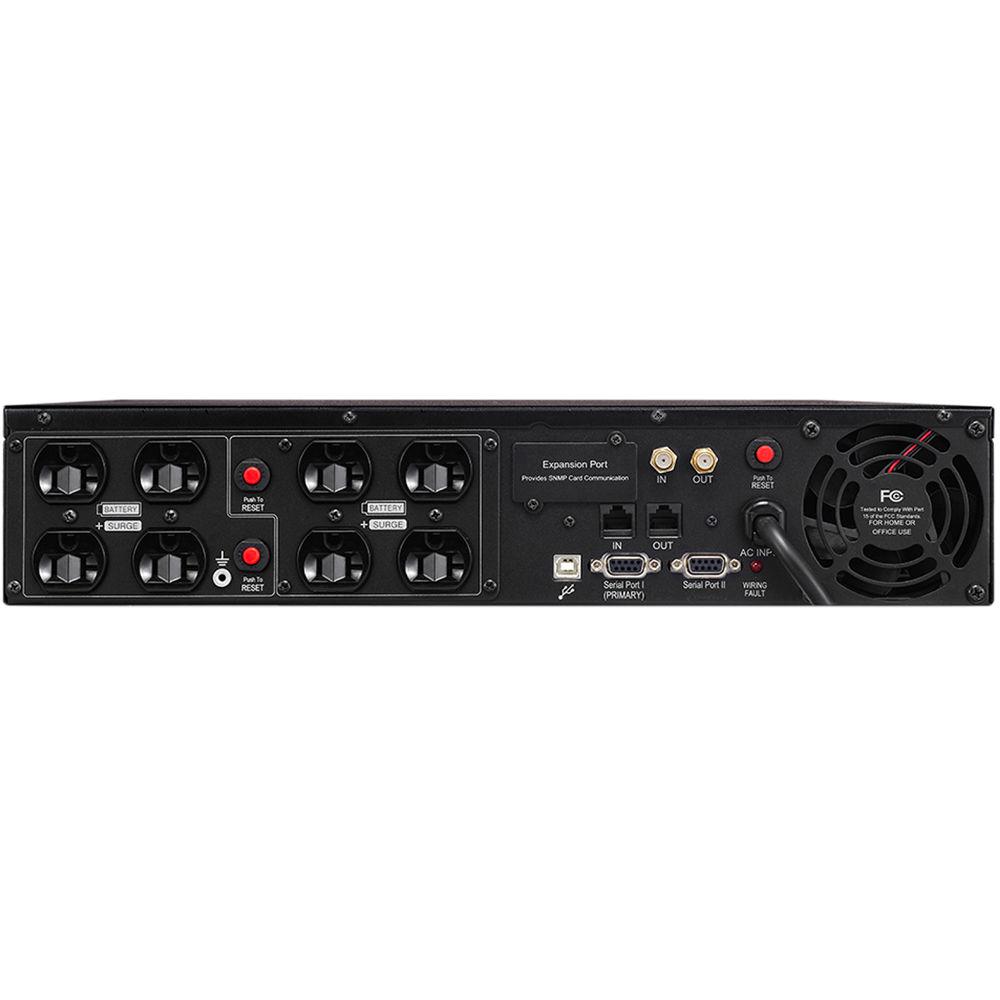

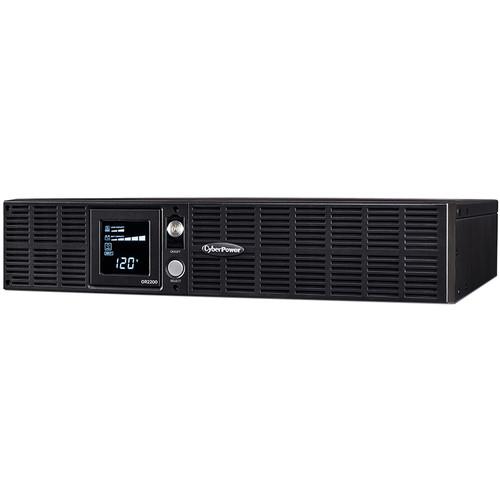

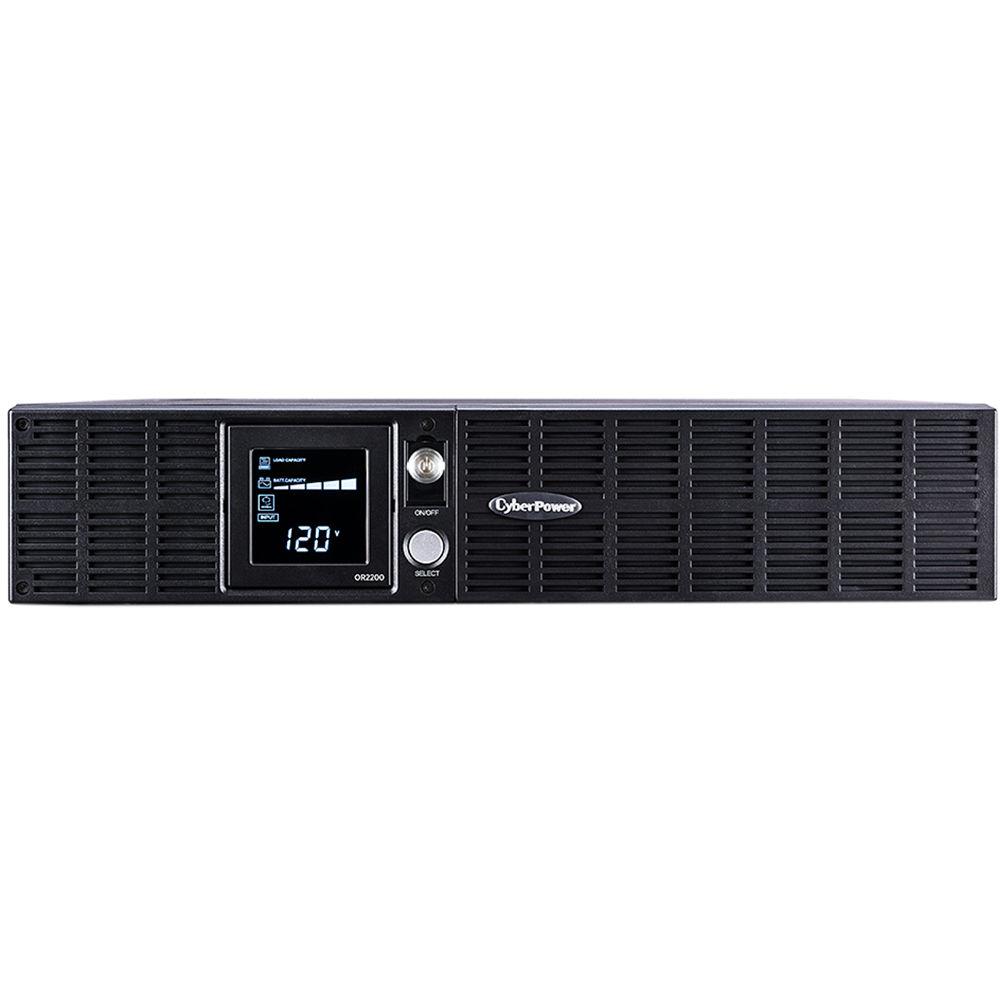

Product description The OR2200LCDRT2U Smart App LCD UPS from CyberPower is a 2RU rack/tower convertible device with line-interactive topology that provides surge protection and battery backup via simulated sine waveform output for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. It comes equipped with an output capacity of 2200 VA / 1320W, features an input voltage range of 90-140 VAC @ 50/60 Hz, Automatic Voltage Regulation (AVR) to help correct minor power fluctuations without switching to battery power, and also has integrated circuitry for EMI/RFI filters. This Smart App LCD UPS provides an integrated LCD panel for displaying real-time UPS vitals, such as the current/load level, runtime, battery level, AVR in use, battery in use, input/output voltage, output frequency, overload, silent mode, and more.
When running with a load of 50W, this UPS can power devices for up to 412 minutes. When running with a load of 700W, it can power devices for up to 14 minutes and when running at 1400W, up to 5 minutes. It can be recharged in around 8 hours and offers eight total NEMA 5-20R outlets, all of which are equipped with battery and surge protection and can absorb up to 1840 joules for keeping your devices safe against surges and spikes. Other connections offered are serial, USB Type-B, Ethernet RJ45, Phone RJ11, and Coax RG6.
This power supply is ENERGY STAR qualified with GreenPower UPS Bypass technology for reducing energy consumption and heat buildup to help save energy costs. Included with the power supply is the PowerPanel Business Edition UPS management software, which requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode. When your PC is running in hibernation mode, the power supply will offer a longer runtime. This CyberPower UPS provides a lifetime connected equipment guarantee of up to $300,000. General Features - Data Line Protection
- Helps prevent power surges that travel through telephone and Ethernet lines from causing damage to electronics.
- Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to help prevent damage.
- Line-Interactive Topology
- Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery power.
- Automatic Voltage Regulation (AVR)
- Provides clean, consistent AC power by automatically boosting low voltage without using battery power when incoming utility power experiences minor fluctuations.
- Simulated Sine Waveform Output
- Uses pulse wave modulation to generate a stepped, approximated sine waveform to supply cost-effective battery backup power for equipment that does not require sine waveform output.
- GreenPower UPS Bypass Design
- Allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat build-up.
- EMI/RFI Noise Filter
- Helps maintain clean power for connected equipment by filtering out electromagnetic and radio frequency interference to improve picture and sound quality.
- Rotatable Multifunction LCD Panel
- Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower.

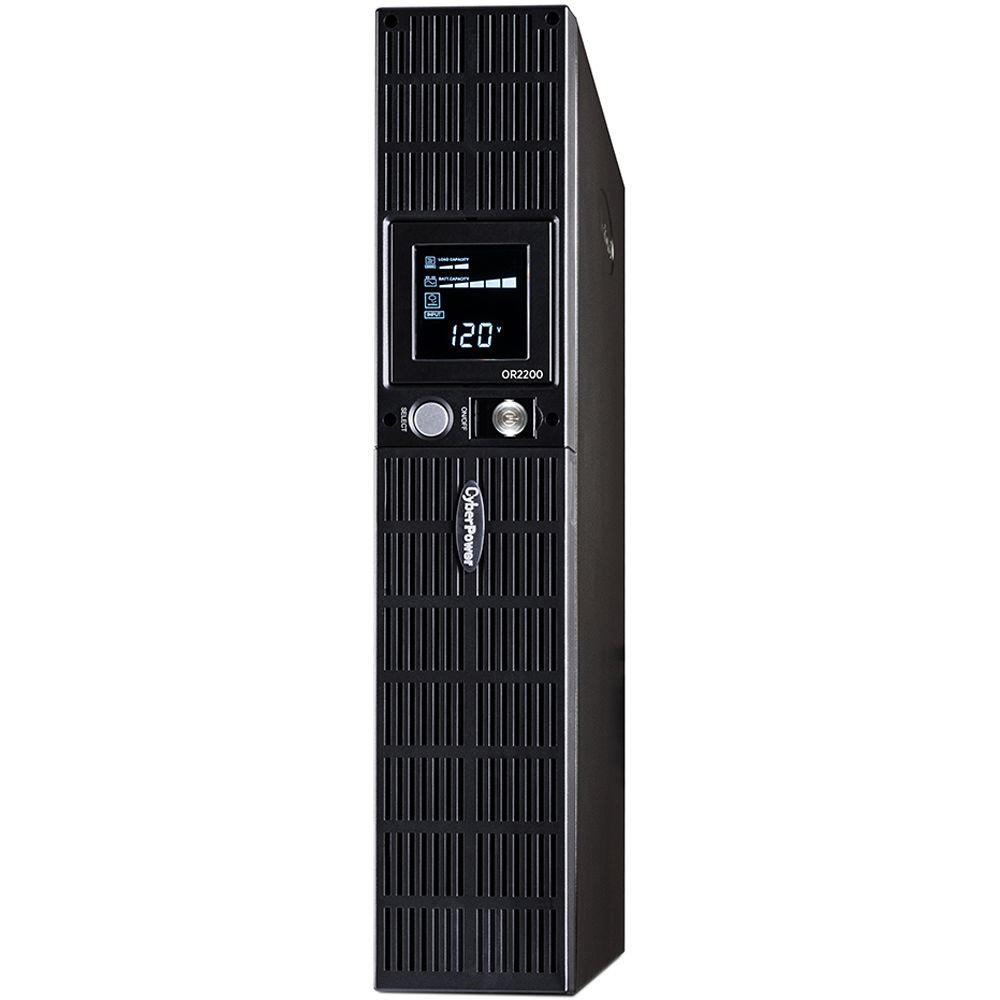

- Rack/Tower Versatility
- Allows for horizontal rack or vertical tower installation (2 RU rackmount/tower convertible).
- Durable Metal Housing
- Helps protect internal components and resists damage from impact or abrasions within challenging industrial environments. It also extends the life of the product.
- Audible Alarms
- Identify model overloads, low battery, and when the model is running on battery power.
- PowerPanel Business Edition Software
- Provides tools for monitoring and managing the UPS and backup power, also offers remote management functionality.
- ENERGY STAR
- ENERGY STAR certified Uninterruptible Power Supply (UPS) system.
- Connected Equipment Guarantee
- CyberPower will repair or replace up to $300,000 of properly connected equipment if it is damaged by a power surge.
UPC: 649532610037 In the Box CyberPower OR2200LCDRT2U Smart App LCD UPS 2 x Rackmount Brackets Metal Stand Plate Telephone Cable (Black) Emergency Power-Off Cable (Gray) 2 x Serial Interface Cables (DB-9) USB Type-A to Type-B Cable 4 x Rubber Buffers PowerPanel Business Edition Software CD Limited Lifetime $300,000 Connected Equipment Guarantee Limited 3-Year Warranty Brochure PDF 875.8kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower OR2200LCDRT2U Smart App LCD UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower OR2200LCDRT2U Specs | | | UPS Topology | Line-Interactive | | Energy Saving | GreenPower UPS Bypass technology | | ENERGY STAR Qualified | Yes | | | | Voltage | 90 to 140 VAC | | Frequency Range | 50/60 Hz ±3 Hz | | Plug Type | NEMA 5-20P | | Plug Style | Right angle | | Cord Length | 10 / 3 m | | | | Apparent Power | 2000 VA | | Watts | 1320 W | | Automatic Voltage Regulation (AVR) | Yes | | On Battery Voltage | 120 VAC ± 10% | | On Battery Frequency | 60 Hz ± 1% | | On Battery Waveform | Simulated Sine Waveform | | Outlets | 8 x NEMA 5-20R | | Outlets - Battery & Surge Protected | 8 | | Overload Protection | Internal circuitry limiting
Circuit breaker | | Transfer Time | 10 ms | | | | Runtime at Half Load | 13 minutes | | Runtime at Full Load | 5 minutes | | Battery Type | Sealed lead-acid | | Battery Size | 12 V / 9 Ah | | Battery Quantity | 4 | | User Replaceable | Yes | | Replacement Battery Cartridge | 1 | | Typical Recharge Time | 8 hours | | | | Surge Suppression | 1840 joules | | Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) | | Coax Protection RG6 | 1-In, 1-Out | | | | LCD Panel | Displays:
Current/Load Level
Runtime
Battery Level
AVR in Use
Battery in Use
Input Voltage
Output Voltage
Output Frequency
Overload
Silent Mode | | Ports | HID compliant USB port
2 x Serial ports | | Audible Alarm | On Battery
Low Battery
Overload
Battery Missing
Fault | | Software | PowerPanel Business Edition | | SNMP/HTTP Remote Monitoring | Requires separately available RMCARD205 | | Cable Management | USB Cable
Serial Cable
Phone Line | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% (non-condensing) | | | | Safety | UL1778
cUL CSA C22.2 107.1
FCC DOC Class B | | Environmental | RoHS compliant | | | | Rack Size | 2 RU | | Form Factor | Rack/Tower | | Dimensions | 17.25 x 3.50 x 15.75" / 43.82 x 8.89 x 40.01 cm | | Weight | 52.7 lb / 23.9 kg | | | | Package Weight | 63.0 lb | | Box Dimensions (LxWxH) | 21.4 x 20.4 x 11.6" |
