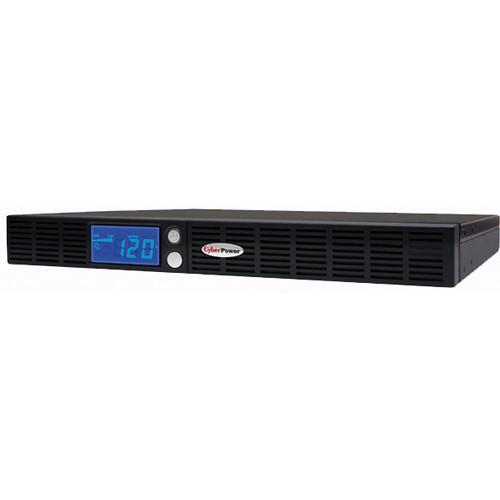

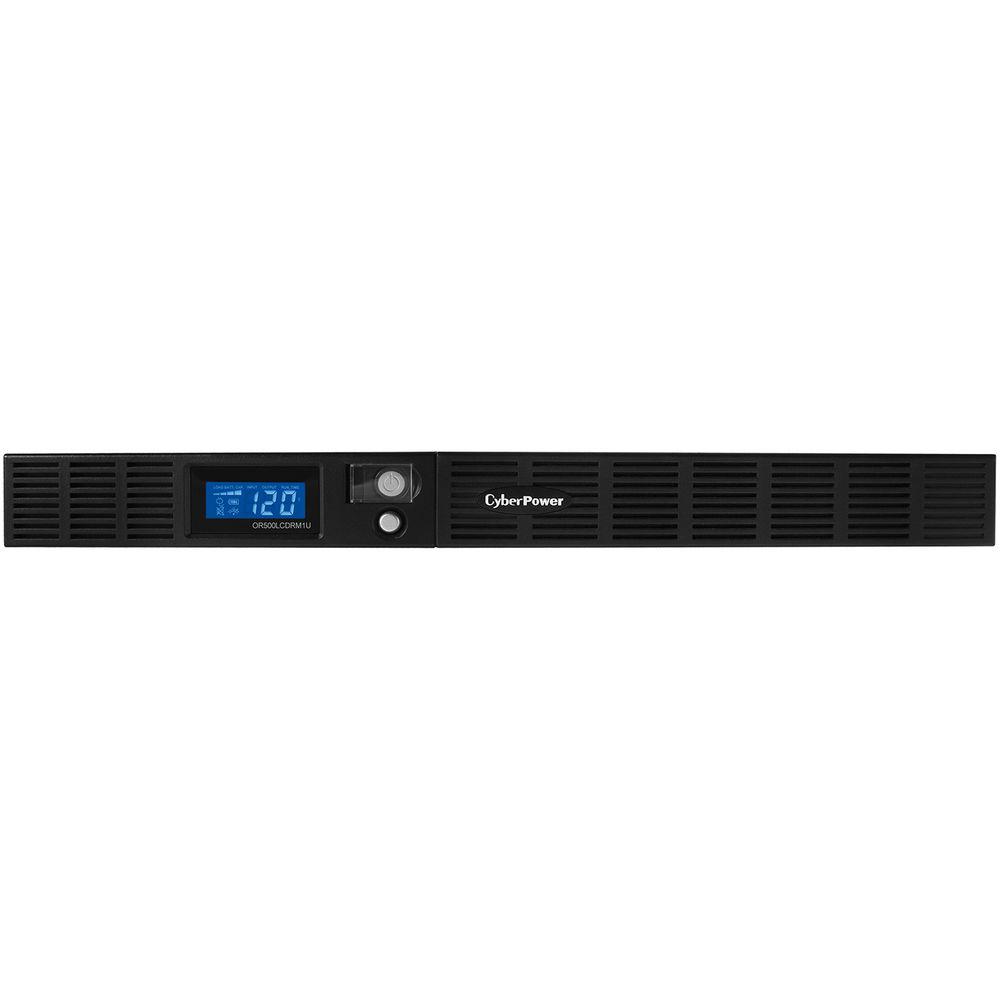

Product description The OR500LCDRM1U Smart App LCD UPS from CyberPower diagnostic panel gives administrators immediate, real-time information about vital UPS performance factors. The UPS has six (6) outlets, USB/Serial communication ports, and RJ-11/RJ-45 network protection. The device is designed to protect office servers, PCs, graphic workstations, commercial electronics and equipment without active PFC power supplies. Automatic Voltage Regulation (AVR) ensures that all your connected equipment is receiving clean power and maintains a safe voltage level. Finally, the UPS system is ENERGY STAR qualified with patented GreenPower UPS bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. - Automatic Voltage Regulation (AVR)
- AVR technology will stabilize the AC signal and maintain a safe voltage level without switching to battery-mode. This conserves battery life, and delivers a cleaner signal to your connected equipment
- EMI/RFI Filters
- Provides shielding against electromagnetic interference and radio frequency signals. Most commonly, this is used to prevent line noise or "humming" that occurs over telephone lines or stereo electronics
- Microprocessor-Based Digital Control
- Digital routing is maintained through a network of integrated circuitry and discrete values used for internal system processing, which significantly increases efficiency and responsiveness

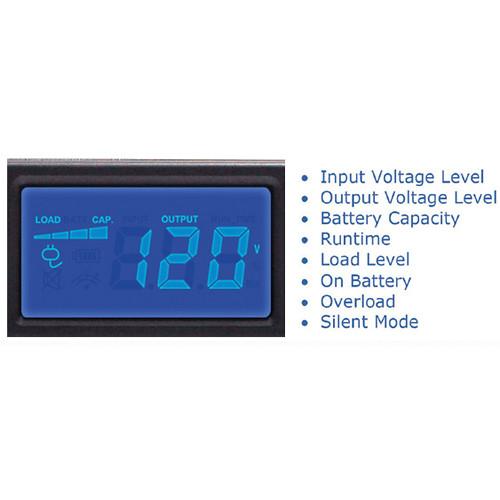

- LCD Diagnostic Display
- The front panel LCD can be used to display detailed information on the status of the UPS and current power conditions. The LCD displays 11 different diagnostics: Input/Output voltage, battery capacity, estimated runtime, load level, on battery, overload, silent mode, and more
- USB Connectivity
- HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux, and Mac OS X
- Audible Alarms
- Audible tones identify when the unit is running off battery power, unit overloads, and low battery
- Resettable Circuit Breaker
- Convenient unit reset switch in case of an overload
- Metal Housing
- Rigid metal construction allows for placement in areas with a demanding environment
- Reduce Energy Cost & Energy Loss
- This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. Users can save up to 75% when compared to competitive models
- Windows Compatibility
- The PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012
- ISO & Safety Certifications
- This UPS is certified by the FCC, cUL, and UL
UPC: 649532715015 In the Box CyberPower OR500LCDRM1U Smart App LCD UPS $300,000 Lifetime Connected Equipment Guarantee Limited 3-Year Warranty More from Manufacturer uedsfqrswf Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower OR500LCDRM1U Smart App LCD UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

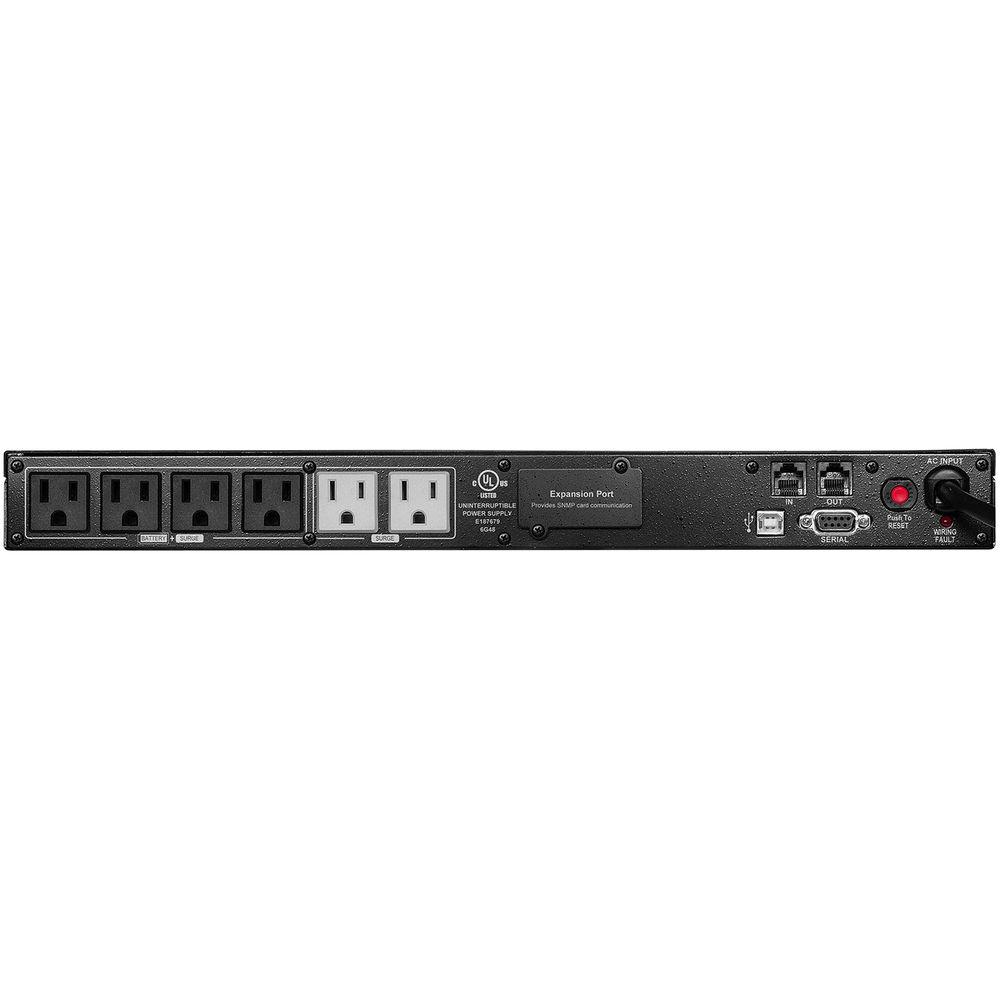

Technical parametersCyberPower OR500LCDRM1U Specs | | | Total Outlets | 6 | | Protected Outlets | 4 (Battery and Surge)
2 (Surge Only) | | Plug Type | NEMA 5-15P | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1030 Joules | | Maximum Wattage | 300 W | | Input Voltage Adjustable Range | 90 to 140 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 500 VA | | Waveform | Simulated Sine Wave | | | | Cells | 2 | | Capacity | 84 Wh (7 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 3 Minutes | | Half-Load Runtime | 12 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB0670X2 | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 0 to 95% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 10' / 3 m | | Rack Form Factor | 1 RU | | Dimensions (W x H x D) | 17.3 x 1.8 x 9.3" / 439.4 x 45.7 x 236.2 mm | | Weight | 18.2 lb / 8.2 kg | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 21.0 x 14.0 x 5.6" |
