User Manual for CyberPower OR700LCDRM1U Smart App LCD UPS Click to enlarge the picture
Contents of the user manual for the CyberPower OR700LCDRM1U Smart App LCD UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
|
User manual for the CyberPower OR700LCDRM1U Smart App LCD UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

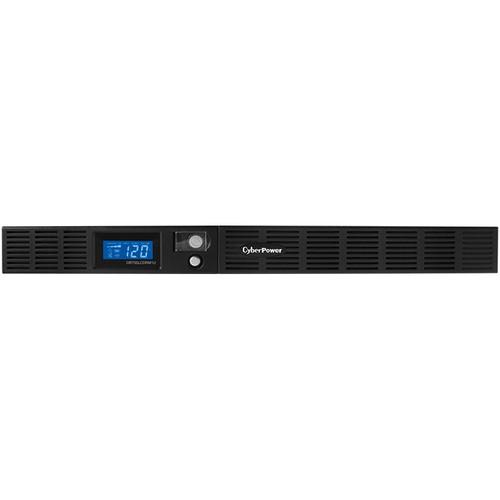

Product description The OR700LCDRM1U Smart App LCD UPS from CyberPower protects and provides power during a power failure for your workstations and network devices. The UPS sports six surge protected 120V outlets, and four of the outlets can offer battery power. It is designed to support up to 400W of equipment and conditions incoming AC power utilizing Automatic Voltage Regulation technology. In the event of a power outage, two internal batteries are on board to deliver up to 3 minutes of power at full loads or 11 minutes at half loads. Furthermore, an LCD screen lets you access the features of the UPS system without using a computer.
CyperPower provides PowerPanel Business Edition software that delivers status notifications of the power supply via email, Windows Messenger, and XMPP alerting. You can also avoid data loss as PowerPanel Business Edition automatically shuts down your system in the event of a power loss to help avoid data loss or damage to critical hardware components. - Remote Management
- The Smart App Series offers full-featured network UPS management capabilities with the PowerPanel Business Edition software and an optional SNMP network management card. These remote management tools enable centralized power management, monitoring, control, and configuration. They also provide for safe shutdown of connected servers, workstations, and other devices via a standard web browser or network management system (NMS).
- Safe Shutdown
- The PowerPanel Business Edition software, included with every Smart App Sinewave UPS, enables an administrator to remotely manage each aspect of the UPS and facilitate the orderly automatic shutdown of connected equipment in the event of an extended power outage. This software also provides comprehensive network power management for corporate servers and critical workstations supported by the UPS, such as application/operating system shutdown, event logging, reporting, alerts, and notifications.
- Programmable Outlet Control
- Smart App UPS systems allow programming of critical outlets and non-critical outlets, giving administrators the ability to prioritize outlets and increase battery backup runtimes for the most critical equipment during extended power outages. Programmable outlet control also gives an administrator the option to delay-start non-critical outlets, permitting the internal batteries to fully recharge more quickly. This feature is vital to data centers where seamless, uninterrupted equipment bootup is a necessity.
- GreenPower UPS Technology
- GreenPower UPS Technology from CyberPower consists of three different energy-saving designs that improve operating efficiency, reduce heat generation, and consume less power than conventional UPS models.
ECO Mode - is a form of bypass technology that can be switched on full time, set for noncritical times (such as nights and weekends), or switched off. This flexibility can help conserve power and save money.
Bypass Design - allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.
High-Efficiency Design - significantly decreases power consumption to create an efficient backup battery for home and office use. - Power Protection without the Noise
- CyberPower UPS systems harness high-efficiency ventilation, GreenPower UPS technology, and innovative system components to ensure quiet operation.
Noise Filtering improves picture and sound quality in audio/video systems, CyberPower uses advanced EMI/RFI noise filtering coils to decrease problems caused by electromagnetic fields and radio frequency interference. The filters smooth minor current fluctuations which cause disruptive humming and static.
Line Conditioning with automatic voltage regulation (AVR) prolongs the life of sensitive electronic equipment. AVR line conditioning adjusts the incoming AC voltage, keeping it within safe levels and reducing stress caused by power fluctuations. UPC: 649532715046 In the Box CyberPower OR700LCDRM1U Smart App LCD UPS RS-232 Cable RJ-11 Cable USB Type-A to Type-B Cable Limited 3-Year Warranty Lifetime $300,000 Connected Equipment Guarantee More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower OR700LCDRM1U Smart App LCD UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower OR700LCDRM1U Specs | | | Total Outlets | 6 | | Protected Outlets | 4 x NEMA 5-15R (Battery and Surge)
2 x NEMA 5-15R (Surge Only) | | Plug Type | NEMA 5-15P | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1030 Joules | | Maximum Wattage | 400 W | | Input Voltage Adjustable Range | 90 to 140 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 700 VA | | Waveform | Simulated Sine Wave | | | | Cells | 2 | | Capacity | 54 Wh (9 Ah / 6 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 3 Minutes | | Half-Load Runtime | 11 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 0 to 95% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 10' / 3 m | | Rack Form Factor | 1 RU | | Dimensions (W x H x D) | 17.3 x 1.8 x 9.3" / 438.2 x 44.5 x 235.0 mm | | Weight | 18.5 lb / 8.4 kg | | | | Package Weight | 22.5 lb | | Box Dimensions (LxWxH) | 21.0 x 13.5 x 5.4" |
