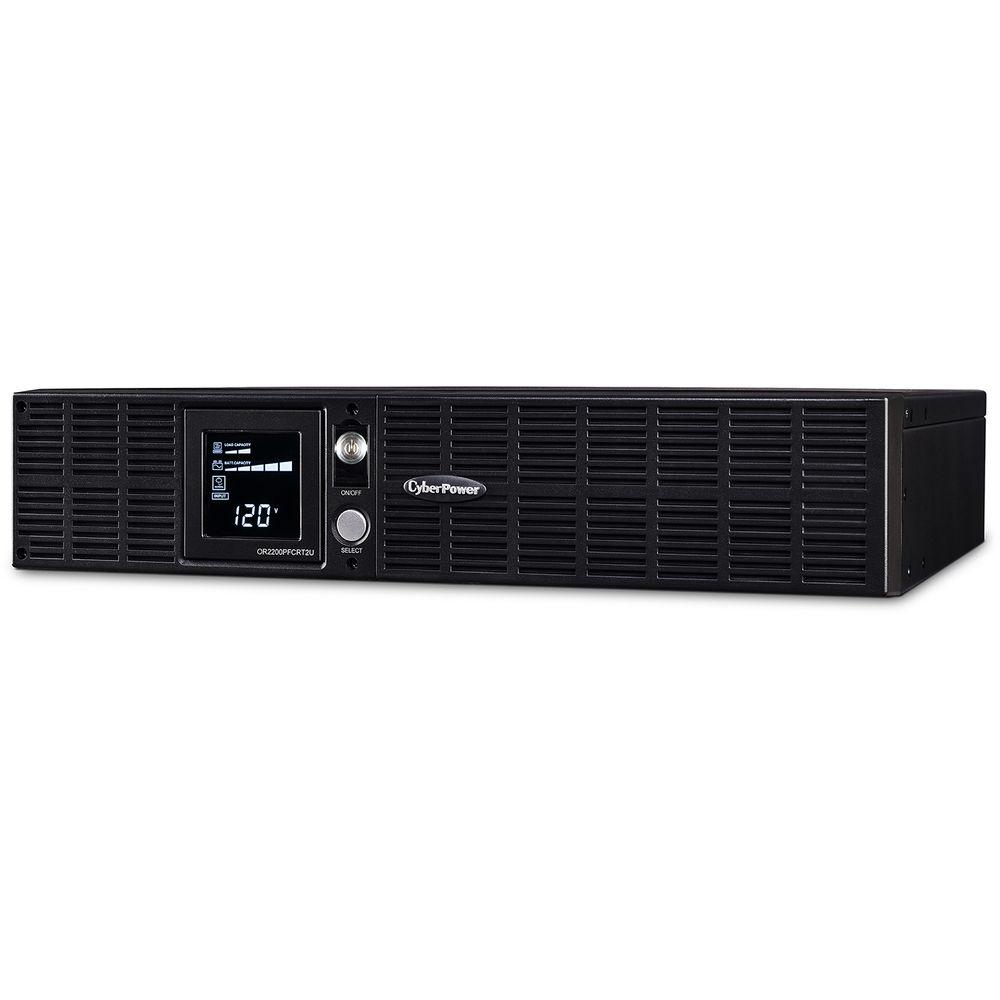

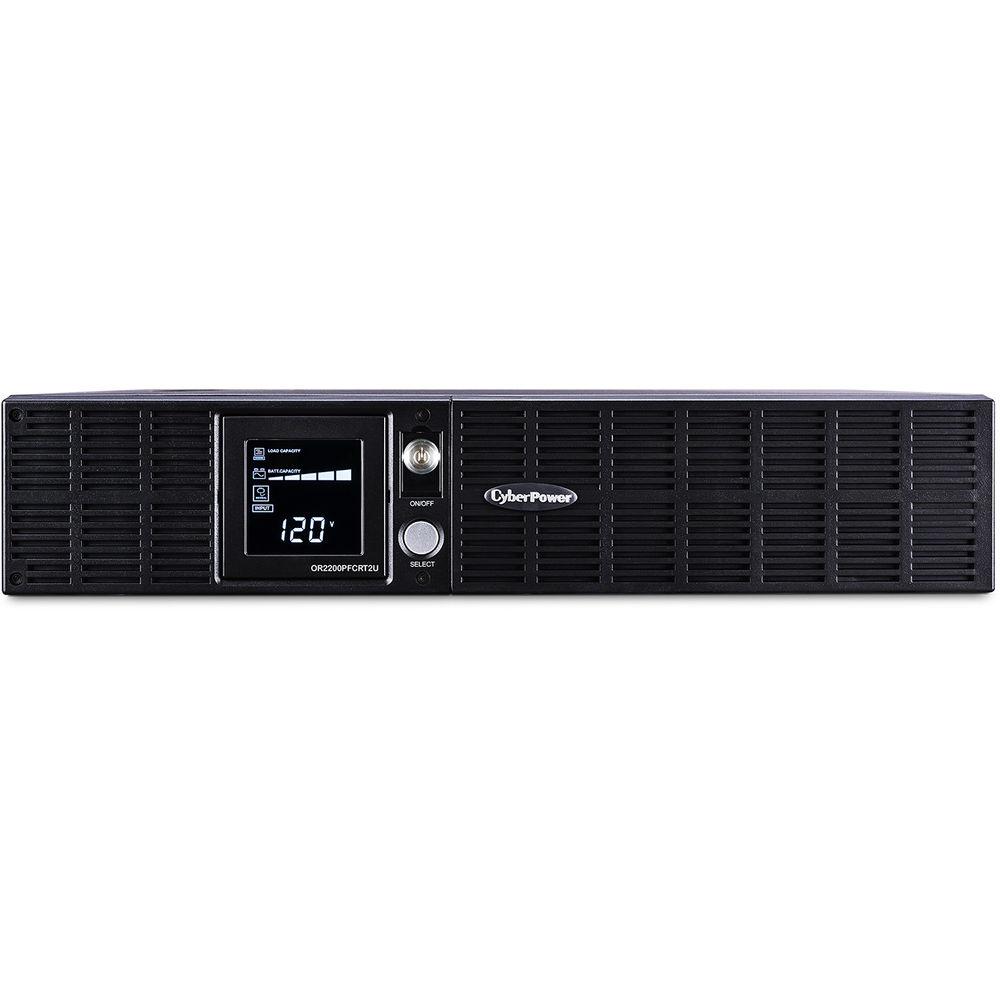

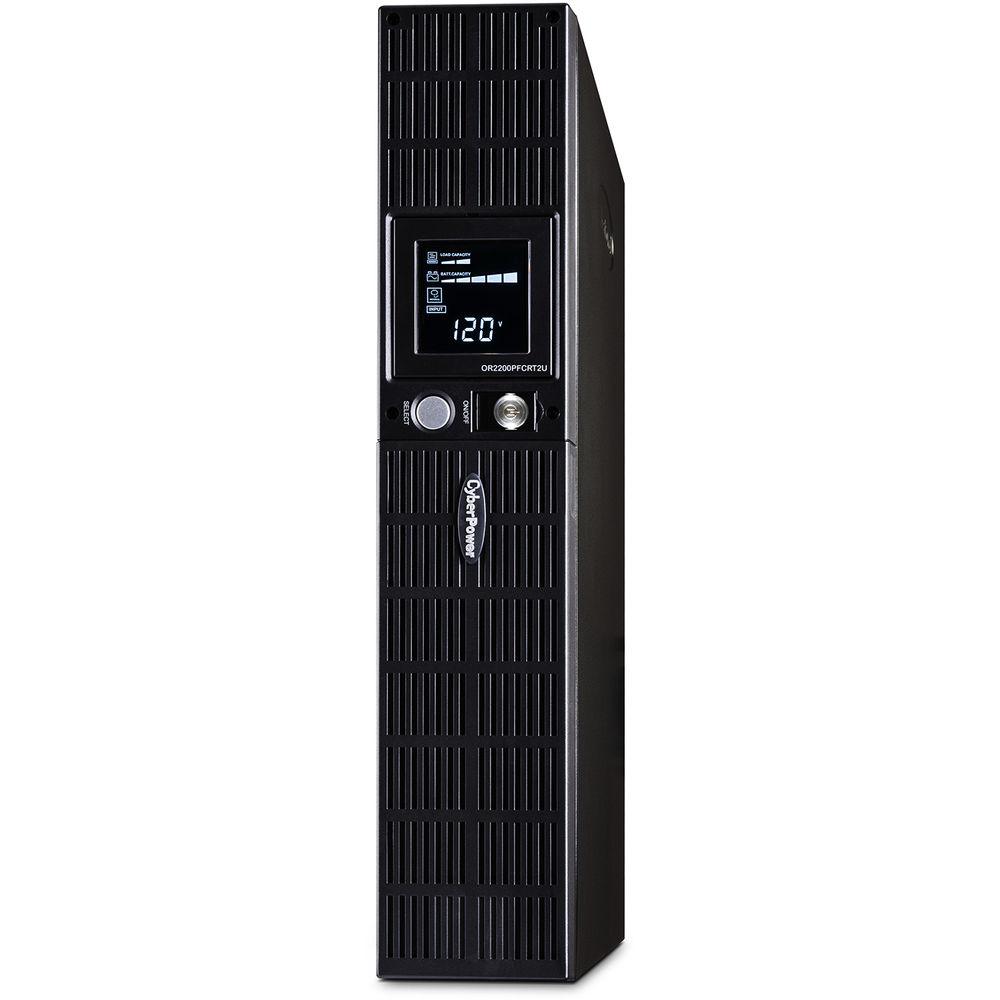

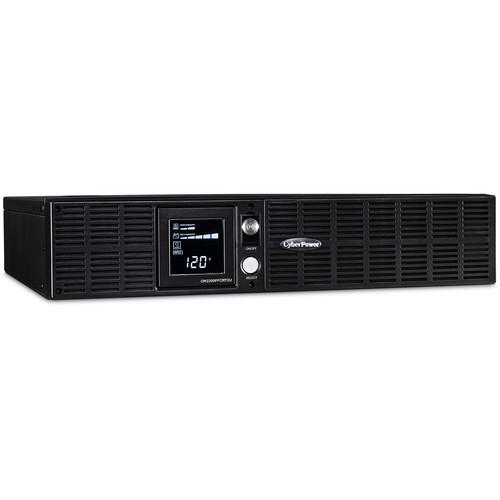

User Manual for CyberPower PFC Sinewave 2000VA UPS Click to enlarge the picture
Contents of the user manual for the CyberPower PFC Sinewave 2000VA UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower PFC Sinewave 2000VA UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

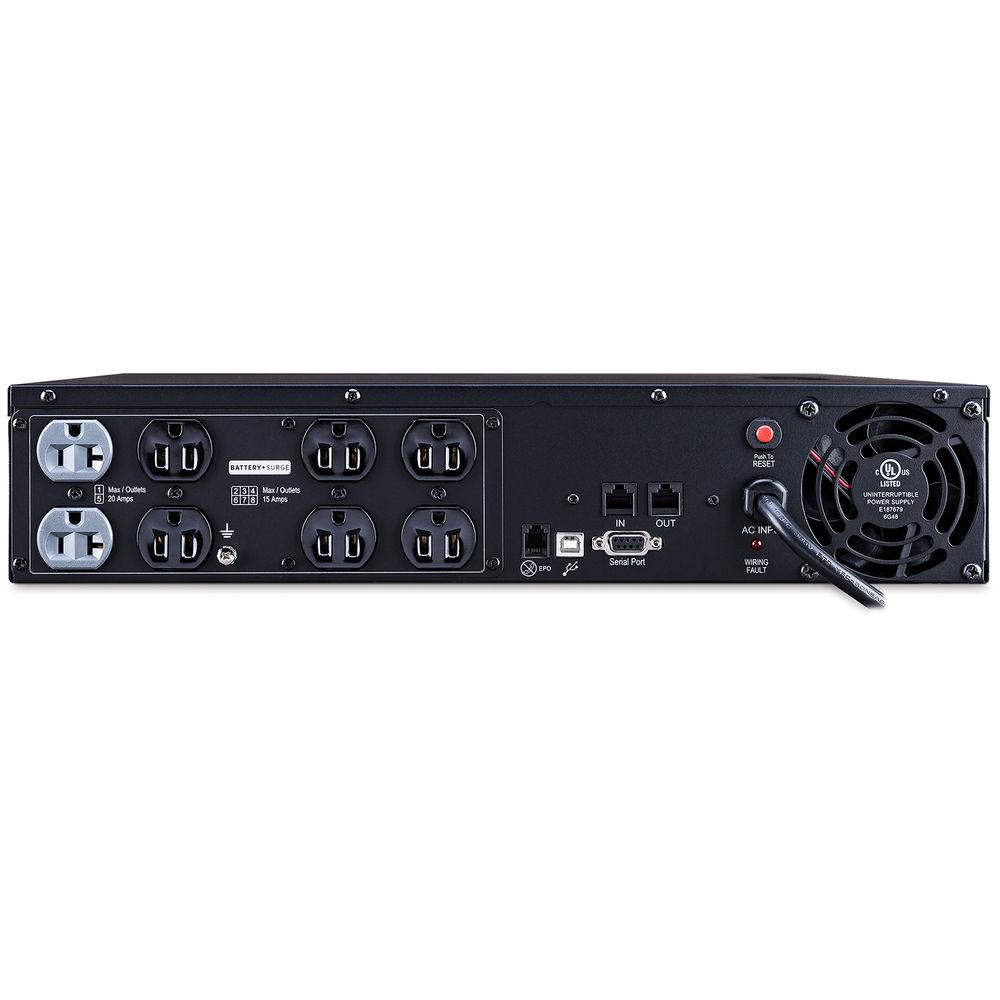

Product description Boasting six NEMA 5-15R outlets and two NEMA 5-20R outlets, a maximum load of 2,000VA, and line-interactive topology, the PFC Sinewave 2000VA UPS from CyberPower delivers battery backup and surge protection suitable for services such as department and workgroup servers, network devices, telecom appliances, and pro-audio and video equipment. The PFC Sinewave 2000VA UPS features a 10-hour recharge time and automatic voltage regulation (AVR), which helps regulate brownouts, spikes, and other minor power fluctuations without having to resort to battery power. The UPS also supports sine-wave output, allowing it to provide power protection to ENERGY STAR 6.0-compliant computers, peripherals, and other IT devices that depend on Active Power Factor Correction (Active PDC) power supplies. Audible alarms can warn of on-battery, low-battery, and overload conditions. CyberPower offers a $300,000 guarantee for equipment properly connected to the PFC Sinewave 2000VA UPS. - Battery Backup
- Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
- Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Data Line Protection
- Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics.
- Line Interactive Topology
- Exists when a line interactive UPS has an auto-transformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation (AVR)
- Provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations.
- GreenPower UPS Bypass Design
- A patented design that allows current to bypass the transformer and automatic voltage regulation (AVR) when utility power is normal, thus reducing energy consumption and associated costs. Because utility power functions normally most of the time, the bypass design allows for substantial energy savings. This technology also reduces heat generation, an important factor in decreasing operating costs.
- Rotatable Multifunction LCD Panel
- Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower.
- PowerPanel Business Edition Software
- Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality.
- LED Indicators
- Power On
Wiring Fault UPC: 649532609598 In the Box CyberPower PFC Sinewave 2000VA UPS 2 x Rack Mount Brackets 2 x Vertical Stands Telephone Cable Emergency Power-Off Cable USB Cable PowerPanel Business Edition Software CD $300,000 Connected-Equipment Guarantee Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower PFC Sinewave 2000VA UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower OR2200PFCRT2U Specs | | | Total Outlets | 6 x NEMA 5-15R
2 x NEMA 5-20R | | Protected Outlets | 6 x NEMA 5-15R (Battery and Surge)
2 x NEMA 5-20R (Battery and Surge) | | Plug Type | NEMA 5-20P Right-Angle | | USB Charging Ports | None | | SmartSlot Interface | None | | Coax Protection | None | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1470 Joules | | Maximum Wattage | 1540 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Range | 88 to 139 VAC | | Input Voltage Adjustable Range | 86 to 142 VAC | | Input Frequency | 60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 2000 VA | | Thermal Dissipation | 178 BTU/Hour | | Waveform | Sine Wave | | | | Chemistry | Lead-Acid | | Full-Load Runtime | 4.5 Minutes | | Half-Load Runtime | 15.5 Minutes | | Charging Time | 10 Hours | | User Replaceable | Yes | | Replacement Battery | RB1290X4H
RB1290X4C | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 0 to 10,000' / 0.00 to 3048 m | | Storage Altitude | 0 to 50,000' / 0.00 to 15,240 m | | Noise Level | 48.5 dBA | | Certifications | FCC, RoHS, UL, cUL, as per Manufacturer | | | | Cable Length | 10' / 3.05 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.0 x 15.3 x 17.0" / 43.2 x 38.9 x 43.2 cm | | Weight | 57.2 lb / 25.9 kg | | | | Package Weight | 61.45 lb | | Box Dimensions (LxWxH) | 21.5 x 20.5 x 11.5" |
