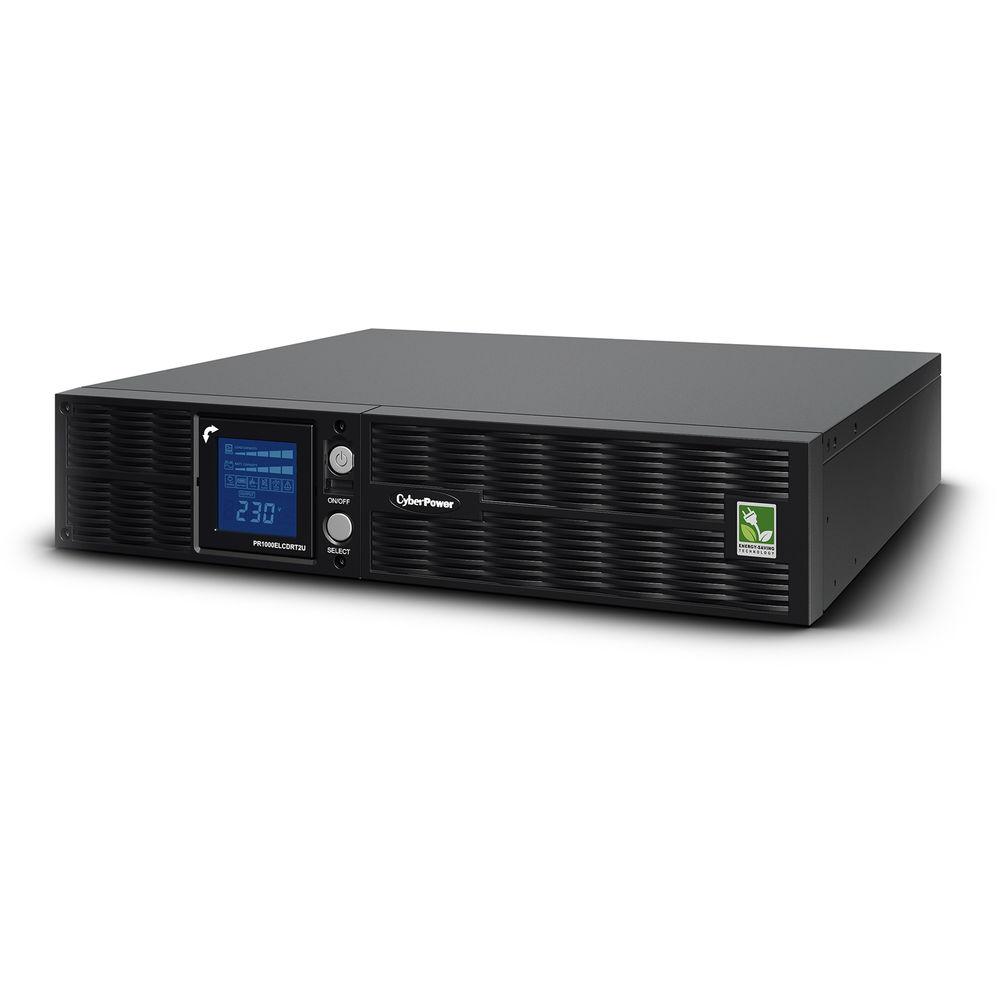

User Manual for CyberPower PR1000ELCDRT2U Smart App Sinewave UPS Click to enlarge the picture
Contents of the user manual for the CyberPower PR1000ELCDRT2U Smart App Sinewave UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower PR1000ELCDRT2U Smart App Sinewave UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|
Product description The CyberPower PR1000ELCDRT2U Smart App Sinewave UPS (1000VA/900W) is a convertible rack/tower UPS with line interactive topology and an adjustable output of 220, 230, or 240VAC. It provides battery backup, power protection with sine wave output, and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility.The UPS uses the AVR (Automatic Voltage Regulation) to correct minor power fluctuations without switching to battery power, which extends battery life. The AVR is essential where power fluctuations occur frequently. - Suitable for corporate servers, department servers, storage applications, network devices, and telecom installations
- Configurable 220/230/240VAC input/outputs
- Line-Interactive Topology
- Full AVR (Automatic Voltage Regulation) Buck/Boost
- Automatic Voltage Regulator automatically regulates low or high voltages to keep equipment working at safe AC power levels (220/230/240V) without switching to battery
- Can operate normally even during power problems such as shout brownouts and blackouts
- Sealed lead-acid batteries will provide power only if the incoming voltage drops below 150V or increases above 300V

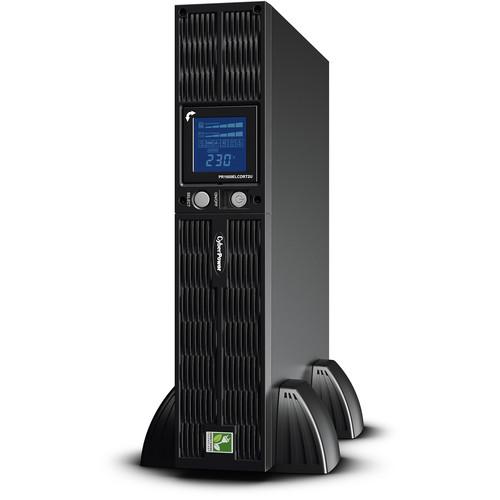

- 2U Rack mount/tower convertible
- Multi-function rotatable LCD
- SNMP/HTTP remote management option

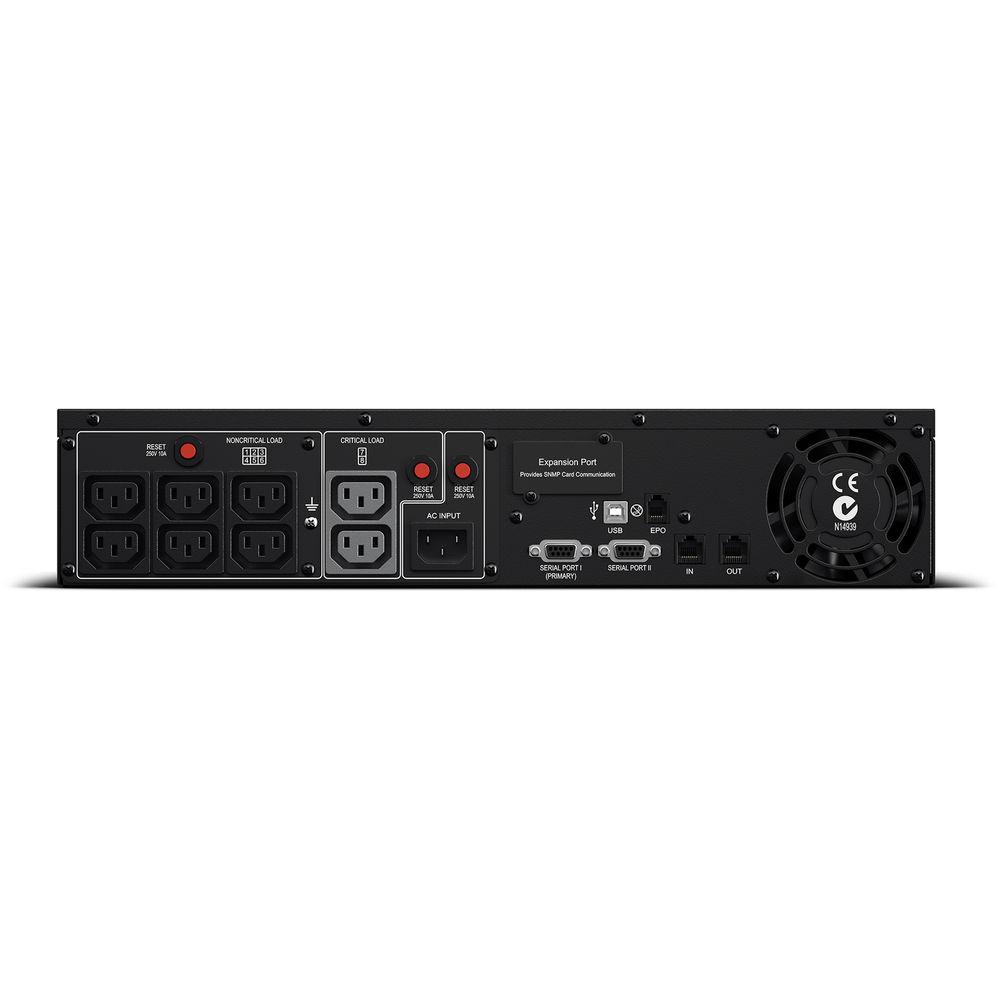

- 8 outlets / USB, serial, and EPO ports
- PowerPanel Business edition software
In the Box CyberPower PR1000ELCDRT2U Smart App Sinewave UPS (1000VA/900W) Phone Line PowerPanel Business Edition Software CD USB A+B Type Cable 2 x Rackmount Bracket Emergency Power Off Cable (Gray) Serial Interface Cable (DB-9) 4 x Power cord Limited 3-Year Warranty More from Manufacturer aqvxtuqz Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower PR1000ELCDRT2U Smart App Sinewave UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower PR1000ELCDRT2U Specs | | | UPS Topology | Line Interactive | | Energy Saving | GreenPower UPS bypass technology | | | | Voltage | 220/230/240 VAC | | Input Frequency | 50/60 Hz ±0.1 Hz | | Voltage Range | Input: 160 to 288 VAC
Adjustable: 150 to 300 VAC | | Plug Type | IEC320 C14 | | Cord Length | 6' (1.83 m) | | | | VA | 1000 | | Watts | 900 | | On Battery Voltage | 220/230/240 VAC ±5% | | Automatic Voltage Regulation (AVR) | Double Boost, single buck | | On Battery Frequency | 50/60 Hz ± 0.1 Hz | | On Battery Waveform | Sine wave | | Outlets | Total: 8
Battery & Surge Protected: 8
Critical Load: 2
Non-Critical Load (NCL): 6 | | Outlet Type | IEC320 C13 | | Overload Protection | Internal circuitry limiting / circuit breaker | | Transfer time | 4 ms | | | | Runtime | 22 minutes at half load
7 minutes at full load | | Battery Type | Sealed lead-acid | | Battery Size | 12 V/7 Ah | | Hot Swappable | Yes | | Replacement Battery | RBP0030 | | User Replaceable | Yes | | Battery Quantity | 4 | | Typical Recharge Time | 6 hours | | | | Surge Suppression | 810 joules | | Phone Protection RJ11 | 1-in/1-out | | Protection | Phone / Network Protection RJ11/RJ45: 1-In/1-out | | | | LCD | Yes | | Diagnostics | Multifunction LCD Diagnostic Display: Input/Output Volts, Est. Run Time, Normal, Battery, AVR, Silent, Overload, Fault, Load Capacity | | HID Compliant USB Port | Yes | | Serial Port | Yes | | EPO Port | Yes | | Dry Contact Switch | Yes | | Management Cable | Yes | | LED Indicators | Power On | | Alarms | Audible: On Battery, Low Battery, Overload | | Software | PowerPanel Personal edition | | SNMP/HTTP Remote Monitoring | Yes, with optional RMCARD202, RMCARD203 or RMCARD205 | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Humidity | Operating/Storage: 0 to 95% non-condensing | | Storage Temperature | 5 to 113°F (-15 to 45°C) | | Maximum Operating Elevation | 0 to 10,000' (0 to 3000 m) | | Maximum Storage Elevation | 0 to 50,000' (0 to 15000 m) | | Thermal Dissipation | Online: 64 BTU/hr | | Audible Noise | At 5' / 1.52 m from Surface of Unit:34.5 dB | | | | Form Factor | Rackmount | | Dimensions (W x H x D) | 17.05 x 3.46 x 15.28" (433.07 x 87.88 x 388.11 mm) | | Weight | 56.22 lb (25.5 kg) | | | | Package Weight | 65.0 lb | | Box Dimensions (LxWxH) | 21.3 x 20.7 x 11.8" |
