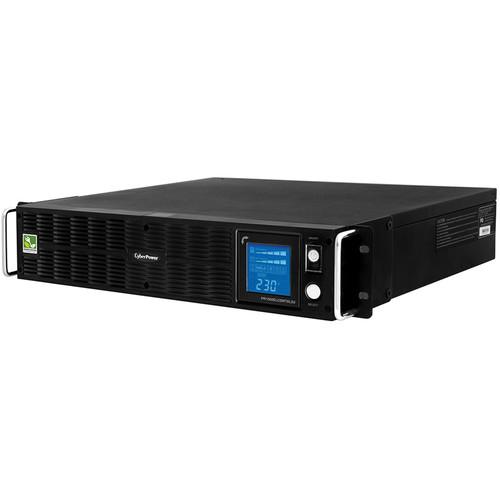

Product description The CyberPower PR1500ELCDRTXL2U Sinewave UPS (1500VA / 1125W) is a convertible rack/tower UPS with line-interactive topology and an adjustable output of 220, 230, or 240 VAC. It provides battery backup, power protection with sine wave output, and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active PFC power source compatibility.The UPS uses AVR (Automatic Voltage Regulation) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential where power fluctuations occur frequently. - Suitable for corporate servers, department servers, storage applications, network devices, and telecom installations
- Capacity of 1500VA / 1125W
- Configurable 220/230/240 VAC input/outputs
- Line-interactive topology
- Full AVR (Automatic Voltage Regulation) Buck/Boost
- Automatic Voltage Regulator automatically regulates low or high voltages to keep equipment working at safe AC power levels (220/230/240 VAC) without switching to battery
- Can operate normally even during power problems such as short brownouts and blackouts
- Sealed lead-acid batteries will provide power only if the incoming voltage drops below 150V or increases above 300V

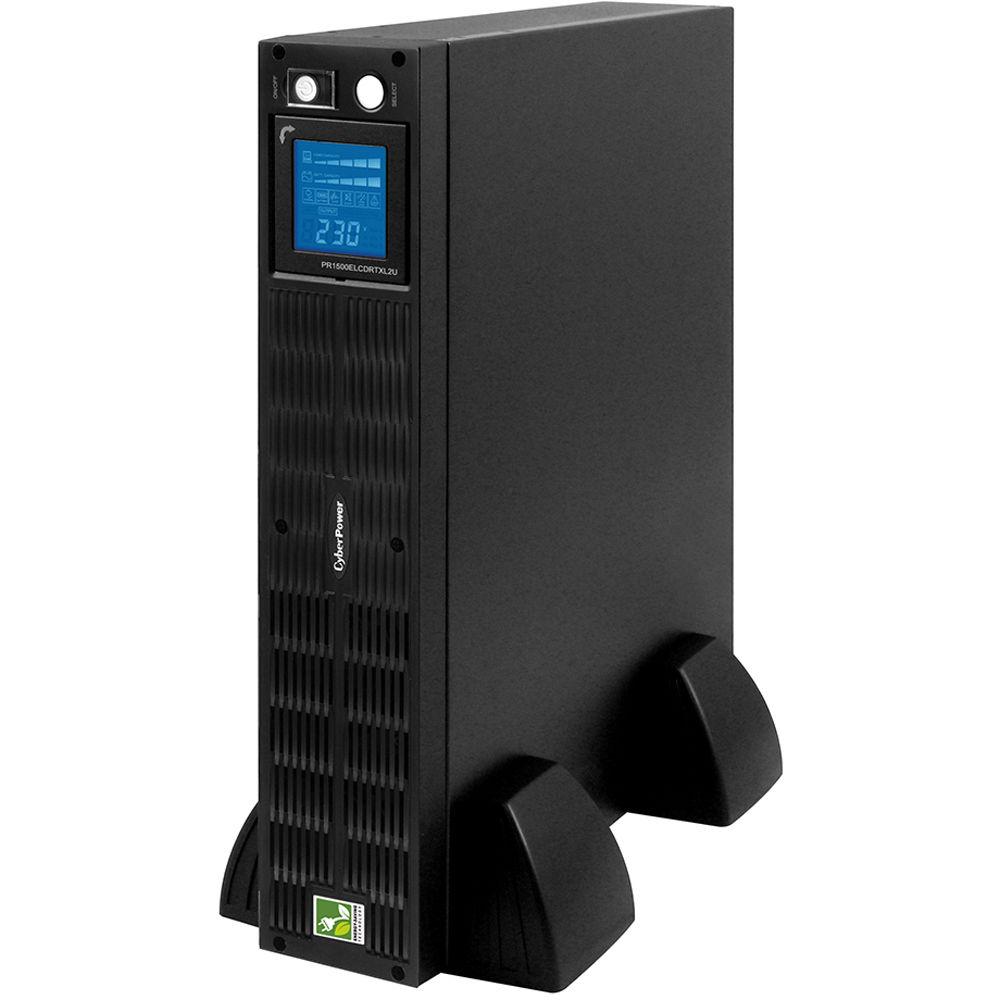

- 2 RU Rackmount/tower convertible

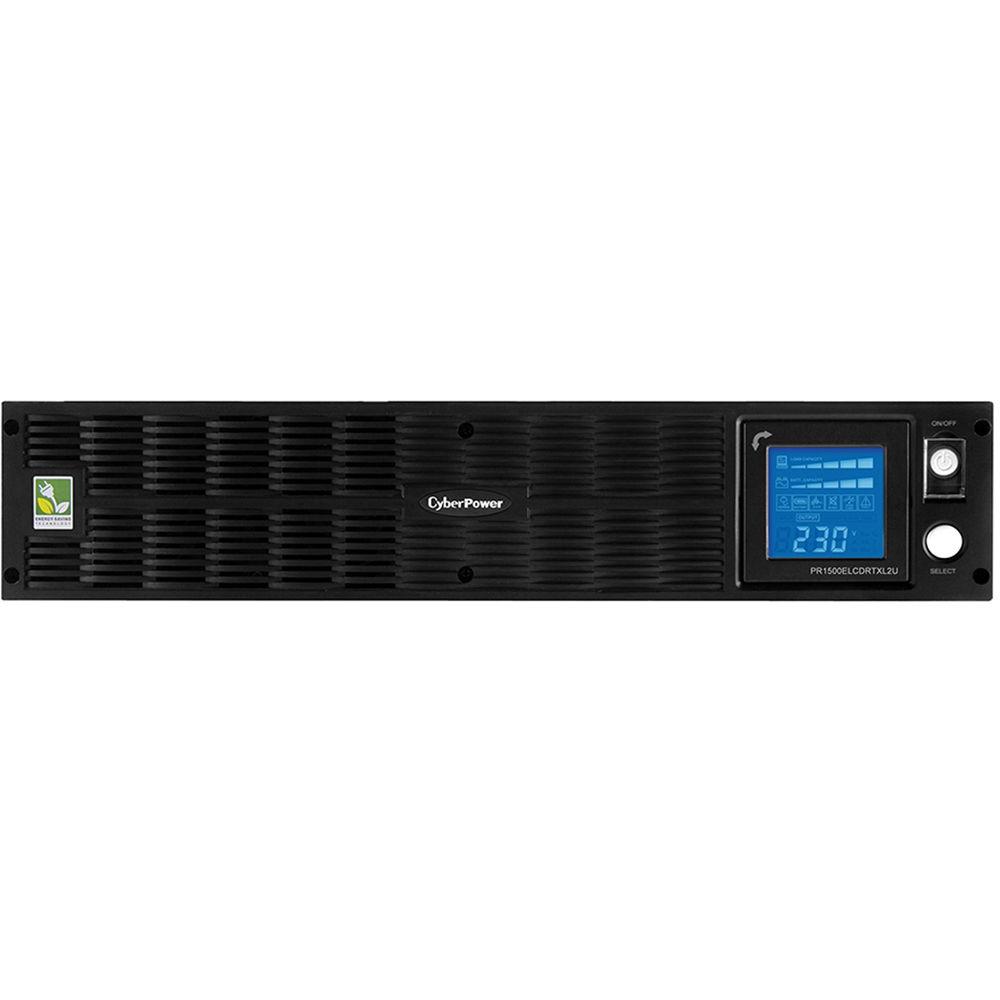

- Multi-function rotatable LCD
- SNMP/HTTP remote management option

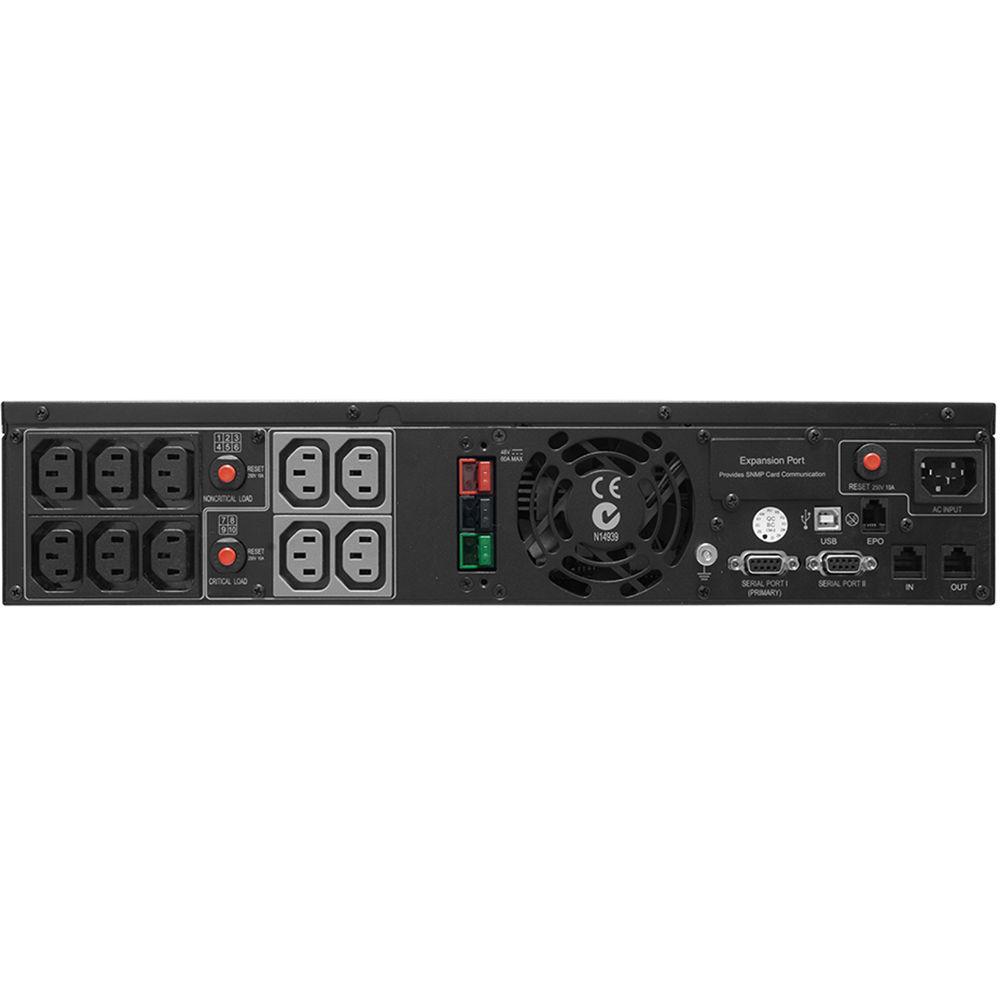

- 10 outlets / USB, serial, and EPO ports
- PowerPanel Business edition software
- EMI, RFI, surge, and spike protection
In the Box CyberPower PR1500ELCDRTXL2U Sinewave UPS (1500VA / 1125W) Phone Line PowerPanel Business Edition Download Card USB A+B Type Cable 2 x Rackmount Bracket 2 x Skid Emergency Power Off Cable (Gray) 2 x Serial Interface Cable (DB-9) 4 x Power Cord Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower PR1500ELCDRTXL2U Sinewave UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower PR1500ELCDRTXL2U Specs | | | UPS Topology | Line-interactive | | Energy Saving | GreenPower UPS bypass technology | | | | Voltage | 220/230/240 VAC | | Input Frequency | 50/60 Hz ±0.1 Hz | | Voltage Range | Input: 160 to 288 VAC
Adjustable: 150 to 300 VAC | | Plug Type | IEC320 C14 | | Cord Length | 6' / 1.83 m | | | | VA | 1500 | | Watts | 1125 | | On Battery Voltage | 220/230/240 VAC ±5% | | Automatic Voltage Regulation (AVR) | Double boost, single buck | | On Battery Frequency | 50/60 Hz ± 0.1 Hz | | On Battery Waveform | Sine wave | | Outlets | Total: 10
Battery & Surge Protected: 10
Critical Load: 4
Non-Critical Load (NCL): 6 | | Outlet Type | IEC320 C13 | | Overload Protection | Internal circuitry limiting / circuit breaker | | Transfer time | 4 ms | | | | Runtime | 22 minutes at half-load
8 minutes at full-load | | Battery Type | Sealed lead-acid | | Battery Size | 12 V / 9 Ah | | Hot Swappable | Yes | | Replacement Battery | RBP0040
Quantity: 1 | | User Replaceable | Yes | | Battery Quantity | 4 | | Typical Recharge Time | 6 hours | | Battery Modules | BP48V75ART2U | | | | Surge Suppression | 810 joules | | Phone Protection RJ11 | 1-in / 1-out | | Protection | Phone / Network Protection RJ11/RJ45: 1-In/1-out | | | | LCD | Yes | | Diagnostics | Multifunction LCD Diagnostic Display: Input/Output volatge, Estimated Run Time, Normal, Battery, AVR, Silent, Overload, Fault, Load Capacity | | HID Compliant USB Port | Yes | | Serial Port | Yes | | EPO Port | Yes | | Dry Contact Switch | Yes | | Management Cable | Yes | | LED Indicators | Power On | | Alarms | Audible: On Battery, Low Battery, Overload | | Software | PowerPanel Personal edition | | SNMP/HTTP Remote Monitoring | Yes, with optional RMCARD202, RMCARD203 or RMCARD205 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Humidity | Operating/Storage: 0 to 95% non-condensing | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Maximum Operating Elevation | 0 to 10,000' / 0 to 3000 m | | Maximum Storage Elevation | 0 to 50,000' / 0 to 15,000 m | | Thermal Dissipation | Online: 170 BTU/hr | | Audible Noise | At 5' / 1.52 m from Surface of Unit: 34.6 dB | | | | Form Factor | Rackmount | | Dimensions (W x H x D) | 17.05 x 3.46 x 18.88" / 433.07 x 87.88 x 479.6 mm | | Weight | 76.06 lb / 34.5 kg | | | | Package Weight | 90.0 lb | | Box Dimensions (LxWxH) | 24.0 x 22.0 x 10.5" |
