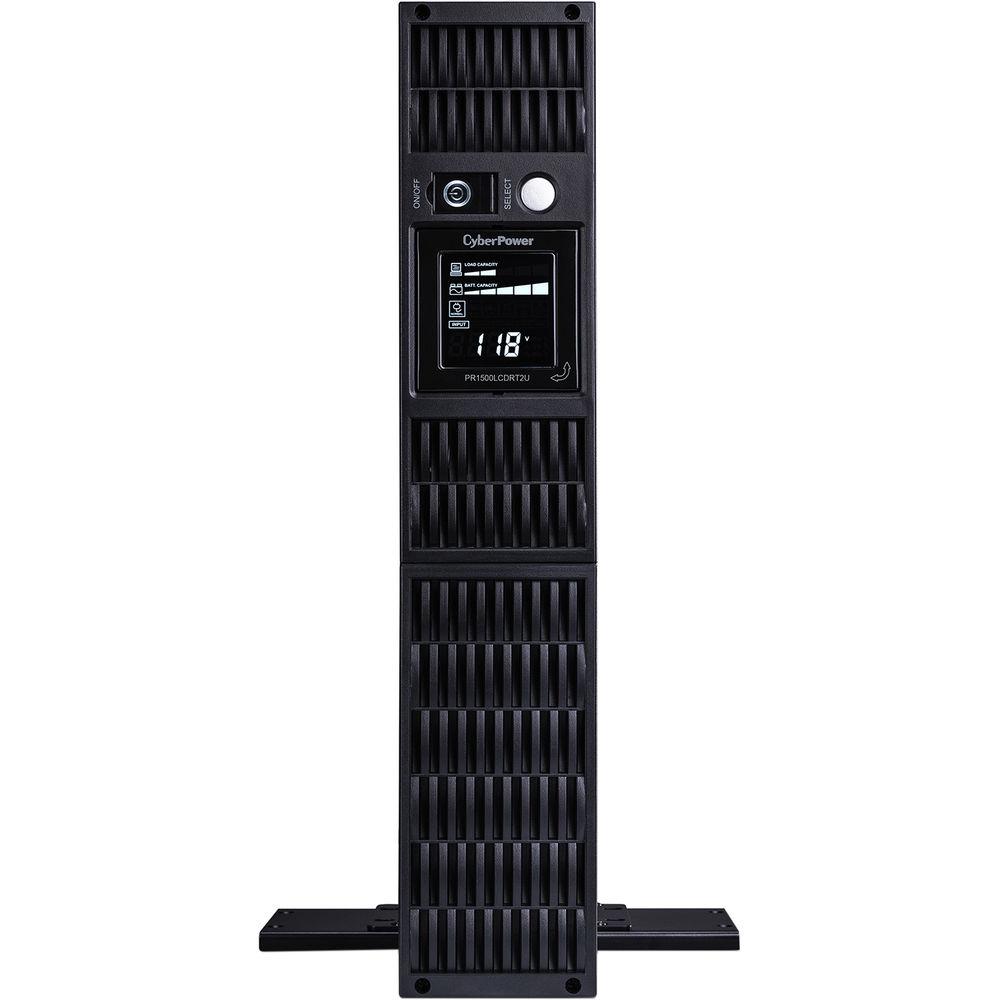

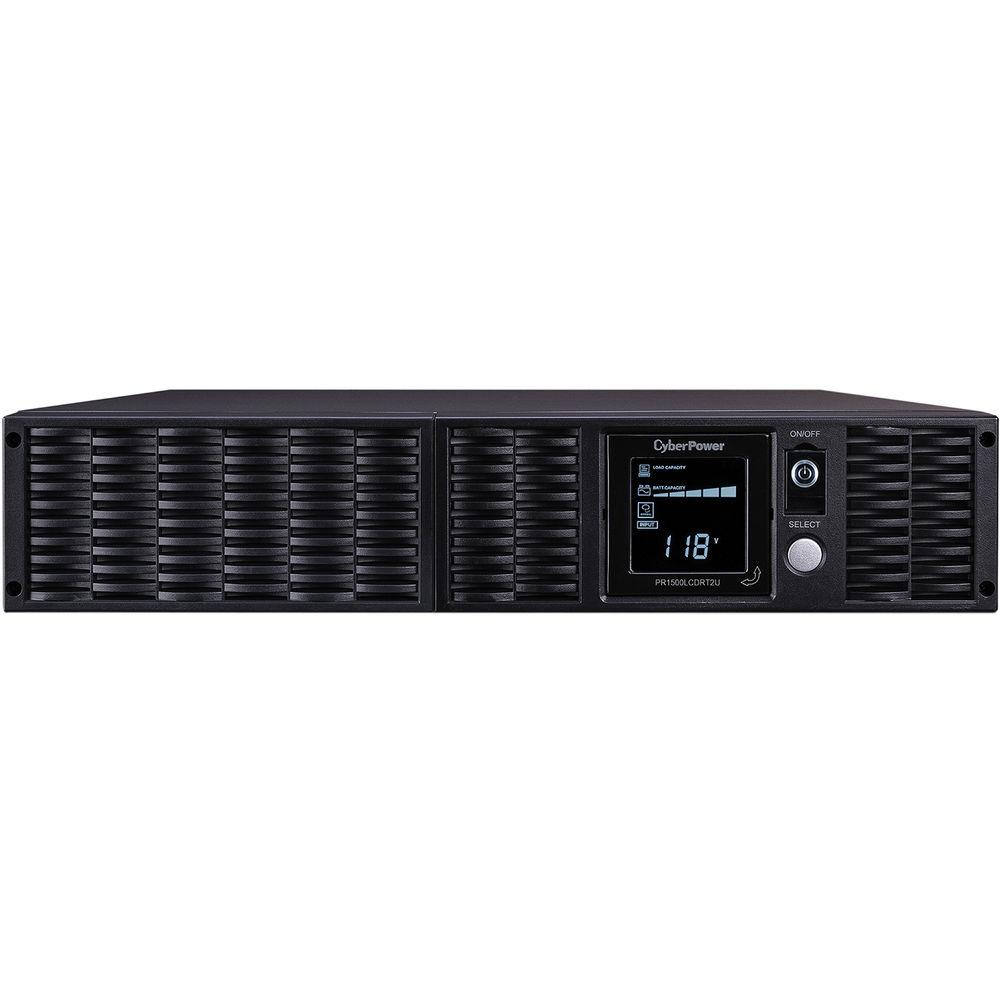

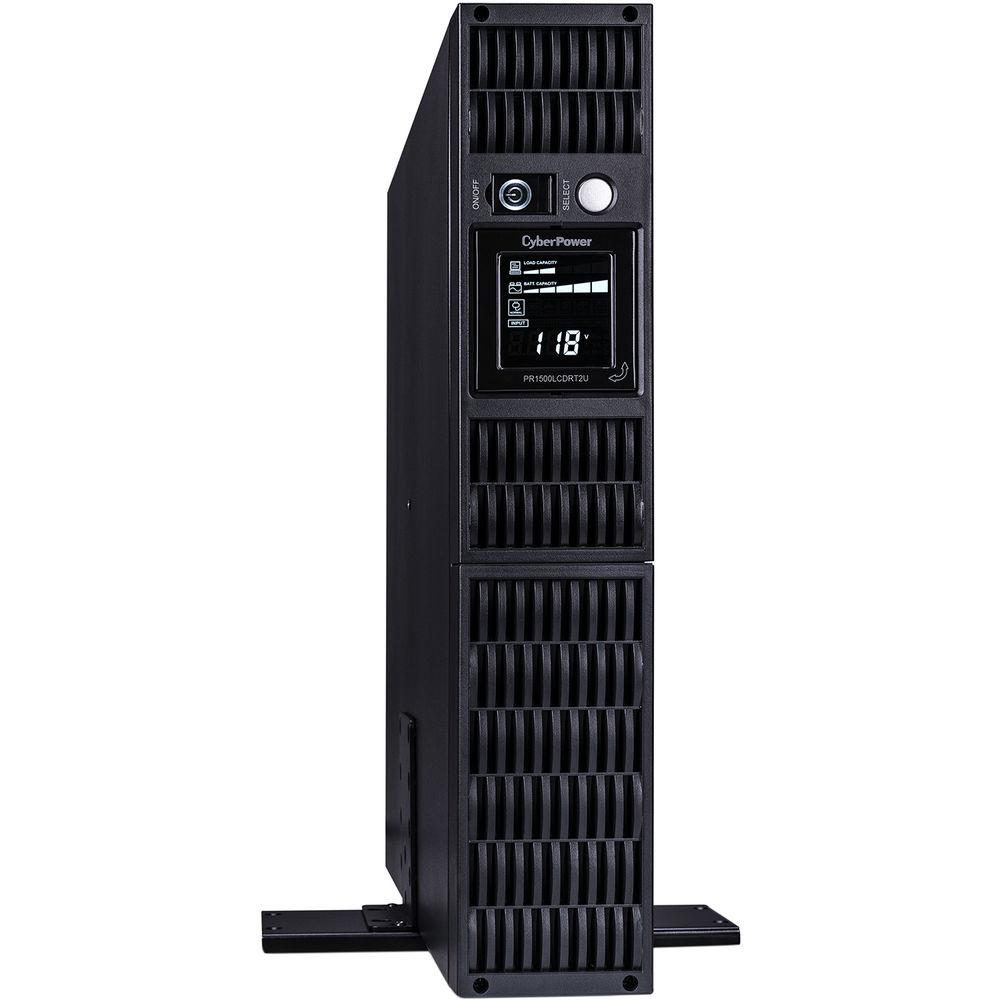

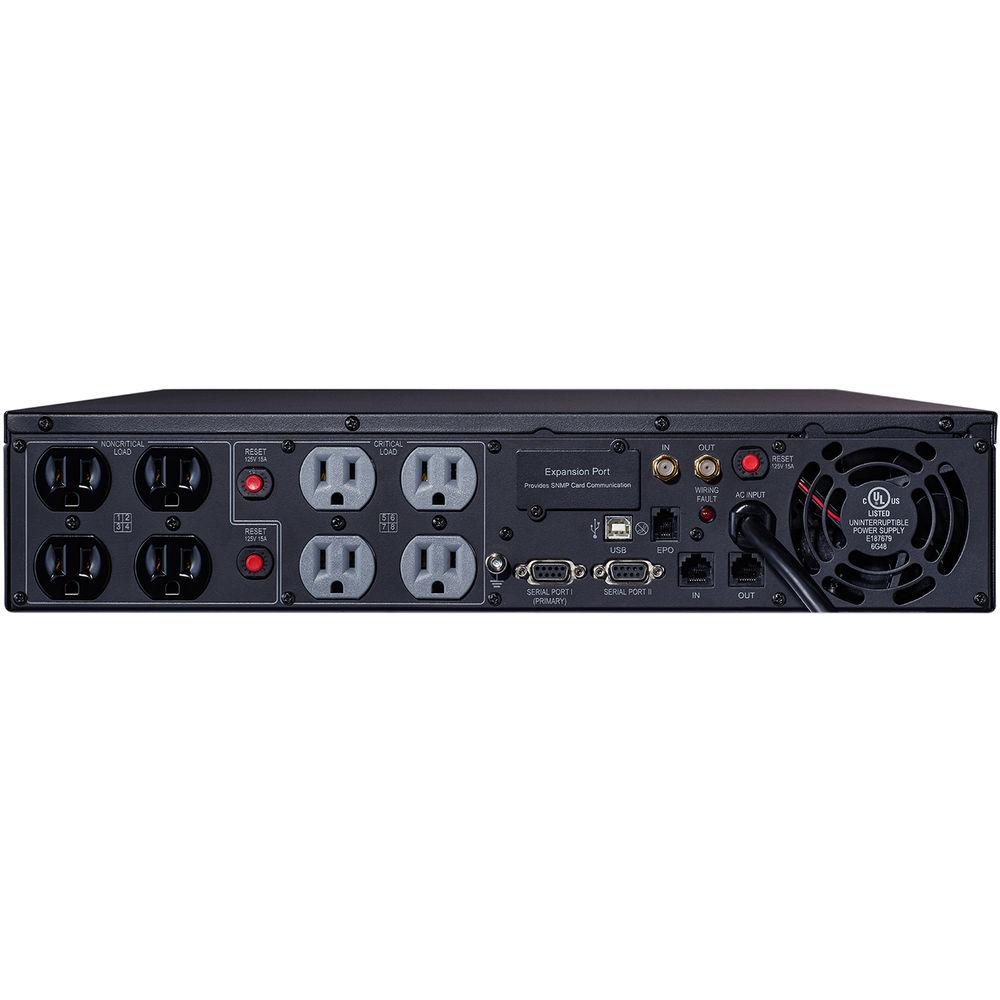

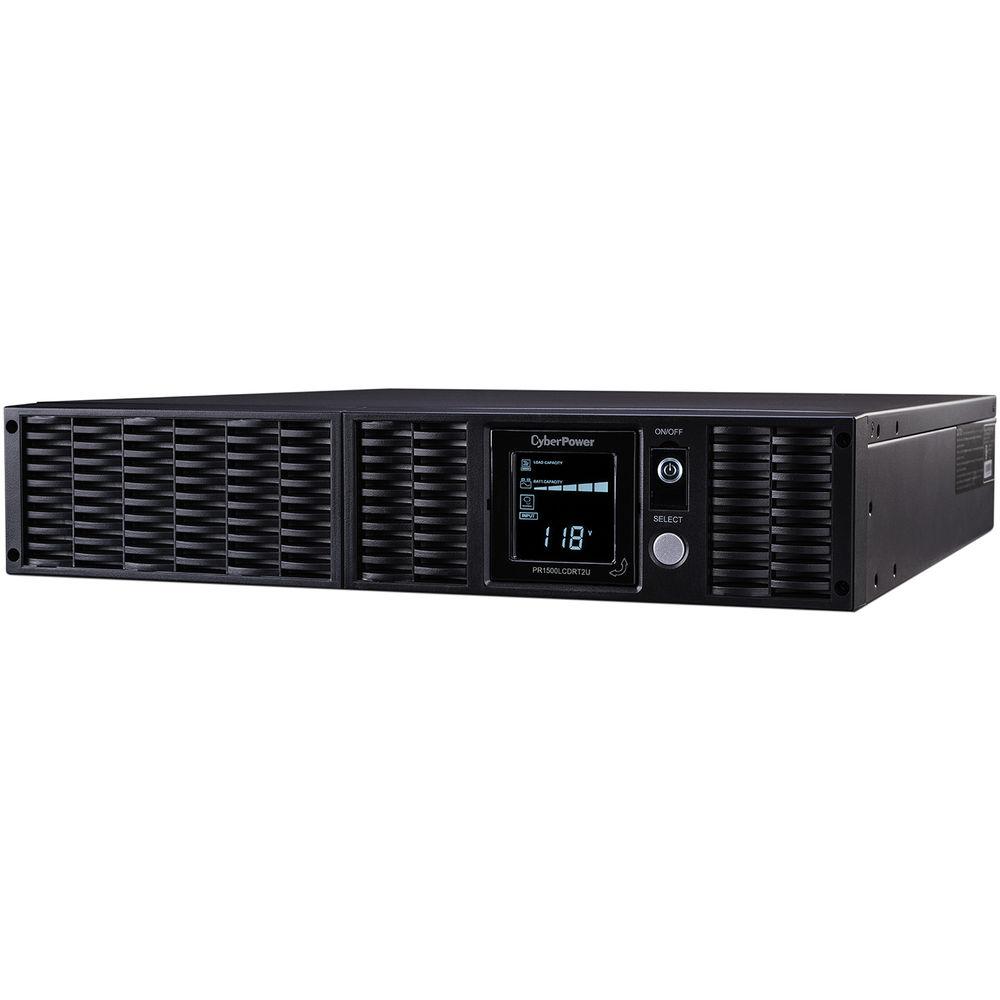

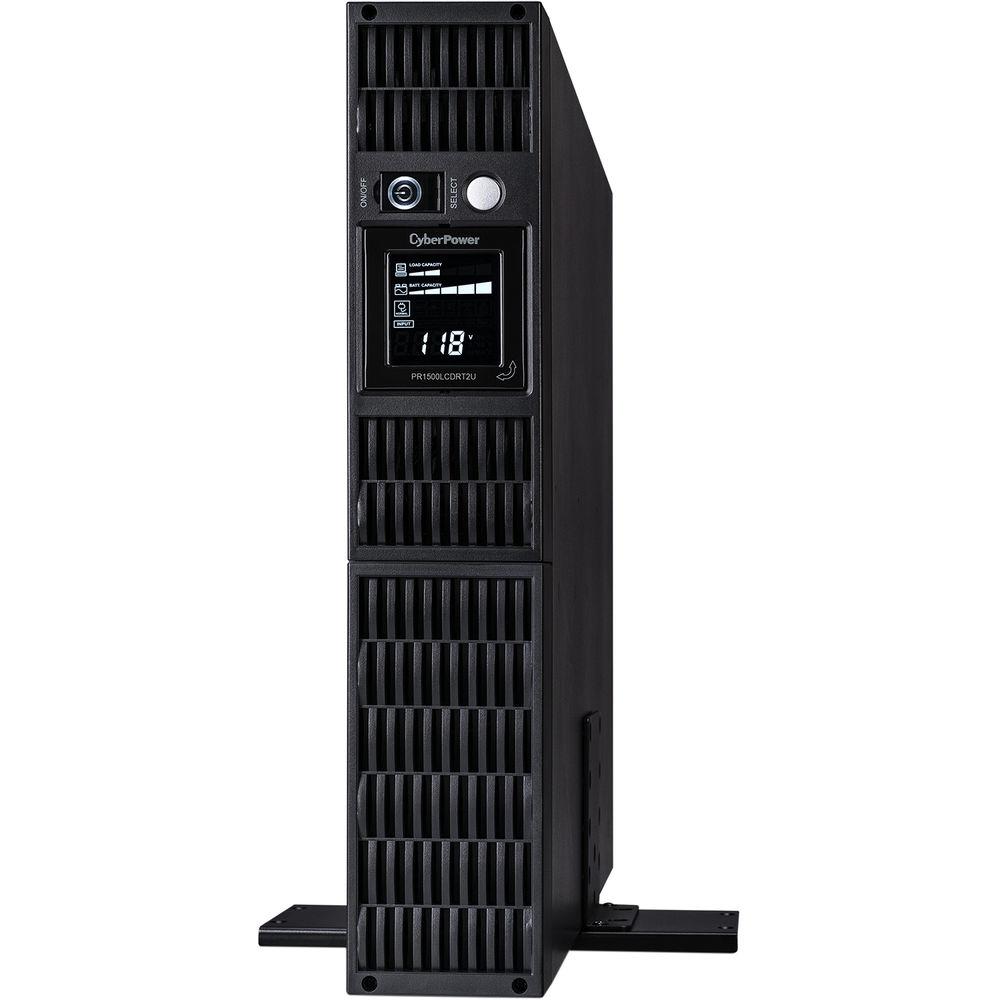

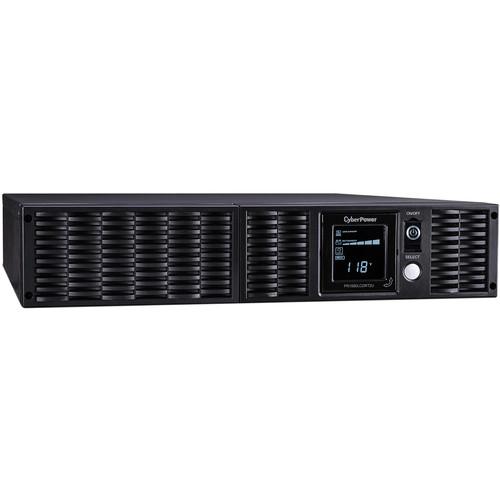

Product description The PR1500LCDRT2U Smart App Sinewave UPS from CyberPower features line-interactive uninterrupted power supply topology. This Energy Star qualified power supply comes equipped with eight widely spaced protected outlets. These outlets are supported by 1780 joules of surge protection as well as 1-in, 1-out combination phone RJ-11/Ethernet RJ-45 and coax RG6 protected connection. Plug in a variety of devices and take advantage of up to eighteen minutes runtime at half load and six minutes runtime at full load. Once configured, you can rest assured your devices are safe as CyberPower provides a connected equipment guarantee of up to $400,000. - Full AVR
- Boost/Buck technology increases low voltages and decreases high voltages, without switching to battery-mode. This conserves battery life and delivers power with a more stable and consistent voltage to connected equipment
- RM/T Configuration
- The Smart App Sinewave UPS can be installed in either a Tower or Rack Mount (2U) configuration
- Multifunction Rotateable LCD Display
- UPS battery status and power conditions are easily viewed on this crystal blue readout when the UPS is rack mounted or standing as a tower
- Critical Load Outlets
- During a power outage or overload, critical load outlets ensure continuous power to critical equipment
- EMI/RFI Filters
- Filters against electromagnetic interference and radio frequency interference ensuring clean power for connected equipment
- Dual PC Support
- The Smart App Sinewave UPS has two serial communication ports and one USB port to connect two PCs or servers, giving the user full control and the ability to prioritize their operation
- Resettable Circuit Breaker
- Convenient unit reset switch in case of an overload
- Audible Alarms
- Distinctive tones identify when the unit is running on battery power, if it is overloaded or when the battery is low
- Reduce Energy Cost & Energy Loss
- This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. Users can save up to 75% when compared to competitive models
- Metal Housing
- Rugged, industrial-grade metal construction allows for installation of the unit in demanding environments
- PowerPanel Business Edition
- This software suite manages the power for all servers and computers supported by the UPS on a network. Features include application/OS shutdown, event logging (power, surge, and voltage variations), hibernation mode, internal reports and analysis, as well as remote management capability for comprehensive power control
- Pure Sine Wave
- When operating on battery, the Smart App Sinewave UPS outputs power with a pure sine wave that is identical to or cleaner than the power from the utility company grid, free of harmonic distortion and electrical noise, resulting in optimal line clarity
- Windows Compatibility
- The PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012
- ISO & Safety Certifications
- It is certified by the FCC, cUL, and UL
UPC: 649532215003 In the Box CyberPower PR1500LCDRT2U Smart App Sinewave UPS $400,000 Lifetime Connected Equipment Guarantee Limited 3-Year Warranty Brochure PDF 631.1kbuedsfqrswf More from Manufacturer uedsfqrswf Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower PR1500LCDRT2U Smart App Sinewave UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower PR1500LCDRT2U Specs | | | Total Outlets | 8 (8 Transformer-Sized) | | Protected Outlets | 8 (Battery and Surge) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Data Line Protection | RJ11 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1780 Joules | | Maximum Wattage | 1350 W | | Input Voltage Adjustable Range | 80 to 150 VAC | | Input Frequency | 50/60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 1% | | Load Capacity | 1500 VA | | Waveform | Sine Wave | | | | Cells | 4 | | Capacity | 84 Wh (7 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 6 Minutes | | Half-Load Runtime | 18 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB1270X4A | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 10' / 3 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.3 x 3.5 x 15.8" / 439.4 x 88.9 x 401.3 mm | | Weight | 56.0 lb / 25.4 kg | | | | Package Weight | 62.4 lb | | Box Dimensions (LxWxH) | 21.5 x 20.5 x 11.5" |
