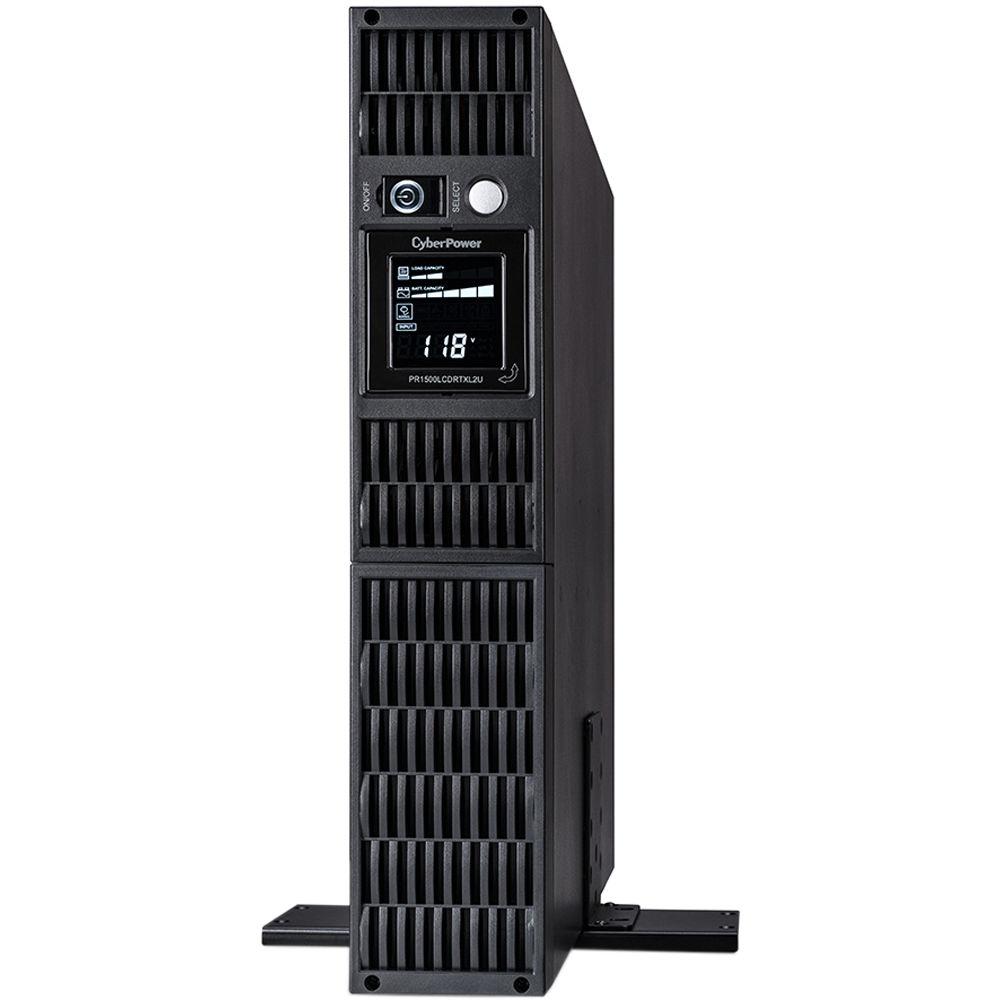

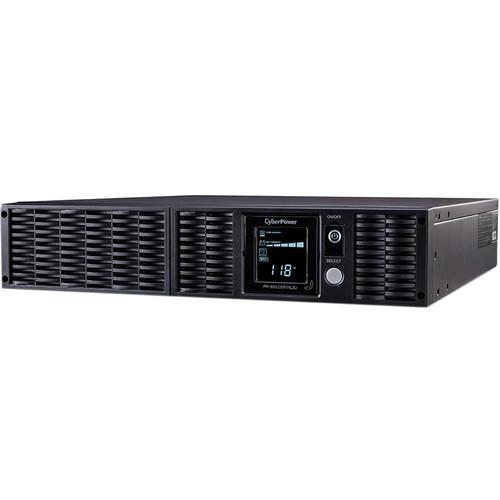

User Manual for CyberPower PR1500LCDRTXL2U Smart App Sinewave UPS Click to enlarge the picture
Contents of the user manual for the CyberPower PR1500LCDRTXL2U Smart App Sinewave UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower PR1500LCDRTXL2U Smart App Sinewave UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

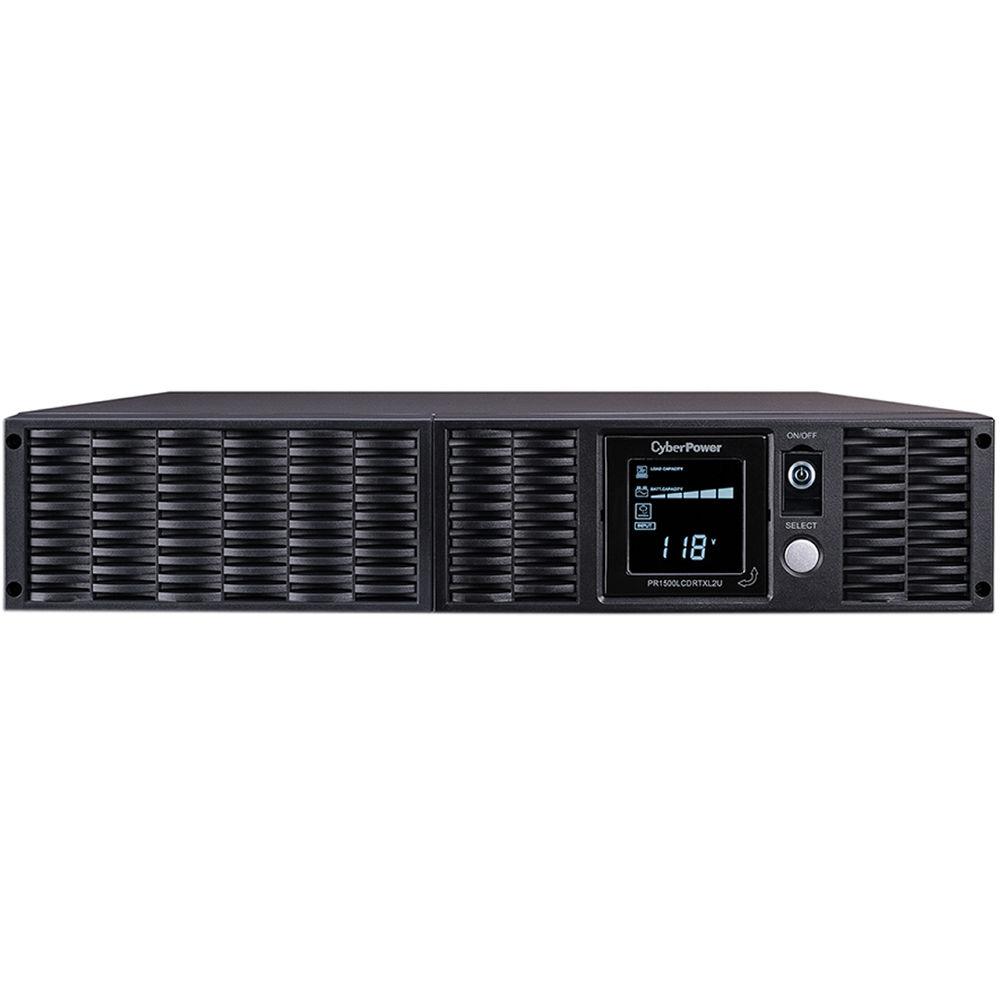

Product description The PR1500LCDRTXL2U Smart App Sinewave UPS from CyberPower comes equipped with an output capacity of 1500 VA / 1500W that helps safeguard mission-critical servers, telecom equipment, and VoIP and inter-networking hardware that require sine wave power. This power supply features a nominal input voltage of 120 VAC, input voltage range of 80-150 VAC, Automatic Voltage Regulation, which provides consistent and clean AC power to all your connected equipment, and also has integrated circuitry for EMI/RFI filters. The Smart App Sinewave UPS provides an integrated panel for displaying real-time UPS vitals, such as load current level, runtime, battery level, input/output voltage, output frequency, and more.

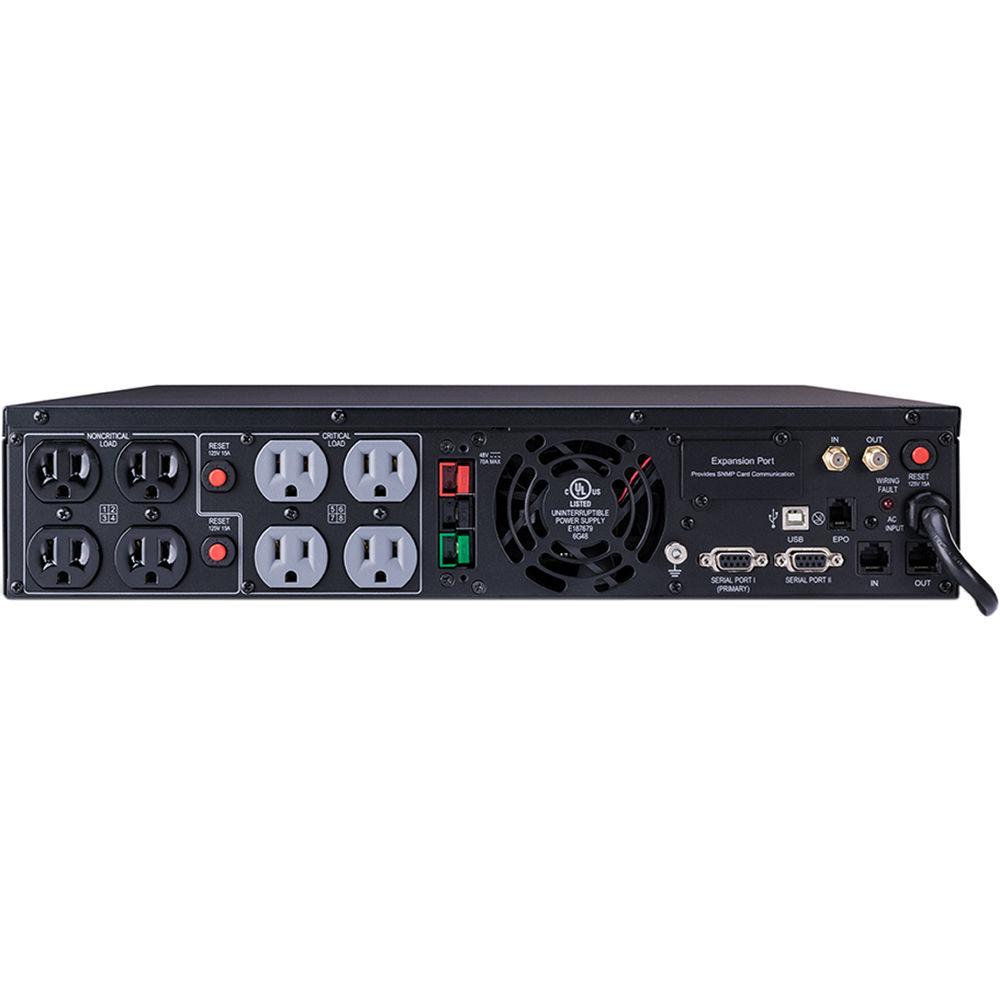

When running at half load, the Smart App Sinewave UPS can power devices for up to 14 minutes and when running at full load, up to 5 minutes. It can be recharged in around 6 hours and offers eight total outlets that can absorb up to 2,060 joules for keeping your devices safe against surges and spikes. To keep your devices powered during blackouts and brownouts, all of the NEMA 5-15R outlets are battery and surge protected using internal circuitry limiting and a circuit breaker, and four of them are also critical load outlets. Other connections offered are serial, USB Type-B, Ethernet RJ45, Phone RJ11, and Coax RG6 ports.
This power supply is ENERGY STAR qualified with GreenPower UPS Bypass technology for reducing energy consumption and heat buildup to help save energy costs. Included with the power supply is the PowerPanel Business Edition UPS management software, which requires minimal system resources and monitors the status of the UPS to ensure it is working properly. When a power outage does occur, this software automatically saves open files and powers down the system into hibernation mode. When your PC is running in hibernation mode, the power supply will offer a longer runtime. This CyberPower UPS provides a lifetime connected equipment guarantee of up to $400,000. Typical Applications Features - Line Interactive Topology

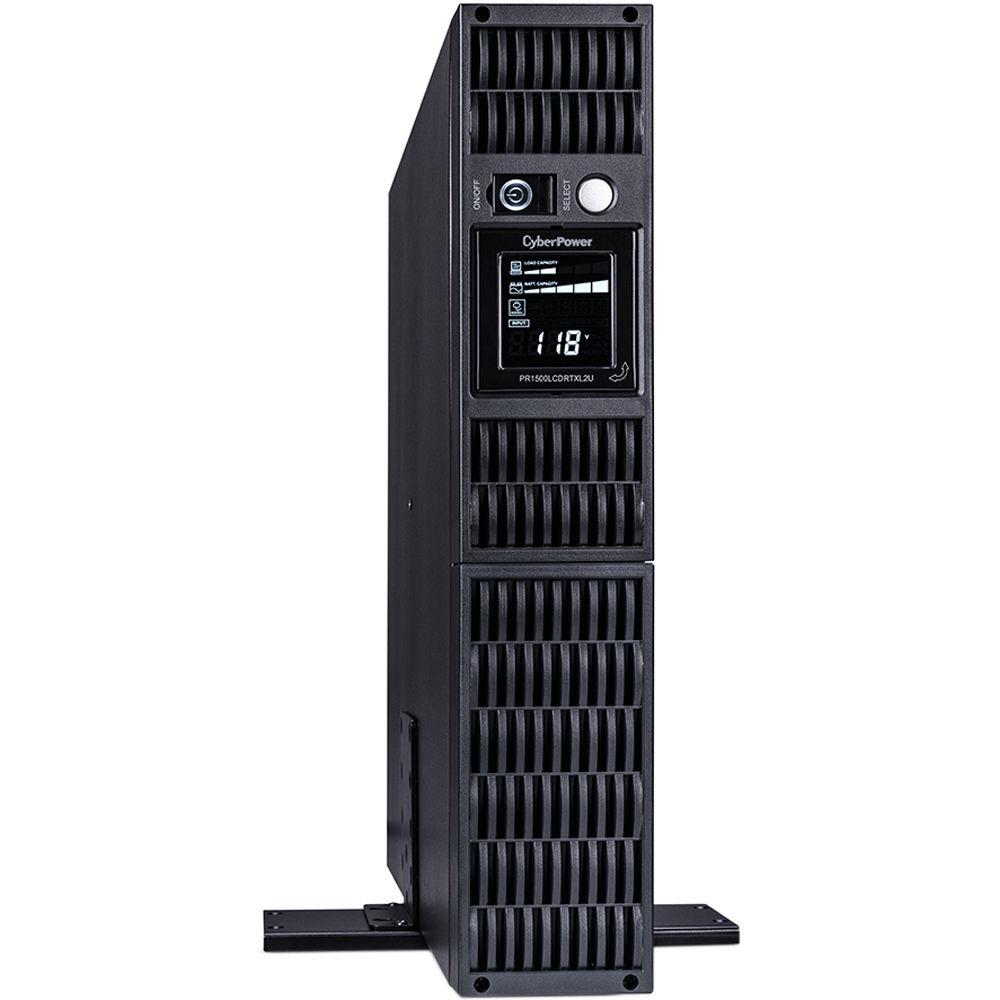

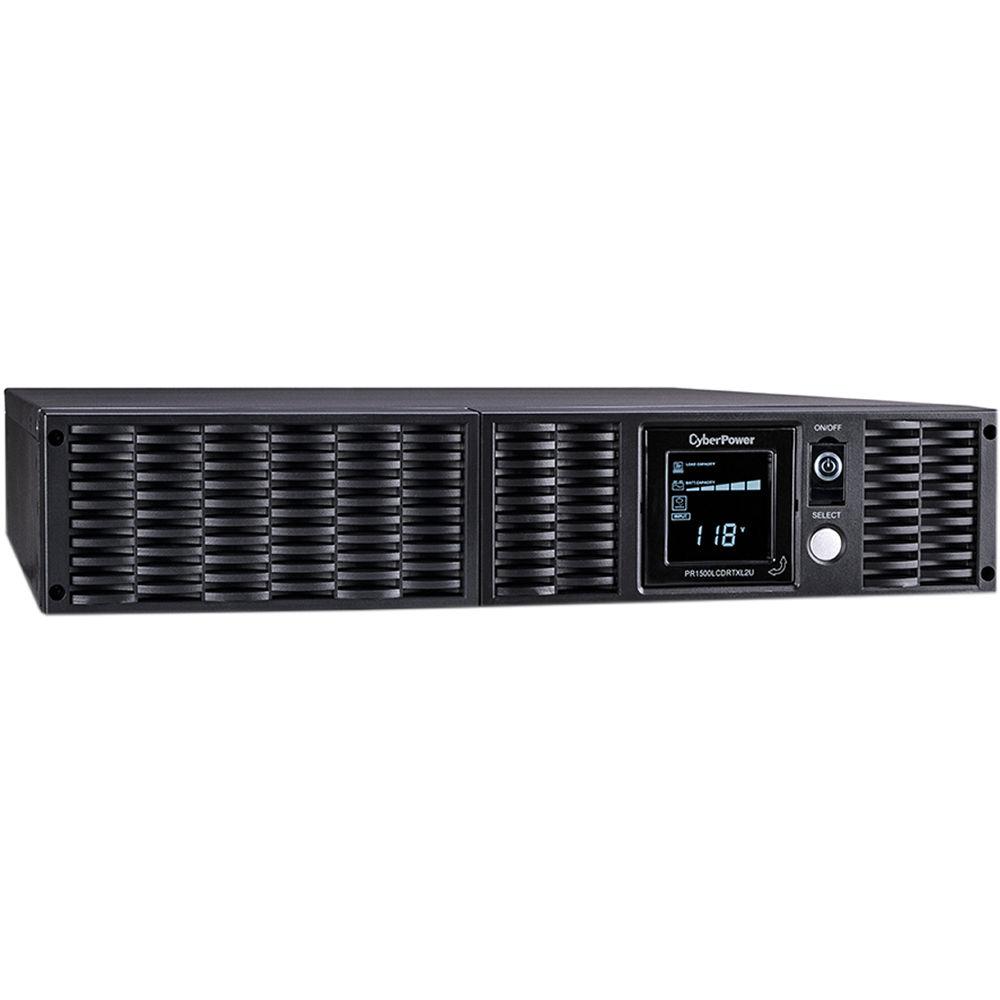

- 2U Rackmount / Tower Convertible
- Multifunction Rotatable LCD
- SNMP/HTTP Remote Management
- 8 Outlets / USB, Serial, and EPO Ports
- PowerPanel Business Software
UPC: 649532015061 In the Box CyberPower PR1500LCDRTXL2U Smart App Sinewave UPS (1500VA/1500W) 2 x Rackmount Brackets Metal Stand Plate Telephone Cable (Black) Emergency Power Off Cable (Gray) PowerPanel Business Edition Software CD 2 x Serial Interface Cables (DB-9) USB Type-A to Type-B Cable 4 x Rubber Buffer $400,000 Connected Equipment Guarantee Limited Lifetime Connected Equipment Guarantee Warranty Limited 3-Year Warranty Brochure PDF 631.7kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower PR1500LCDRTXL2U Smart App Sinewave UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower PR1500LCDRTXL2U Specs | | | Total Outlets | 8 | | Protected Outlets | 8 (Battery and Surge) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Coax Protection | 1-In
1-Out | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 2060 Joules | | Maximum Wattage | 1500 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 80 to 150 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 0.1 Hz | | Load Capacity | 1500 VA | | Thermal Dissipation | 150 BTU/Hour | | Power Factor Correction | 1 | | Waveform | Sine Wave | | | | Cells | 4 | | Capacity | 108 Wh (9 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 5 Minutes | | Half-Load Runtime | 14 Minutes | | Charging Time | 6 Hours | | User Replaceable | Yes | | Replacement Battery | RB1290X4F | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 95°F / 0 to 35°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 10' / 3 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.2 x 3.5 x 19.8" / 43.8 x 8.9 x 50.2 cm | | Weight | 67.0 lb / 30.4 kg | | | | Package Weight | 85.0 lb | | Box Dimensions (LxWxH) | 23.5 x 22.3 x 10.2" |
