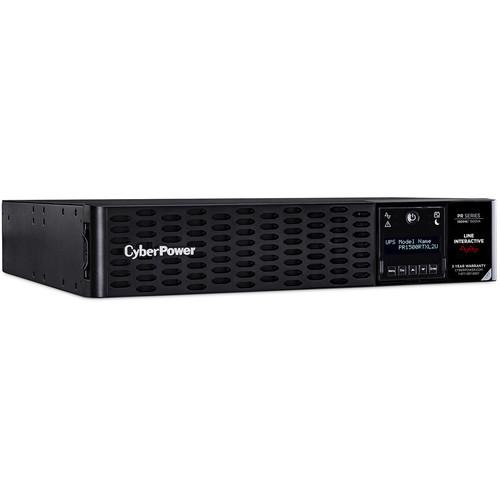

User Manual for CyberPower PR1500RTXL2U Smart App Sinewave UPS Click to enlarge the picture
Contents of the user manual for the CyberPower PR1500RTXL2U Smart App Sinewave UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower PR1500RTXL2U Smart App Sinewave UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|
Product description The PR1500RTXL2U Smart App Sinewave UPS from CyberPower is designed for corporate applications, featuring line-interactive topology, surge protection, and battery backup capabilities. Configurable in a tower or rackmount form factor, it utilizes sine-wave output, active power factor correction, and automatic voltage regulation to eliminate power gaps for sensitive equipment. Its eight power outlets are all surge- and battery-backup-protected to keep your devices running during power spikes and emergencies. This unit is compatible with the BP48VP2U02 extended battery module, sold separately, which can provide extra power and extend runtime. Should your devices be damaged in the event of a power surge, CyberPower provides a connected equipment guarantee of up to $400,000. - Line-Interactive Topology
- A line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation
- Provides clean, consistent AC power by automatically increasing voltage without using battery power when incoming power fluctuates.
- Battery Equalization Technology
- An advanced charging process that maintains the voltages of the batteries at the same level to prolong battery life.
- Fast Charge Technology
- Allows UPS batteries to recharge faster via a built-in charger.
- Rotatable Multifunction LCD Panel
- Adjustable for better viewing and provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.
- Toolless Battery Panel Access
- The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover for quick replacements.
- Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Data-Line Protection
- Prevents power surges that travel through telephone, coaxial, and/or Ethernet lines from causing damage to electronics.
- GreenPower UPS Bypass Design
- A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
- Rack/Tower Versatility
- Included mounting accessories allows for horizontal rack or vertical tower installation.
- PowerPanel Business Edition Software
- A free downloadable software that offers IT professionals tools for monitoring and managing the UPS and backup power. This software offers remote management functionality.
- Connected Equipment Guarantee
- CyberPower will repair or replace properly connected equipment, up to $400,000, if it is damaged by a power surge.
UPC: 649532620623 In the Box CyberPower PR1500RTXL2U Smart App Sinewave UPS Faceplate Rack Mounting Kit Tower Mounting Kit Emergency Power Off Cable Serial Interface Cable USB Type-A + Type-B Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower PR1500RTXL2U Smart App Sinewave UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower PR1500RTXL2U Specs | | | Total Outlets | 8 x NEMA 5-15R | | Protected Outlets | 8 x NEMA 5-15R (Battery and Surge) | | Plug Type | NEMA 5-15P Offset Right-Angle | | USB Charging Ports | None | | SmartSlot Interface | None | | Coax Protection | None | | Data Line Protection | RJ11, RJ45 | | Communications | Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 2430 Joules | | Maximum Wattage | 1500 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Range | 70 to 155 VAC | | Input Frequency | 50/60 Hz ± 5% | | Output Voltage Range | 100 to 125 VAC | | Output Frequency | 50/60 Hz ± 1% | | Load Capacity | 1500 VA | | Circuit Breaker Rating | 15 A | | Thermal Dissipation | 72 BTU/Hour | | Waveform | Sine Wave | | | | Capacity | 108 Wh (9 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 6.5 Minutes | | Half-Load Runtime | 17.9 Minutes | | Charging Time | 3 Hours | | User Replaceable | Yes | | Replacement Battery | RB1290X4J | | Hot-Swap Support | Yes | | External Battery Connection | 4 x IEC Jumper | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3048 m | | Storage Altitude | 50,000' / 15,240 m | | | | Cable Length | 10' / 3.05 m | | Material of Construction | Metal | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.1 x 3.4 x 19.7" / 434.3 x 86.4 x 500.4 mm | | Weight | 67.7 lb / 30.7 kg | | | | Package Weight | 81.8 lb | | Box Dimensions (LxWxH) | 24.25 x 22.0 x 10.25" |
