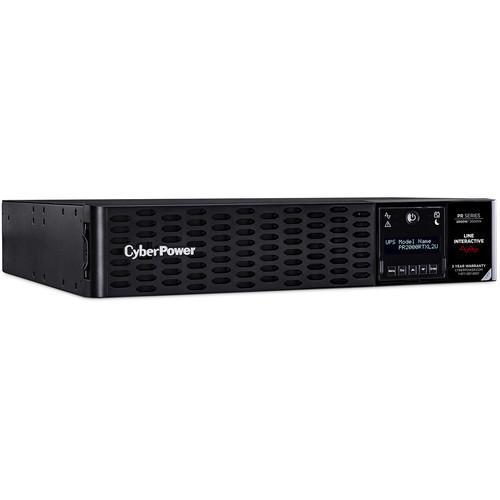

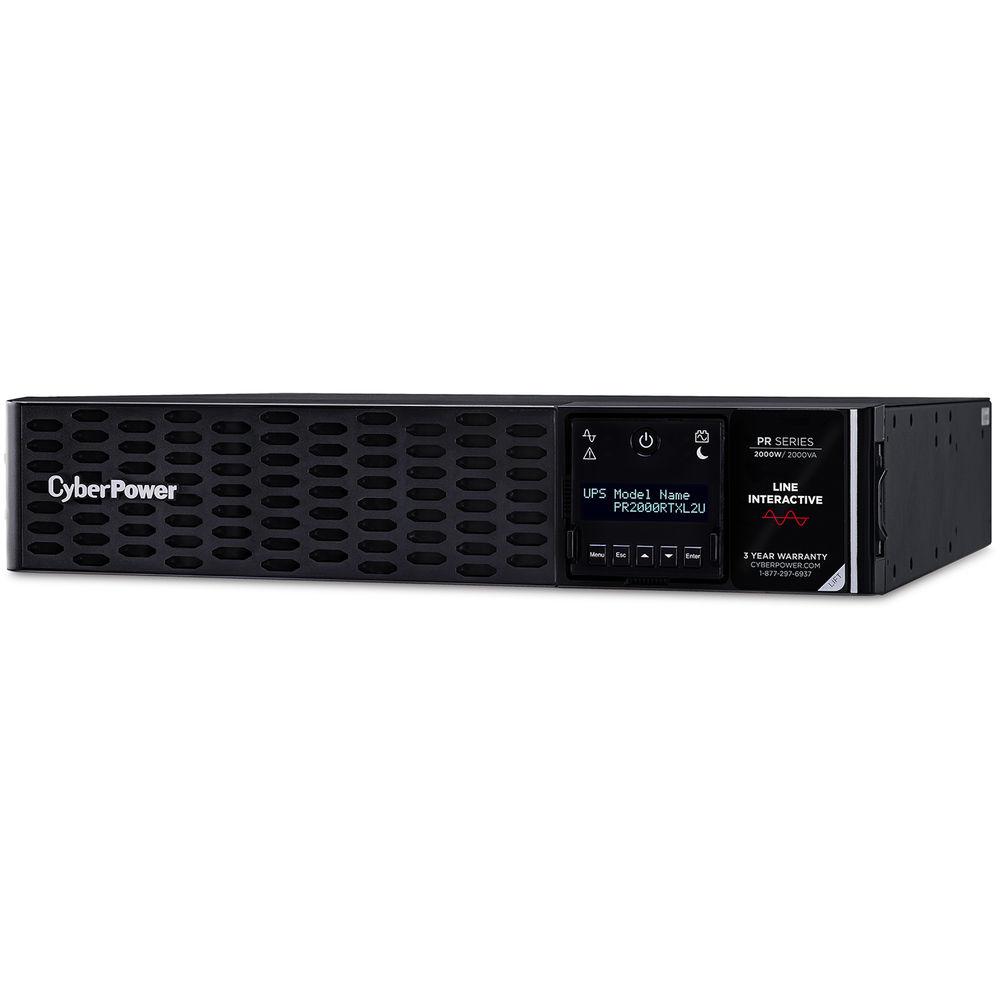

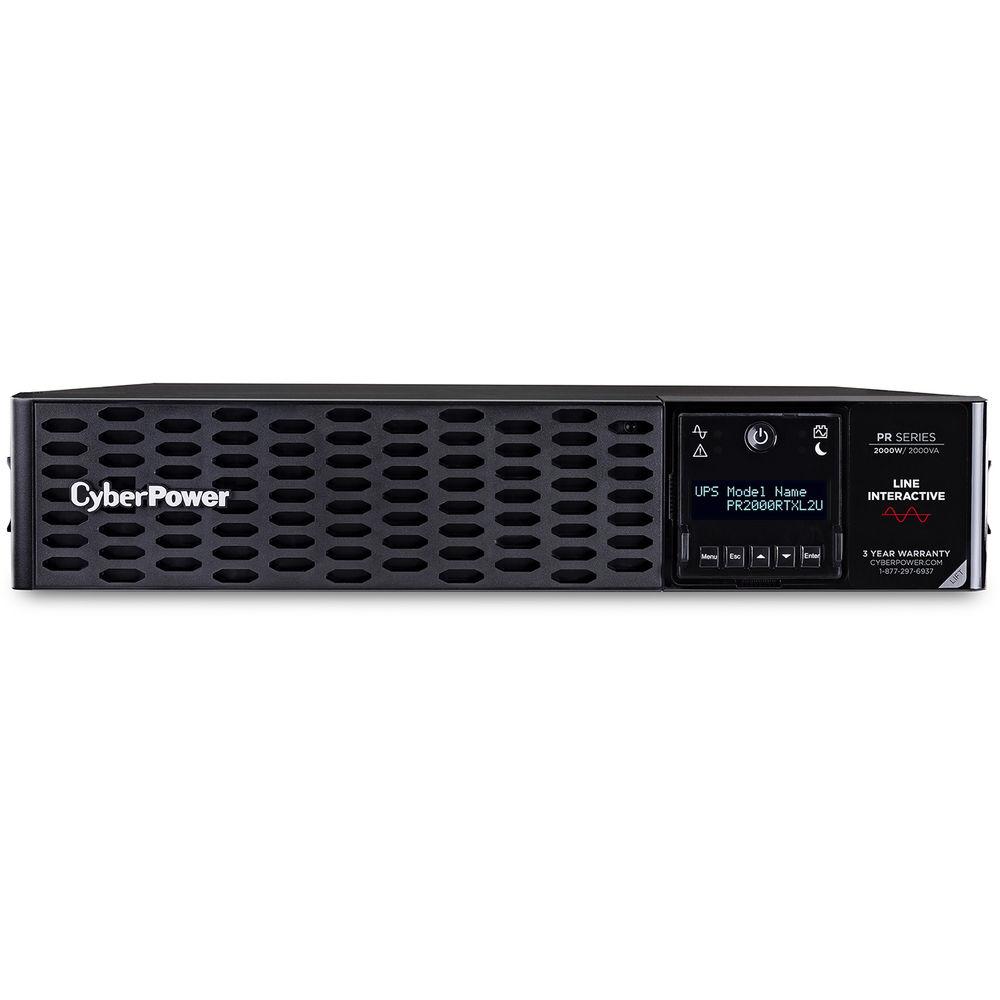

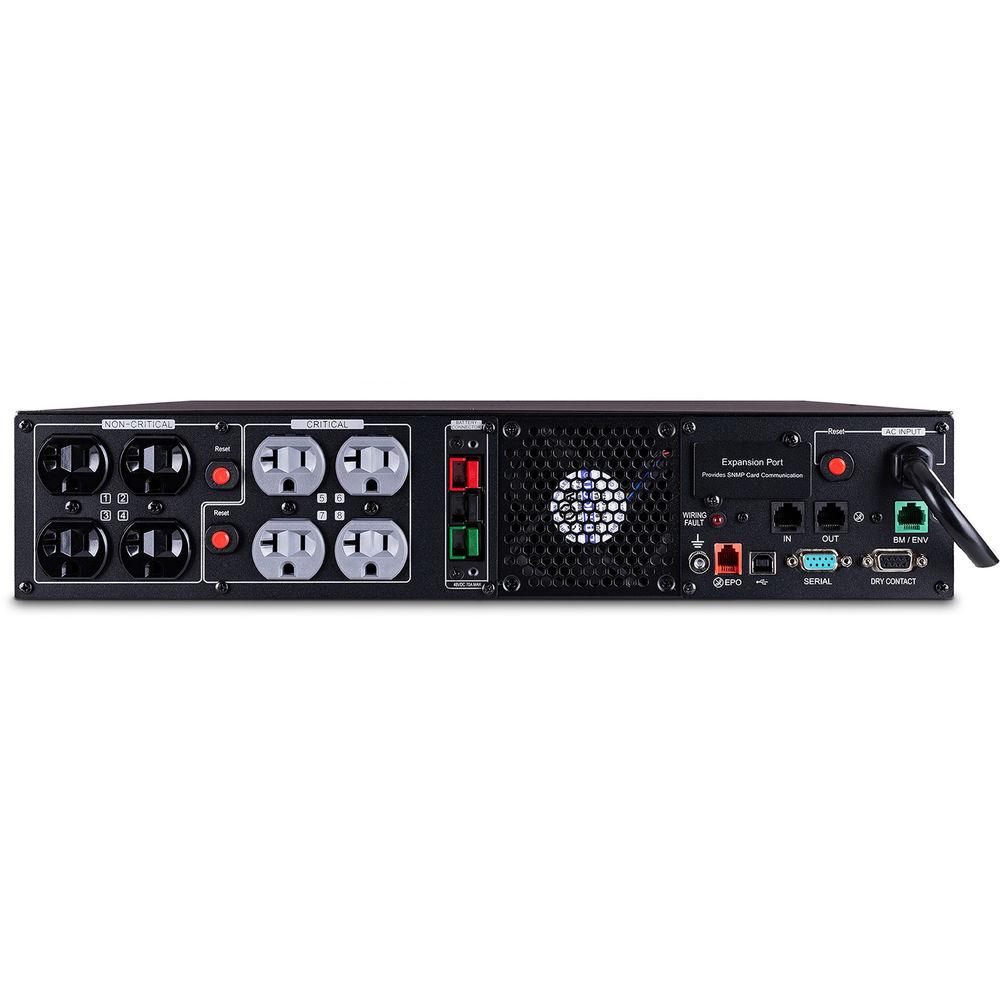

Product description The PR2000RTXL2U Smart App Sinewave UPS from CyberPower is designed for corporate applications, featuring line-interactive topology, surge protection, and battery backup capabilities. Configurable in a tower or rackmount form factor, it utilizes sine-wave output, active power factor correction, and automatic voltage regulation to eliminate power gaps for sensitive equipment. Its eight power outlets are all surge- and battery-backup-protected to keep your devices running during power spikes and emergencies. This unit is compatible with the BP48VP2U02 extended battery module, sold separately, which can provide extra power and extend runtime. Should your devices be damaged in the event of a power surge, CyberPower provides a connected equipment guarantee of up to $400,000. - Line-Interactive Topology
- A line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation
- Provides clean, consistent AC power by automatically increasing voltage without using battery power when incoming power fluctuates.
- Battery Equalization Technology
- An advanced charging process that maintains the voltages of the batteries at the same level to prolong battery life.
- Fast Charge Technology
- Allows UPS batteries to recharge faster via a built-in charger.
- Rotatable Multifunction LCD Panel
- Adjustable for better viewing and provides information on 47 different settings that include UPS status, UPS setup and control management, and testing options.
- Toolless Battery Panel Access
- The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover for quick replacements.
- Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Data-Line Protection
- Prevents power surges that travel through telephone, coaxial, and/or Ethernet lines from causing damage to electronics.
- GreenPower UPS Bypass Design
- A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
- Rack/Tower Versatility
- Included mounting accessories allows for horizontal rack or vertical tower installation.
- PowerPanel Business Edition Software
- A free downloadable software that offers IT professionals tools for monitoring and managing the UPS and backup power. This software offers remote management functionality.
- Connected Equipment Guarantee
- CyberPower will repair or replace properly connected equipment, up to $400,000, if it is damaged by a power surge.
UPC: 649532620630 In the Box CyberPower PR2000RTXL2U Smart App Sinewave UPS Faceplate Rack Mounting Kit Tower Mounting Kit Emergency Power Off Cable Serial Interface Cable USB Type-A + Type-B Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower PR2000RTXL2U Smart App Sinewave UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower PR2000RTXL2U Specs | Total Outlets | 8 x NEMA 5-20R | Protected Outlets | 8 x NEMA 5-20R (Battery and Surge) | Plug Type | NEMA 5-20P Offset Right-Angle | USB Charging Ports | None | SmartSlot Interface | None | Coax Protection | None | Data Line Protection | RJ11, RJ45 | Communications | Serial | Emergency Power Off (EPO) Support | Yes | Topology | Line Interactive | Transfer Time | 4 ms | | Surge Energy Rating | 2430 Joules | Maximum Wattage | 2000 W | Nominal Input Voltage | 120 VAC | Input Voltage Range | 70 to 155 VAC | Input Frequency | 50/60 Hz ± 5% | Output Voltage Range | 100 to 125 VAC | Output Frequency | 50/60 Hz ± 1% | Load Capacity | 2000 VA | Circuit Breaker Rating | 20 A | Thermal Dissipation | 130 BTU/Hour | Power Factor Correction | 1 | Waveform | Sine Wave | | Capacity | 108 Wh (9 Ah / 12 V) | Chemistry | Lead-Acid | Full-Load Runtime | 4.3 Minutes | Half-Load Runtime | 12.2 Minutes | Charging Time | 3 Hours | User Replaceable | Yes | Replacement Battery | RB1290X4J | Hot-Swap Support | Yes | External Battery Connection | 4 x IEC Jumper | | Operating Temperature | 32 to 104°F / 0 to 40°C | Operating Humidity | 0 to 95% | Storage Temperature | 5 to 113°F / -15 to 45°C | Operating Altitude | 10,000' / 3048 m | Storage Altitude | 50,000' / 15,240 m | | Cable Length | 10' / 3.05 m | Material of Construction | Metal | Rack Form Factor | 2 RU | Dimensions (W x H x D) | 17.1 x 3.4 x 19.7" / 434.3 x 86.4 x 500.4 mm | Weight | 74.5 lb / 33.8 kg | | Package Weight | 87.0 lb | Box Dimensions (LxWxH) | 24.25 x 22.0 x 10.5" |
