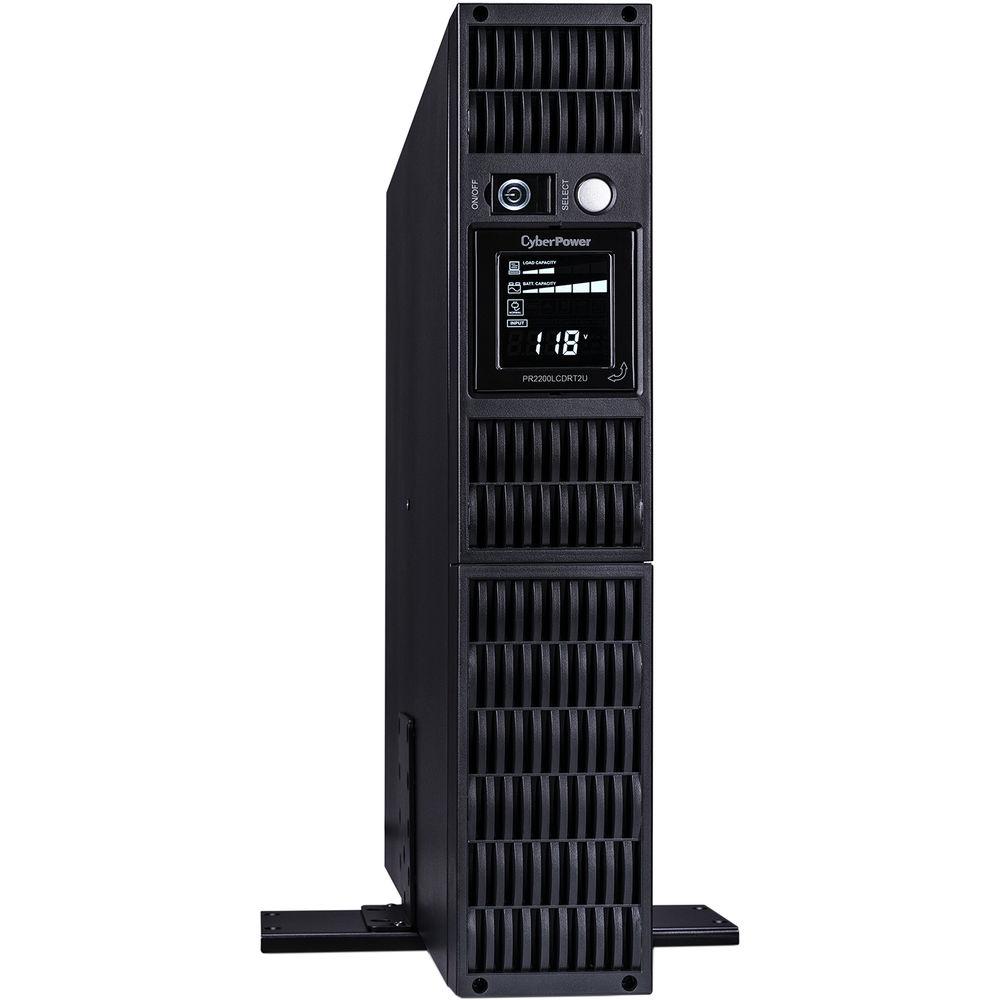

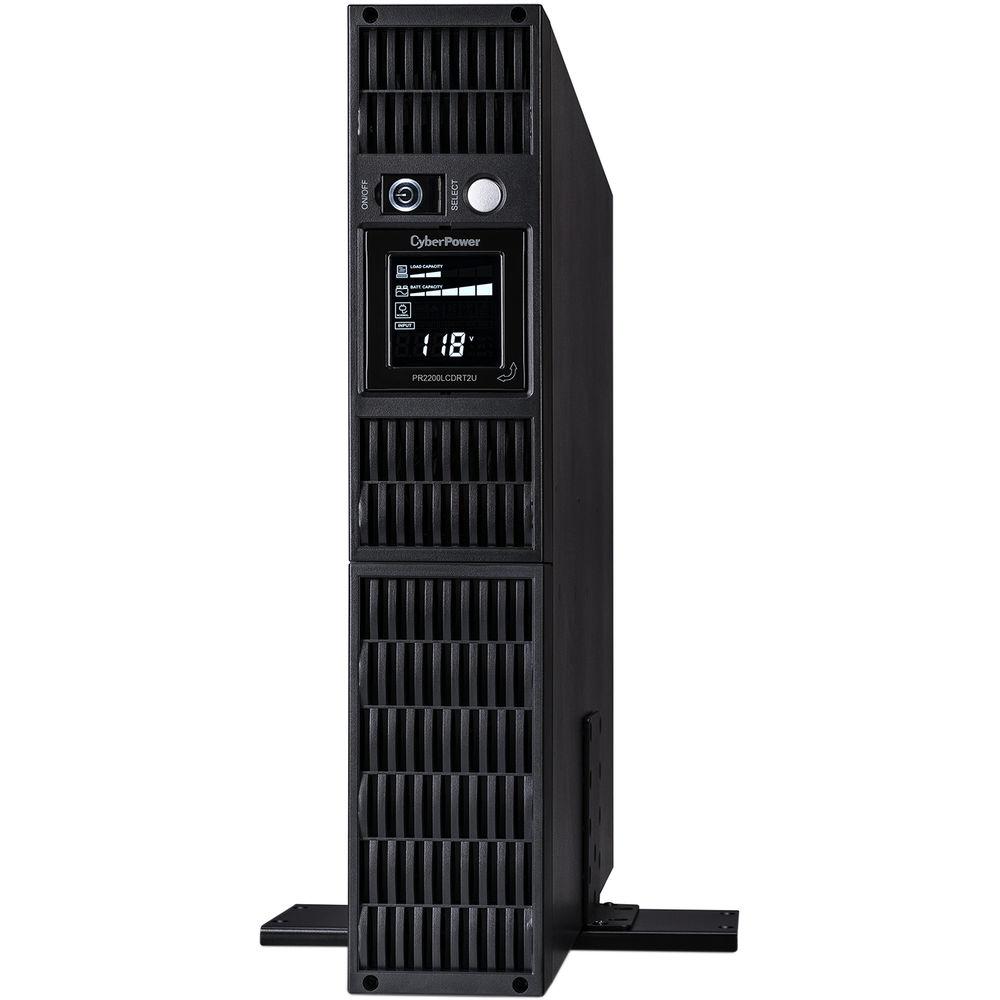

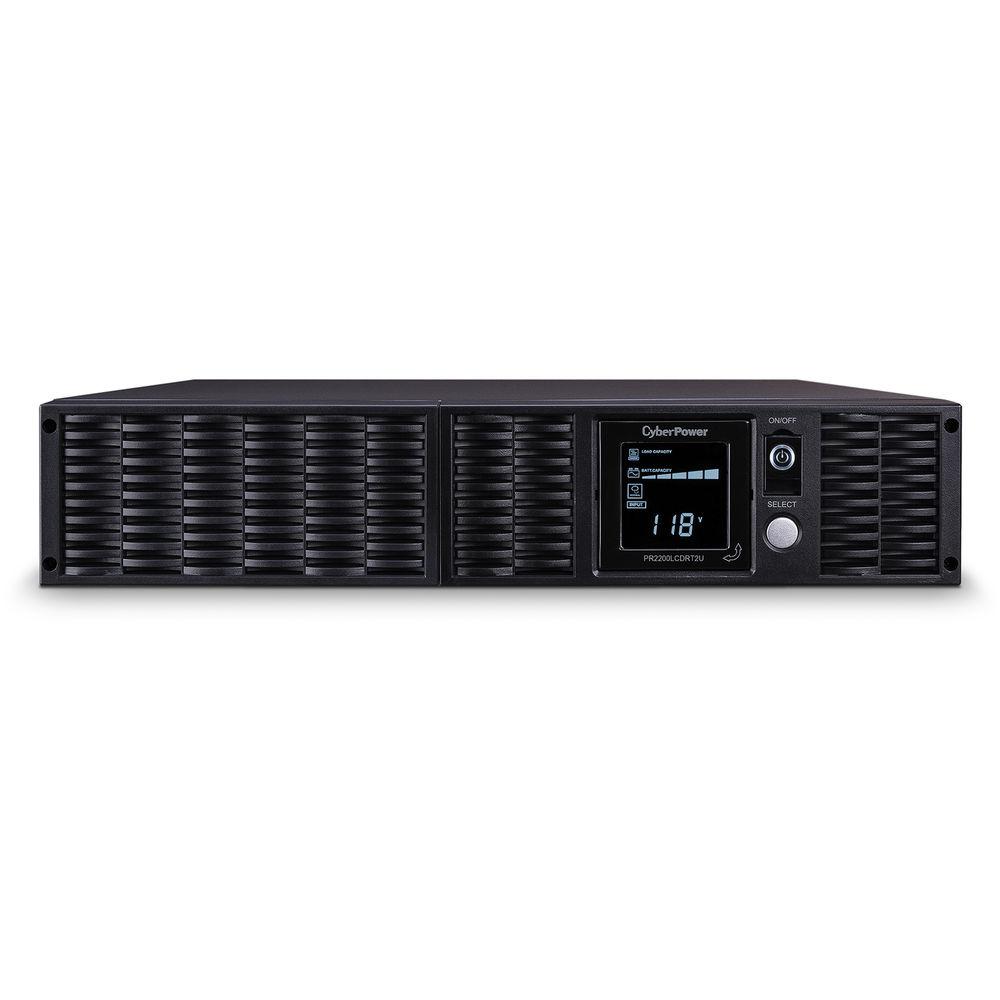

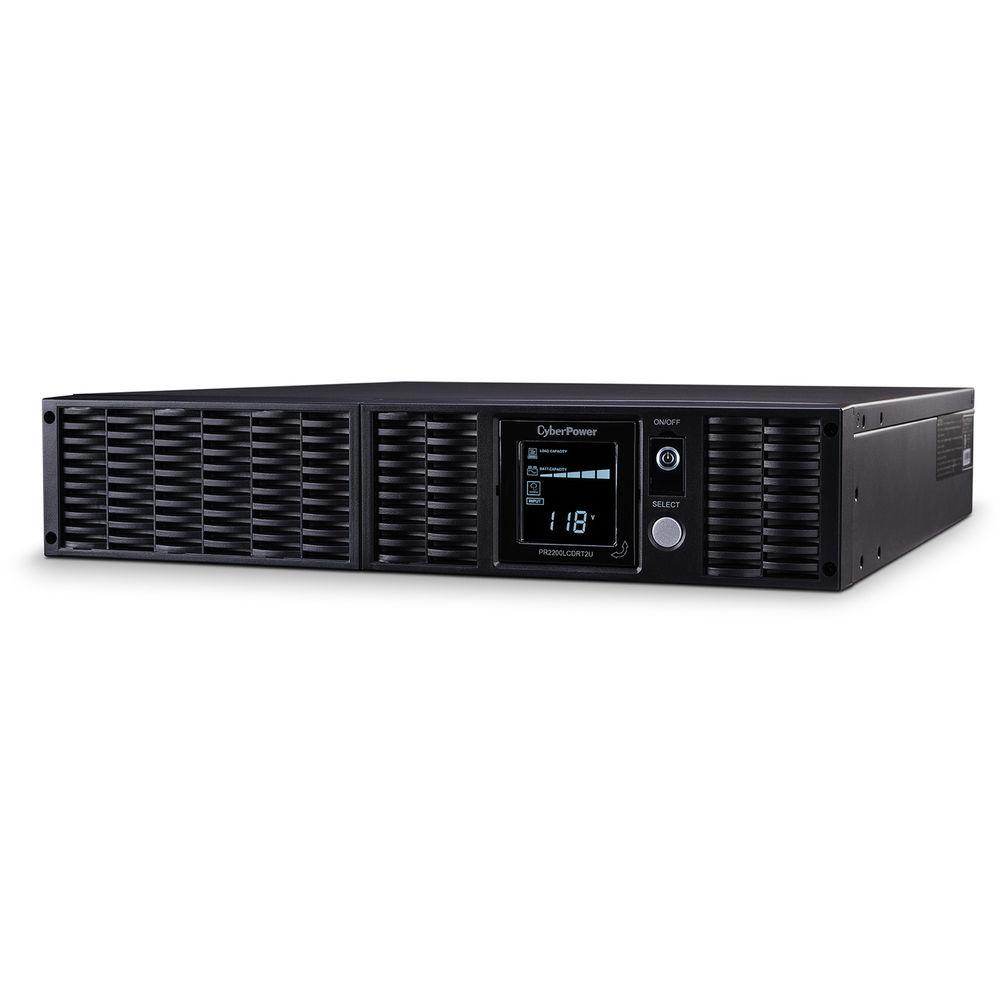

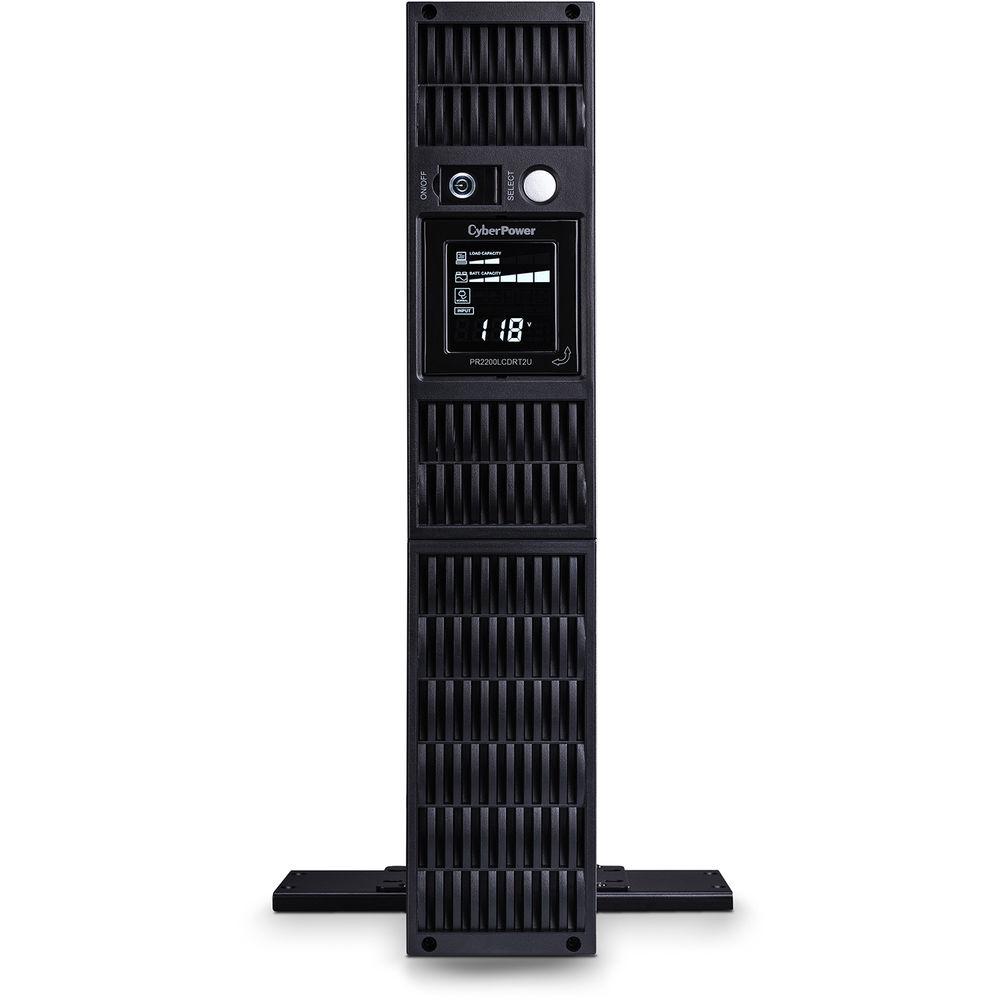

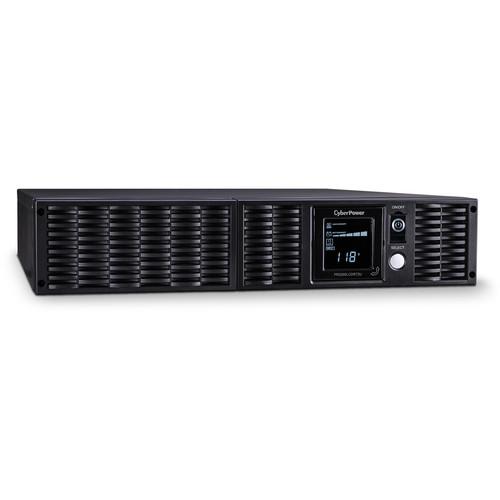

User Manual for CyberPower PR2200LCDRT2U Smart App Sinewave UPS Click to enlarge the picture
Contents of the user manual for the CyberPower PR2200LCDRT2U Smart App Sinewave UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower PR2200LCDRT2U Smart App Sinewave UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|
Product description The PR2200LCDRT2U Smart App Sinewave UPS from CyberPower provides backup power essential to keeping your electronics powered should that power be interrupted. This power supply comes equipped with pure sine wave technology ensuring a constant flow of high quality clean power, while the full automatic voltage regulation feature adjusts the voltage keeping it within a safe operating range to reducing the risk of damage to connected devices. Along with enhanced voltage protection, you can monitor and your power supply via the integrated LCD control panel providing easy access when the power supply is located in hard to reach areas. Once configured, your connected devices are protected up to $400,000 should any of those devices become damaged as a result of the power supply. - Full AVR Boost/Buck
- Boost/Buck technology will both increase low voltages and decrease high voltages, without switching to battery-mode. This conserves battery life, and delivers a more stable signal to your connected equipment
- RM/T Configuration
- The unit can be configured in either a Tower or a Rackmount (2U) form
- Multifunction LCD Readout
- The multifunction LCD readout provides ready access to power/battery condition vitals, such as runtime, load, temperature, and much more
- Microprocessor-Based Digital Control
- Digital routing is maintained through a network of integrated circuitry and discrete values are used for internal system processing, which significantly increases efficiency and response of CyberPower UPS's
- Critical Load Outlets
- Prioritize the uptime of mission-critical loads during a power failure with critical load outlets that ensure power to selected systems during an extended blackout, preserving battery uptime for more critical equipment
- EMI/RFI Filters
- Provides shielding against electromagnetic interference and radio frequency signals. Most commonly, this is used to prevent line noise or humming that occurs over telephone lines or stereo electronics
- Dual PC Support
- The unit has two communication ports that allow the user full control of dual PCs or servers
- Resettable Circuit Breaker
- Convenient unit reset switch in case of an overload
- Audible Alarms
- Audible tones identify when the unit is running off battery power, unit overloads, and low battery
- Pure Sine Wave
- This UPS generates pure sine wave energy that is identical to, or cleaner than the utility company's power grid. Benefits include: low total harmonic distortion, minimal electrical noise, and optimal line clarity
- Metal Housing
- Rigid metal construction allows for placement in areas with a demanding environment
- Reduce Energy Cost & Energy Loss
- This ENERGY STAR qualified UPS system utilizes patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. Users can save up to 75% when compared to competitive models
- PowerPanel Business Edition Software
- In the event of a power outage, PowerPanel will safely save and close your open files and shut your computer down in an orderly, intelligent manner. The software allows users to view detailed information about their electrical power and the vitals of the UPS. It includes configurable system notifications, automatic self tests, adjustable high/low voltage warnings, event/data logging, and scheduled shutdowns
- Windows Compatibility
- The PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012
- ISO & Safety Certifications
- The UPS is certified by the FCC, cUL, and UL.
UPC: 649532222018 In the Box CyberPower PR2200LCDRT2U Smart App Sinewave UPS $400,000 Lifetime Connected Equipment Guarantee Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower PR2200LCDRT2U Smart App Sinewave UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower PR2200LCDRT2U Specs | | | Total Outlets | 8 x NEMA 5-20R (8 Transformer-Sized) | | Protected Outlets | 8 (Battery and Surge) | | Plug Type | NEMA 5-20P Right-Angle | | Data Line Protection | RJ11 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1780 Joules | | Maximum Wattage | 1600 W | | Input Voltage Adjustable Range | 80 to 150 VAC | | Input Frequency | 50/60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz | | Load Capacity | 2170 VA | | Waveform | Sine Wave | | | | Capacity | 108 Wh (9 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 6 Minutes | | Half-Load Runtime | 16 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB1290X4 | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 10' / 3 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.3 x 3.5 x 15.8" / 439.4 x 88.9 x 401.3 mm | | Weight | 63.0 lb / 28.6 kg | | | | Package Weight | 67.2 lb | | Box Dimensions (LxWxH) | 21.5 x 20.5 x 11.5" |
