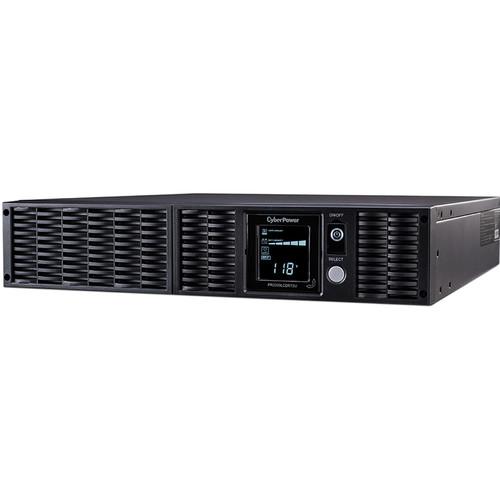

User Manual for CyberPower PR2200LCDRT2UN Rack Tower Smart App Sinewave UPS Click to enlarge the picture
Contents of the user manual for the CyberPower PR2200LCDRT2UN Rack Tower Smart App
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower PR2200LCDRT2UN Rack Tower Smart App contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|
Product description The CyberPower PR2200LCDRT2UN Rack/Tower Smart App Sinewave UPS (2150VA / 1980W) features line-interactive topology and a pre-installed SNMP card. It provides battery backup, power protection with true sine wave output, and surge protection for corporate servers, department servers, storage appliances, network devices, and telecom installations requiring Active-PFC power source compatibility.
The UPS uses AVR (Automatic Voltage Regulation) to correct minor power fluctuations without switching to battery power, thereby extending the battery life. AVR is essential where power fluctuations occur frequently. The pre-installed RMCARD205 card provides remote UPS management and configuration using a standard Web browser or network management system. - Suitable for servers, workstations, network devices, and telecom installations
- Capacity of 2150VA / 1980W
- Line-interactive topology
- Full AVR (Automatic Voltage Regulation) provides clean, consistent AC power by automatically increasing (boosting) low voltage without using battery power when incoming utility power experiences minor fluctuations
- Data Line protection prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics

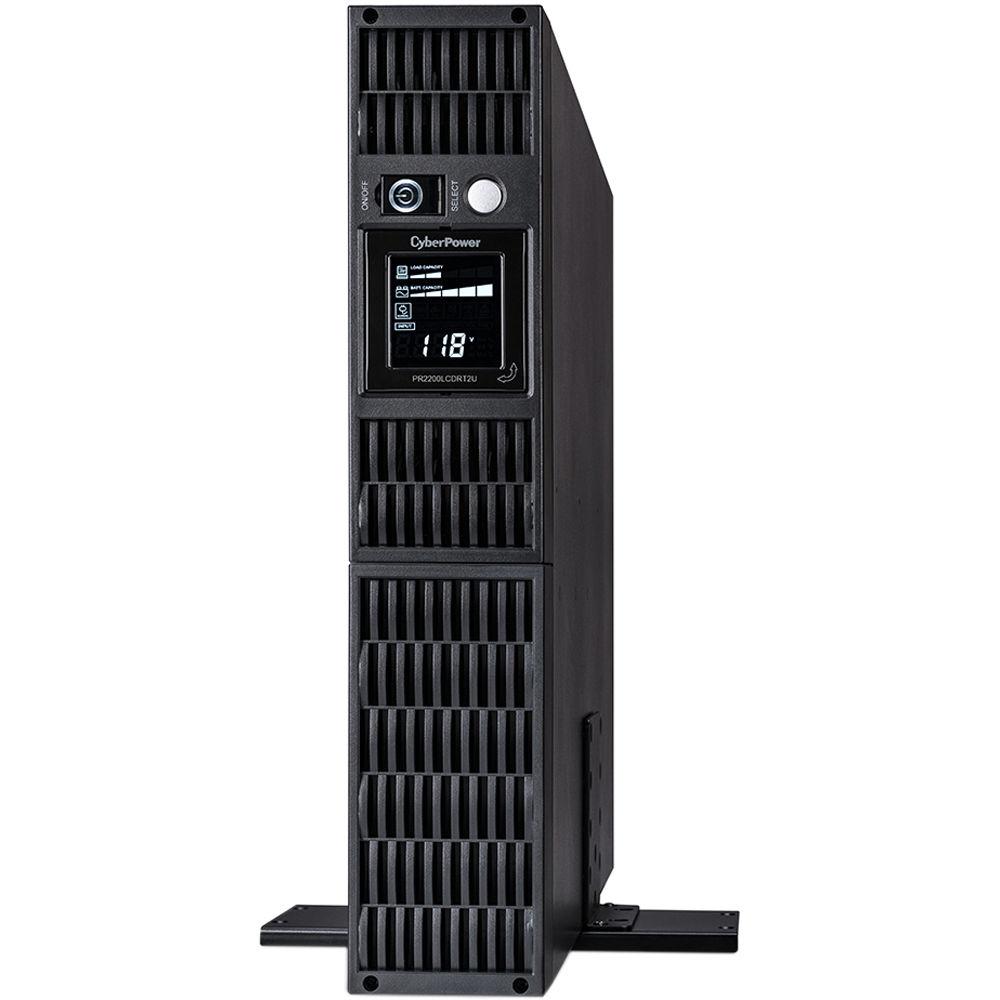

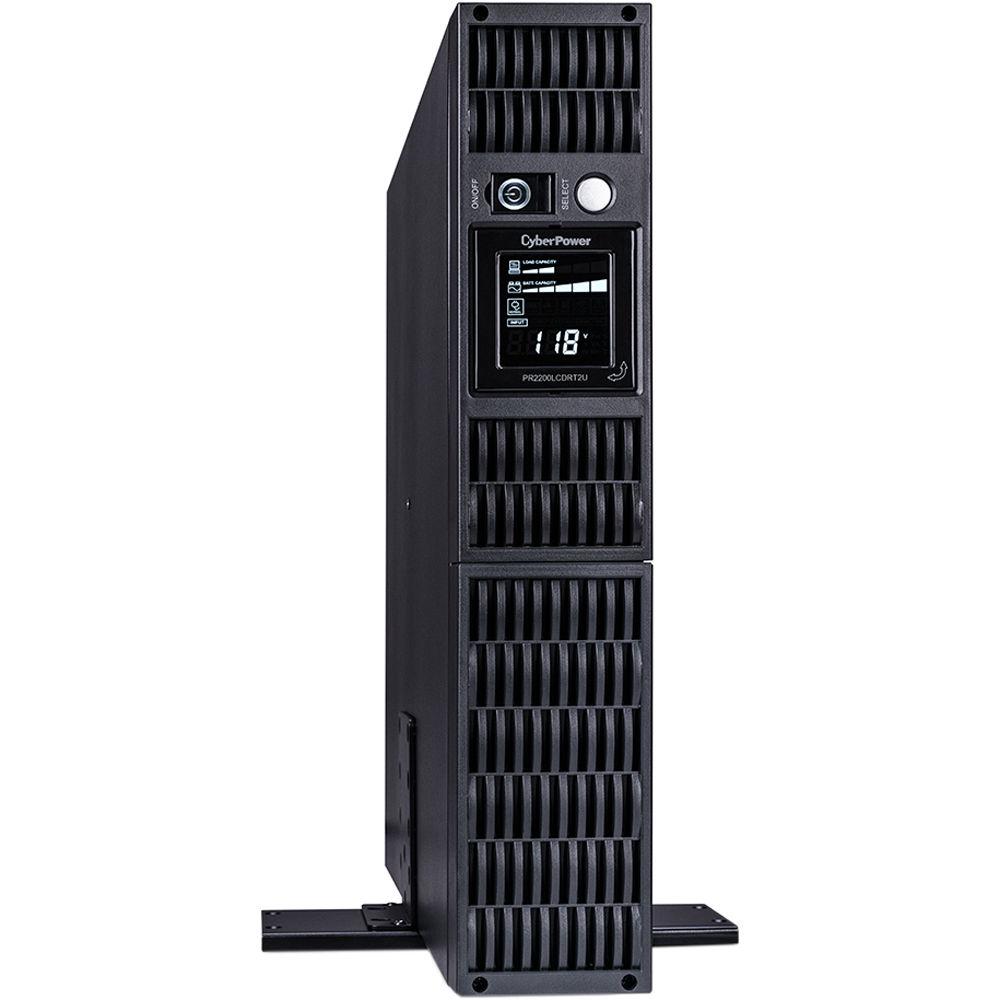

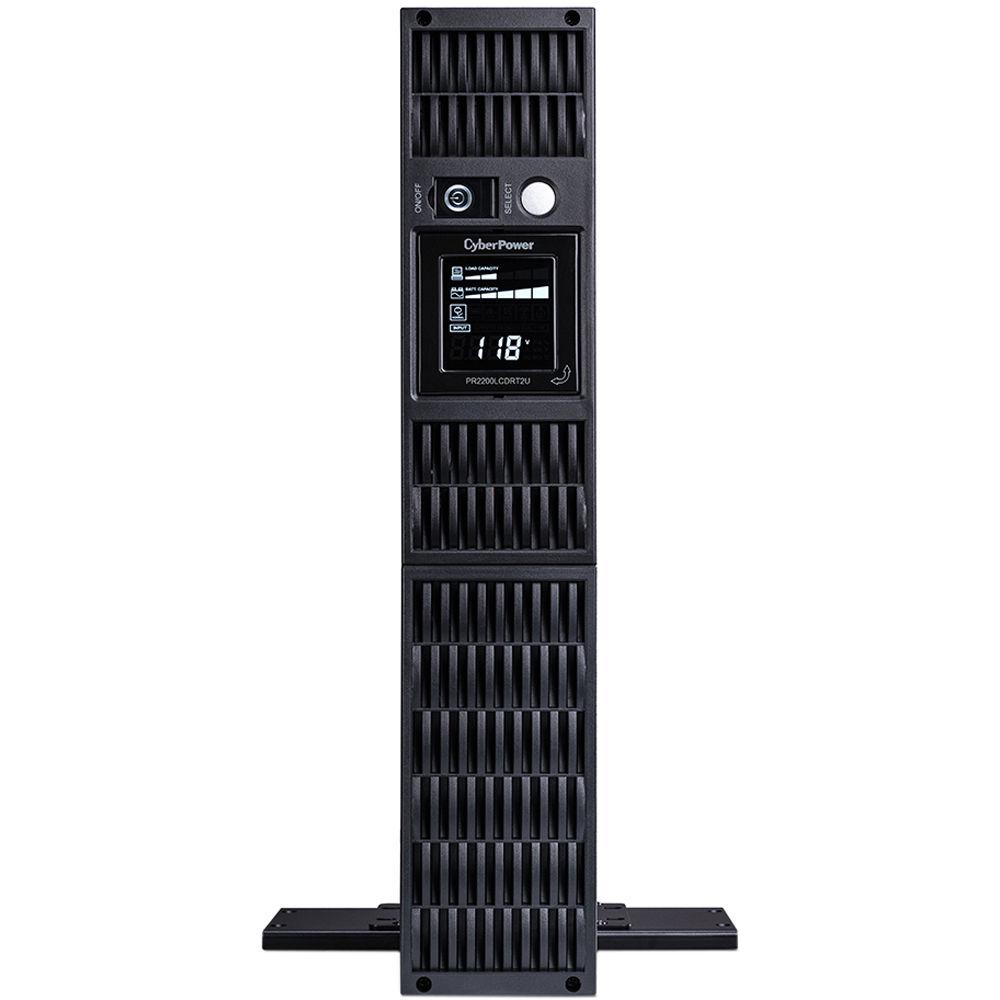

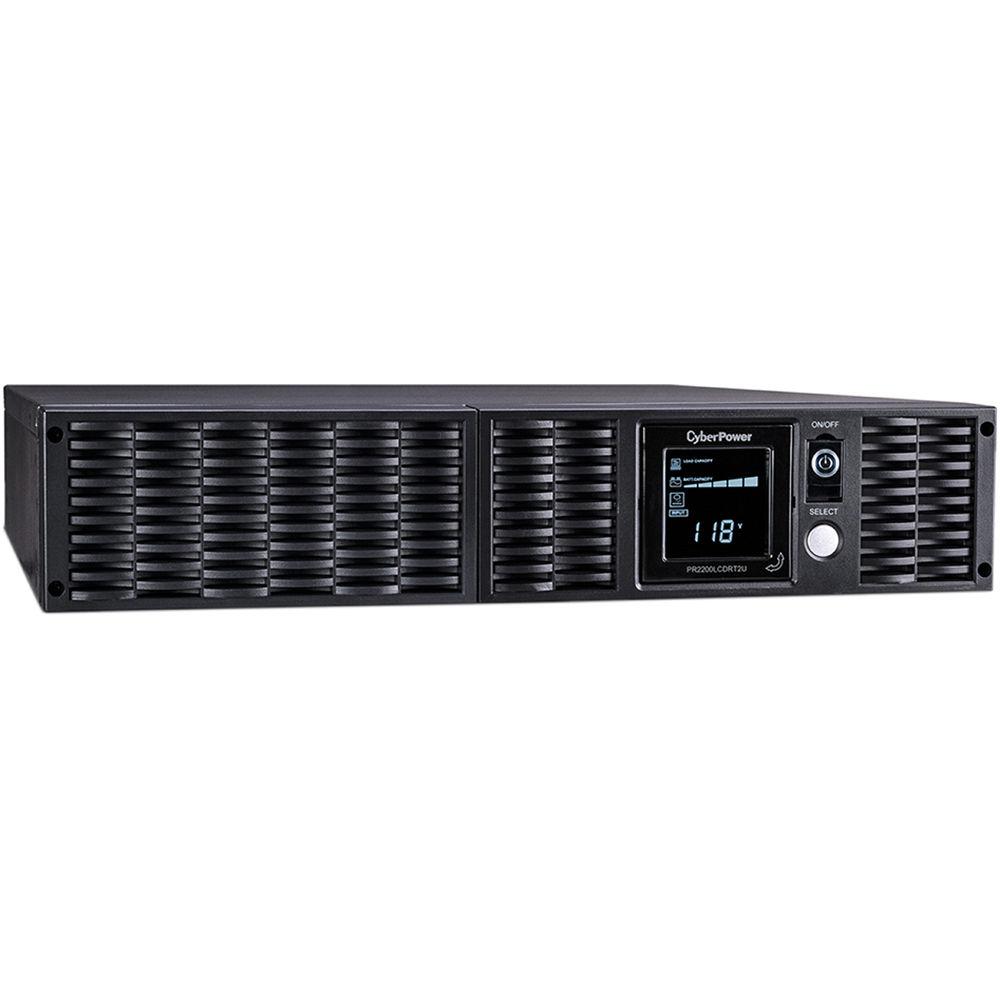

- 2 RU rackmount / tower convertible

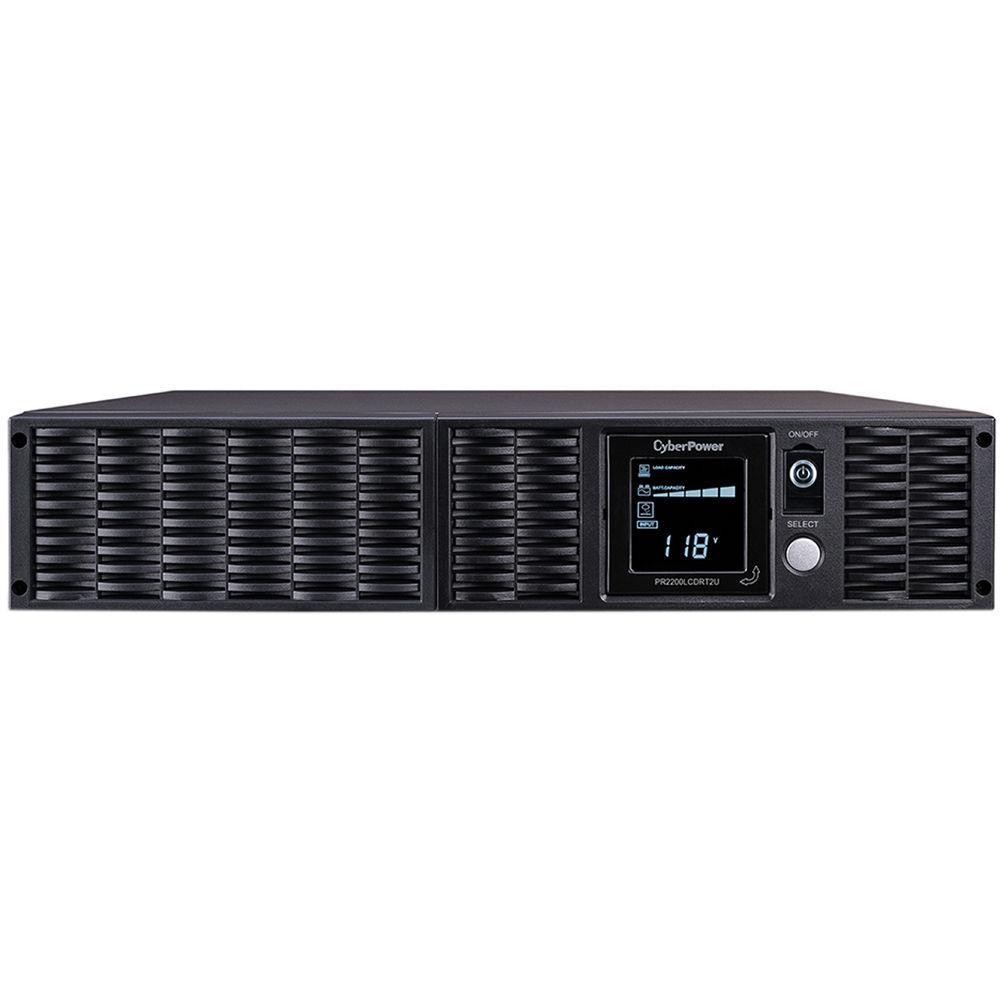

- Multi-function rotatable LCD panel displays detailed information on the UPS battery and power conditions and alerts users to potential problems
- Rotatable panel is easily readable whether the UPS is rack-mounted or standing as a tower
- RMCARD205 SNMP/HTTP remote management card

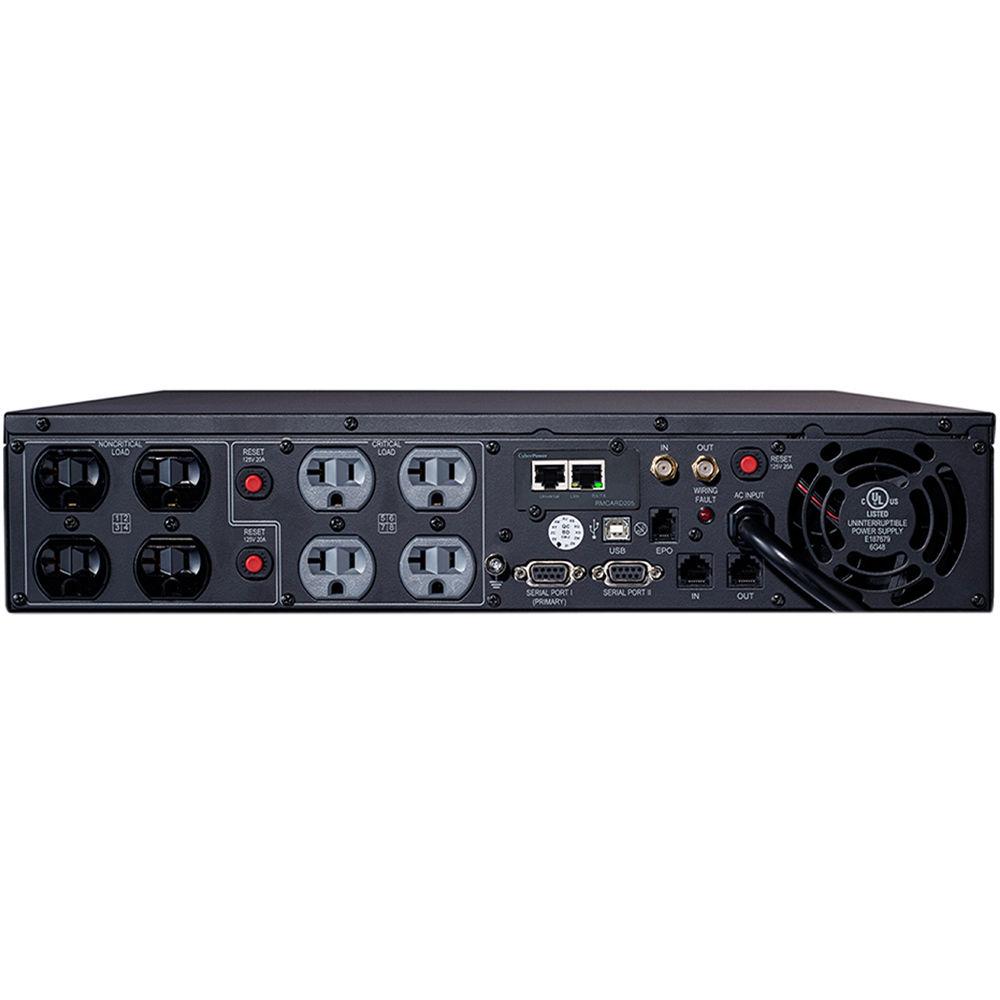

- 8 Outlets / USB, serial, and EPO ports
- PowerPanel Business edition software
- Cisco EnergyWise compliant end device
UPC: 649532613984 In the Box CyberPower PR2200LCDRT2UN Rack/Tower Smart App Sinewave UPS (2150VA / 1980W) 2 x Rackmount Bracket Metal Stand Plate Telephone Cable (Black) Emergency Power Off Cable (Gray) PowerPanel Business Edition Software CD 2 x Serial Interface Cable (DB-9) USB Type-A+B Cable 4 x Rubber Buffer Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower PR2200LCDRT2UN Rack Tower Smart App Sinewave UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower PR2200LCDRT2UN Specs | | | UPS Topology | Line-interactive | | Energy Saving | GreenPower UPS bypass technology | | | | Voltage | Nominal: 120 V | | Input Frequency | 47 to 63 Hz (auto-sensing) | | Voltage Range | Input: 109 to 131 VAC
Adjustable: 80 to 150 VAC | | Plug Type | NEMA 5-20P | | Cord Length | 10' / 3 m | | | | VA | 2150 | | Watts | 1980 | | Automatic Voltage Regulation (AVR) | Boost 1: +30%, Boost 2: +14%
Buck: -12% | | On Battery Voltage | 120 VAC ± 5% | | On Battery Frequency | 50/60 Hz ± 0.1 Hz | | On Battery Waveform | Sine wave | | Outlets | Total: 8
Battery & Surge Protected: 8
Critical Load: 4
Non-Critical Load: 4 | | Outlet Type | NEMA 5-20R | | Overload Protection | Internal circuitry limiting / circuit breaker | | Transfer time | 4 ms | | | | Runtime | 9 minutes at half load
1 minutes at full load | | Battery Type | Sealed lead-acid | | Battery Size | 12 V / 9 Ah | | Hot Swappable | Yes | | Replacement Battery | RB1290X4F | | User Replaceable | Yes | | Battery Quantity | 4 | | Typical Recharge Time | Less than 6 hours (90% charged) | | | | Surge Suppression | 2060 joules | | Protection | Phone Protection RJ11: 1-in / 1-out (combo)
Phone / Network Protection RJ11 / RJ45: 1-In/1-out | | | | LCD | Multifunction LCD Panel
Load/Current Level, Runtime, Battery Level, Temperature (F & C), Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Battery Shutdown Voltage, Static Frequency Tolerance, Slew Rate, Silent Mode, Normal Mode | | HID Compliant USB Port | Yes | | Serial Port | Yes | | EPO Port | Yes | | Contact Closure | Yes | | Management Cable | USB cable, Serial cable, EPO cable | | LED Indicators | Power On, Wiring Fault | | Alarms | Audible: On Battery, Low Battery, Overload | | Software | PowerPanel Personal edition | | SNMP/HTTP Remote Monitoring | Yes, RMCARD205 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% non-condensing | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Storage Relative Humidity | 0 to 95% non-condensing | | Maximum Operating Elevation | 0 to 10,000' / 3000 m | | Maximum Storage Elevation | 0 to 50,000' / 0 to 15,000 m | | Thermal Dissipation | 141 BTU/hr | | Audible Noise | At 5'/ 1.52 m from Surface of Unit: 35 dB | | | | Safety | UL1778, CSA C22.2 NO.107.3-05
FCC DOC Class A | | Compliance | RoHS | | | | Rack Size | 2 RU | | Form Factor | Rack/tower | | Dimensions (W x H x D) | 17 x 3.5 x 15.75" / 438.1 x 88.9 x 400 mm | | Weight | 63 lb / 26.3 kg | | | | Package Weight | 68.5 lb | | Box Dimensions (LxWxH) | 22.0 x 20.7 x 10.0" |
