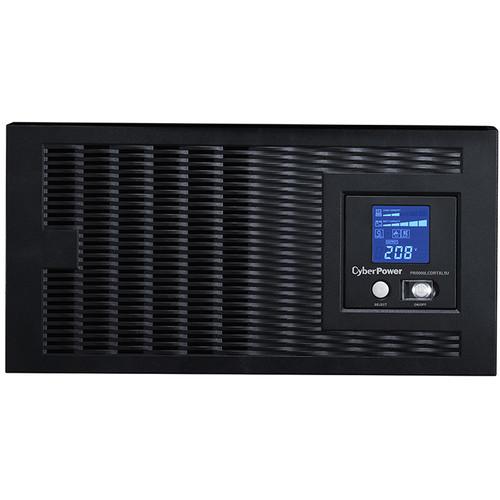

User Manual for CyberPower PR5000LCDRTXL5U Smart App Sinewave UPS Click to enlarge the picture
Contents of the user manual for the CyberPower PR5000LCDRTXL5U Smart App Sinewave UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
|
User manual for the CyberPower PR5000LCDRTXL5U Smart App Sinewave UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|
Product description The CyberPower PR5000LCDRTXL5U Smart App Sinewave UPS (5000VA / 4000W) features an LCD panel, offers a sine wave output, and is active-PFC-compatible for safeguarding mission-critical servers, telecom equipment and VoIP, and inter-networking hardware that requires seamless sine wave power. It incorporates microprocessor-based digital control and includes PowerPanel Business edition software. The UPS system is ENERGY STAR qualified with GreenPower UPS Bypass circuitry to reduce energy consumption and heat build-up. - Suitable for servers, workstations, network devices, and telecom equipment
- Capacity of 5000VA / 4000W
- Line-interactive topology
- Full AVR (Automatic Voltage Regulation) Buck/Boost
- Automatic Voltage Regulator automatically regulates low or high voltages to keep equipment working at safe AC power levels (220/230/240 VAC) without switching to battery
- Can operate normally even during power problems such as short brownouts and blackouts
- Sealed lead-acid batteries will provide power only if the incoming voltage drops below 131V or increases above 268V
- 5 RU rackmount/tower convertible
- Multi-function rotatable LCD
- SNMP/HTTP remote management option
- 5 outlets / USB, serial, and EPO ports
- PowerPanel Business edition software
- ENERGY STAR compliant and Active-PFC-compatible
UPC: 649532609451 In the Box CyberPower PR5000LCDRTXL5U Smart App Sinewave UPS (5000VA / 4000W) Front Panel 2 x Rackmount Ear (Stands) Rackmount Rails (1 Set - Left and Right Sides) 34 x Rackmount Ear and Rails Screw 8 x Screw Hole Dust Cover Limited 3-Year Warranty More from Manufacturer bewubfyxsyzexfebsayucdbtutdrcsaabecz Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower PR5000LCDRTXL5U Smart App Sinewave UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower PR5000LCDRTXL5U Specs | | | UPS Topology | Line-interactive | | Energy Saving | GreenPower UPS bypass technology | | | | Voltage | 208 to 240 VAC | | Input Frequency | 50Hz/60 Hz ± 3 Hz | | Voltage Range | Input: 148 to 254 VAC
Adjustable: 131 to 268 VAC | | Plug Type | NEMA L6-30P | | Cold Start | Yes | | Plug Style | Straight | | Cord Length | 10' / 3 m | | | | VA | 5000 | | Watts | 4000 | | Automatic Voltage Regulation (AVR) | Yes | | On Battery Voltage | 208 VAC ± 5% | | On Battery Frequency | 60Hz ± 0.1% | | On Battery Waveform | Sine wave | | Outlets | Total: 5
Battery & Surge Protected: 3
Critical Load: 2 | | Outlet Type | 3 x NEMA L6-30R, 2 x NEMA L6-20R | | Overload Protection | On Utility: Circuit breaker
On Battery: Internal current limiting | | Transfer time | 4 ms | | | | Runtime | 32 minutes at half load
13 minutes at full load | | Battery Type | Sealed lead-acid | | Battery Size | 12 V / 9 Ah | | Hot Swappable | Yes | | Replacement Battery | RB1290X16 | | User Replaceable | Yes | | Battery Quantity | 16 | | Typical Recharge Time | 8 hours | | External Battery Compatibility | Optional BPL48V75ART2U | | | | Surge Suppression | 2430 joules | | Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (combo) | | | | LCD | Multifunction LCD Panel
Displays: Load/Current Level, Runtime, Battery Level, Temperature (F & C), Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Battery Shutdown Voltage, Static Frequency Tolerance, Slew Rate, Silent Mode, Normal Mode | | HID Compliant USB Port | Yes | | Serial Port | Yes (2x) | | EPO Port | Yes | | Dry Contact Switch | Yes | | LED Indicators | Power On | | Alarms | Audible: On Battery, Low Battery, Overload | | Management Features | On-Device Management Features: Self-Test, Auto-Charge, Auto-Restart | | Software | PowerPanel Business edition | | SNMP/HTTP Remote Monitoring | Yes, with optional RMCARD202, RMCARD203 or RMCARD205 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Relative Humidity | 0 to 95% non-condensing | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Maximum Operating Elevation | 10,000' (0 to 3000 m) | | Maximum Storage Elevation | 50,000' / 0 to 15,000 m | | | | Safety | FCC Class A certified, UL 1778
CSA C22.2 No. 107.3-05 | | Environmental | RoHS compliant | | | | Rack Size | 5 RU | | Form Factor | Rack | | Dimensions (W x H x D) | 17 x 8.75 x 24.25" / 431.8 x 222.25 x 615.95 mm | | Weight | 222 lb / 100.69 kg | | | | Package Weight | 283.0 lb | | Box Dimensions (LxWxH) | 35.0 x 24.0 x 14.0" |
