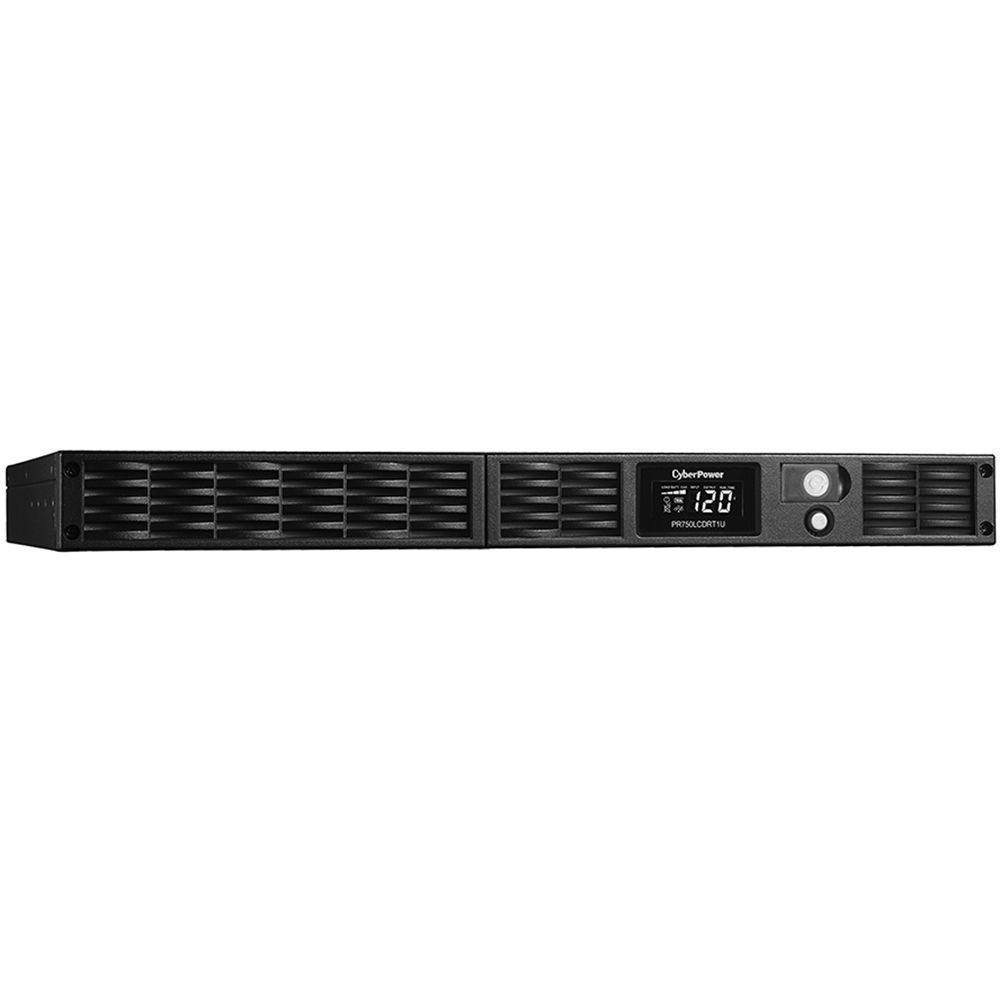

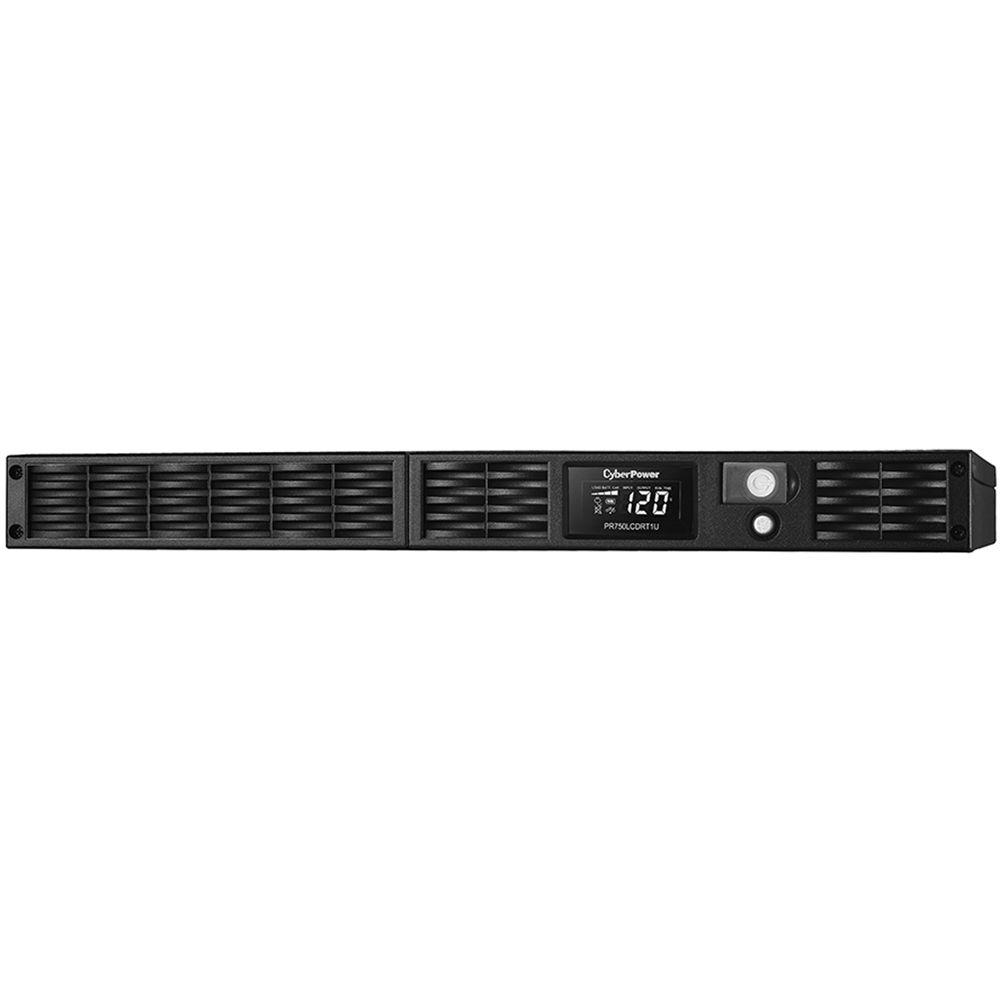

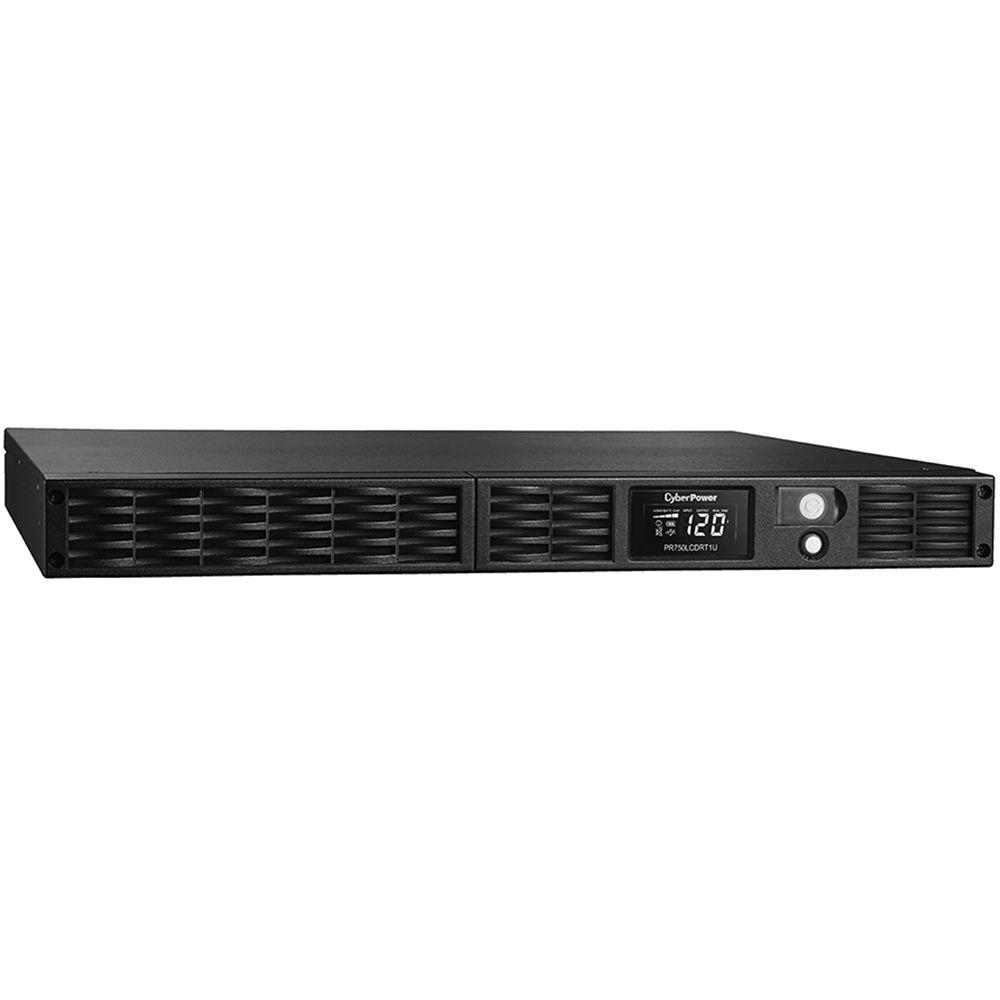

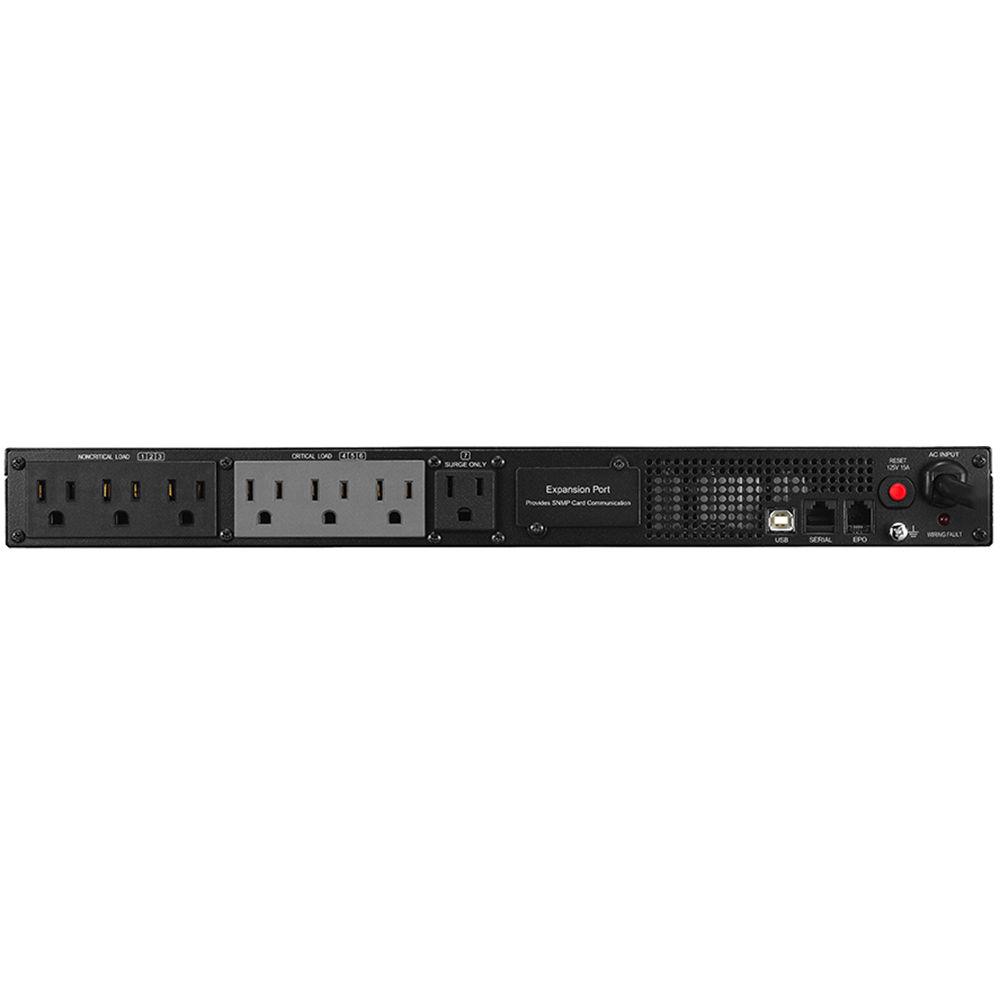

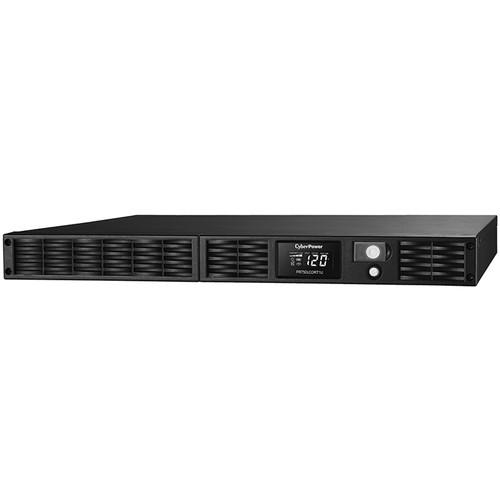

User Manual for CyberPower PR750LCDRT1U Smart App Sinewave UPS Click to enlarge the picture
Contents of the user manual for the CyberPower PR750LCDRT1U Smart App Sinewave UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower PR750LCDRT1U Smart App Sinewave UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|
Product description The CyberPower PR750LCDRT1U Smart App Sinewave UPS (750VA / 600W) features an LCD panel, offers sine wave output, and is Active-PFC-compatible for safeguarding mission-critical servers, telecom equipment and VoIP, and inter-networking hardware that requires seamless pure sine wave power. It incorporates a microprocessor-based digital control and includes the PowerPanel Business edition software. The UPS system is ENERGY STAR qualified with GreenPower UPS Bypass circuitry to reduce energy consumption and heat build-up. - Suitable for servers, workstations, network devices, and telecom equipment
- Line-interactive topology
- Full AVR (Automatic Voltage Regulation) Buck/Boost
- AVR (Automatic Voltage Regulation) provides battery back-up power if the voltage drops below 80V or exceeds 150V
- 1 RU rackmount/tower convertible
- SNMP/HTTP remote management
- 7 Outlets / USB, serial, and EPO ports
- PowerPanel Business edition software
- ENERGY STAR qualified and Active-PFC-compatible
UPC: 649532610235 In the Box CyberPower PR750LCDRT1U Smart App Sinewave UPS (750VA / 600W) 2 x Rackmount Bracket 2 x Wall Mount Bracket 2 x Stand Emergency Power Off Cable (Gray) PowerPanel Business Edition Software CD Serial Interface Cable (RJ45/DB-9) USB Type-A+B Cable Limited 3-Year Warranty More from Manufacturer urewyyebwcxsxvvvtuxbzefqteeabtvtuuev Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower PR750LCDRT1U Smart App Sinewave UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower PR750LCDRT1U Specs | | | UPS Topology | Line-interactive | | Energy Saving | GreenPower UPS bypass technology | | | | Voltage | Nominal 120 V | | Input Frequency | 57-63 Hz ± 1% | | Voltage Range | 80 to 150 VAC | | Plug Type | NEMA 5-15P | | Plug Style | Right angled, 45° offset right | | Cord Length | 10' / 3 m | | | | VA | 750 | | Watts | 600 | | Automatic Voltage Regulation (AVR) | Boost 1: +30%, Boost 2: +14%
Buck: -12% | | On Battery Voltage | 120 VAC ± 5% | | On Battery Frequency | 60 Hz ± 1% | | On Battery Waveform | Sine wave | | Outlets | Total: 7
Battery & Surge Protected: 6
Critical Load: 3
Surge-Only Protected: 1 | | Outlet Type | NEMA 5-15R | | Power Factor | Rated: 0.8 | | Overload Protection | Internal circuitry limiting / circuit breaker | | Transfer time | 10 ms | | | | Runtime | 10 minutes at half load
3 minutes at full load | | Battery Type | Sealed lead-acid | | Battery Size | 6 V / 7 Ah | | Hot Swappable | Yes | | Replacement Battery | RB0670X4A | | User Replaceable | Yes | | Battery Quantity | 4 | | Typical Recharge Time | Less than 6 hours (90% charged) | | | | Surge Suppression | 1030 joules | | | | LCD | Multifunction LCD Panel
Displays: Load/Current Level, Runtime, Battery Level, Temperature (F & C), Battery In Use, Input Voltage, Output Voltage, Output Frequency, Overload, Wiring Fault, Battery Shutdown Voltage, Static Frequency Tolerance, Slew Rate, Silent Mode, Normal Mode | | HID Compliant USB Port | Yes | | Serial Port | Yes | | EPO Port | Yes | | Management Cable | USB cable, Serial cable, EPO cable | | LED Indicators | Power On, Wiring Fault | | Alarms | Audible: On Battery, Low Battery, Overload | | Software | PowerPanel Business edition | | SNMP/HTTP Remote Monitoring | Yes, with optional RMCARD202, RMCARD203 or RMCARD205 | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% non-condensing | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Maximum Operating Elevation | 10,000' / 3000 m | | Maximum Storage Elevation | 50,000' / 15,000 m | | Thermal Dissipation | AC Mode: 46 BTU/hr | | | | Safety | UL1778, CSA C22.2 NO.107.3-05
FCC DOC Class A | | Compliance | RoHS | | | | Rack Size | 1U | | Form Factor | Rack/tower | | Dimensions (W x H x D) | 17.25 x 1.75 x 15.8" / 438.15 x 44.45 x 401.3 mm | | Weight | 30.7 lb / 13.92 kg | | | | Package Weight | 39.5 lb | | Box Dimensions (LxWxH) | 21.0 x 19.5 x 5.75" |
