User Manual for CyberPower SE425G Uninterrupted Power Supply Click to enlarge the picture
Contents of the user manual for the CyberPower SE425G Uninterrupted Power Supply
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower SE425G Uninterrupted Power Supply contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

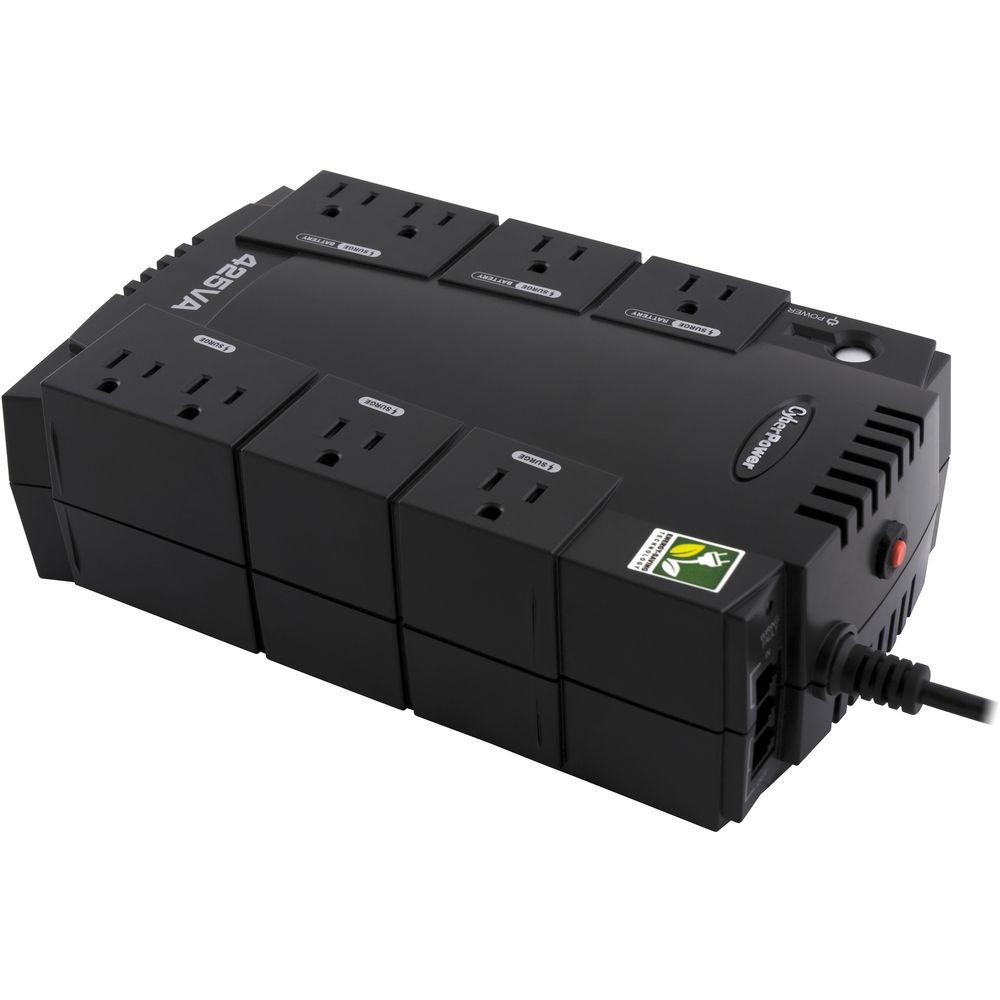

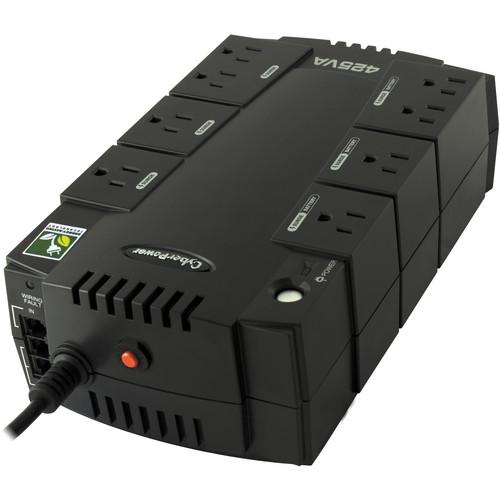

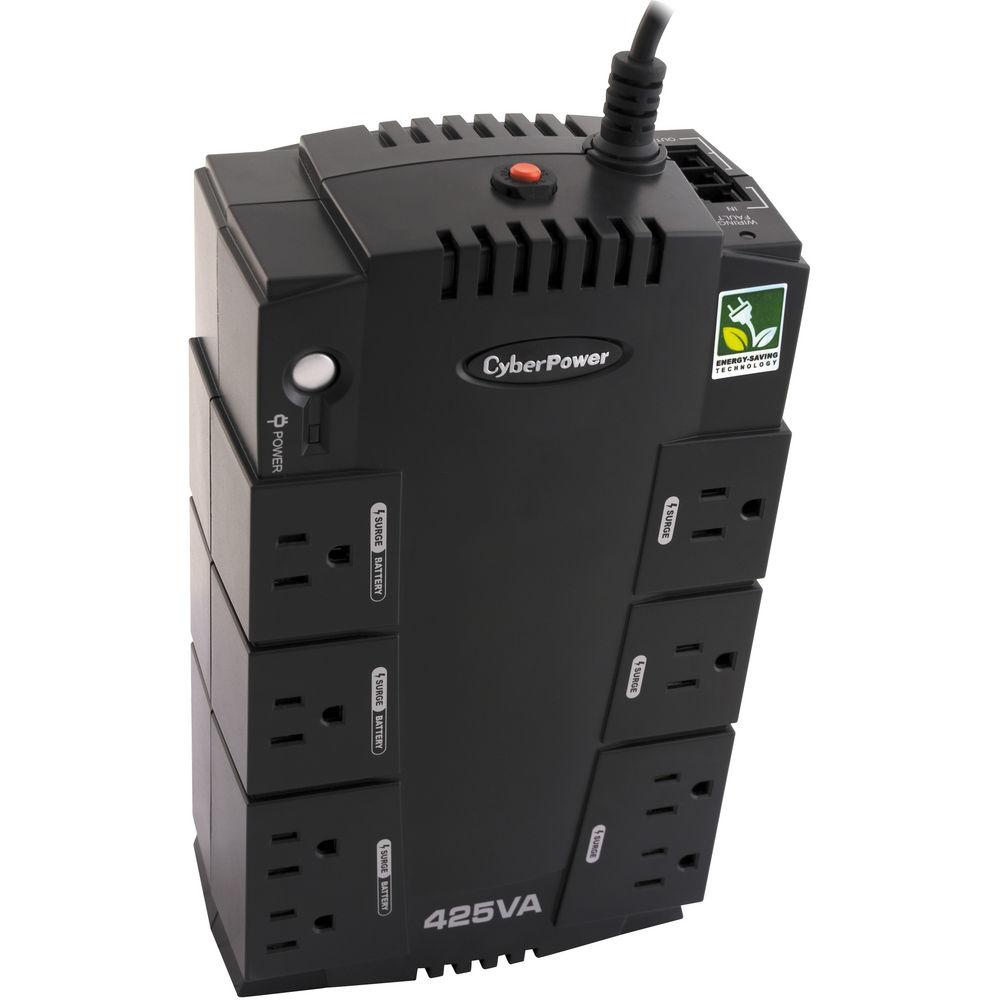

Product description The SE425G Uninterrupted Power Supply from CyberPower features four battery and surge protected outlets complete with a 120 V AC nominal input voltage and a 50/60 Hz ± 3 Hz input frequency when connected to a reliable power source. In case of a power failure you benefit from an On-Battery Output Voltage of 120 V AC ± 5% and an On-Battery Output Frequency of 50/60 Hz ± 1%. The on-battery power comes in a simulated sine wave form helping to provide a consistent flow of power until regular power is restored. Aside from the integrated backup power options, this UPS comes equipped with both circuit breaker protection and an electrical wiring fault indicator to detect possible wiring problems within the outlet. - Battery and Surge Protected Outlets
- The unit has four battery powered and surge protected outlets to ensure temporary uninterrupted operation of your equipment during a power failure.
- Full-Time Surge Protection Outlets
- This unit comes with four surge suppression outlets.
- Power Switch
- This unit comes equipped with an integrated power switch allowing you to easily power the UPS on and off. You also benefit from an alarm alerting you when the battery is low.
- Power On Indicator
- The LED is illuminated when the utility power is normal and the UPS outlets are providing power, free of surges and spikes.

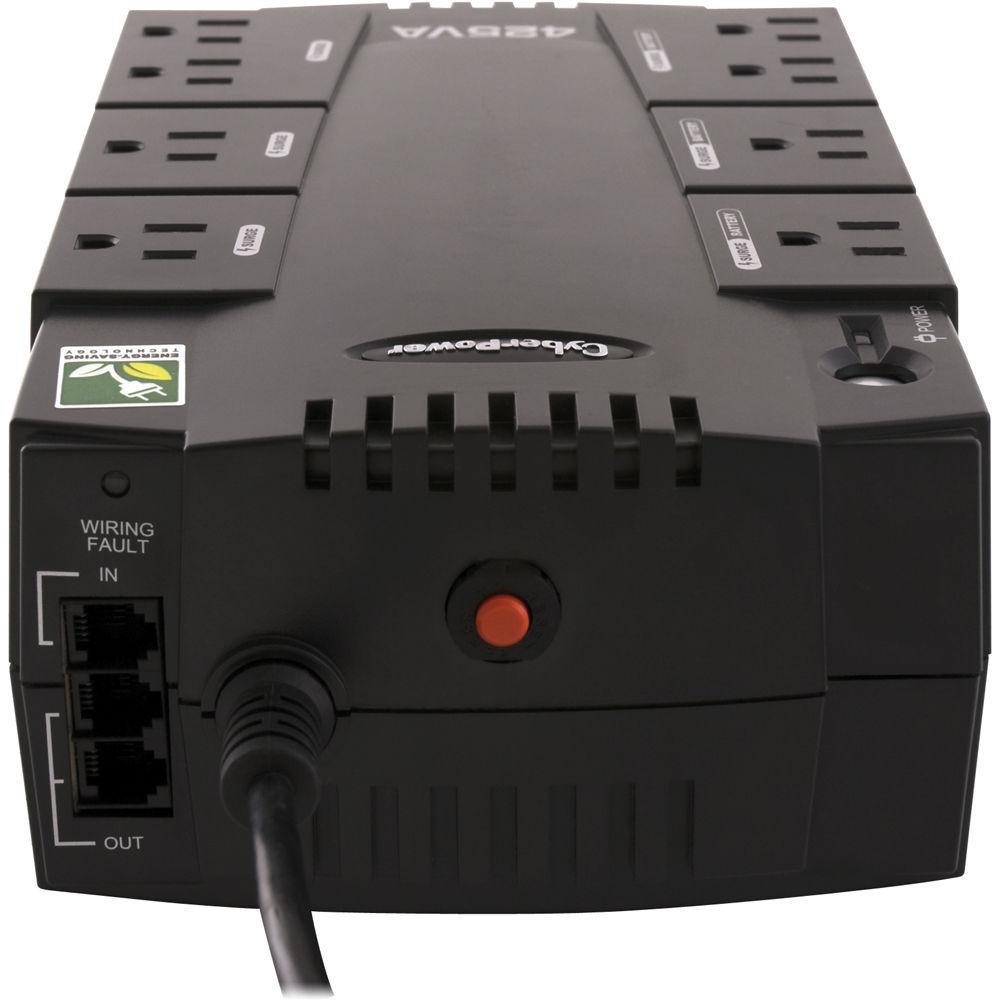

- Electrical Wiring Fault Indicator
- This LED indicator will illuminate to warn the user that a wiring problem exists. The unit will not provide surge protection without being plugged into a grounded and properly wired wall outlet.
- Communication Protection Ports
- Communication protected ports will protect any standard modem, fax, or telephone line.
- Circuit Breaker
- Located on the side of the UPS, the circuit breaker provides overload and fault protection.
- Outlets Designed for AC Adapters
- This UPS unit has four widely-spaced outlets, so AC power adapters can be plugged into the UPS without overlapping or blocking adjacent outlets.
UPC: 649532606856 In the Box CyberPower SE425G Uninterrupted Power Supply Limited 3-Year Warranty Brochure PDF 496.7kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower SE425G Uninterrupted Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower SE425G Specs | | | Total Outlets | 8 | | Data Line Protection | RJ11 | | Communications | Serial | | | | Maximum Wattage | 255 W | | Nominal Input Voltage | 120 VAC | | Input Frequency | 50/60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 1% (Auto Sensing) | | Load Capacity | 425 VA | | Waveform | Simulated Sine Wave | | | | Chemistry | Lead-Acid | | Charging Time | 8 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | | | Dimensions (W x H x D) | 9.8 x 5.8 x 3.3" / 250.0 x 147.0 x 83.0 mm | | Weight | 4.0 lb / 1.8 kg | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 14.3 x 7.9 x 4.4" |
