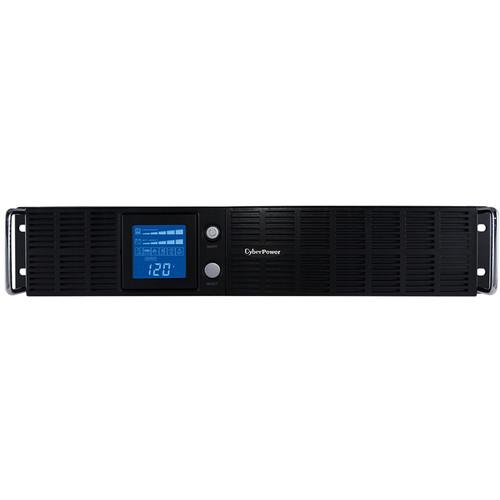

User Manual for CyberPower Smart App LCD UPS Series 2U Rack Tower Line Interactive Sine Wave UPS Click to enlarge the picture
Contents of the user manual for the CyberPower Smart App LCD UPS Series
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
|
User manual for the CyberPower Smart App LCD UPS Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|
Product description The Smart App LCD Series 2U Line Interactive Sine Wave UPS from CyberPower provides simulated sine wave output of 1,500 VA and 1,125 W. Along with the battery backup, it also provides surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. It uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. This UPS system is ENERGY STAR qualified with GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup. - Data Line Protection
-
- Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics
- Surge Protection
-
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage
- Line-Interactive Topology
-
- Exists when a line-interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery
- Automatic Voltage Regulation (AVR)
-
- Provides clean, consistent AC power by automatically boosting low voltage without using battery power when incoming utility power experiences minor fluctuations
- Simulated Sine Wave Output
-
- Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output
- GreenPower UPS Bypass Design
-
- Allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat build-up
- Rotatable Multifunction LCD Panel
-
- Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime
- Rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower
- PowerPanel Business Edition Software (Included)
-
- Provides tools for monitoring and managing the UPS and backup power, also offers remote management functionality
- ENERGY STAR
-
- ENERGY STAR certified Uninterruptible Power Supply (UPS) system
- Connected Equipment Guarantee
-
- CyberPower will repair or replace properly connected equipment if it is damaged by a power surge
- Applications
-
- Department servers, workgroup servers, workstations, network devices, and telecom installations
UPC: 649532015023 In the Box CyberPower Smart App LCD UPS Series 2U Rack/Tower Line Interactive Sine Wave UPS (1,500 VA / 1,125 W) 2 x PowerPanel Business Edition software CD Telephone Cable 2 x Serial Cable Serial Interface Cable (DB-9) USB A+B Type Cable Emergency Power off Cable (Gray) 2 x Rack Mount Bracket 2 x Stand Limited 3-Year Warranty Manual PDF 1mb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower Smart App LCD UPS Series 2U Rack Tower Line Interactive Sine Wave UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower OR1500LCDRTXL2U Specs | | | Total Outlets | 8 x NEMA 5-15R | | Protected Outlets | 8 (Battery and Surge) | | Plug Type | NEMA 5-15P | | Coax Protection | 1-In
1-Out | | Data Line Protection | RJ11 | | Communications | USB, Serial | | Topology | Line Interactive | | Transfer Time | 4 ms | | | | Surge Energy Rating | 1840 Joules | | Maximum Wattage | 1125 W | | Input Voltage Adjustable Range | 90 to 140 VAC | | Input Frequency | 50/60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 60 Hz ± 1% | | Load Capacity | 1500 VA | | Waveform | Simulated Sine Wave | | | | Cells | 4 | | Capacity | 84 Wh (7 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 7 Minutes | | Half-Load Runtime | 18 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB1270X4B | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 10' / 3 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.0 x 3.5 x 18.8" / 43.2 x 8.9 x 47.8 cm | | Weight | 59.5 lb / 27.0 kg | | | | Package Weight | 79.0 lb | | Box Dimensions (LxWxH) | 24.0 x 21.7 x 10.5" |
