User Manual for CyberPower Smart App Online Series 2U Rack Tower Step-Down Isolation Transformer Click to enlarge the picture
Contents of the user manual for the CyberPower Smart App Online Series 2U
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower Smart App Online Series 2U contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

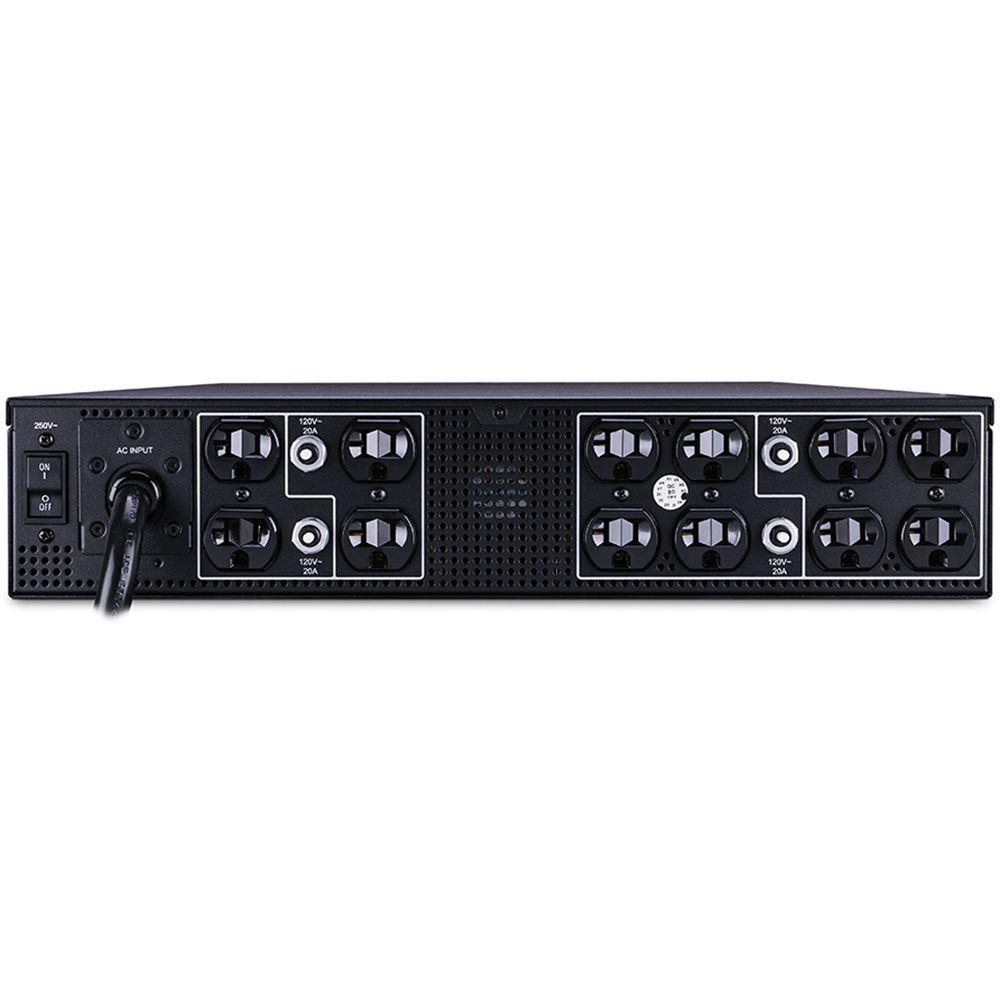

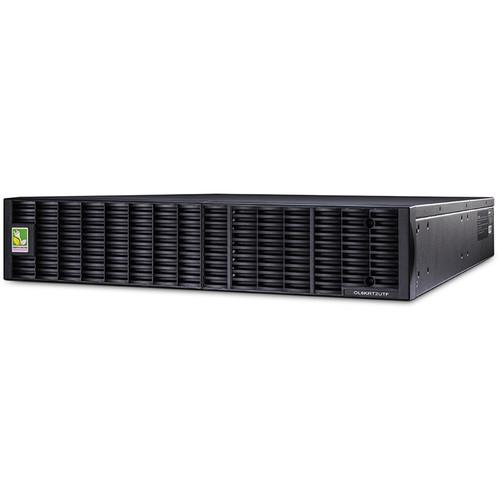

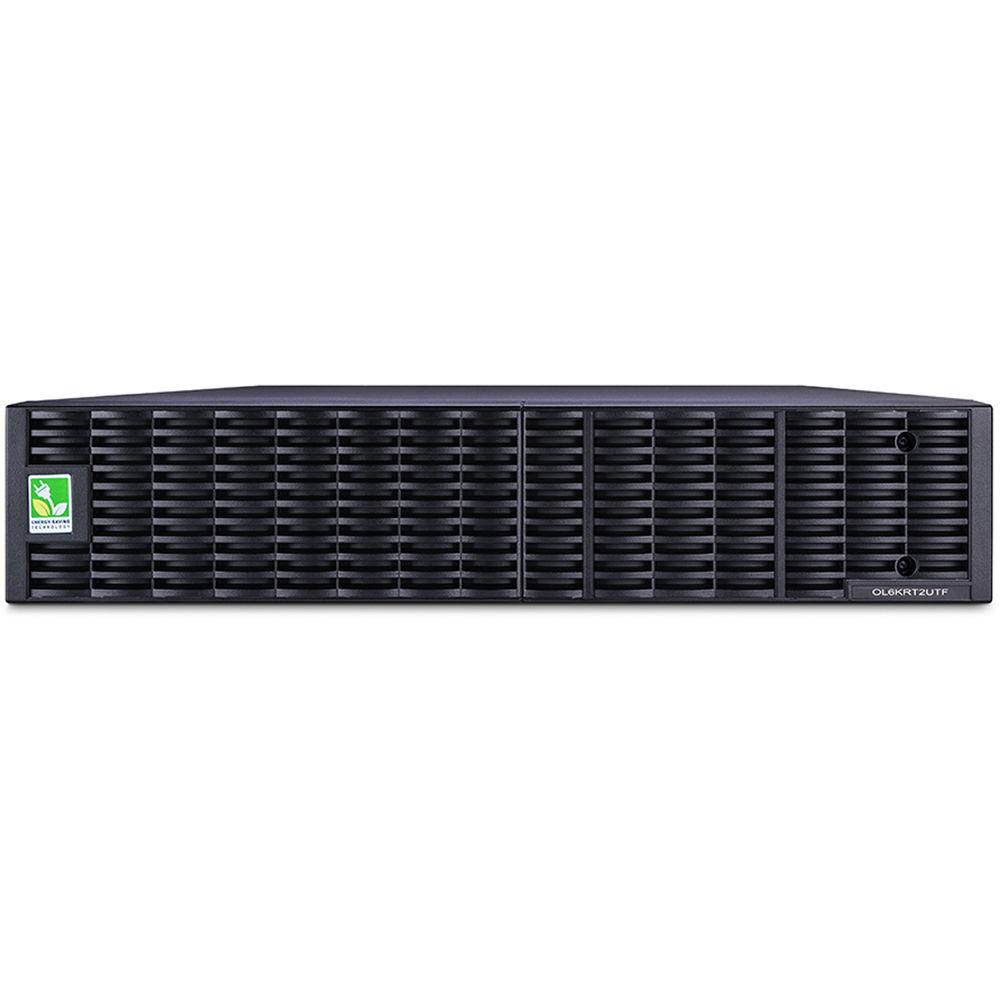

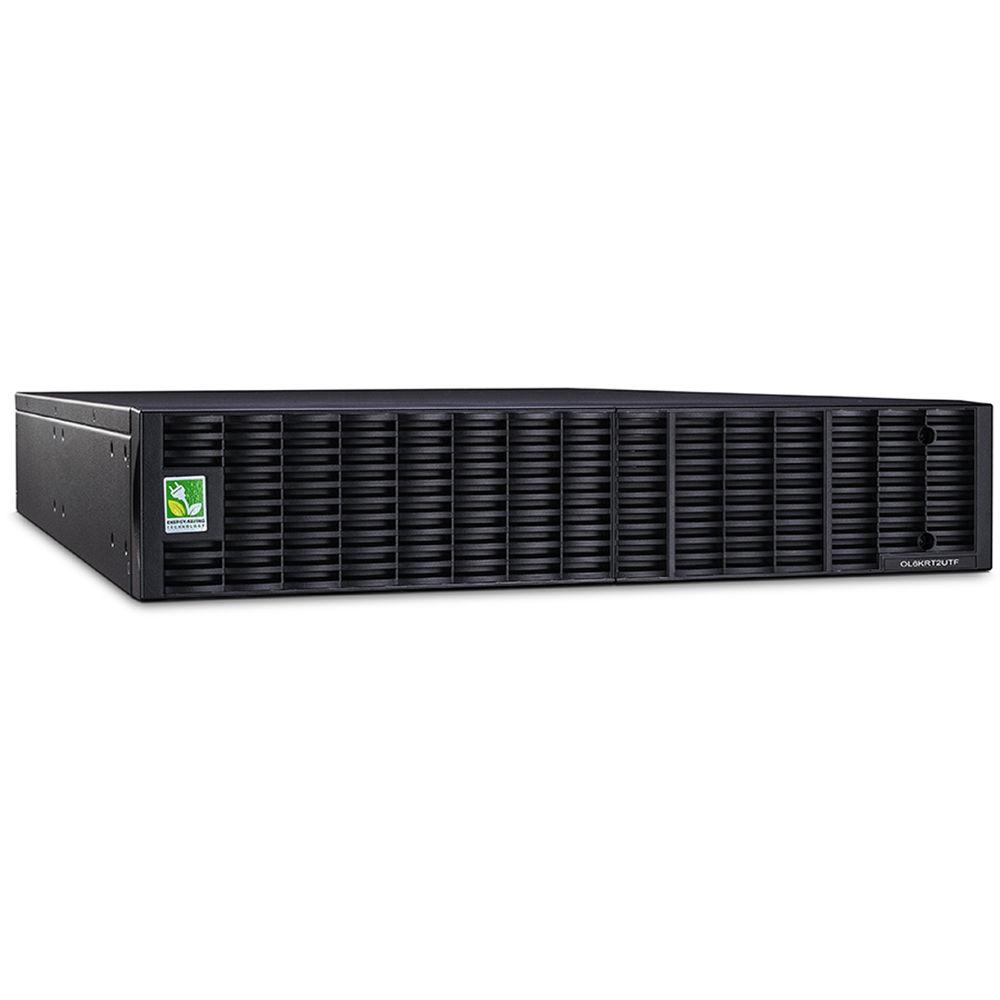

Product description The Smart App Online Series 2U Rack/Tower Step-Down Isolation Transformer from CyberPower converts 208V input voltage originating from utility power, a UPS, or a generator to 120V output. The 6-foot long cord with a 30A NEMA L6- 30P plug that connects the unit to input power. Over temperature protection safeguards your unit from damage if the internal heat exceeds safe operating parameters. This step-down transformer has a capacity of 5000VA / 5000W at 120V. It features twelve NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plugs. - Compatibility
- OL6000RT3U, OL6000RT3UTF, OL6000RT3UPDU, OL6000RT3UPDUTF, OL6KRT3UHW, OL8000RT3U, OL8000RT3UTF, OL8000RT3UPDU, OL8000RT3UPDUTF, OL8KRT3UHW, OL10000RT3U, OL10000RT3UTF, OL10000RT3UPDU, OL10000RT3UPDUTF, OL10KRT3UHW, PR5000LCDRTXL5U, PR6000LCDRTXL5U UPS models
- Converts 208V 30A input from a UPS, utility power, or a generator to 120V low voltage output
- Support both 120V and 200 to 240V output requirements with a single UPS solution
- With 12 NEMA 5-20R outlets, it allow users to connect multiple 120V devices running at 15A and/or 20A
- Separately available CyberPower PDUs can be used if additional outlets are required
- Uses a 6-foot long cord with a NEMA L6-30P plug
- Rack/tower versatility - allows for horizontal rack or vertical tower installation
- Supports both 50 Hz and 60 Hz output
- Protects the unit from damage if the internal heat exceeds safe operating parameters
- Convenient, resettable switches that provide protection from an input or output overload and faults
UPC: 649532602636 In the Box CyberPower Smart App Online Series 2U Rack/Tower Step-Down Isolation Transformer Rackmount Left and Right Rails 2 x Rackmount Ears Input Terminal Block Cover Mounting Hardware Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower Smart App Online Series 2U Rack Tower Step-Down Isolation Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower OL6KRT2UTF Specs | | | Nominal Input Voltage | 208 VAC | | Voltage Range | 200 to 240 VAC | | Frequency Range | 50 / 60 Hz | | Maximum Input Amperages | 30 A (Derated 24 A) | | Plug Type | NEMA L6-30P | | Cord Length | 6.0' (1.8 m) | | Protection | Over temperature protection | | | | VA | 5,000 VA | | Watts | 5,000 W | | Nominal Output Voltage | 120 VAC | | Frequency | 50 / 60 Hz | | Outlets | 12 x NEMA 5-20R | | Overload Protection | 4 x 20 A output circuit breaker | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 0 to 90% (non-condensing) | | Operating Elevation | 0 to 10,000' (0 to 3,000 m) | | Storage Temperature | 5 to 113°F (-15 to 45°C) | | Storage Relative Humidity | 0 to 95% (non-condensing) | | Storage Elevation | 0 to 50,000' (0 to 15,000 m) | | Online Thermal Dissipation | 2,048 BTU/hr | | Audible Noise | At 4.9' (1.5 m) from surface of unit | | | | Safety | UL, cUL, CE | | Environmental | RoHS compliant | | | | Rack Size | 2U | | Form Factor | Rack / tower | | Enclosure Material | Steel | | Mounting Hardware | Included | | Dimensions (W x H x D) | 17.0 x 3.5 x 26.0" (433 x 90 x 660 mm) | | Weight | 128.3 lb (58.3 kg) |
