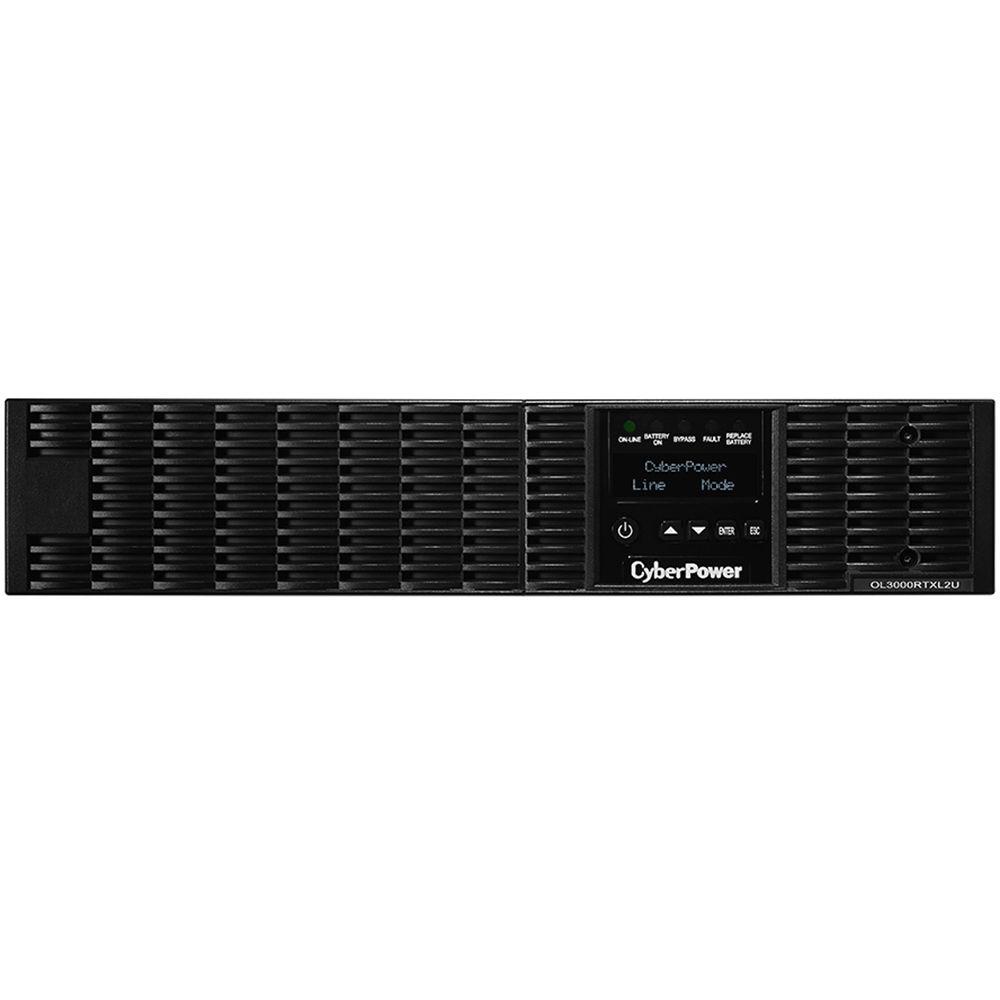

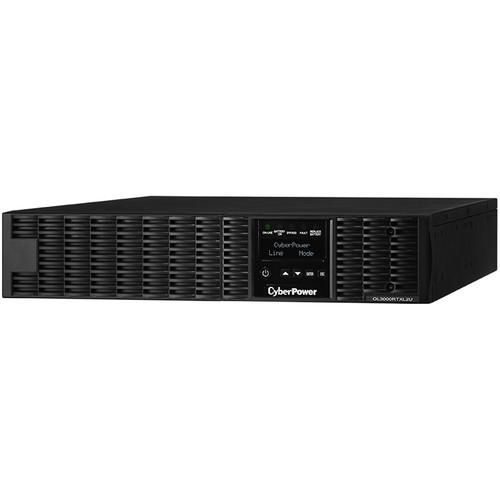

Product description The Smart App Online Series 2U Rack/Tower UPS from CyberPower provides 3000 VAC / 2700 W of simultaneous sine wave output to mission-critical applications and equipment that require seamless power protection. Its double-conversion topology is designed to deliver consistent, clean, and nearly perfect power, regardless of your incoming power's quality.

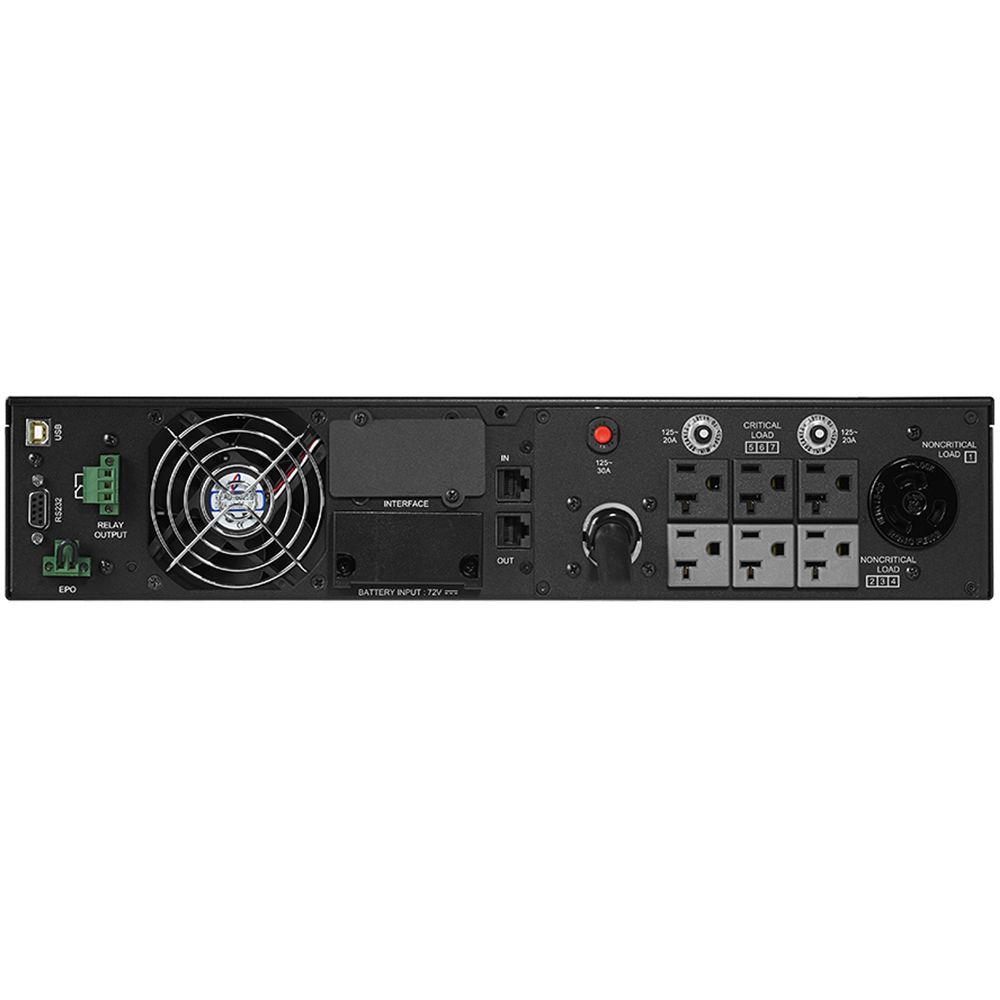

This UPS is meant to protect mission-critical equipment, providing battery power to keep essential systems running during power loss, for proper shutdowns to prevent costly business interruptions. It's also generator-compatible, so in times of crisis, it can provide stable sine wave output (free of harmonics and distortion), without resorting to the internal batteries. It protects six NEMA 5-20R outlets, one NEMA L5-30R, as well as a telephone/Ethernet network connection.

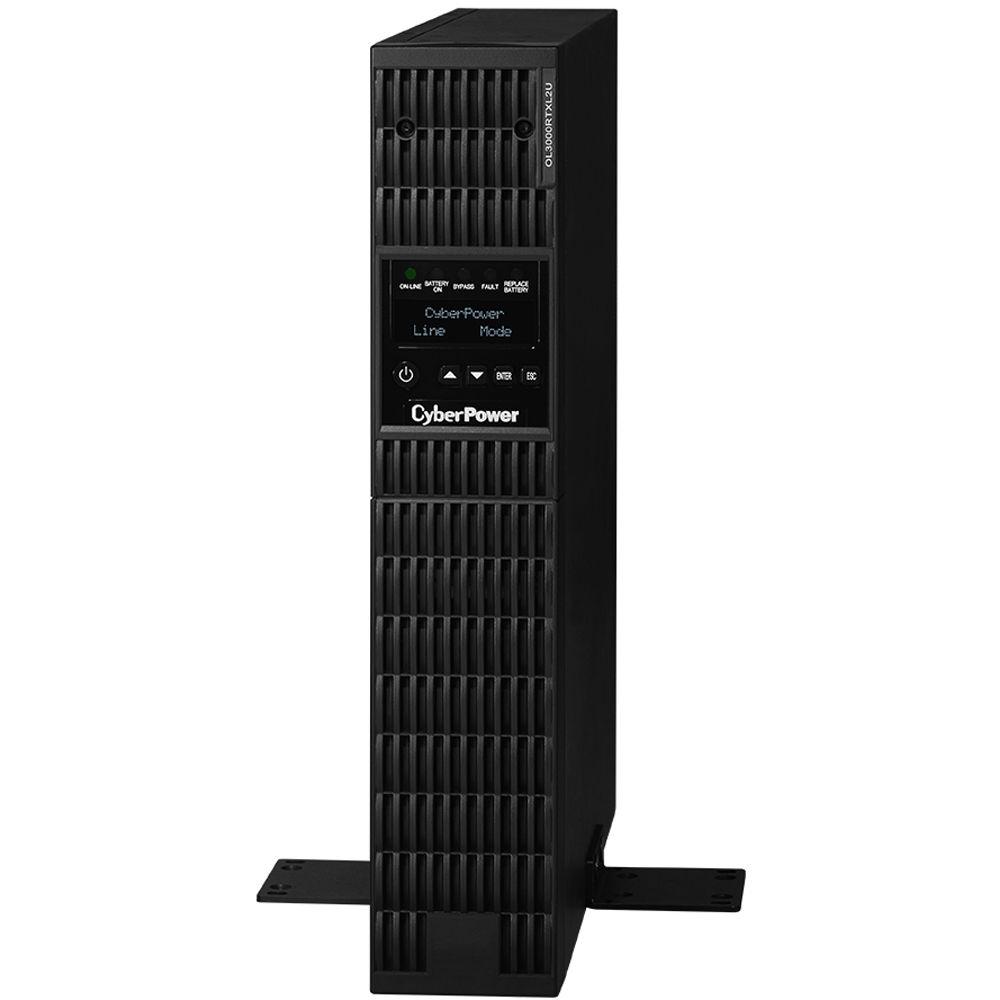

When setting this up in your network infrastructure, you get the versatility of inserting it into a horizontal rack, or a vertical tower configuration. This UPS is also a Cisco EnergyWise compliant end device. - Double-Conversion Topology
-
- Provides consistent and clean power supply, regardless of the condition of incoming power.
- With this technology, the system operates on isolated DC power 100% of the time and has a zero-transfer time because it never needs to switch to battery.
- This double-conversion UPS system is designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
- Sine Wave Output
-
- Provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.
- Extendable LCD Panel
-
- Displays UPS statuses and customizable operating settings from up to 10’ away with an optional cable.
- This LCD control panel can be configured in English, Spanish, or French for ease of use.
- Extended Battery Module (EBM)
-
- Extends runtime by adding BP72V60ART2U EBMs (available separately).
- Fast Charge Technology
-
- Allows UPS batteries to return to 100% capacity more rapidly by utilizing a built-in charger inside each EBM.
- Restores a complete charge within 5 hours, regardless of the number of EBMs.
- Smart Battery Management (SBM)
-
- Improves and extends the functional life of a UPS battery, helping to reduce excessive heat during work cycles by using a three-cycle charging process.
- GreenPower UPS ECO Mode
-
- Helps to improve UPS efficiency by up to 93%, saving on electrical and cooling costs.
- Hot-Swappable Batteries
-
- This is designed to eliminate downtime related to UPS power maintenance, giving you continuous power availability.
- Critical & Non-Critical Loads
-
- UPS has two banks of outlets which can be configured so that the non-critical loads shut off after a set timeframe, providing additional runtime for the critical load outlet.
- You can prioritize equipment runtimes to help maximize the output of the UPS to meet equipment power requirements.
- Emergency Power Off (EPO)
-
- Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
- Converter Mode
-
- Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50 or 60 Hz output on the LCD control panel.
- USB & Serial Connectivity
-
- Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.
- EMI/RFI Filters
-
- Prevent electromagnetic and radio frequency interference, helping to ensure clean power for connected equipment.
- Audible Alarms
-
- Identify when this is running on battery power, overloaded, or has a low battery..
- Circuit Breaker Reset
-
- You can reset the circuit breaker if it ever tips from too much current.
- LED Status Lights
-
- Indicates power, line mode, battery mode, bypass mode, fault, and replace battery..
- ENERGY STAR
-
- ENERGY STAR certified Uninterruptible Power Supply (UPS) system.
UPC: 649532604890 In the Box CyberPower Smart App Online Series 2U Rack/Tower UPS (3000VA / 2700W) USB Device Cable Telephone Cable RS-232 Serial Interface Cable PowerPanel Business Edition Software CD 2 x Rackmount Rails (Left & Right) 2 x Rackmount Ears 12 x Rubber Feet Mounting Hardware Limited 3-Year Warranty More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower Smart App Online Series 2U Rack Tower UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower OL3000RTXL2U Specs | | | Total Outlets | 6 x NEMA 5-20R
1 x NEMA L5-30R | | Plug Type | NEMA L5-30P | | Data Line Protection | RJ11, RJ45 | | Communications | USB, Serial | | Topology | Double Conversion | | Transfer Time | 0 ms | | | | Surge Energy Rating | 1335 Joules | | Maximum Wattage | 2700 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 60 to 150 VAC | | Input Frequency | 50/60 Hz ± 10 Hz | | Output Voltage Range | 100 to 125 VAC | | Output Frequency | 50/60 Hz ± 0.1% (Auto Sensing, Configurable) | | Load Capacity | 3000 VA | | Thermal Dissipation | 1116 BTU/Hour | | Crest Factor | 3:1 | | Power Factor Correction | 0.9 | | Waveform | Sine Wave | | | | Cells | 6 | | Capacity | 108 Wh (9 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 3 Minutes | | Half-Load Runtime | 9 Minutes | | Charging Time | 4 Hours | | User Replaceable | Yes | | Replacement Battery | RB1290X6A | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Storage Temperature | -4 to 113°F / -20 to 45°C | | Storage Humidity | 0 to 95% | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Noise Level | 50 dBA | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 10' / 3 m | | Material of Construction | Steel | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.0 x 3.5 x 23.6" / 431.8 x 88.9 x 599.4 mm | | Weight | 68.2 lb / 31.0 kg | | | | Package Weight | 89.0 lb | | Box Dimensions (LxWxH) | 34.0 x 22.0 x 10.0" |
