User Manual for CyberPower Smart App Sinewave PR1500LCD Click to enlarge the picture
Contents of the user manual for the CyberPower Smart App Sinewave PR1500LCD
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower Smart App Sinewave PR1500LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

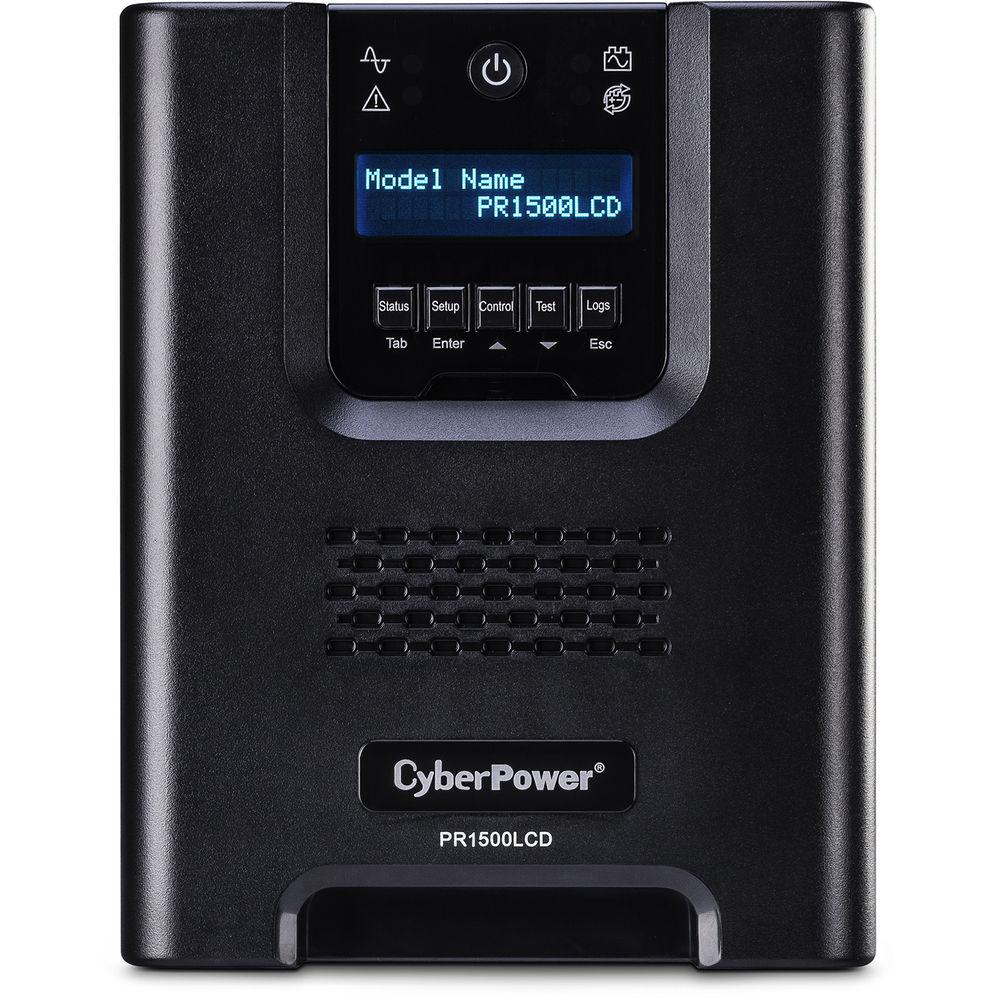

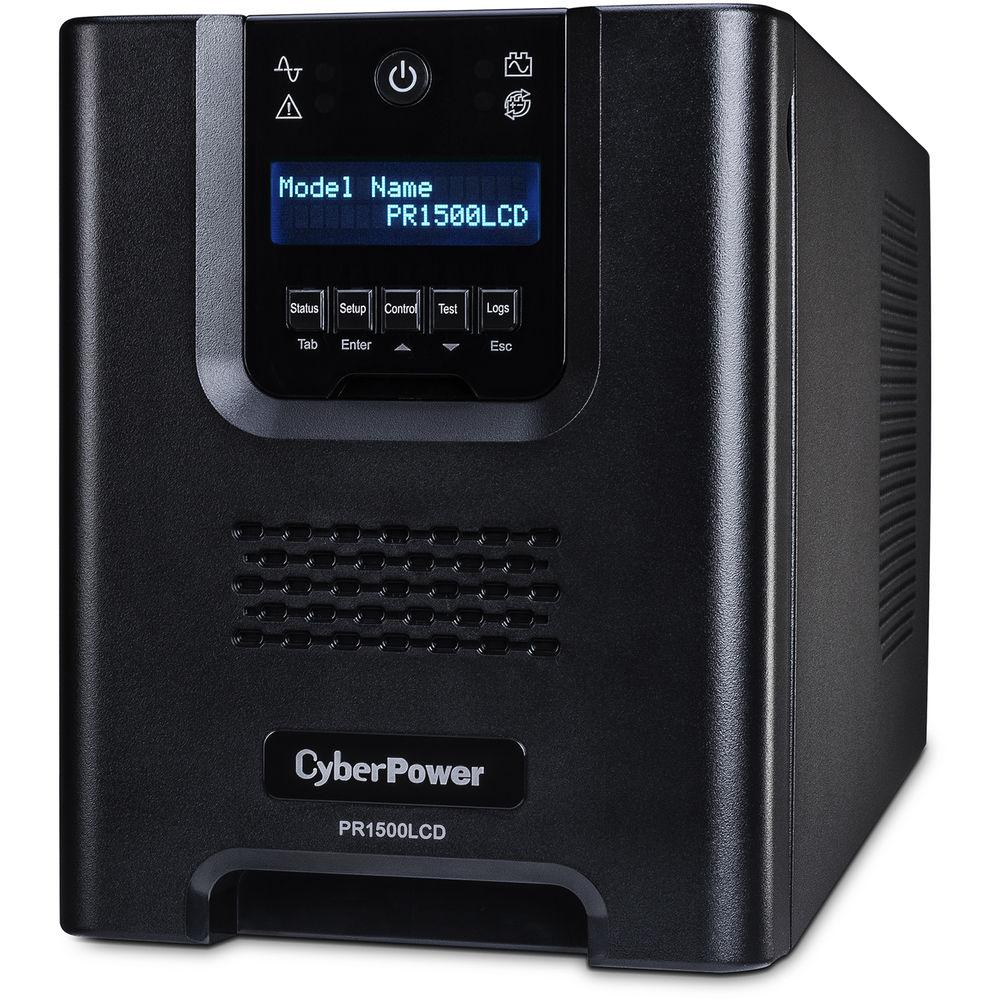

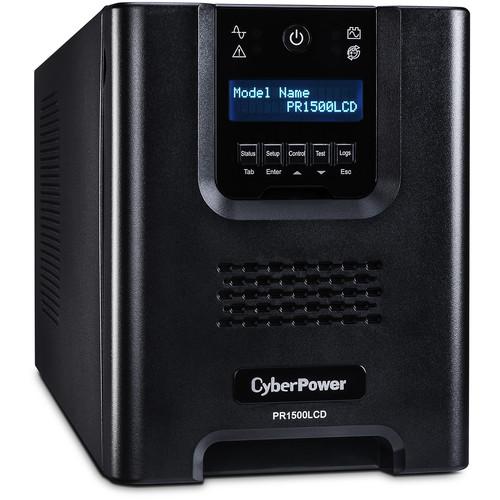

Product description The Smart App Sinewave PR1500LCD from CyberPower provides backup power essential to keeping your electronics powered should that power be interrupted. This power supply comes equipped with pure sine wave technology ensuring a constant flow of high quality clean power, while the full automatic voltage regulation feature adjusts the voltage keeping it within a safe operating range to reducing the risk of damage to connected devices.
Along with enhanced voltage protection, you can monitor and your power supply via the integrated LCD control panel complete with a 4.5' extension cable providing easy access when the power supply is located in hard to reach areas. Once configured, your connected devices are protected up to $375,000 should any of those devices become damaged as a result of the power supply. - Pure Sine Wave
- When operating on battery, the Smart App Sinewave UPS outputs power with a pure sine wave that is identical to or cleaner than the power from the utility company grid, free of harmonic distortion and electrical noise, resulting in optimal line clarity.
- LCD Control Panel
- The integrated LCD interface enables users to check UPS status, manage UPS setup and control, and run testing/battery calibration options. Status and log menus provide UPS vitals including input and output voltage levels, battery information, runtime estimates, load information, event and fault logging, and other system information. The setup and control menus offer users the ability to customize their PR1500LCD UPS to their specific parameters of operation including shutdown options, voltage sensitivity, alarm settings and other parameters. The test menu enables self testing and battery calibration to ensure your UPS is operating correctly.
- Removable LCD Control Panel
- The LCD control panel on the PR1500LCD can be removed and relocated for easy viewing using the attached 4.5 ft. cable. This feature provides easy access to view status or change settings on the UPS when it's installed in a hard to reach areas.
- PowerPanel Business Edition UPS Management Software
- This software suite manages the power for all servers and computers supported by the UPS on a network. Features include application/OS shutdown, event logging (power, surge, and voltage variations) hibernation mode, internal reports and analysis, as well as remote management capability for comprehensive power control.
- Full Automatic Voltage Regulation
- Full AVR boost/buck technology stabilizes the AC voltage by increasing low voltages and decreasing high voltages to maintain a safe voltage level without switching to battery-mode. This conserves battery life, and delivers cleaner AC power to connected equipment.
- Reduce Energy Costs & Heat Loss
- With an Energy Star rating this UPS system utilizes patented GreenPower UPS Bypass circuitry to save on energy costs by reducing energy consumption and heat buildup.
- Quiet Design
- Advanced efficiency design (reduced fan operation), high-end system components, and GreenPower UPS technology help minimize sound emissions.
- Tamper-Proof Power Button
- The power button has been designed to minimize the chance the UPS can be turned off or interfered with by accident.
- USB Connectivity
- The integrated HID compliant USB port enables full integration with built-in power management and auto shutdown features of Windows, Linux and Mac OS X.
- EMI/RFI Filters
- Filters against electromagnetic interference and radio frequency interference ensure clean power for connected equipment.
- Audible Alarms
- Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low.
- Resettable Circuit Breaker
- Integrated unit reset switch in case of an overload.
- Windows Compatibility
- The included PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012.
UPC: 649532602513 In the Box CyberPower Smart App Sinewave PR1500LCD Limited 3-Year Warranty Guides & Manuals abdcxcutdyufuzdfwefrcbbsubawxeqxb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower Smart App Sinewave PR1500LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the CyberPower Smart App Sinewave PR1500LCD can be downloaded in PDF format at the link stated below.

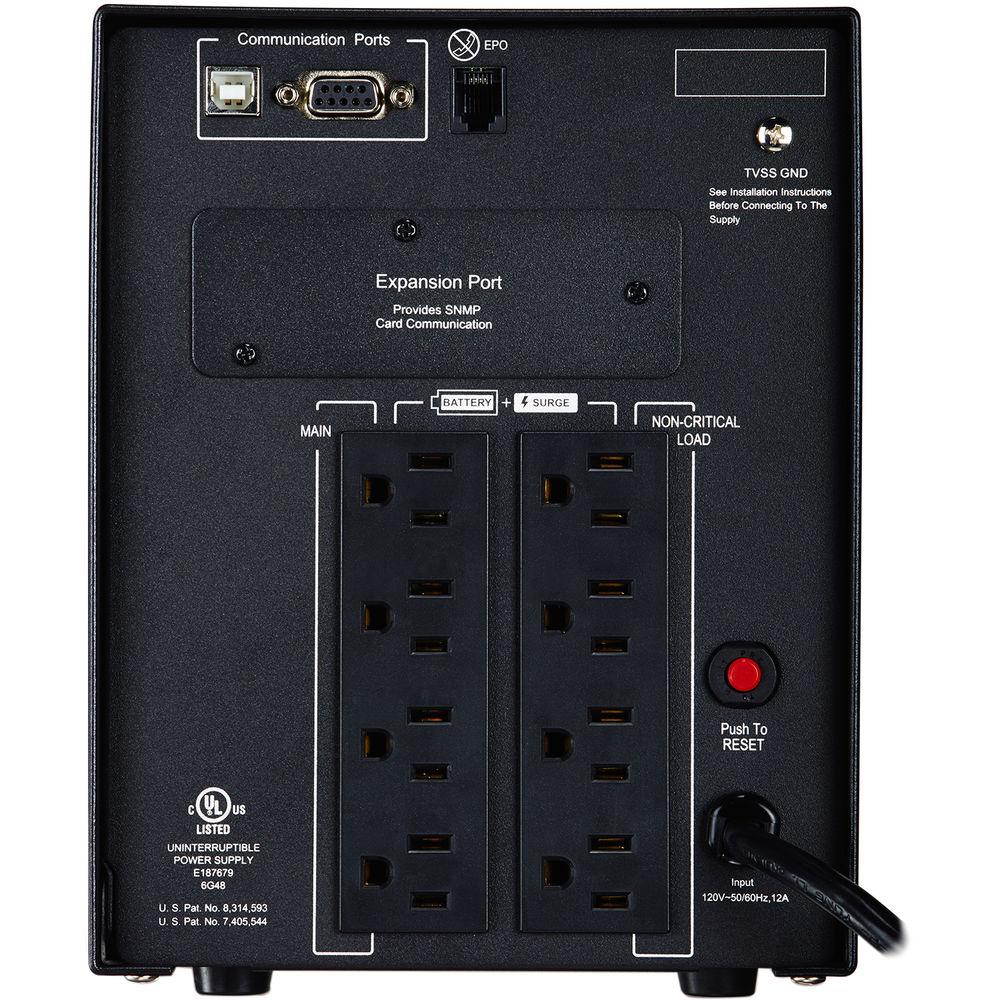

Technical parametersCyberPower PR1500LCD Specs | | | Total Outlets | 8 | | Protected Outlets | 8 (Battery and Surge) | | Plug Type | NEMA 5-15P Offset Right-Angle | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Line Interactive | | Transfer Time | 4 to 8 ms | | | | Surge Energy Rating | 1300 Joules | | Maximum Wattage | 1050 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Load Capacity | 1500 VA | | Waveform | Sine Wave | | | | Cells | 2 | | Capacity | 204 Wh (17 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 8 Minutes | | Half-Load Runtime | 24 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB12170X2A | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 4.5' / 1.4 m | | Dimensions (W x H x D) | 6.7 x 8.7 x 17.0" / 17.0 x 22.1 x 43.2 cm | | Weight | 54.0 lb / 24.5 kg | | | | Package Weight | 60.6 lb | | Box Dimensions (LxWxH) | 22.5 x 13.0 x 12.5" |
