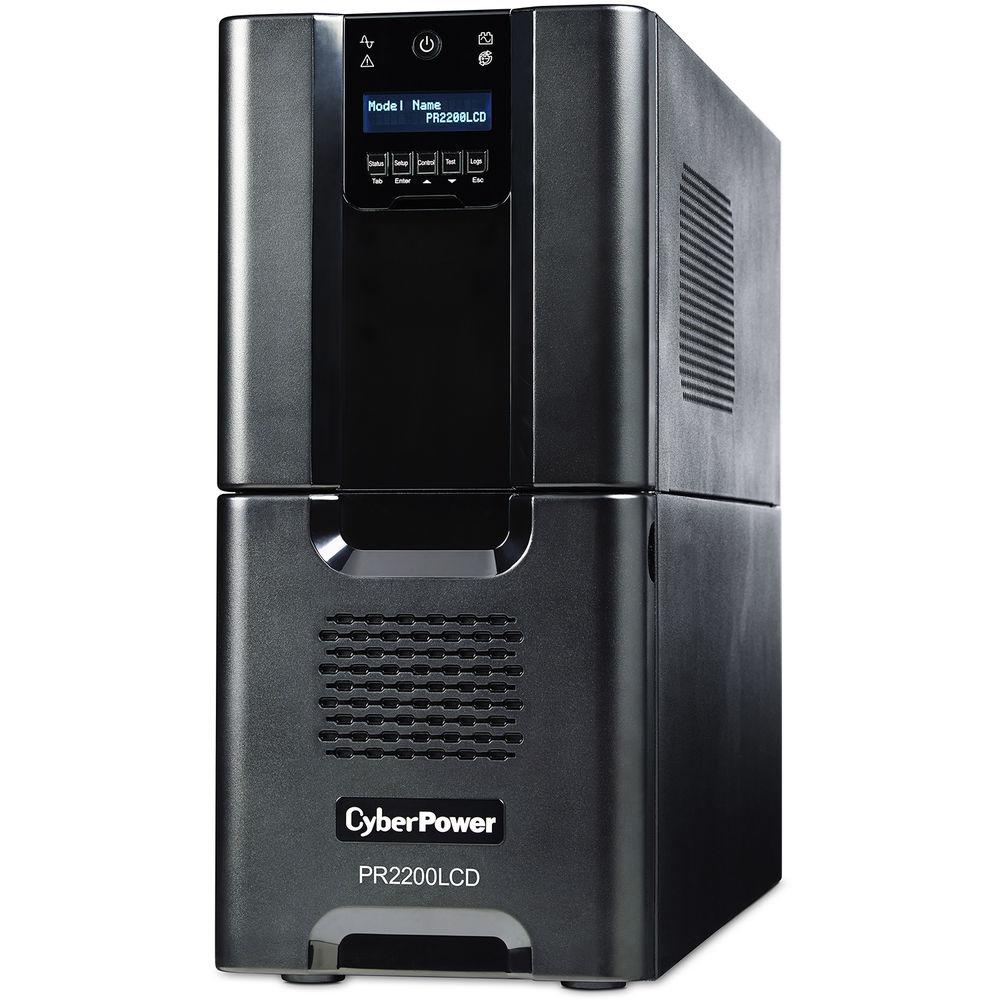

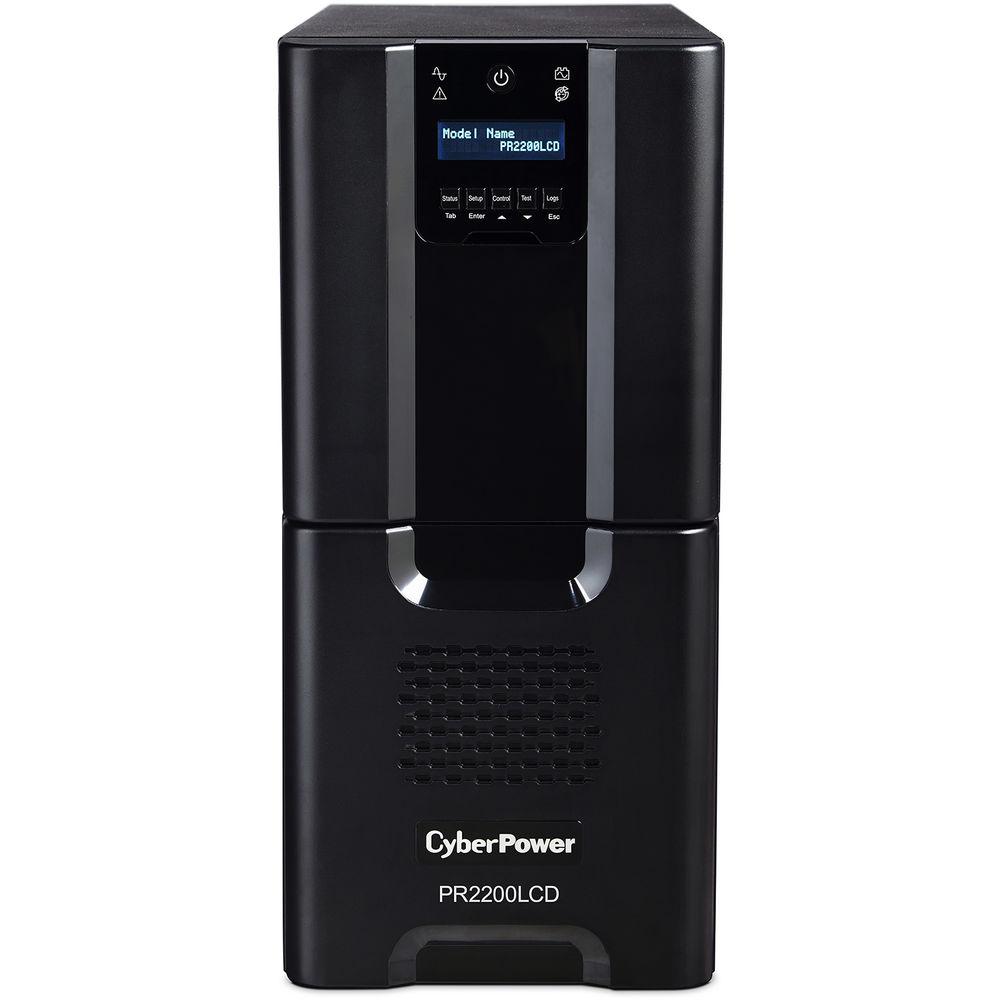

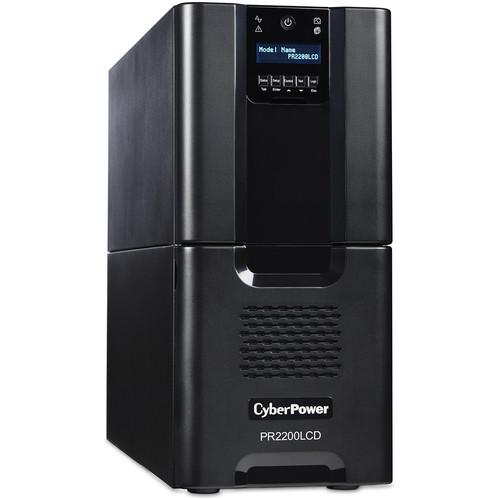

Product description The Smart App Sinewave PR2200LCD from CyberPower provides backup power essential to keeping your electronics powered should that power be interrupted. This power supply comes equipped with pure sine wave technology ensuring a constant flow of high quality clean power, while the full automatic voltage regulation feature adjusts the voltage keeping it within a safe operating range to reducing the risk of damage to connected devices. Along with enhanced voltage protection, you can monitor your power supply via the integrated LCD control panel complete with a 4.5' extension cable providing easy access when the power supply is located in hard to reach areas. Once configured, your connected devices are protected up to $375,000 should any of those devices become damaged as a result of the power supply. - Pure Sine Wave
- When operating on battery, the Smart App Sinewave UPS outputs power with a pure sine wave that is identical to or cleaner than the power from the utility company grid, free of harmonic distortion and electrical noise, resulting in optimal line clarity.

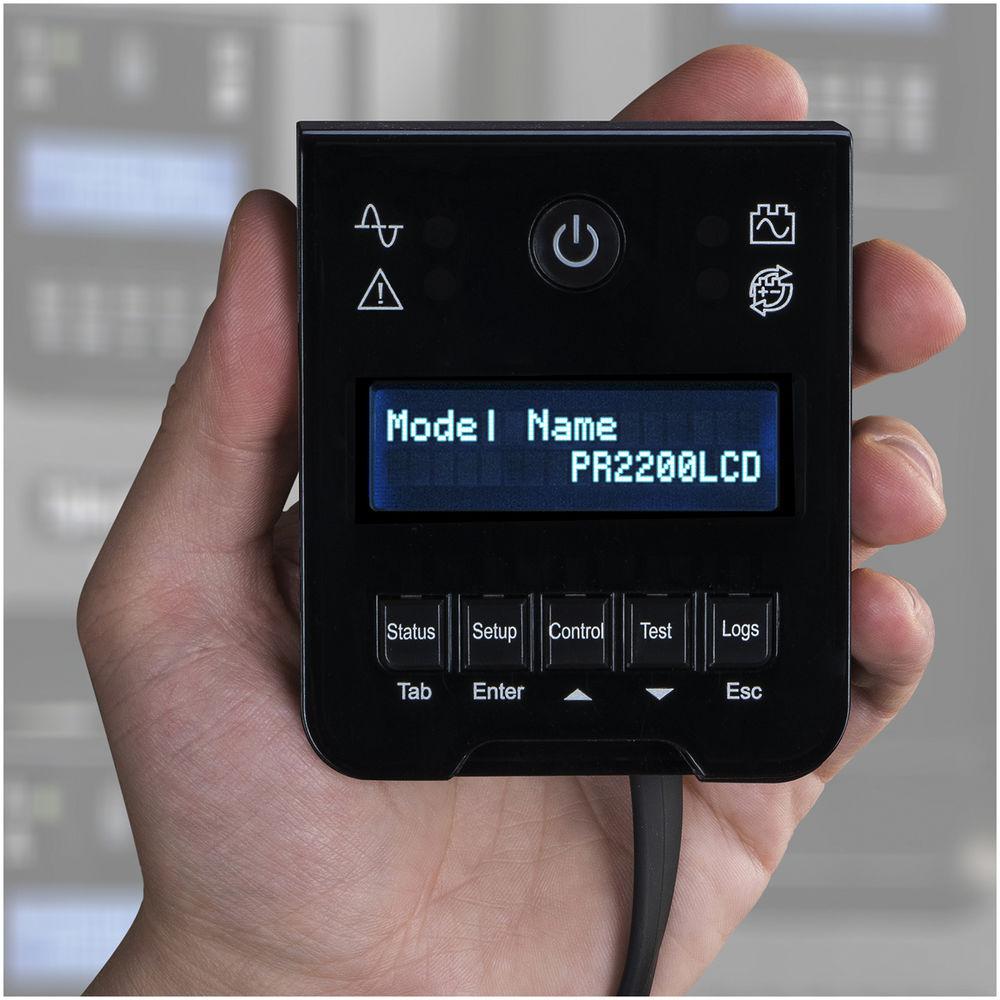

- LCD Control Panel
- The integrated LCD interface enables users to check UPS status, manage UPS setup and control, and run testing/battery calibration options. Status and log menus provide UPS vitals including input and output voltage levels, battery information, runtime estimates, load information, event and fault logging, and other system information. The setup and control menus offer users the ability to customize their PR2200LCD UPS to their specific parameters of operation including shutdown options, voltage sensitivity, alarm settings and other parameters. The test menu enables self testing and battery calibration to ensure your UPS is operating correctly.
- Removable LCD Control Panel
- The LCD control panel on the PR2200LCD can be removed and relocated for easy viewing using the attached 4.5 ft. cable. This feature provides easy access to view status or change settings on the UPS when it's installed in a hard to reach areas.
- PowerPanel Business Edition UPS Management Software
- This software suite manages the power for all servers and computers supported by the UPS on a network. Features include application/OS shutdown, event logging (power, surge, and voltage variations) hibernation mode, internal reports and analysis, as well as remote management capability for comprehensive power control.
- Full Automatic Voltage Regulation
- Full AVR boost/buck technology stabilizes the AC voltage by increasing low voltages and decreasing high voltages to maintain a safe voltage level without switching to battery-mode. This conserves battery life, and delivers cleaner AC power to connected equipment.
- Energy-Saving Technology
- Patented GreenPower UPS advanced bypass circuitry reduces UPS energy consumption by up to 75% when compared to comparable models. This unique design also reduces the amount of heat generated by the UPS.
- Quiet Design
- Advanced efficiency design (reduced fan operation), high-end system components, and GreenPower UPS technology help minimize sound emissions.
- Tamper-Proof Power Button
- The power button has been designed to minimize the chance the UPS can be turned off or interfered with by accident.
- EMI/RFI Filters
- Filters against electromagnetic interference and radio frequency interference ensure clean power for connected equipment.
- Audible Alarms
- Distinctive tones identify when the unit is running on battery power, if it is overloaded, or when the battery is low.
- Windows Compatibility
- The included PowerPanel power management software has been fully tested and is compatible with Windows 8 32/64, Windows 7 32/64, Vista 32/64, XP 32/64, 2000, 2003, Server 2008 and Server 2012.
UPC: 649532606566 In the Box CyberPower Smart App Sinewave PR2200LCD Emergency Power Off Cable PowerPanel Business Edition Software CD Serial Cable USB A+B Type Cable Limited 3-Year Warranty Guides & Manuals bzwsbrertrrbbzybcftqctvbruvrfac More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower Smart App Sinewave PR2200LCD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the CyberPower Smart App Sinewave PR2200LCD can be downloaded in PDF format at the link stated below.

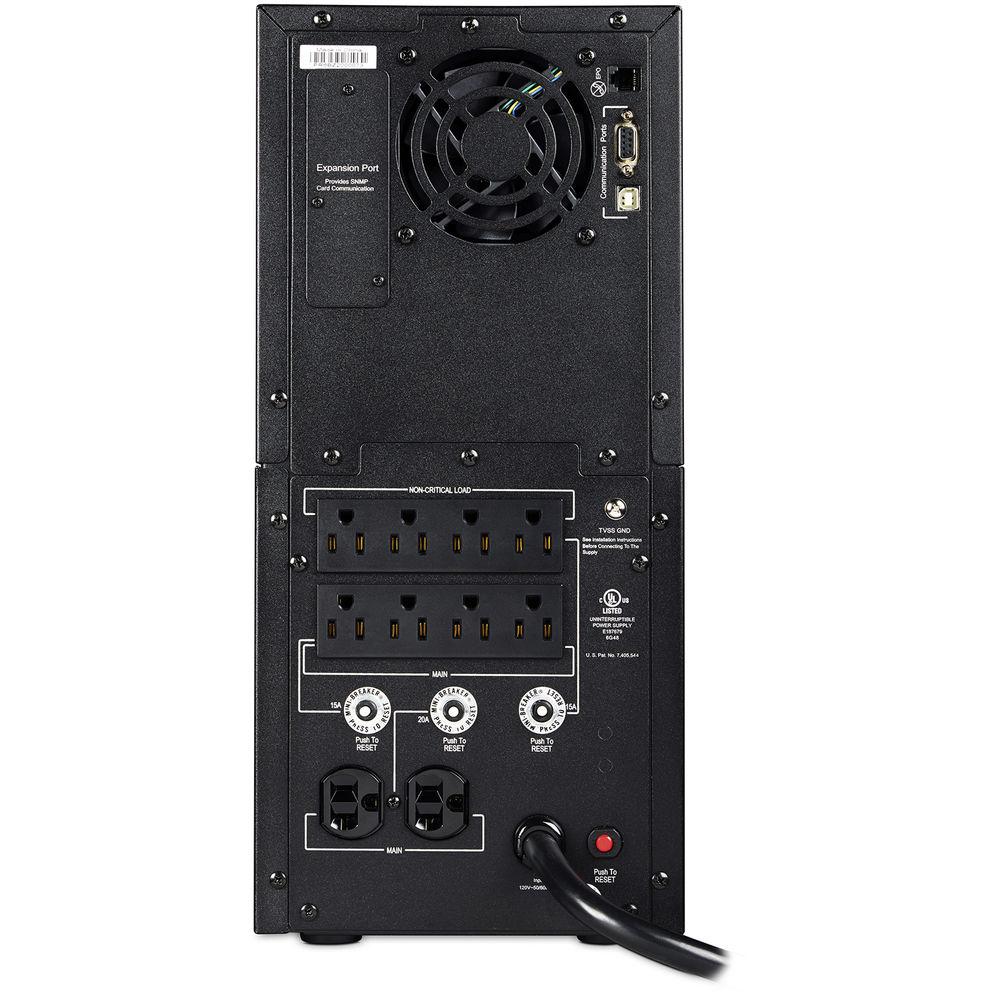

Technical parametersCyberPower PR2200LCD Specs | | | Total Outlets | 8 x NEMA 5-15R
2 x NEMA 5-10R | | Protected Outlets | 10 (Battery and Surge) | | Plug Type | NEMA L5-30P | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Topology | Line Interactive | | Transfer Time | 4 to 8 ms | | | | Surge Energy Rating | 1030 Joules | | Maximum Wattage | 1980 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 75 to 154 VAC | | Input Frequency | 50/60 Hz ± 3 Hz (Auto Sensing) | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 1% | | Load Capacity | 2200 VA | | Waveform | Sine Wave | | | | Cells | 4 | | Capacity | 204 Wh (17 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 8 Minutes | | Half-Load Runtime | 26 Minutes | | Charging Time | 8 Hours | | User Replaceable | Yes | | Replacement Battery | RB12170X4 | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 90% | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 10' / 3 m | | Dimensions (W x H x D) | 7.7 x 17.0 x 20.2" / 19.6 x 43.2 x 51.3 cm | | Weight | 116.0 lb / 53.0 kg | | | | Package Weight | 117.5 lb | | Box Dimensions (LxWxH) | 25.7 x 22.0 x 13.0" |
