User Manual for CyberPower Smart APP Sinewave Series PR3000LCDRTXL2UN UPS Click to enlarge the picture
Contents of the user manual for the CyberPower Smart APP Sinewave Series PR3000LCDRTXL2UN
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower Smart APP Sinewave Series PR3000LCDRTXL2UN contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

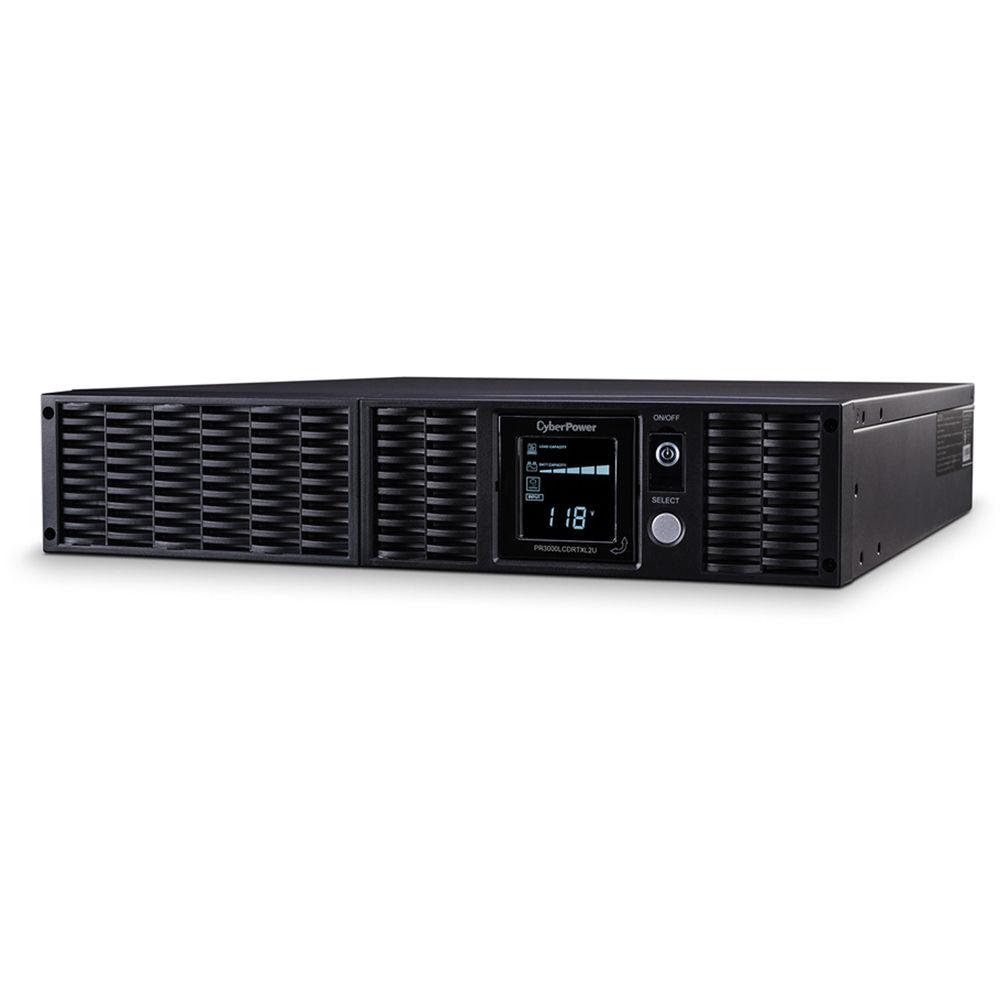

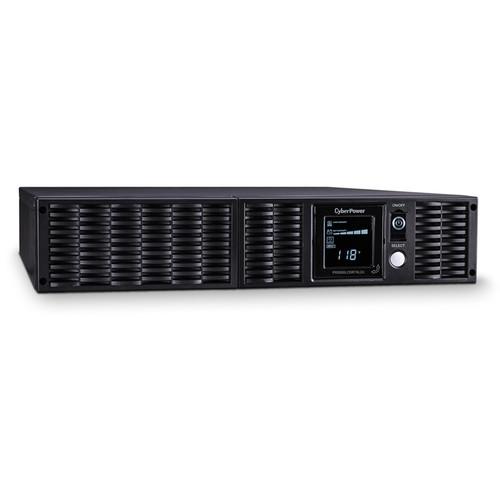

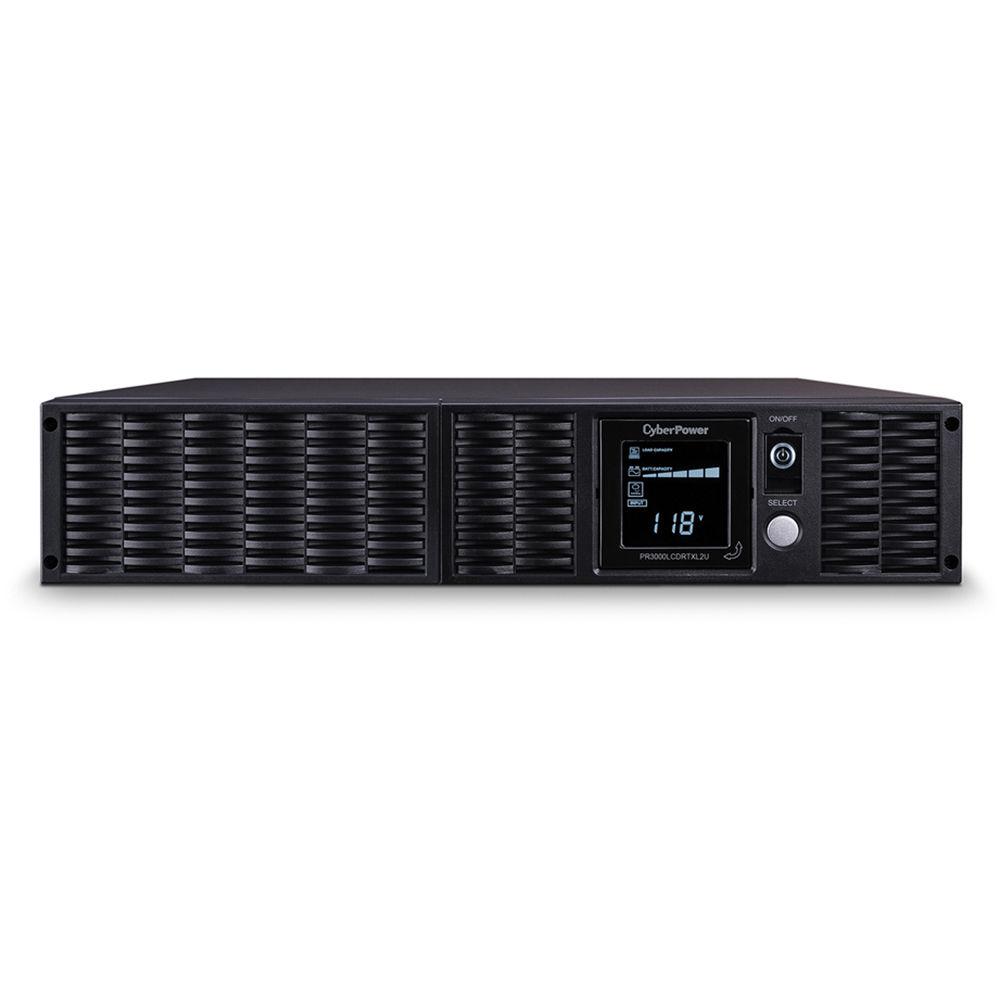

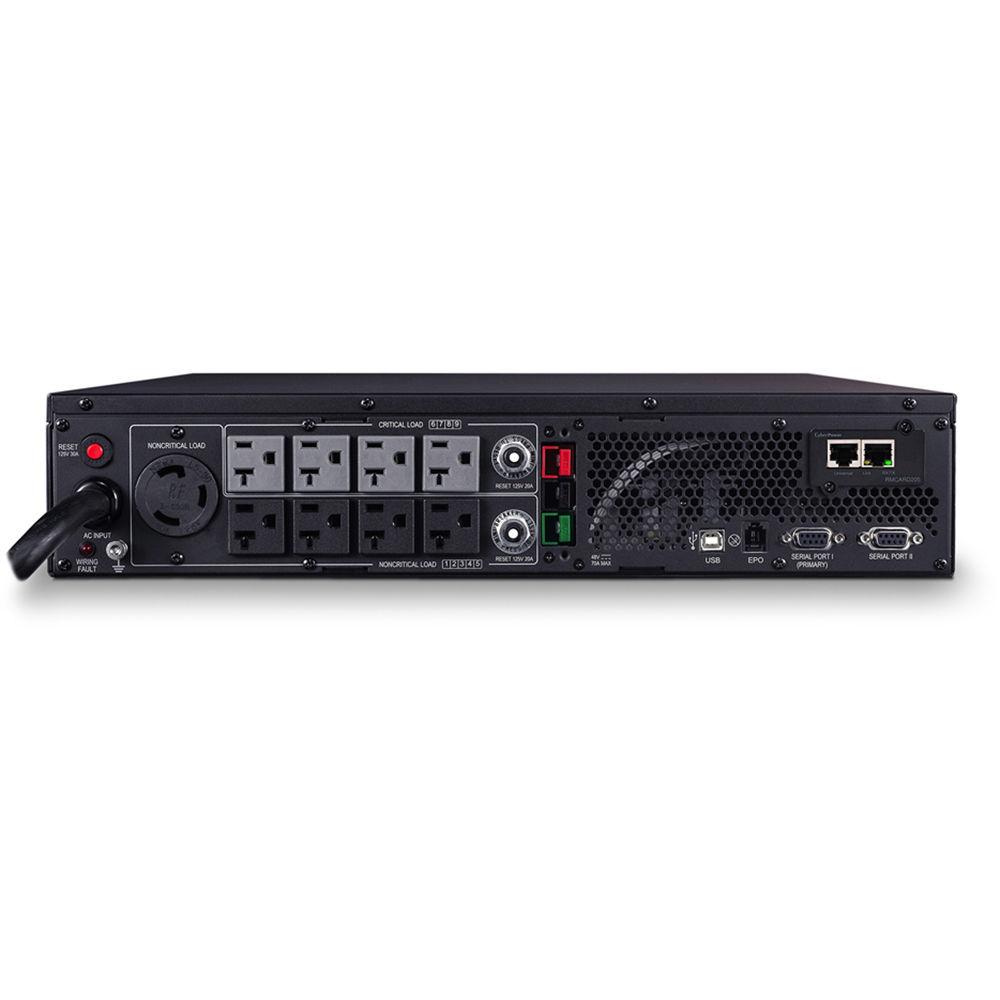

Product description Keep your devices protected with the Smart APP Sinewave Series PR3000LCDRTXL2UN UPS from CyberPower. This uninterruptible power supply keeps your connected devices running so they can safely power down in an event of a power outage. It has a total of nine sockets for your equipment: four for critical loads and five for non-critical loads. A built-in LCD display provides detailed information such as the battery and power conditions, and alerts to problems. The battery in this device is hot-swappable and easy to replace. When a power outage does occur, an audible alarm will alert you that your devices are now running on backup power. You will have around two minutes of power at full-load, or five minutes at half-load. Recharging this unit will take less than six hours. - Battery Backup
- In case of power outages, this battery backup will keep your devices powered on long enough for them to shut down properly so you won't lose any data.
- Surge Protection
- When a power surge or power strike occurs, excess voltage is diverted away from connected devices to prevent damage.
- Line Interactive Topology
- This UPS is able to regulate low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
- Automatic Voltage Regulation (AVR)
- When minor power fluctuations occur, this UPS will automatically increase low voltages without using battery power to deliver clean and consistent power.
- Sine Wave Output
- Provides power protection to ENERGY STAR 6.0 systems with Active PFC power supplies.
- GreenPower UPS Bypass Design
- This patented design allows utility power to bypass the UPS transformer when AC power is stable thereby reducing energy consumption, noise, and temperature.
- Rotatable Multi-function LCD Panel
- Keep an eye on the multi-function LCD panel for detailed information such as power conditions and alerts for potential problems. Whether it's rack mounted or stand-alone, the rotatable LCD screen lets you easily read it.

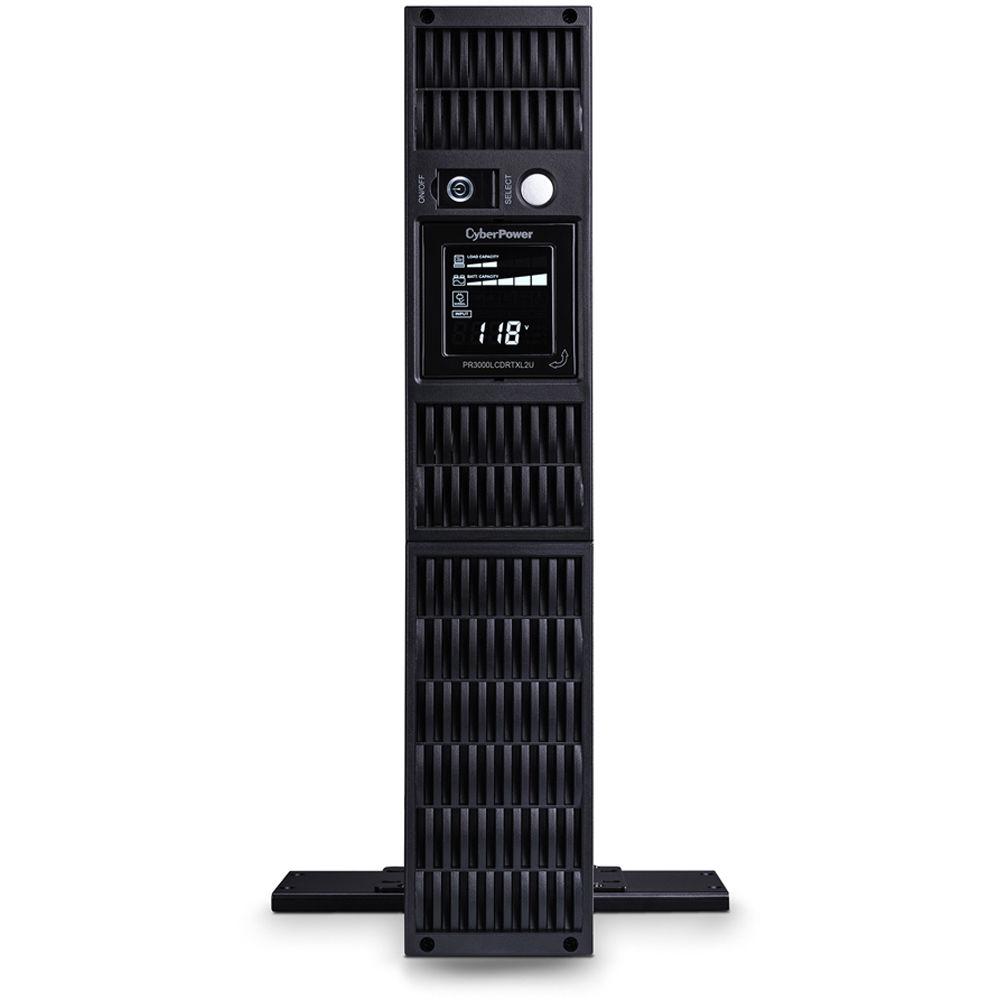

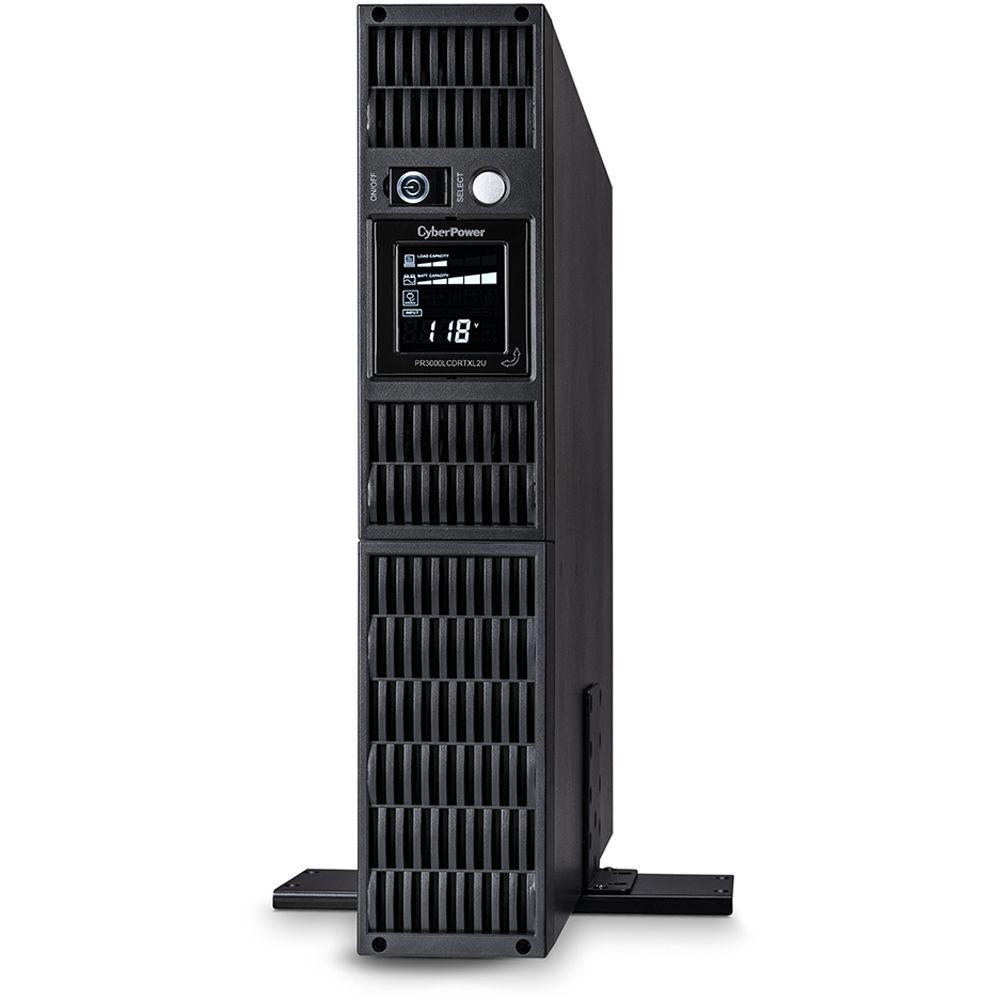

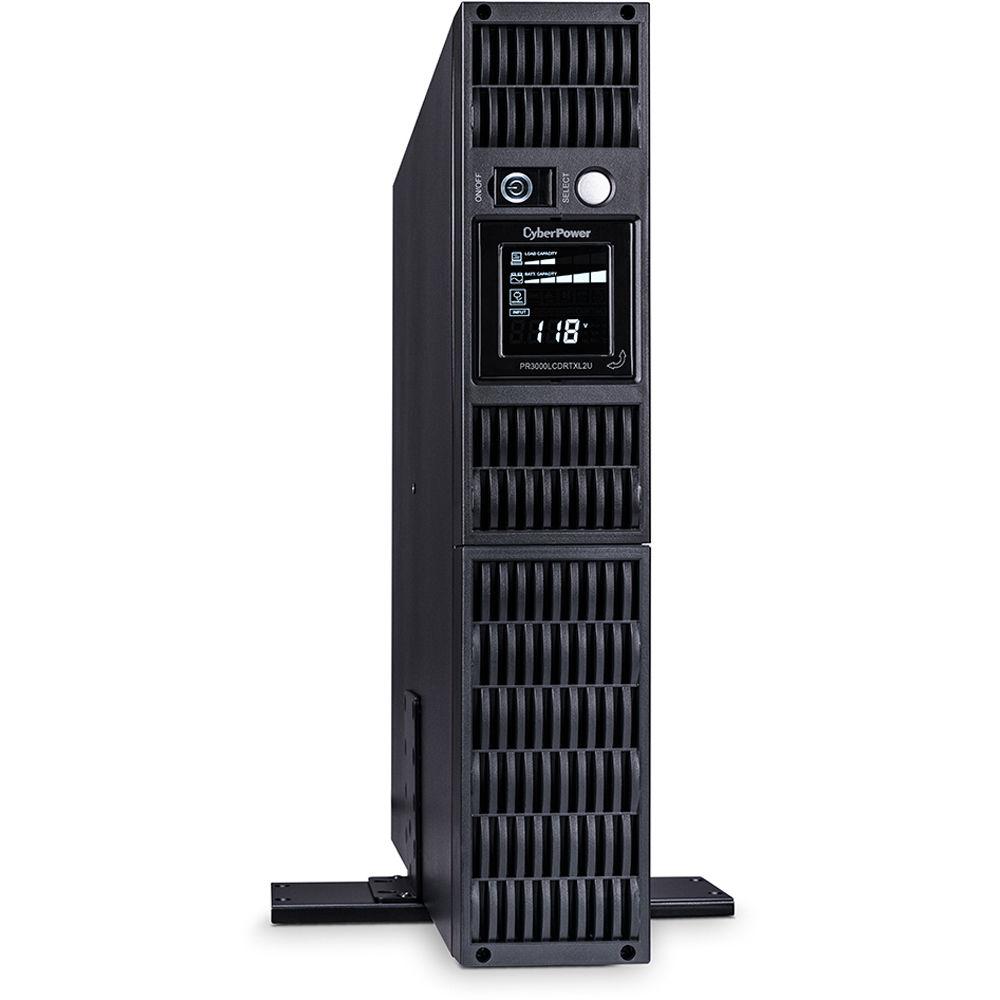

- Rack/Tower Versatility
- The UPS can be placed in a horizontal rack or as a vertical tower.
- PowerPanel Business Edition Software
- Included is a copy of PowerPanel Business Edition, which provides IT professionals with tools for monitoring and managing the UPS and backup power. It also offers remote management so you can check its status while you're on the go.
- Cisco Compatible
- This CyberPower UPS system is a Cisco EnergyWise compliant end device.
- Connected Equipment Guarantee
- CyberPower will repair or replace properly connected equipment if it is damaged by a power surge, up to $400,000.
UPC: 649532614981 In the Box CyberPower Smart APP Sinewave Series PR3000LCDRTXL2UN UPS 2 x Rack Mount Brackets Metal Stand Plate Emergency Power Off Cable PowerPanel Business Edition Software CD 2 x Serial Interface Cables (DB-9) USB Type A + B Cable 4 x Rubber Buffers Limited 3-Year Warranty Manual PDF 664.2kb More from Manufacturer Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower Smart APP Sinewave Series PR3000LCDRTXL2UN UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower PR3000LCDRTXL2UN Specs | | | Total Outlets | 8 x NEMA 5-20R
1 x NEMA L5-30R | | Protected Outlets | 9 (Battery and Surge) | | Plug Type | NEMA L5-30P | | Communications | USB, Serial | | Emergency Power Off (EPO) Support | Yes | | Transfer Time | 4 ms | | | | Surge Energy Rating | 2060 Joules | | Maximum Wattage | 3000 W | | Nominal Input Voltage | 120 VAC | | Input Voltage Adjustable Range | 80 to 150 VAC | | Input Frequency | 50/60 Hz ± 3 Hz | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 0.1% | | Load Capacity | 3000 VA | | Power Factor Correction | 0.9 | | Waveform | Sine Wave | | | | Cells | 4 | | Capacity | 108 Wh (9 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 2 Minutes | | Half-Load Runtime | 5 Minutes | | Charging Time | 6 Hours | | User Replaceable | Yes | | Replacement Battery | RB1270X4F | | Hot-Swap Support | Yes | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 10,000' / 3000 m | | Storage Altitude | 50,000' / 15,000 m | | Certifications | RoHS, as per Manufacturer | | | | Cable Length | 10' / 3 m | | Rack Form Factor | 2 RU | | Dimensions (W x H x D) | 17.2 x 3.5 x 19.5" / 438.1 x 88.9 x 495.3 mm | | Weight | 71.8 lb / 32.6 kg | | | | Package Weight | 90.6 lb | | Box Dimensions (LxWxH) | 24.0 x 22.5 x 10.0" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 63 owners. Add your rating and experience with the product.
