User Manual for CyberPower ST425 8-Outlet Standby UPS Click to enlarge the picture
Contents of the user manual for the CyberPower ST425 8-Outlet Standby UPS
- Product category: UPS Backup CyberPower
- Brand: CyberPower
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for CyberPower UPS Backup
 |
User manual for the CyberPower ST425 8-Outlet Standby UPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any CyberPower product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official CyberPower user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a CyberPower product will considerably shorten its lifespan!
|

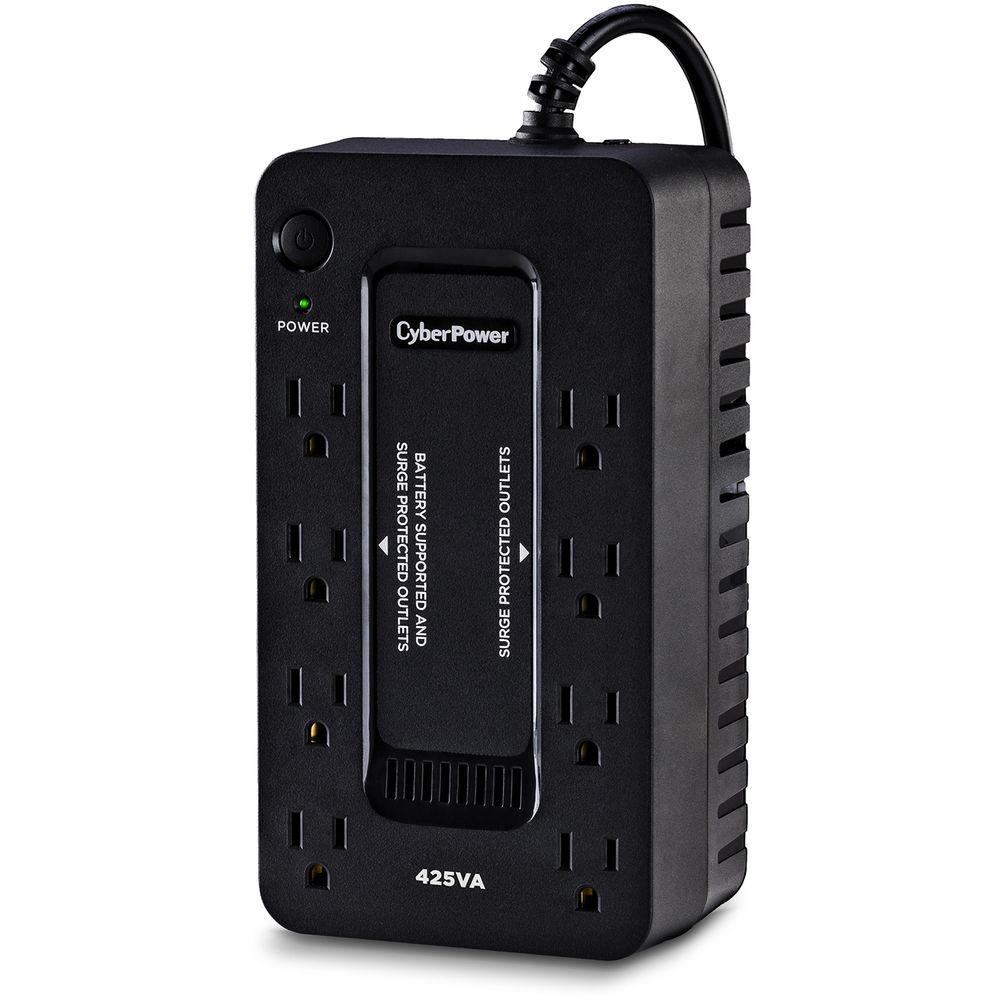

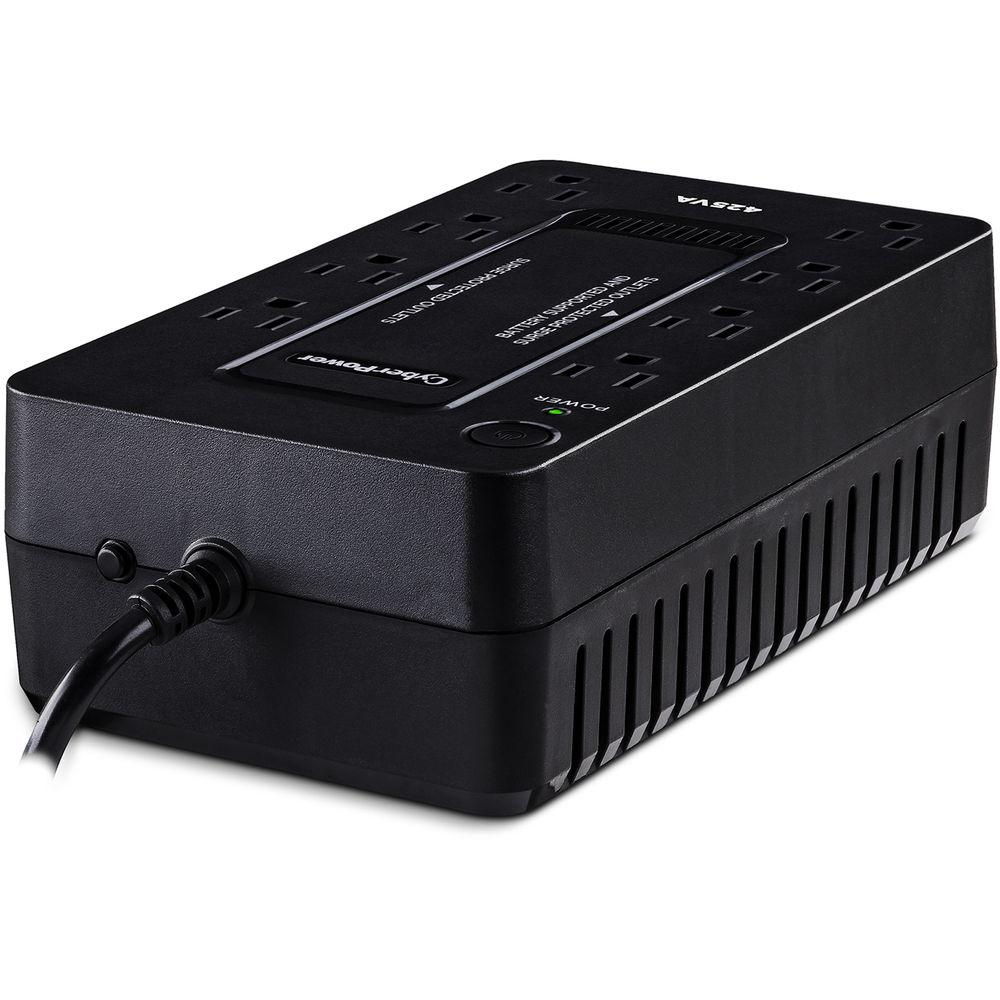

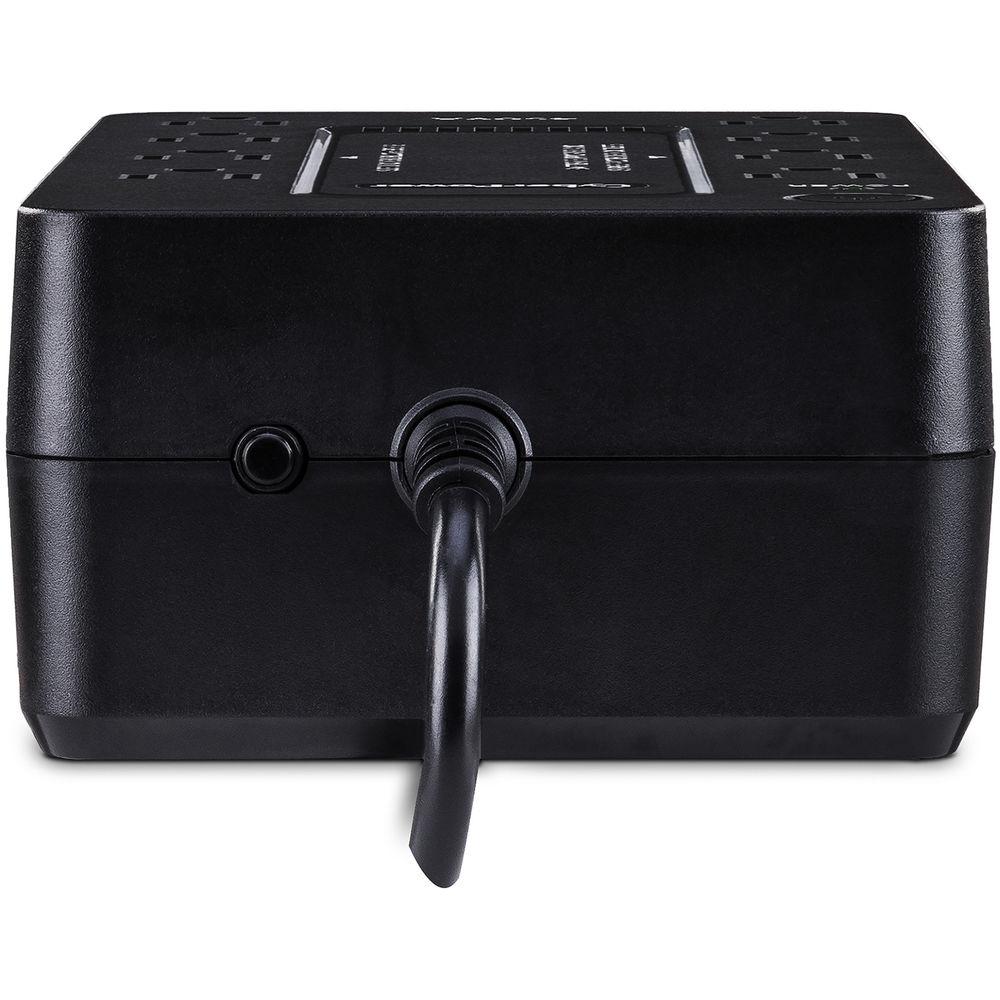

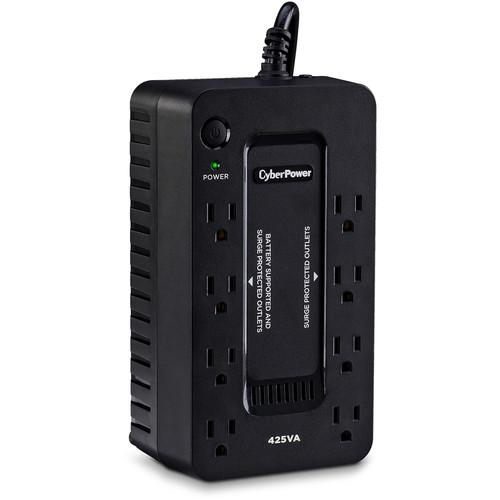

Product description The ST425 Standby UPS from CyberPower provides you with battery backup power and surge protection to ensure your devices stay operational in critical situations. It's equipped with eight NEMA 5-15R outlets, some of which are spaced to better fit larger plugs. The eight outlets deliver a surge rating of 890 joules, and four of these outlets are powered by an internal battery that grants connected equipment a full-load runtime of up to 1.5 minutes in the event of a power failure. Other notable features include onboard LED indicators and audible alarms to alert you when a situation does occur. In addition, the UPS comes with EMI/RFI filtration. - Battery Backup
- Supplies power long enough for equipment to properly shut down when utility power fails, thereby preventing loss of data and minimizing component stress caused by a hard shutdown.
- Surge Protection
- Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
- Simulated Sine Wave Output
- Uses pulse-wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
- GreenPower UPS High-Efficiency Design
- Reduces power consumption, utilizing a compact charger and power inverter to create an efficient backup power system for home and office use.
- Connected Equipment Guarantee
- CyberPower will repair or replace properly-connected equipment (up to $75,000) if damaged by a power surge.
UPC: 649532621507 In the Box CyberPower ST425 8-Outlet Standby UPS Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CyberPower ST425 8-Outlet Standby UPS in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCyberPower ST425 Specs | | | Total Outlets | 8 x NEMA 5-15R | | Protected Outlets | 4 x NEMA 5-15R (Surge Only)
4 x NEMA 5-15R (Battery and Surge) | | Plug Type | NEMA 5-15P | | USB Charging Ports | None | | | | Surge Energy Rating | 890 Joules | | Maximum Wattage | 260 W | | Input Voltage Range | 96 to 140 VAC | | Input Voltage Adjustable Range | 47 to 63 VAC | | Nominal Output Voltage | 120 VAC | | Output Frequency | 50/60 Hz ± 1% | | Load Capacity | 425 VA | | Circuit Breaker Rating | 7 A | | Waveform | Simulated Sine Wave | | | | Capacity | 34.8 Wh (2.9 Ah / 12 V) | | Chemistry | Lead-Acid | | Full-Load Runtime | 1.5 Minutes | | Half-Load Runtime | 6 Minutes | | Charging Time | 1 to 8 Hours | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 to 95% | | Storage Temperature | 5 to 113°F / -15 to 45°C | | Operating Altitude | 9842' / 3000 m | | Storage Altitude | 49,212' / 15,000 m | | | | Cable Length | 5' / 1.52 m | | Dimensions (W x H x D) | 8.3 x 4.5 x 3.2" / 210.8 x 114.3 x 81.3 mm | | Weight | 3.8 lb / 1.7 kg | | | | Package Weight | 4.23 lb | | Box Dimensions (LxWxH) | 12.5 x 6.5 x 4.5" |
