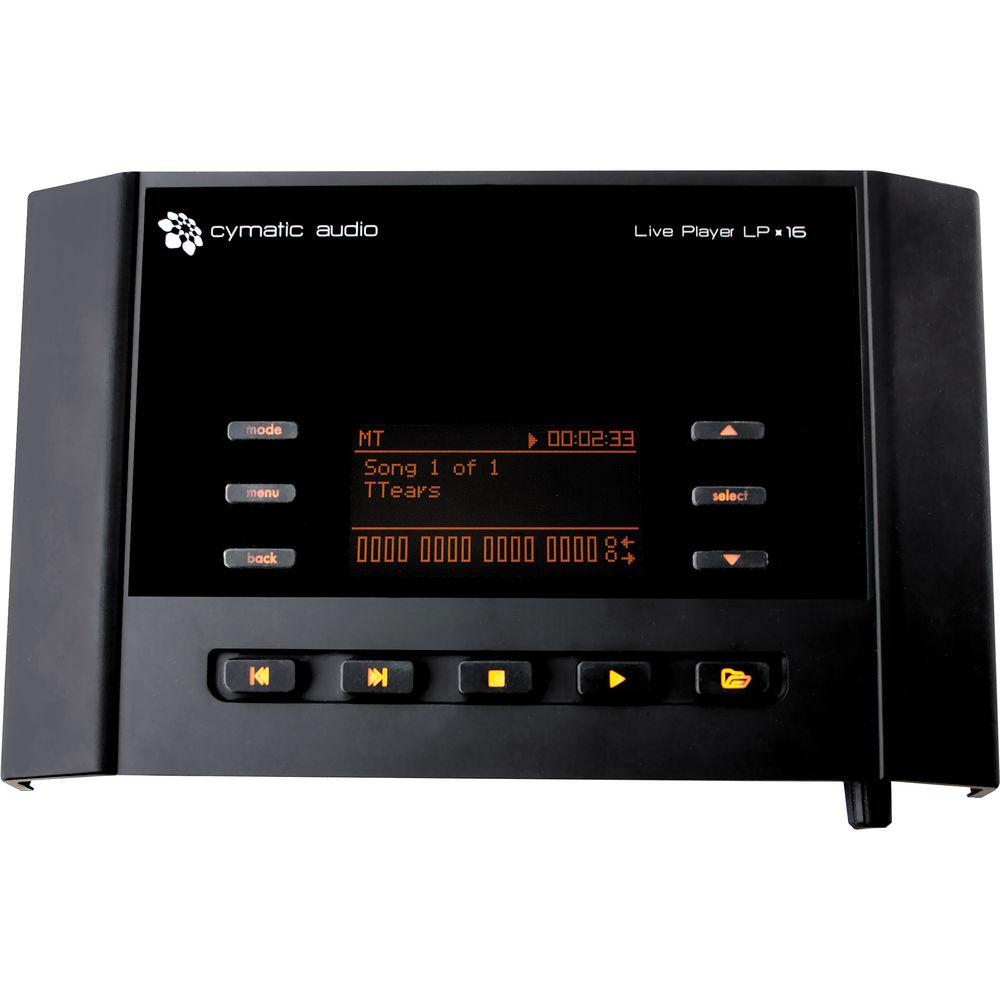

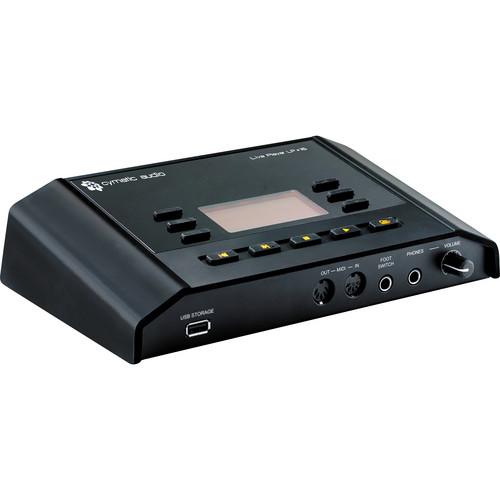

Product description The Live Player LP-16 16-Track Audio Player from Cymatic Audio is a device designed to be used for playing back audio tracks directly from USB sources, triggering MIDI instruments, or driving light shows. It can be used to provide backing tracks or trigger synthesizers in a live scenario, as well as create a virtual sound check.

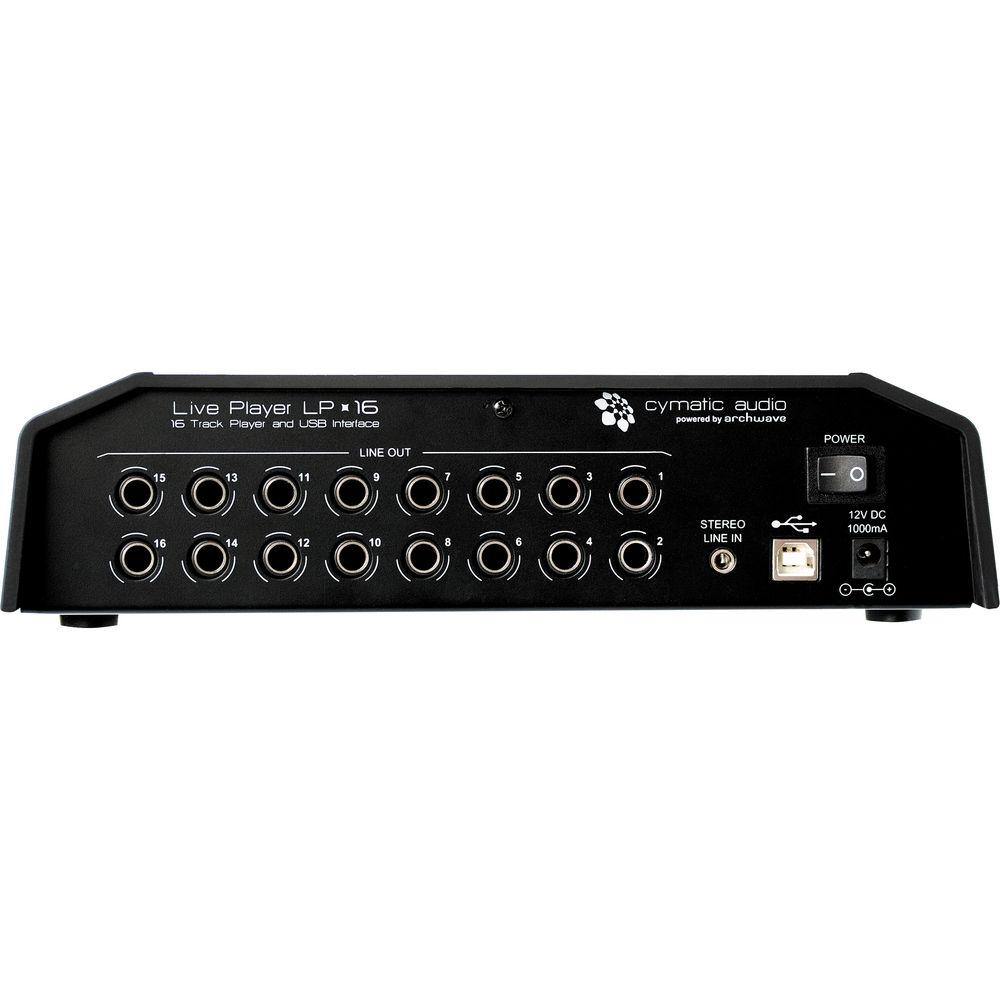

It features 16 TS outputs, for routing up to 16 tracks to a mixer. With its Windows-based Play List Editor software, you can assign output channels, create set lists, pause times, or establish footswitch control with an optional footswitch. The unit also functions as a USB audio interface for both Mac and PC, with 2 inputs and 18 outputs. In the Box CYMATIC AUDIO Live Player LP-16 16-Track Audio Player AC/DC Power Adapter and Power Cable USB Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the CYMATIC AUDIO Live Player LP-16 16-Track Audio Player in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersCYMATIC AUDIO LP-16 Specs | Line Outputs | 16x 1/4" (6.3 mm) TS outputs
Full-Scale Output: 8.2 dBu, 2 Vrms
Frequency Response: 20 Hz to 20 kHz, ± 0.2 dB
THD+N @ 0 dBFS (1 kHz Sine Wave): -85 dB, < 0.005, 20 Hz to 20 kHz
THD+N @ -6dBFS: < -82 dB, < 0.008, 20 Hz to 20 kHz
SNR: > 100 dB, < 0.001%, 20 Hz to 20 kHz
Crosstalk: < -95 dB, 20 Hz to 20 kHz | | Headphones Output Level | Full-Scale Output: 8.2 dBu, 2 Vrms
Frequency Response: ± 0.2 dB, 20 Hz to 20 kHz
THD+N @ 0 dBFS (1 kHz Sine Wave): -80 dB, < 0.005% Vrms, 20 Hz to 20 kHz
SNR: > 90 dB, 20 Hz to 20 kHz | | Stereo Line Inputs | Full-Scale Input: Unbalanced, +8.6 dBu, 2 Vrms
Frequency Response: ± 0.2 dB, 20 Hz to 20 kHz
THD+N @ -1 dBFS: -73 dB, < 0.022% Vrms, 20 Hz to 20 kHz
SNR: > 95 dB, A-weighted | | Resolution | 16 tracks @ 24-bit, 44.1/48 kHz | | Compatibility | Windows: XP, Vista, 7, & 8 (32/64-bit), WDM and ASIO
Mac: OS X, Core Audio plug and play
iPad: USB adapter required | | | | Package Weight | 3.2 lb | | Box Dimensions (LxWxH) | 14.0 x 7.5 x 4.0" |
