User Manual for D.A.S Audio Action 118A Powered Horn-Bass Subwoofer System Click to enlarge the picture
Contents of the user manual for the D.A.S Audio Action 118A Powered Horn-Bass
- Product category: PA Speakers D.A.S Audio
- Brand: D.A.S Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D.A.S Audio PA Speakers
 |
User manual for the D.A.S Audio Action 118A Powered Horn-Bass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D.A.S Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D.A.S Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D.A.S Audio product will considerably shorten its lifespan!
|

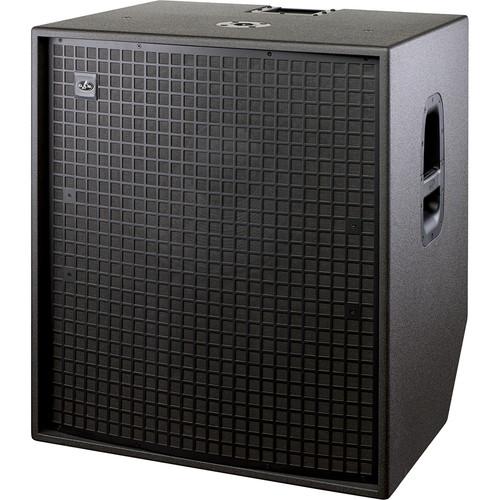

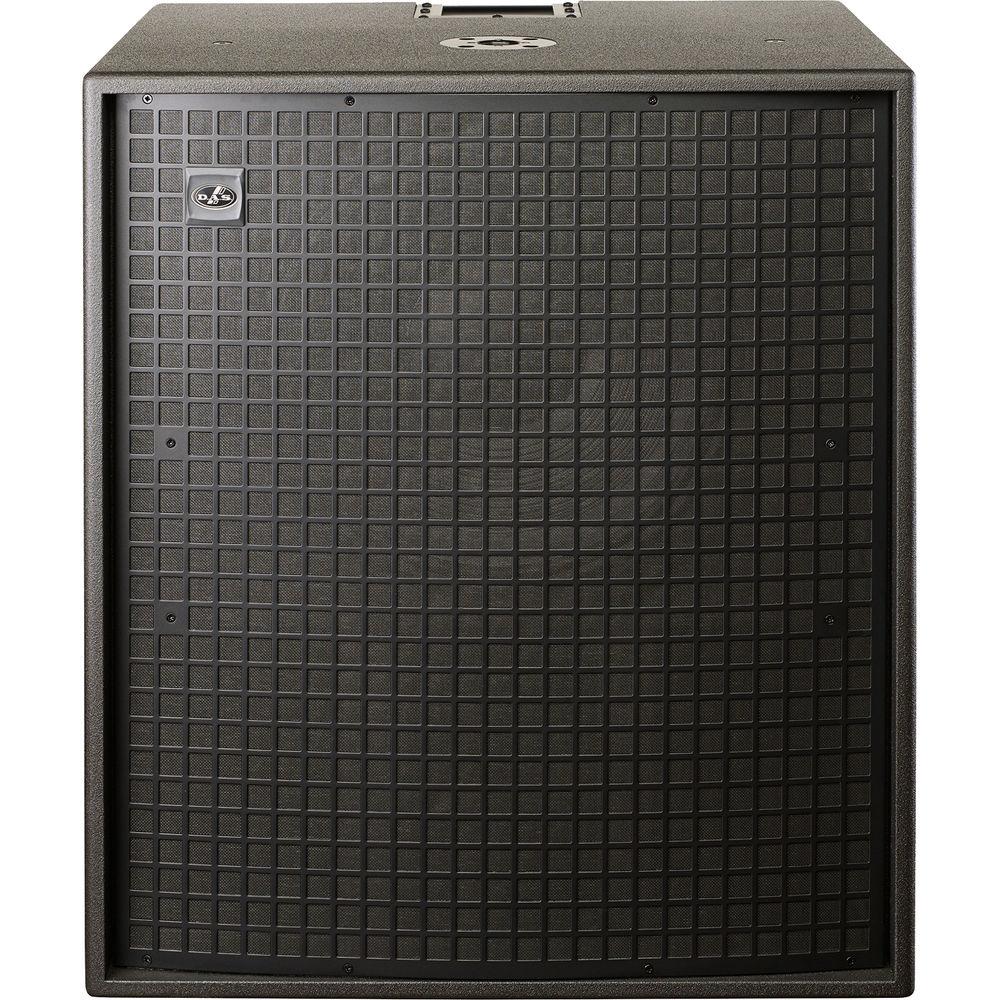

Product description The D.A.S. Action 118A is a powered horn-bass subwoofer system designed to provide extended bass response to the Action full-range cabinets and is well suited for rental houses, bars, clubs, mobile DJs, or any pro audio application. The Action 118A utilizes a 3200W Class-D amplifier to power the D.A.S. 18XL long-excursion woofer to provide a frequency response of 45 to 125 Hz with a peak SPL output of 137 dB.

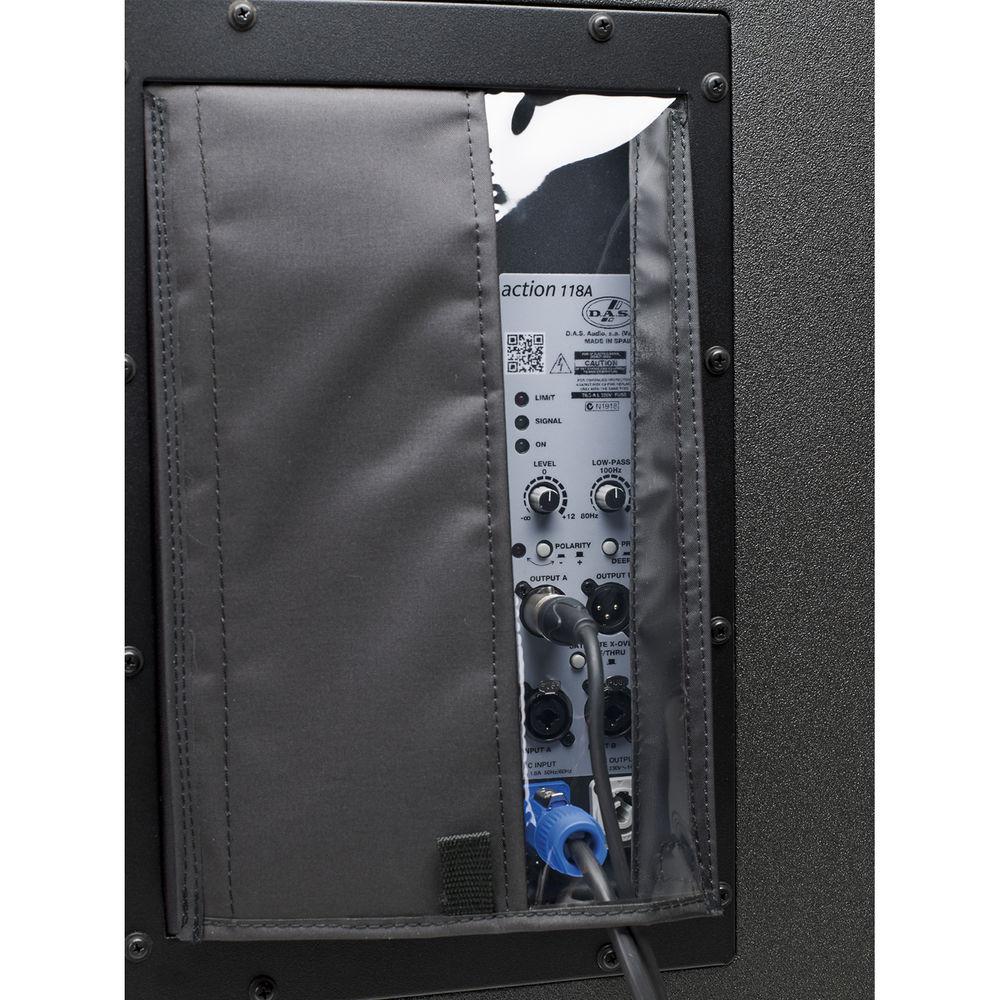

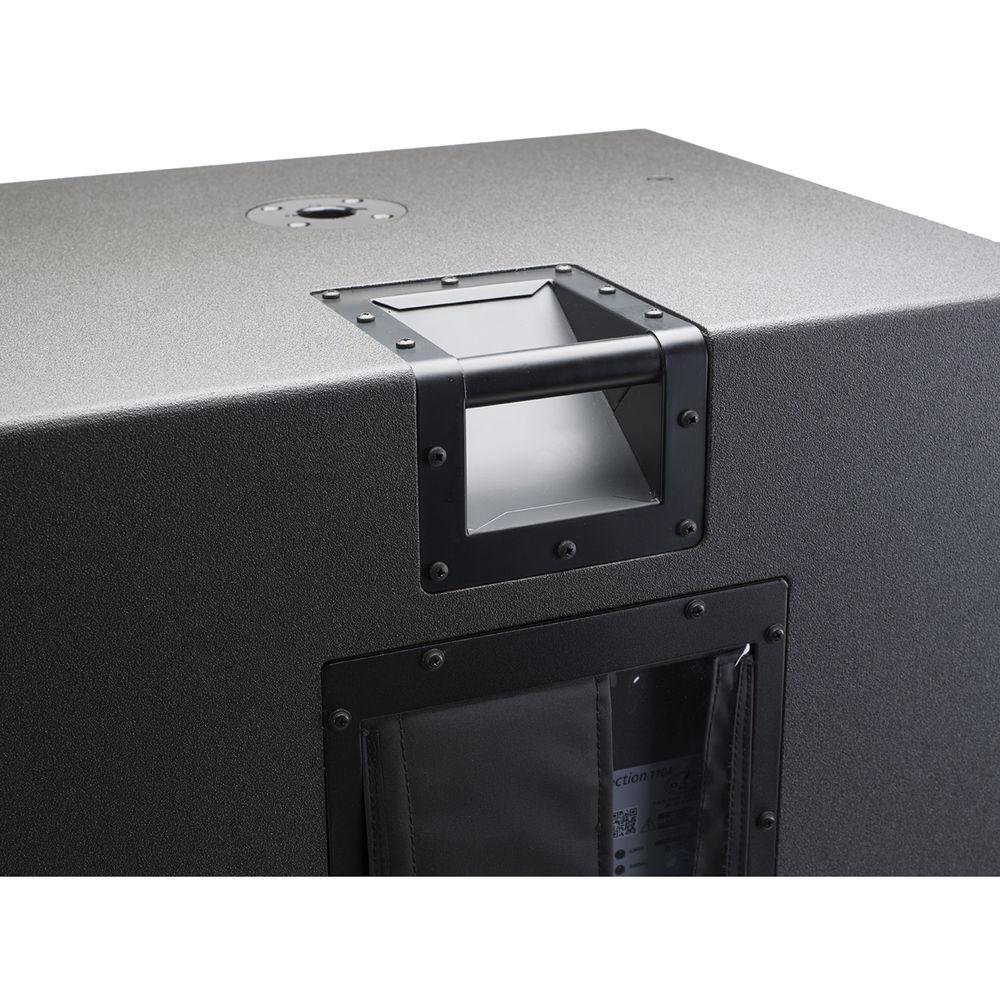

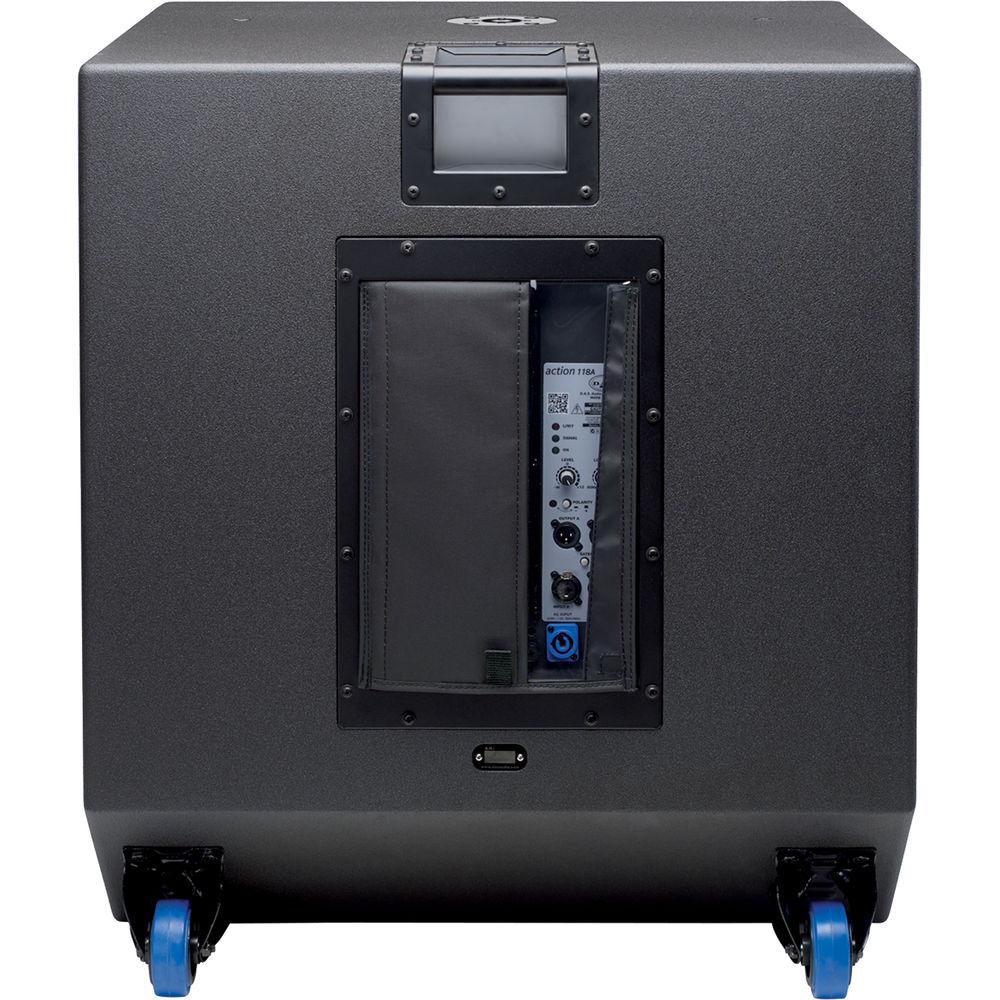

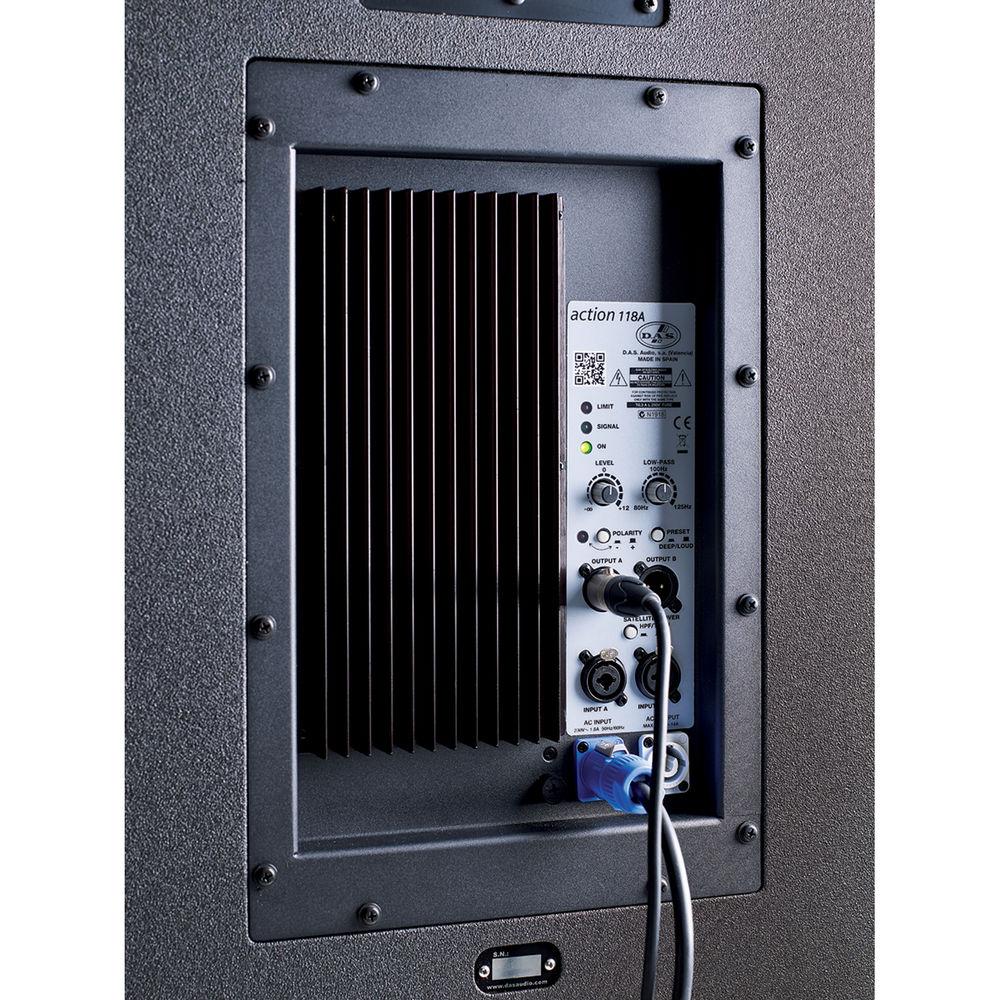

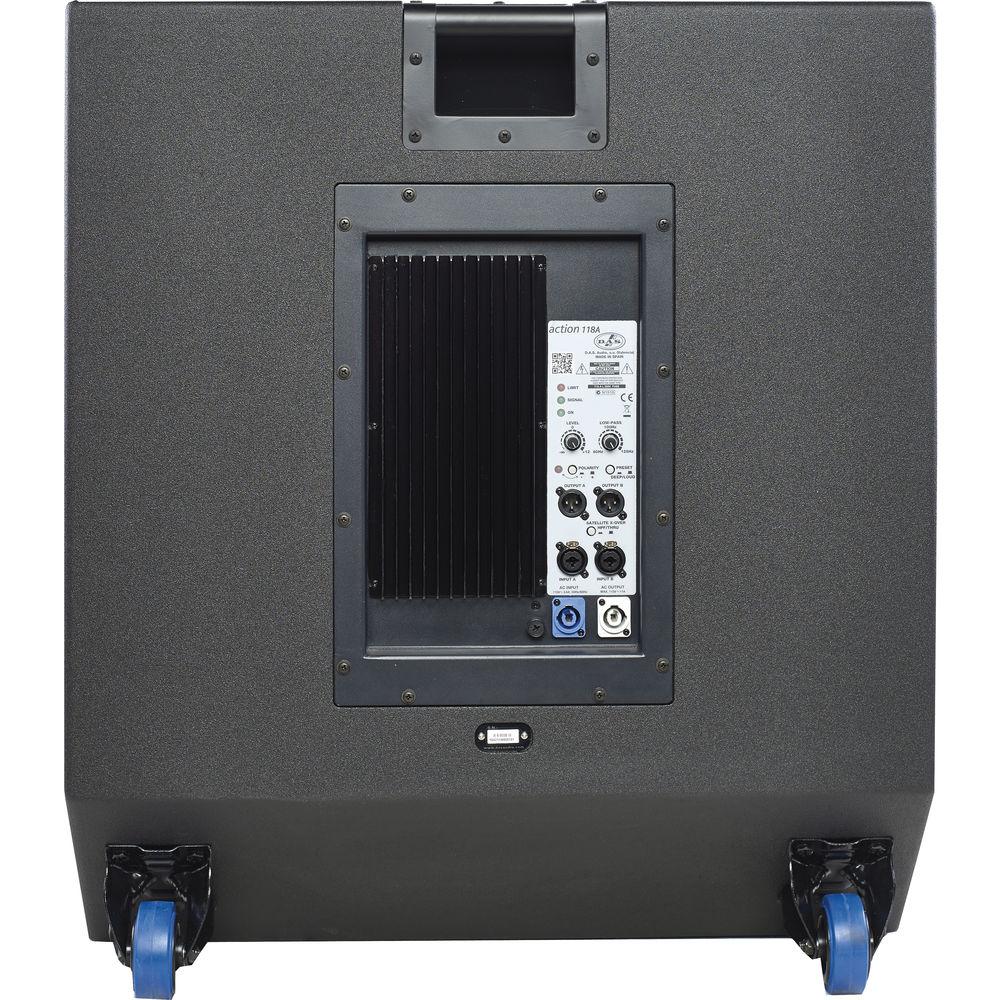

The birch plywood enclosure is finished with black ISO-flex paint and includes three handles and a rock-back design to engage the two built-in wheels for ease in transport. The rear panel offers two XLR inputs, two XLR loop-thru outputs, a level control, an 80 to 125 Hz low-pass filter control, and dedicated switches for polarity, Deep/Loud presets, and a satellite X-over HPF/thru. Additionally, the D.A.S. Action 118A features a PowerCon input and pass-thru to daisy-chain power to multiple subwoofers and ships with a power cable. -
- Powered horn-bass subwoofer system
- High-output 18″ loudspeaker
- Voice Coil: 4"
- Polarity switch
- Filtered output defeat switch
- Variable 80 to 125 Hz low-pass filter
- Gain control
In the Box D.A.S Audio Action 118A Powered Horn-Bass Subwoofer System PowerCON Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Action 118A Powered Horn-Bass Subwoofer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio ACTION-118A Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 3200 W Peak
1600 W RMS | | Amplifier Class | Class-D | | | | Frequency Range | 45 Hz to 125 Hz -10 dB | | Maximum SPL | 137 dB | | Input Sensitivity | Line Input:
+8 dBu | | I/O Impedance | Line Input:
20 kOhms | | | | Audio I/O | 2 x XLR Female Input
2 x XLR Male Thru/Output | | | | AC Input Power | 115 VAC, 50 / 60 Hz | | AC Power Connector | 1 x powerCON Input
1 x powerCON Output | | Current Consumption | 3.6 A | | | | Construction Material | Plywood | | Dimensions | 31.1 x 27.2 x 22.3" / 79.0 x 69.1 x 56.6 cm | | Weight | 121 lb / 54.9 kg |
