User Manual for D.A.S Audio Action 15 - Passive Full-Range 15" 2-Way Loudspeaker Click to enlarge the picture
Contents of the user manual for the D.A.S Audio Action 15 - Passive
- Product category: PA Speakers D.A.S Audio
- Brand: D.A.S Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D.A.S Audio PA Speakers
 |
User manual for the D.A.S Audio Action 15 - Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D.A.S Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D.A.S Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D.A.S Audio product will considerably shorten its lifespan!
|

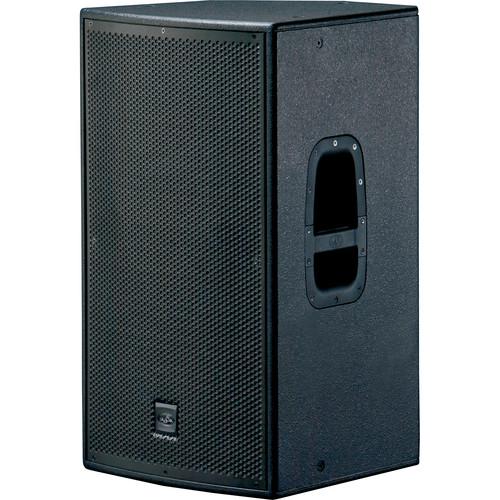

Product description The single D.A.S. Action 15 is a passive, full-range, two-way loudspeaker designed for professional live sound reinforcement applications. The speaker offers a power handling of up to 1400W peak, which drives the 15" woofer and 1" compression driver that combine to provide frequency response of 47 Hz to 20 kHz and a peak SPL output of 131 dB.

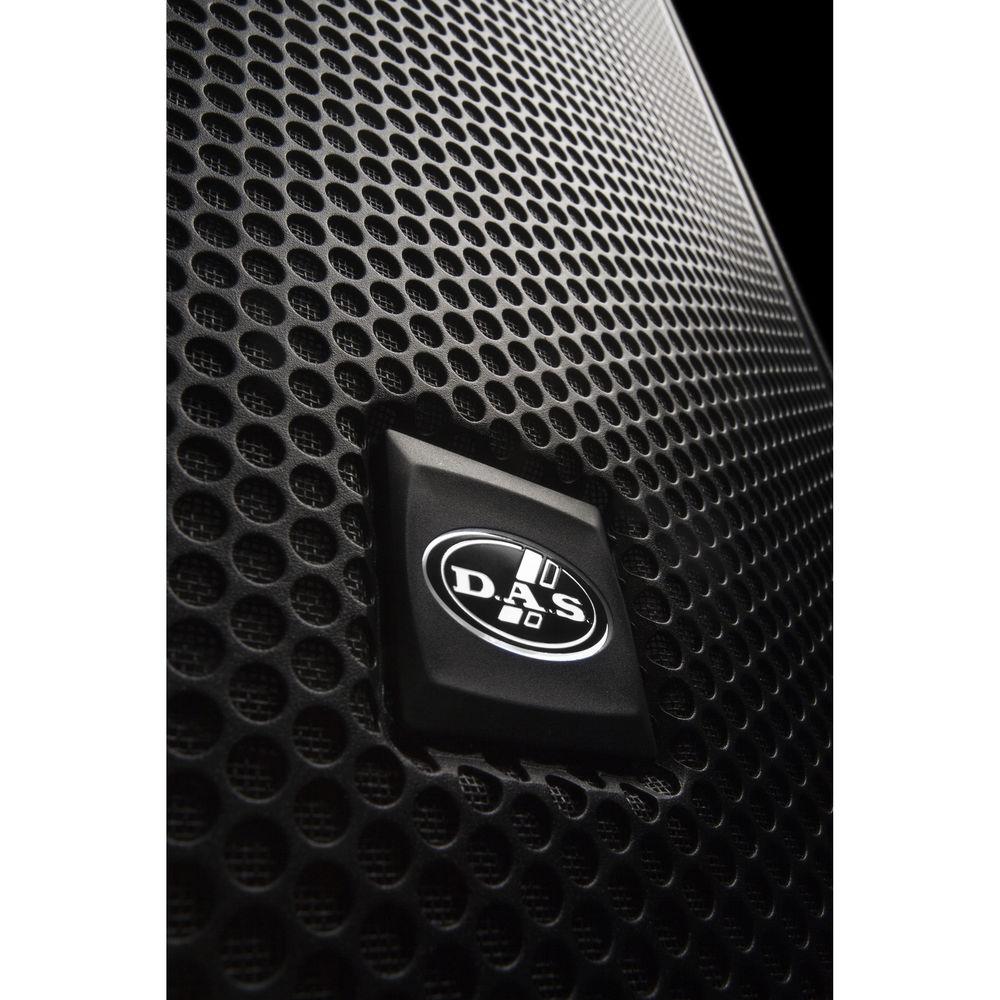

The ISO-flex painted birch plywood enclosure offers a flexible, multi-angle design and allows the speaker to double as a floor monitor. Two bar handles are offered for ease in transport, while the steel grille provides ample protection to the loudspeaker's drivers. The rear panel features two NL4 speakON connectors for daisy-chaining multiple speakers and a 35mm pole cup is offered for speaker stand applications. -
- 2-way, full-range system
- 15″ bass loudspeaker
- 1" compression driver with titanium diaphragm
- Asymmetric enclosure design for stage monitor use

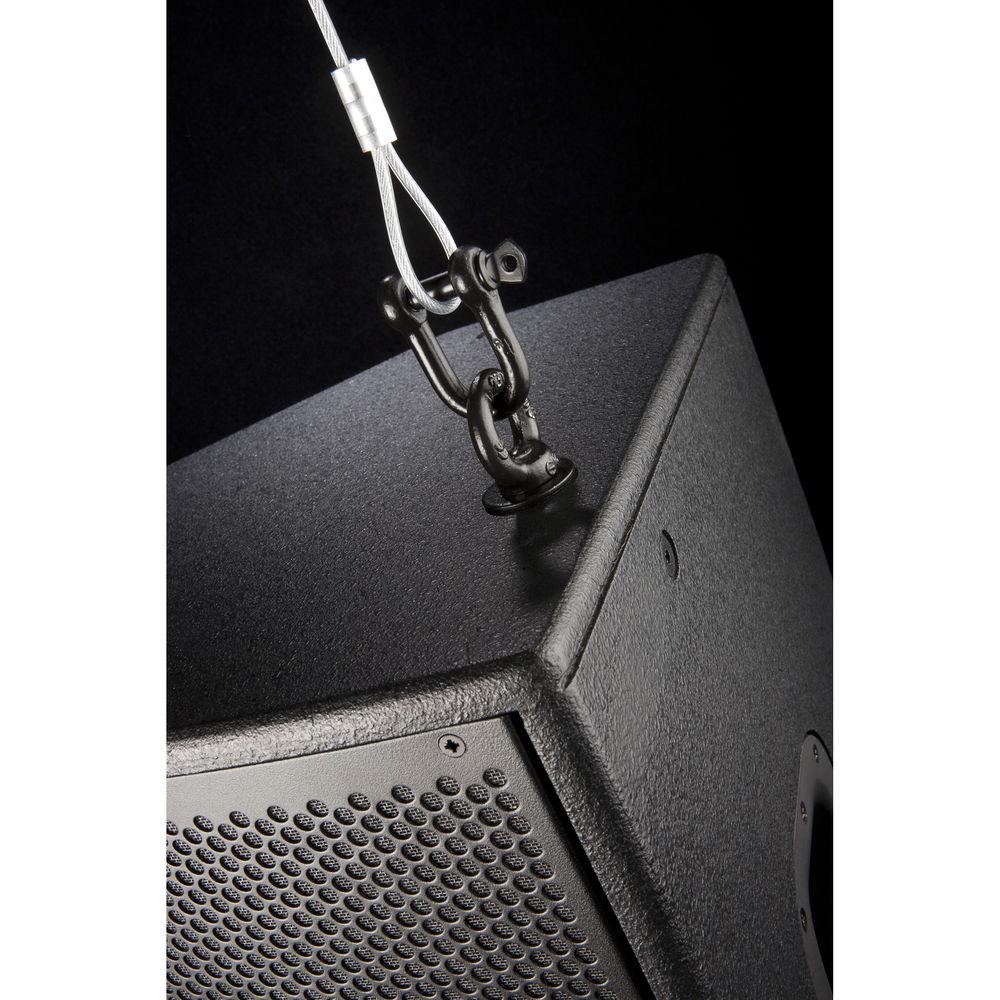

- Built-in rigging points
- Stand mountable
In the Box D.A.S Audio Action 15 - Passive Full-Range 15" 2-Way Loudspeaker (Single) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Action 15 - Passive Full-Range 15" 2-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio ACTION-15 Specs | | | Configuration | Passive | | Total Power Capacity | 350 W RMS
1400 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | HF Driver | 1 x 1" / 2.5 cm Compression Driver | | LF Driver | 1 x 15" / 38.1 cm Woofer | | | | Frequency Range | 47 Hz to 20 kHz -10 dB | | Maximum SPL | 131 dB | | Coverage Angle | 80° H x 50° V | | Speaker Sensitivity | 96 dB SPL | | | | Audio I/O | 2 x speakON NL4 | | | | Construction Material | Plywood | | Dimensions | 30.5 x 17.6 x 17.2" / 775.0 x 447.0 x 437.0 mm | | Weight | 53.9 lb / 24.4 kg |
