User Manual for D.A.S Audio Action 18A Powered Bass Reflex Subwoofer System Click to enlarge the picture
Contents of the user manual for the D.A.S Audio Action 18A Powered Bass
- Product category: PA Speakers D.A.S Audio
- Brand: D.A.S Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D.A.S Audio PA Speakers
 |
User manual for the D.A.S Audio Action 18A Powered Bass contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D.A.S Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D.A.S Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D.A.S Audio product will considerably shorten its lifespan!
|

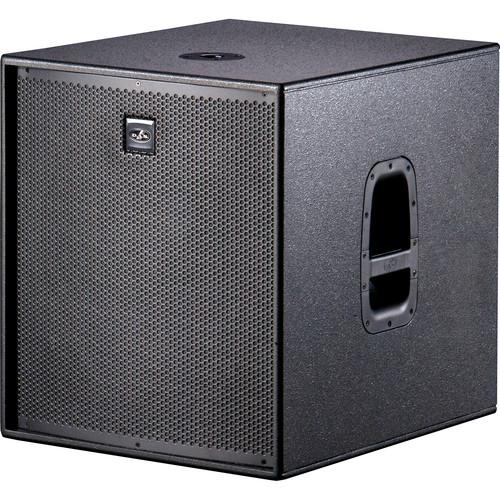

Product description The D.A.S. Action 18A is a powered bass reflex subwoofer system designed to provide extended bass response to the Action full-range cabinets and is well suited for rental houses, bars, clubs, mobile DJs, or any pro audio application. The Action 18A utilizes a 1500W Class-D amplifier to power the D.A.S. 18H woofer and provide a frequency response of 35 to 160 Hz with a peak SPL output of 133 dB.

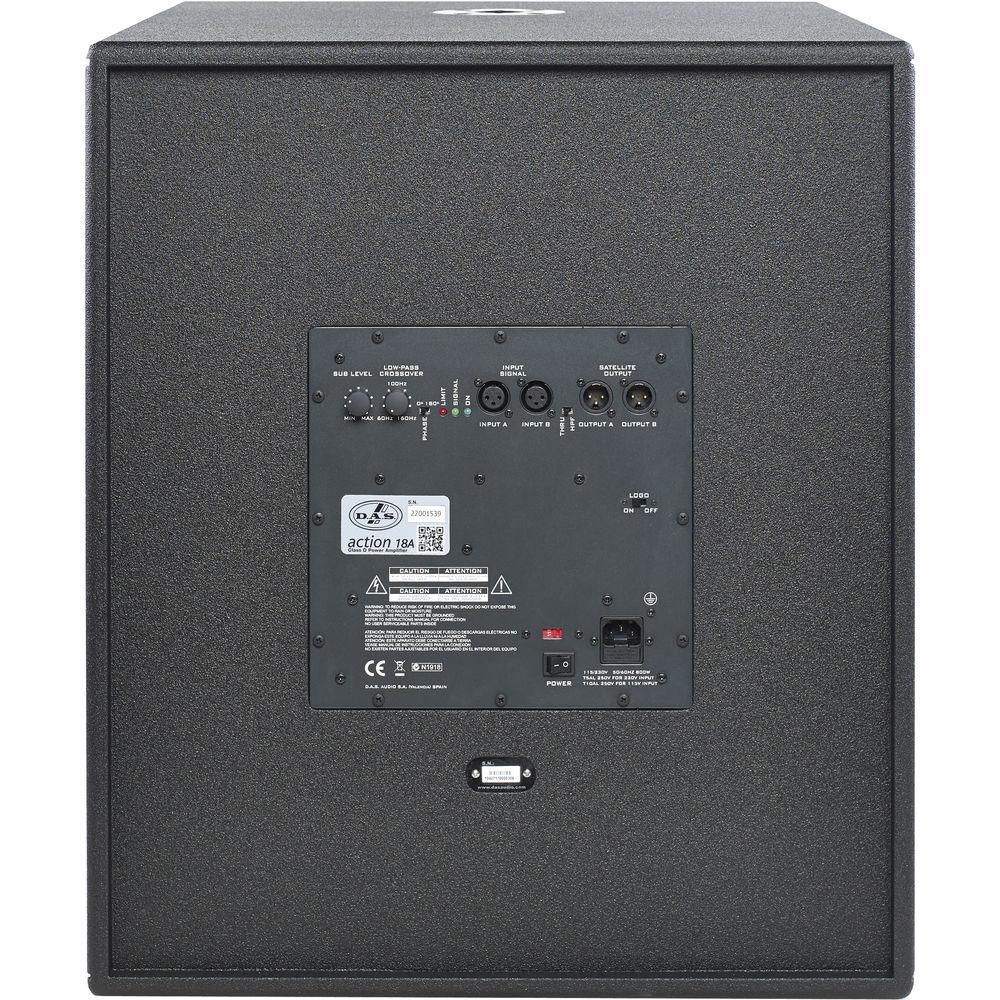

The birch plywood enclosure is finished with black ISO-flex paint and includes two handles for ease in transport. The rear panel offers two XLR inputs, two XLR loop-thru outputs, a level control, a 60 to 160 Hz low-pass filter control, and a dedicated switch for phase, as well as a satellite X-over HPF/thru switch. The top panel contains a pole mount socket for use with 35mm speaker poles for mounting full-range speakers. The D.A.S. Action 18A ships with a standard IEC power cord. -
- Powered bass-reflex subwoofer system
- High-output 18″ loudspeaker
- Voice Coil: 4"
- Phase switch
- HPF output defeat switch
- Variable 60 to 160 Hz low-pass filter
- Gain control
In the Box D.A.S Audio Action 18A Powered Bass Reflex Subwoofer System IEC Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Action 18A Powered Bass Reflex Subwoofer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio ACTION-18A Specs | | | Configuration | Active Subwoofer | | Total Power Capacity | 1500 W Peak
750 W RMS | | Amplifier Class | Class-D | | | | Frequency Range | 35 Hz to 160 Hz -10 dB | | Maximum SPL | 133 dB | | Input Sensitivity | Line Input:
+8 dBu | | I/O Impedance | Line Input:
20 kOhms | | | | Audio I/O | 2 x XLR Female Input
2 x XLR Male Thru/Output | | | | AC Input Power | 115 VAC, 50 / 60 Hz | | AC Power Connector | 1 x IEC | | Current Consumption | 3 A | | | | Construction Material | Plywood | | Dimensions | 24.6 x 21.3 x 25.6" / 625.0 x 541.0 x 650.0 mm | | Weight | 80.3 lb / 36.4 kg |
