User Manual for D.A.S Audio Action 215 - Passive Full-Range Dual 15" 2-Way Loudspeaker Click to enlarge the picture
Contents of the user manual for the D.A.S Audio Action 215 - Passive
- Product category: PA Speakers D.A.S Audio
- Brand: D.A.S Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D.A.S Audio PA Speakers
 |
User manual for the D.A.S Audio Action 215 - Passive contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D.A.S Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D.A.S Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D.A.S Audio product will considerably shorten its lifespan!
|

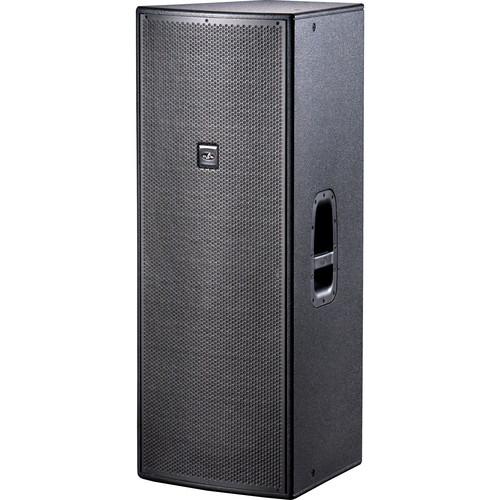

Product description The single D.A.S. Action 215 is a passive, full-range, two-way loudspeaker designed for professional live sound reinforcement applications. The speaker offers a power handling of up to 2800W peak, which drives the dual 15" woofers and 1" compression driver that combine to provide frequency response of 47 Hz to 20 kHz and a peak SPL output of 134 dB.

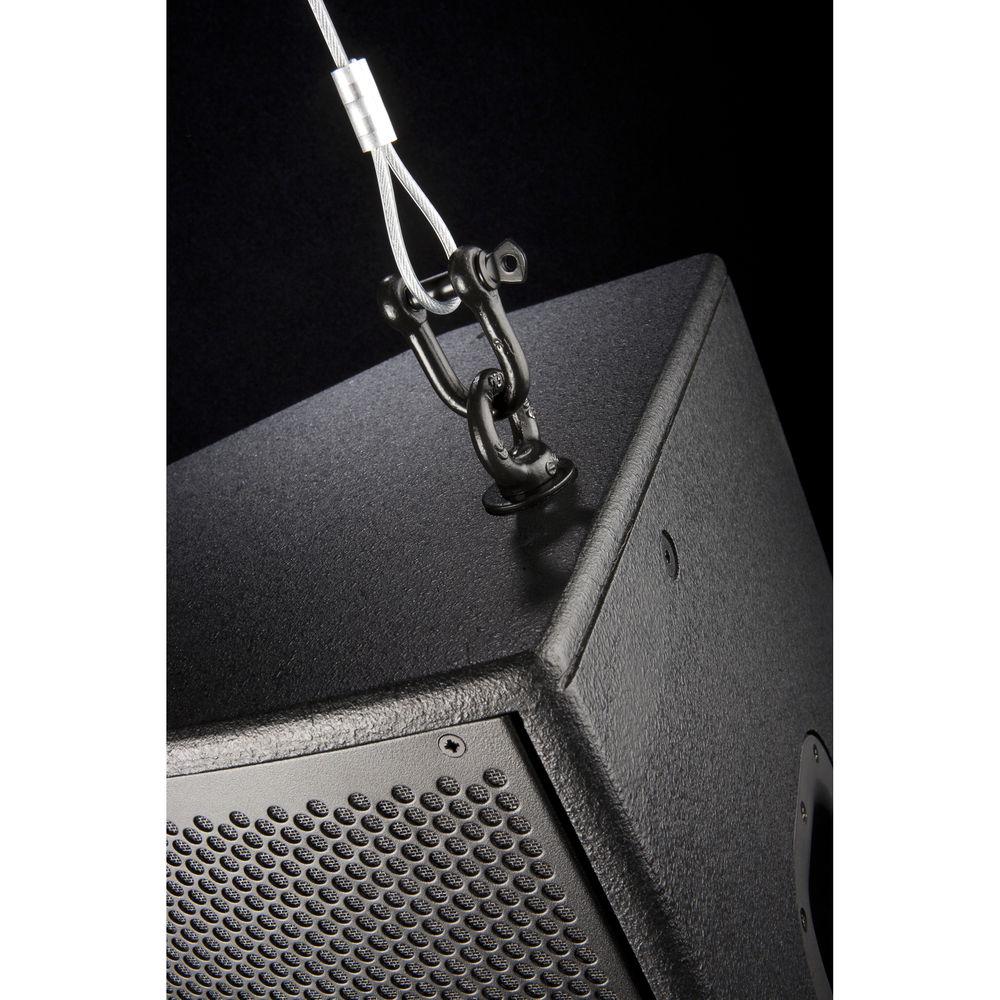

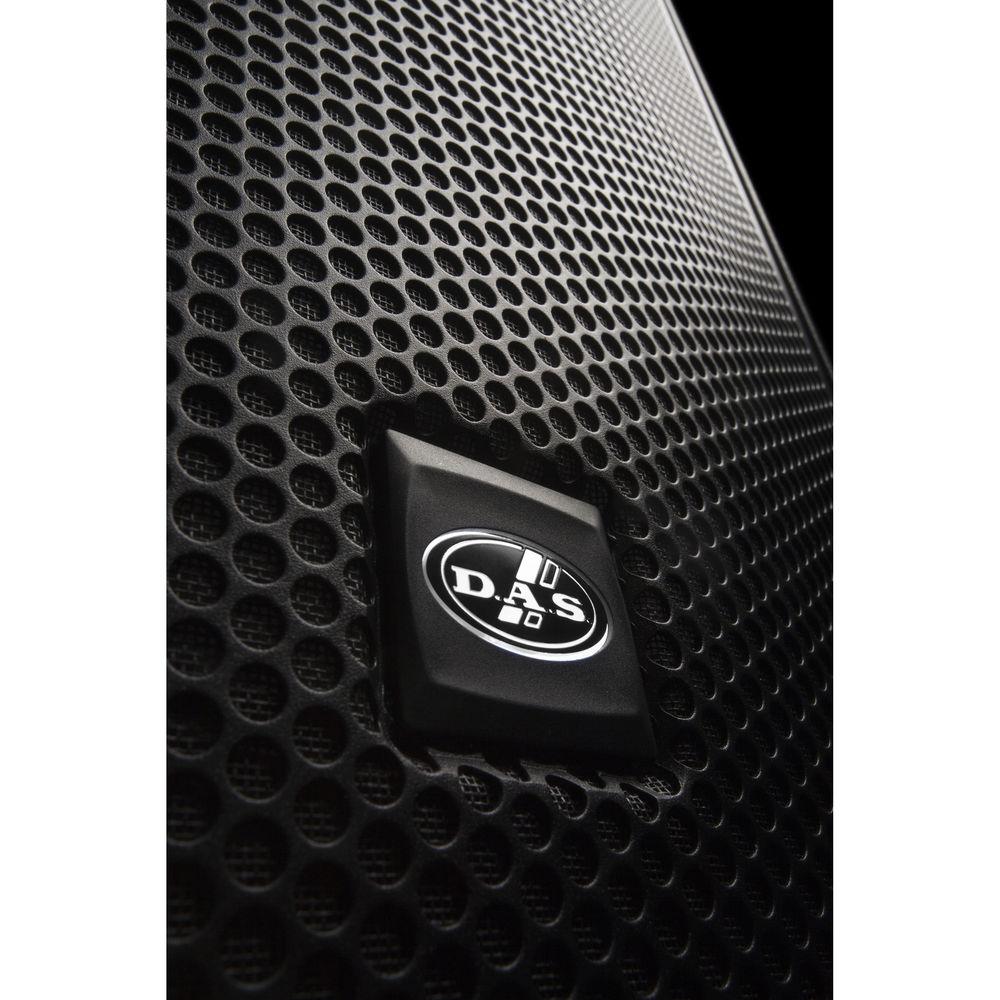

The trapezoidal enclosure is made from birch plywood and finished with a ISO-flex paint, capable of withstanding the rigors of on-the-road wear and tear. Two bar handles are offered for ease in transport, while the steel grille provides ample protection to the loudspeaker's drivers. The rear panel features two NL4 speakON connectors for daisy-chaining multiple speakers, while rigging points provide a safe and simple way to fly the loudspeaker for permanent installations. -
- 2-way, full-range system
- Dual 15″ bass loudspeaker
- 1" compression driver with titanium diaphragm
- Two steel reinforced handles
- Built-in rigging points
In the Box D.A.S Audio Action 215 - Passive Full-Range Dual 15" 2-Way Loudspeaker (Single) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Action 215 - Passive Full-Range Dual 15" 2-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio ACTION-215 Specs | | | Configuration | Passive 2-Way | | Total Power Capacity | 700 W RMS
2800 W Peak | | System Impedance | 4 Ohms (Nominal) | | | | HF Driver | 1 x 1" / 2.5 cm Compression Driver | | LF Driver | 2 x 15" / 38 cm Woofer | | | | Frequency Range | 47 Hz to 20 kHz -10 dB | | Maximum SPL | 134 dB | | Coverage Angle | 80° H x 50° V | | Speaker Sensitivity | 99 dB SPL | | | | Audio I/O | 2 x speakON NL4 | | | | Construction Material | Plywood | | Dimensions | 45.5 x 17.6 x 18.7" / 1156.0 x 447.0 x 475.0 mm | | Weight | 83.6 lb / 37.9 kg |
