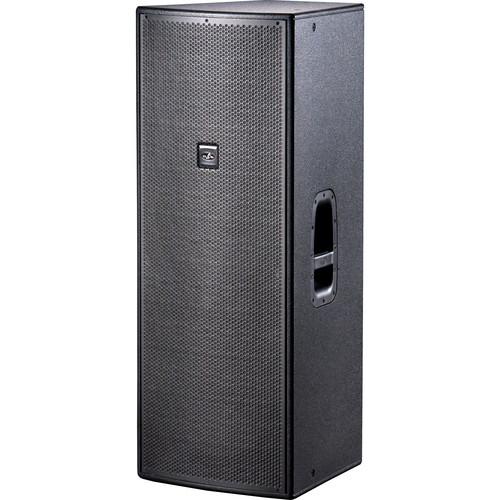

Product description The single D.A.S. Action 215A is a powered, full-range, two-way loudspeaker designed for professional live sound reinforcement applications. The built-in Class-D amplifier provides up to 1000W peak output, which drives the two 15" woofers and 1" compression driver that combine to provide frequency response of 45 Hz to 20 kHz and a peak SPL output of 134 dB.

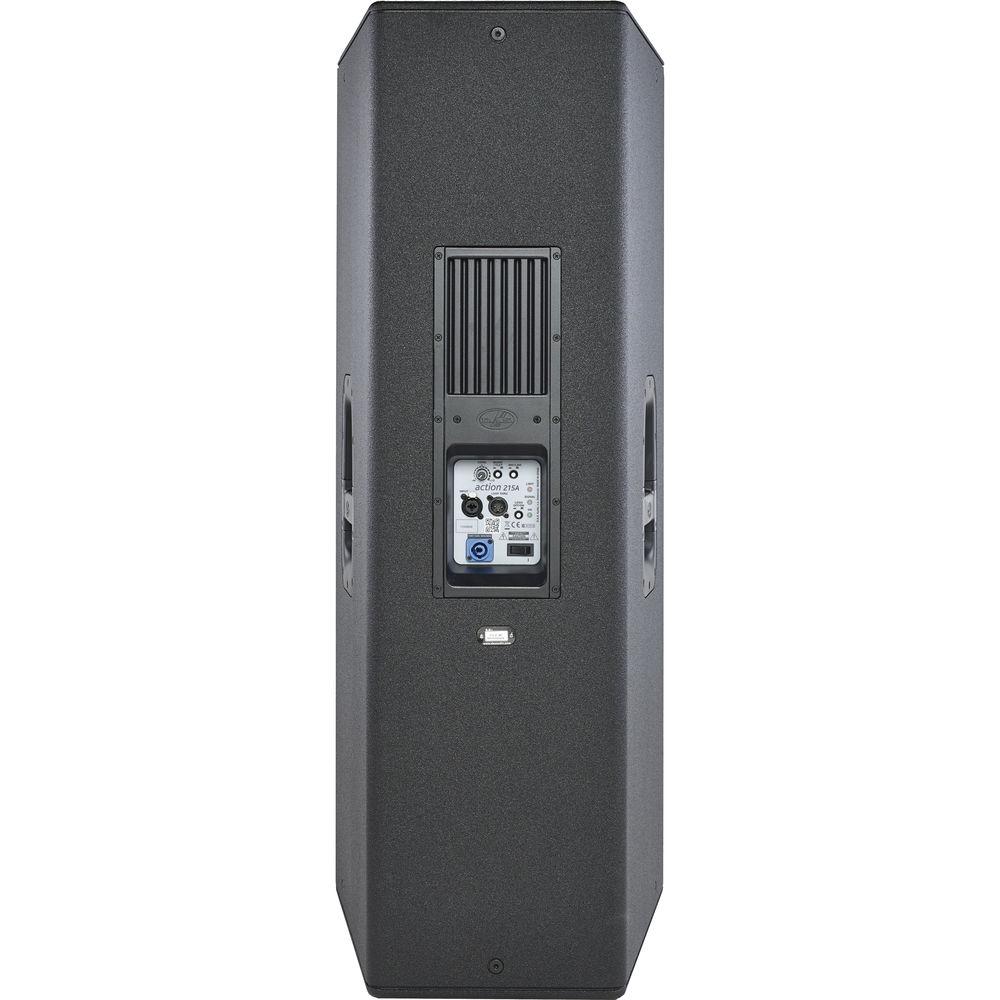

The rear panel of the speaker offers a switchable mic/line level XLR input and an XLR loop-thru output for connecting additional powered speakers. Additionally, the boost EQ switch adds high & low frequencies to the signal, while the two on-board limiters protect the electronics and drivers from overload. The ISO-flex painted birch plywood enclosure features two bar handles for ease in transport, while the steel grille provides ample protection to the loudspeaker's drivers. The D.A.S. Action 215A ships with a power cord. -
- Full range speaker system
- Lightweight Class-D amplifier
- Dual 15" woofers + 1" compression driver with a titanium diaphragm
- Switch-mode power supply
- 1000W peak output
- Max SPL: 134 dB
- Increased output capacity

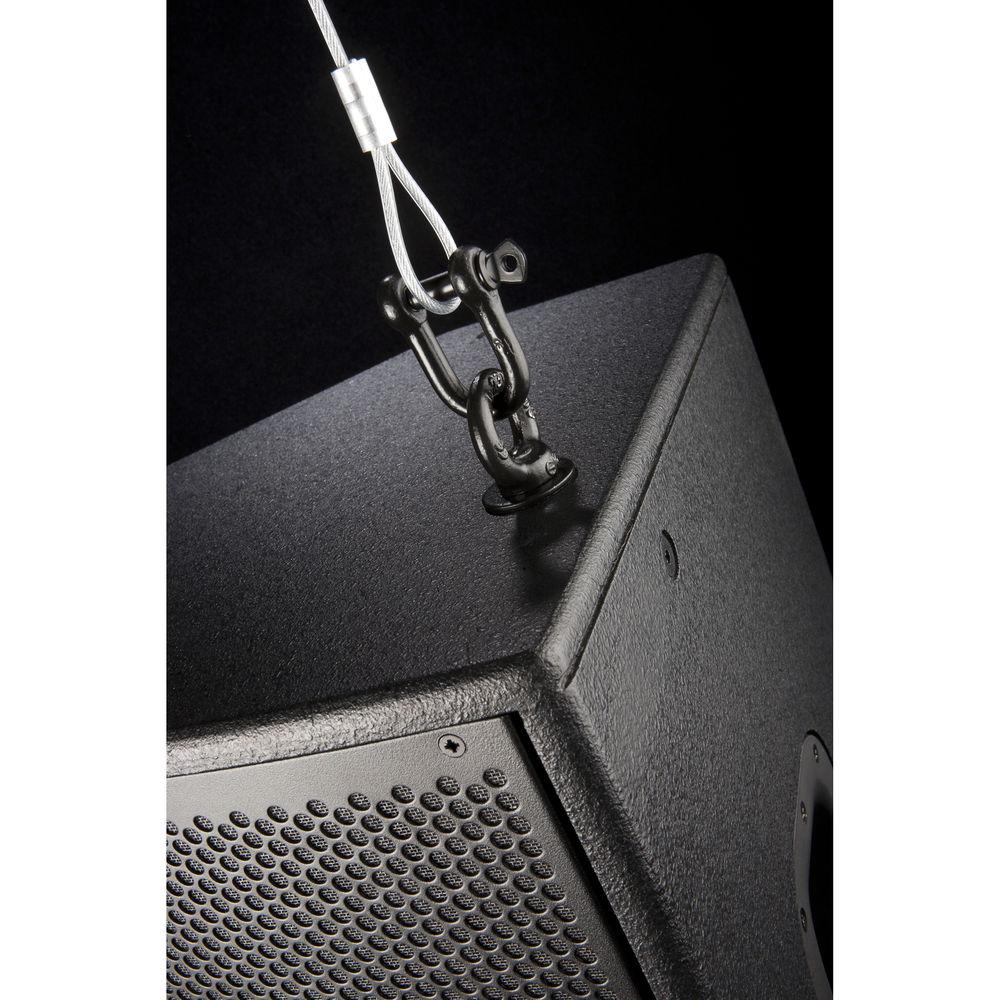

- Rigging points
In the Box D.A.S Audio Action 215A - Powered Full-Range Dual 15" 2-Way Loudspeaker (Single) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Action 215A - Powered Full-Range Dual 15" 2-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio ACTION-215A Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1000 W Peak
500 W RMS | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1" / 2.5 cm Compression Driver | | LF Driver | 2 x 15" / 38 cm Woofer | | | | Frequency Range | 45 Hz to 20 kHz -10 dB | | Maximum SPL | 134 dB | | Coverage Angle | 80° H x 50° V (Rotatable Horn) | | Input Sensitivity | Line Input:
+8 dBu
Mic Input:
-32 dBu | | I/O Impedance | Line Input:
20 kOhms
Mic Input:
20 kOhms | | | | Audio I/O | XLR Female Input
XLR Male Thru | | | | AC Input Power | 115 VAC, 50 / 60 Hz | | AC Power Connector | 1 x powerCON Input | | Current Consumption | 3 A | | | | Construction Material | Plywood | | Dimensions | 45.5 x 17.6 x 18.7" / 1156.0 x 447.0 x 475.0 mm | | Weight | 88 lb / 39.9 kg |
