User Manual for D.A.S Audio Action 218A Powered Dual 18" Bass Reflex Subwoofer System Click to enlarge the picture
Contents of the user manual for the D.A.S Audio Action 218A Powered Dual
- Product category: PA Speakers D.A.S Audio
- Brand: D.A.S Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D.A.S Audio PA Speakers
 |
User manual for the D.A.S Audio Action 218A Powered Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D.A.S Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D.A.S Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D.A.S Audio product will considerably shorten its lifespan!
|

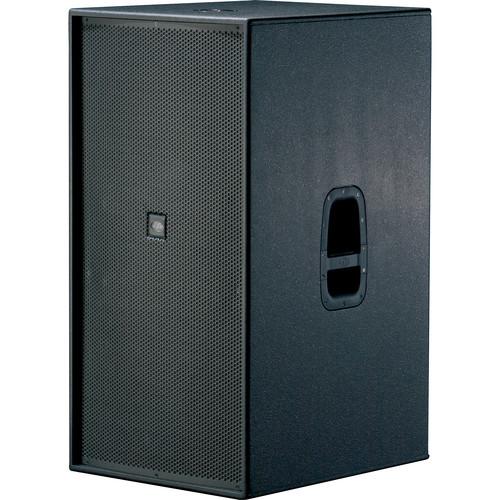

Product description The D.A.S. Action 218A is a powered dual 18" bass reflex subwoofer system designed to provide extended bass response to the Action full-range cabinets and is well suited for rental houses, bars, clubs, mobile DJs, or any pro audio application. The Action 218A utilizes a 3200W Class-D amplifier to power each of the D.A.S. 18H4 woofers to provide a frequency response of 35 to 160 Hz with a peak SPL output of 140 dB.

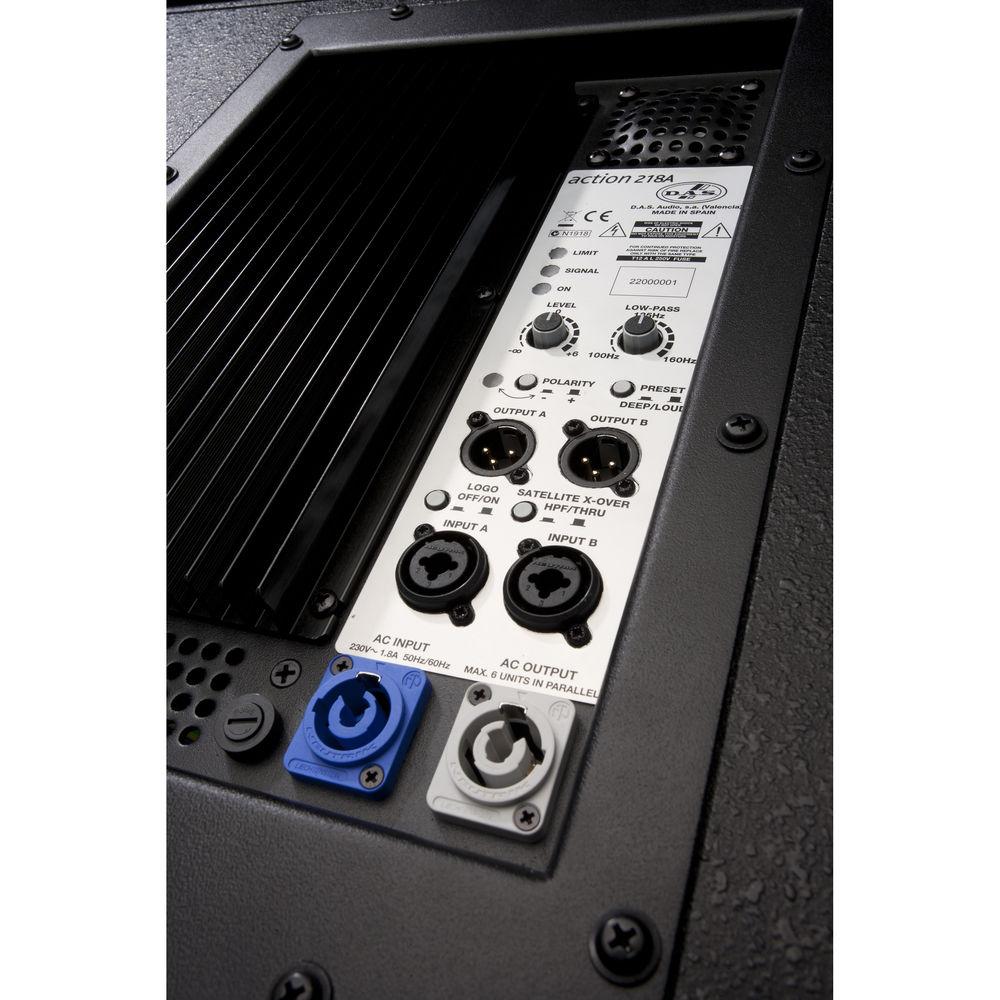

The birch plywood enclosure is finished with black ISO-flex paint and includes two handles for ease in transport. The rear panel offers two XLR inputs, two XLR loop-thru outputs, a level control, a 100 to 160 Hz low-pass filter control, and dedicated switches for polarity, Deep/Loud presets, and a satellite X-over HPF/thru. The top panel offers a pole mount socket for use with 35mm speaker poles for mounting full range speakers. Additionally, the D.A.S. Action 218A features a PowerCon input and pass-thru to daisy-chain power to multiple subwoofers and ships with a power cable. -
- Powered bass-reflex subwoofer system
- High-output dual 18″ loudspeaker
- Voice Coil: 4"
- Phase switch
- HPF output defeat switch
- Variable 100 to 160 Hz low-pass filter
- Deep/Loud EQ switch
- Gain control
In the Box D.A.S Audio Action 218A Powered Dual 18" Bass Reflex Subwoofer System PowerCon Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Action 218A Powered Dual 18" Bass Reflex Subwoofer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio ACTION-218A Specs | | | Configuration | Active Dual Subwoofer | | Total Power Capacity | 3200 W Peak
1600 W RMS | | Amplifier Class | Class-D | | | | LF Driver | 2 x 18" / 457.2 mm Woofer | | | | Frequency Range | 35 Hz to 160 Hz -10 dB | | Maximum SPL | 140 dB | | Input Sensitivity | Line Input:
+8 dBu | | I/O Impedance | Line Input:
20 kOhms | | | | Audio I/O | 2 x XLR Female Input
2 x XLR Male Thru/Output | | | | AC Input Power | 115 VAC, 50 / 60 Hz | | AC Power Connector | 1 x powerCON Input
1 x powerCON Output | | Current Consumption | 6 A | | | | Construction Material | Plywood | | Dimensions | 42.0 x 21.3 x 26.4" / 1067.0 x 541.0 x 671.0 mm | | Weight | 138.6 lb / 62.9 kg |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
