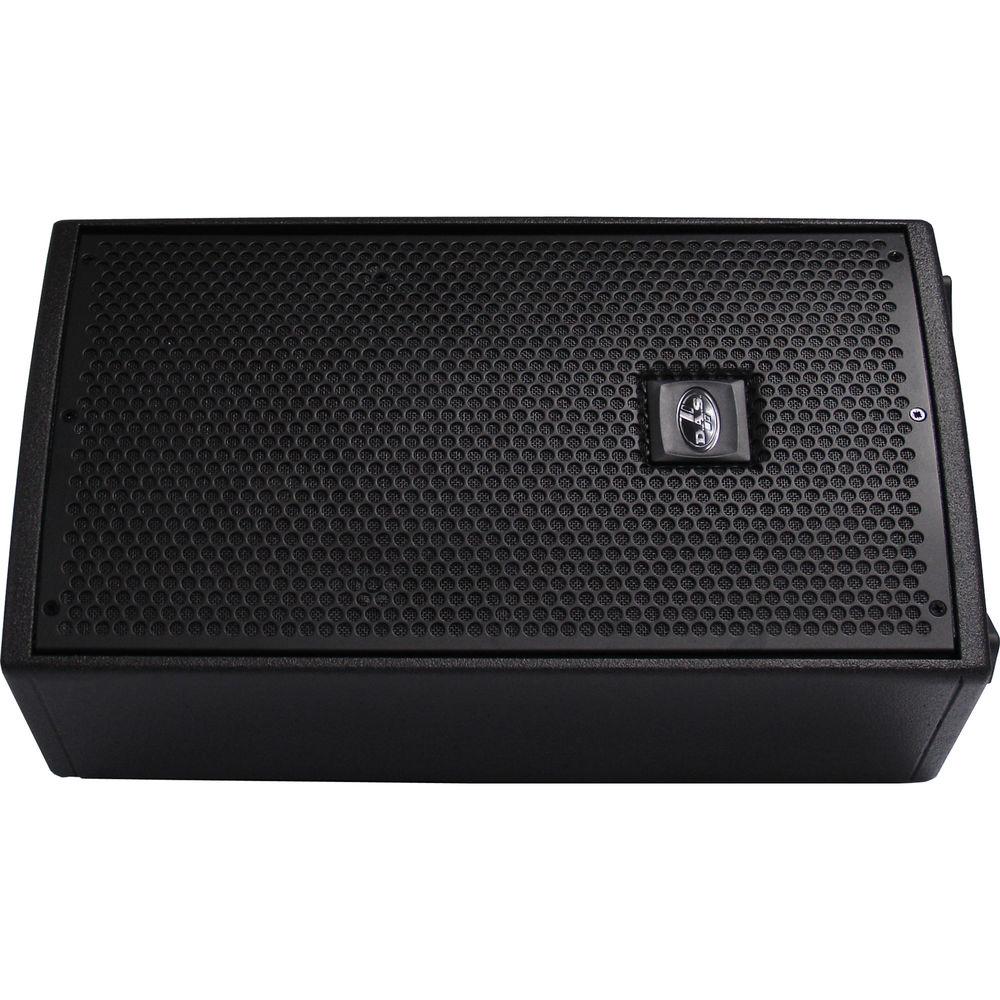

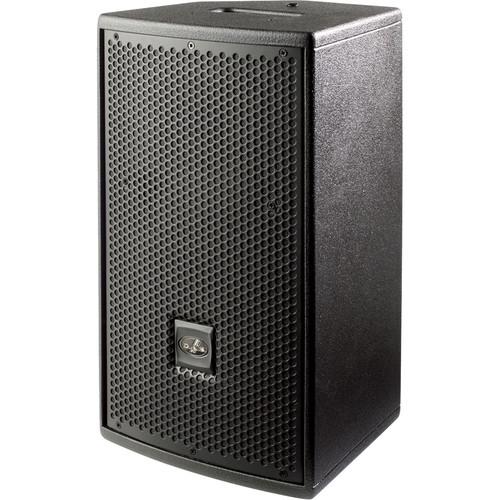

Product description The single D.A.S. Action 8 is a passive, full-range, two-way loudspeaker designed for professional live sound reinforcement applications. The speaker offers a power handling of up to 600W peak, which drives the 8" woofer and 1" compression driver that combine to provide frequency response of 60 Hz to 20 kHz and a peak SPL output of 120 dB.

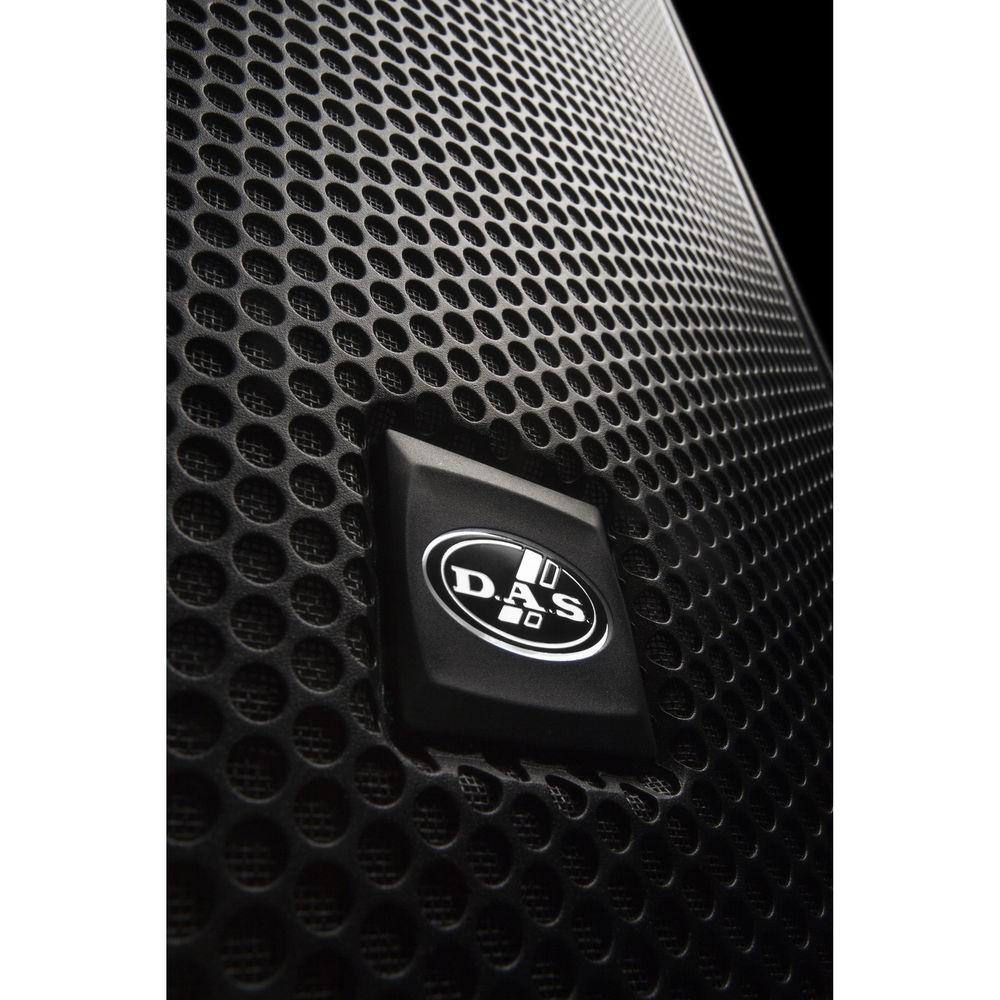

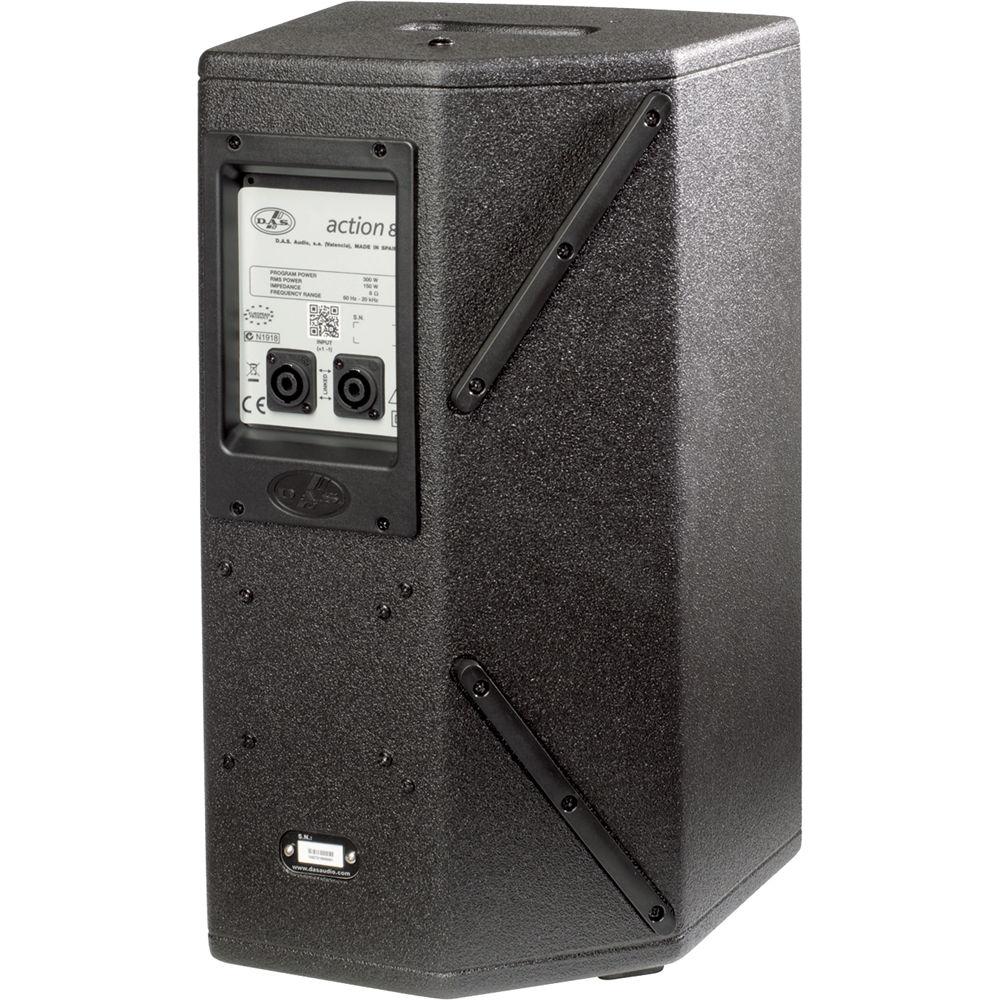

The ISO-flex painted birch plywood enclosure offers a flexible, multi-angle design and allows the speaker to double as a floor monitor. Two bar handles are offered for ease in transport, while the steel grille provides ample protection to the loudspeaker's drivers. The rear panel features two NL4 speakON connectors for daisy-chaining multiple speakers and a 35mm pole cup is offered for speaker stand applications. -
- 2-way, full-range system
- 8″ bass loudspeaker
- 1" compression driver with titanium diaphragm
- Asymmetric enclosure design for stage monitor use

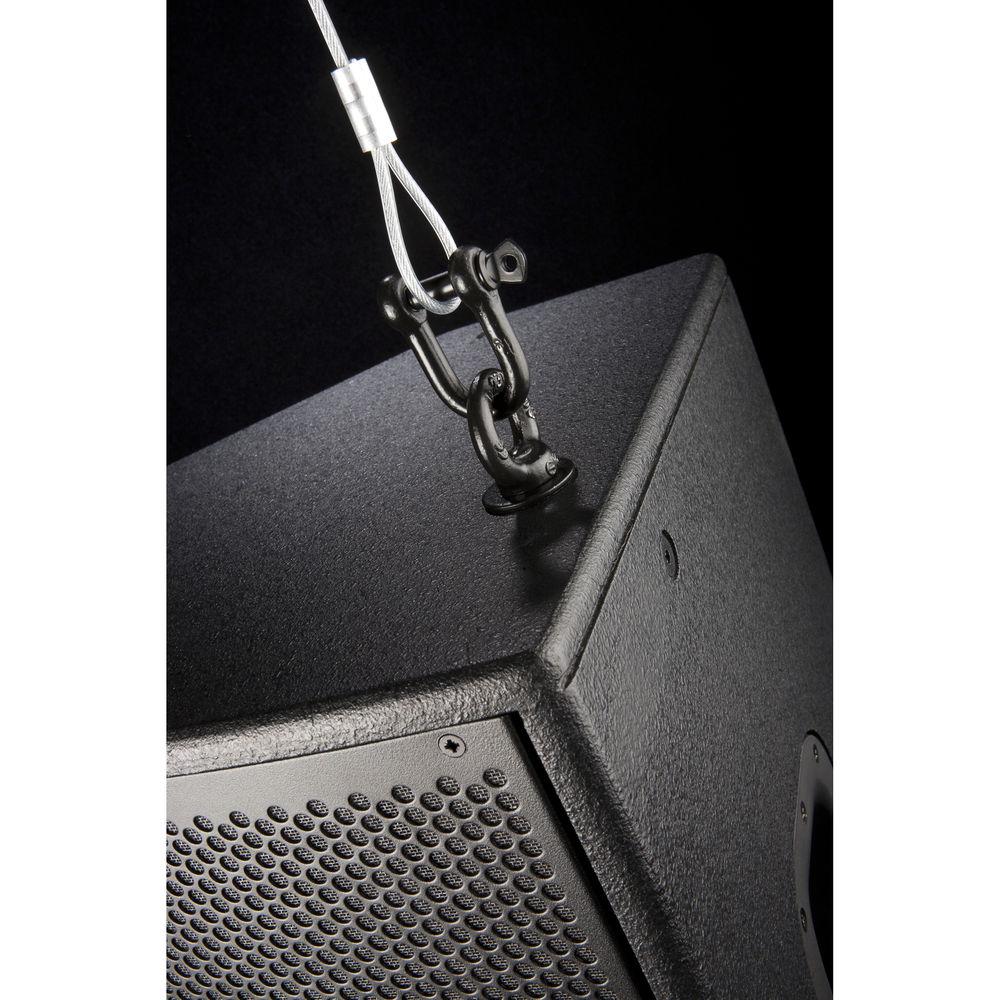

- Built-in rigging points
- Stand mountable
In the Box D.A.S Audio Action 8 - Passive Full-Range 8" 2-Way Loudspeaker (Single) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Action 8 - Passive Full-Range 8" 2-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio ACTION-8 Specs | | | Configuration | Passive | | Total Power Capacity | 150 W RMS
600 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | HF Driver | 1 x 1" / 2.5 cm Compression Driver | | LF Driver | 1 x 8" / 20.3 cm Woofer | | | | Frequency Range | 60 Hz to 20 kHz -10 dB | | Maximum SPL | 120 dB | | Coverage Angle | 80° H x 80° V | | Speaker Sensitivity | 92 dB SPL | | | | Audio I/O | 2 x speakON NL4 | | | | Construction Material | Plywood | | Dimensions | 18.7 x 11.0 x 10.0" / 475.0 x 279.0 x 254.0 mm | | Weight | 18.5 lb / 8.4 kg |
