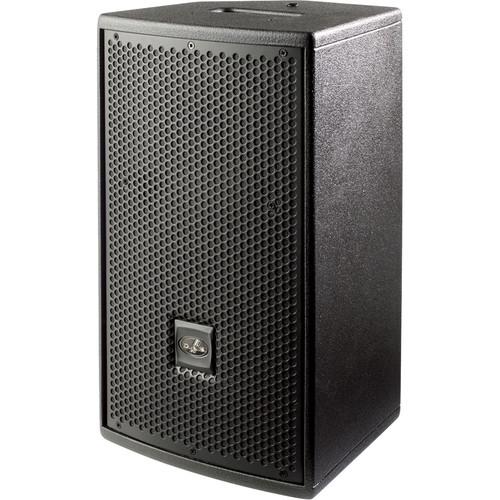

Product description The single D.A.S. Action 8A is a powered, full-range, two-way loudspeaker designed for professional live sound reinforcement applications, and can function as a compact PA or a floor wedge monitor. The built-in Class-D amplifier provides up to 720W peak output, which drives the 8" woofer and 1" compression driver that combine to provide frequency response of 60 Hz to 20 kHz and a peak SPL output of 120 dB.

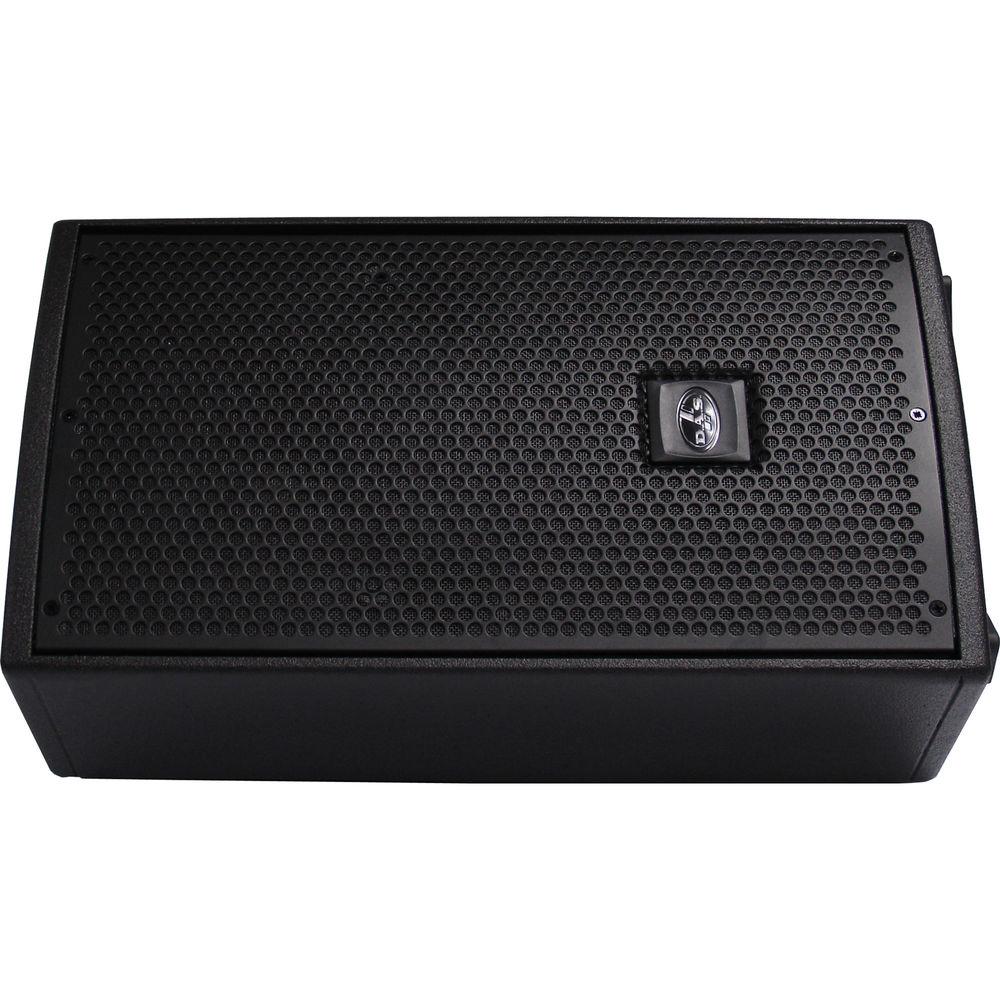

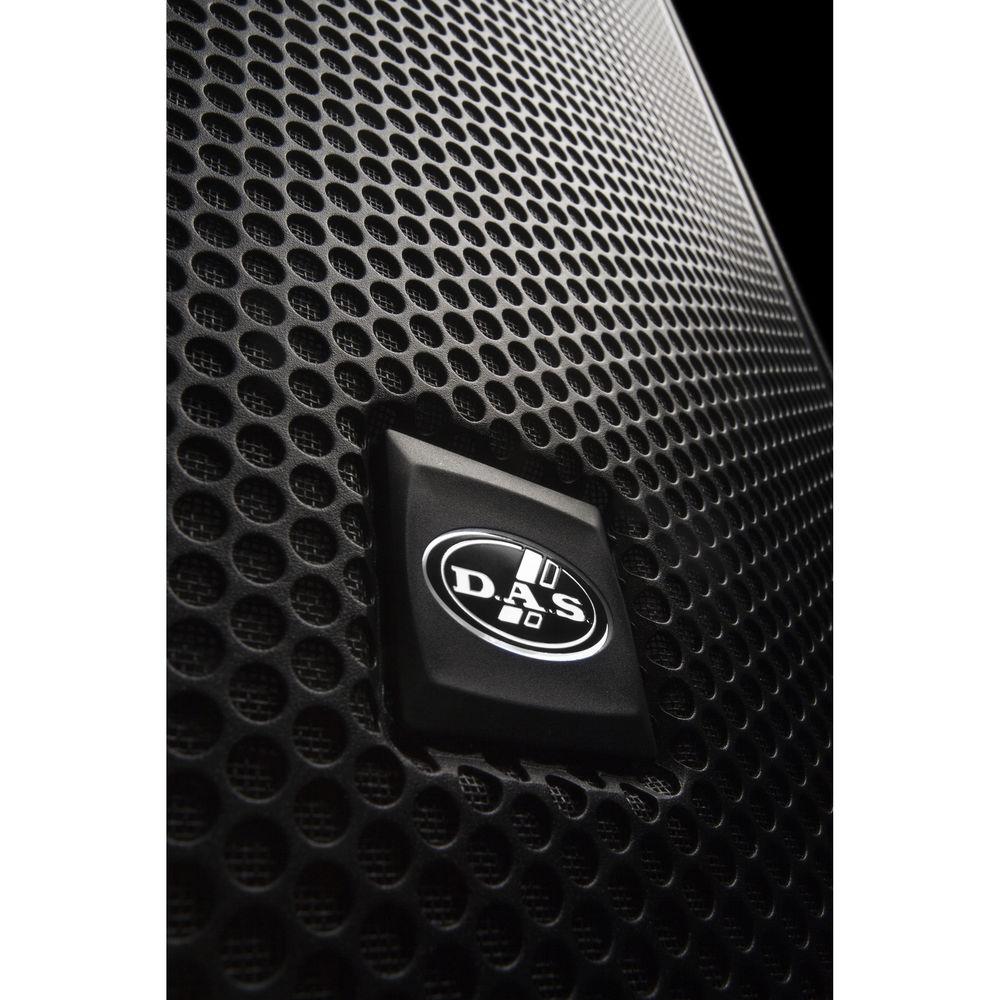

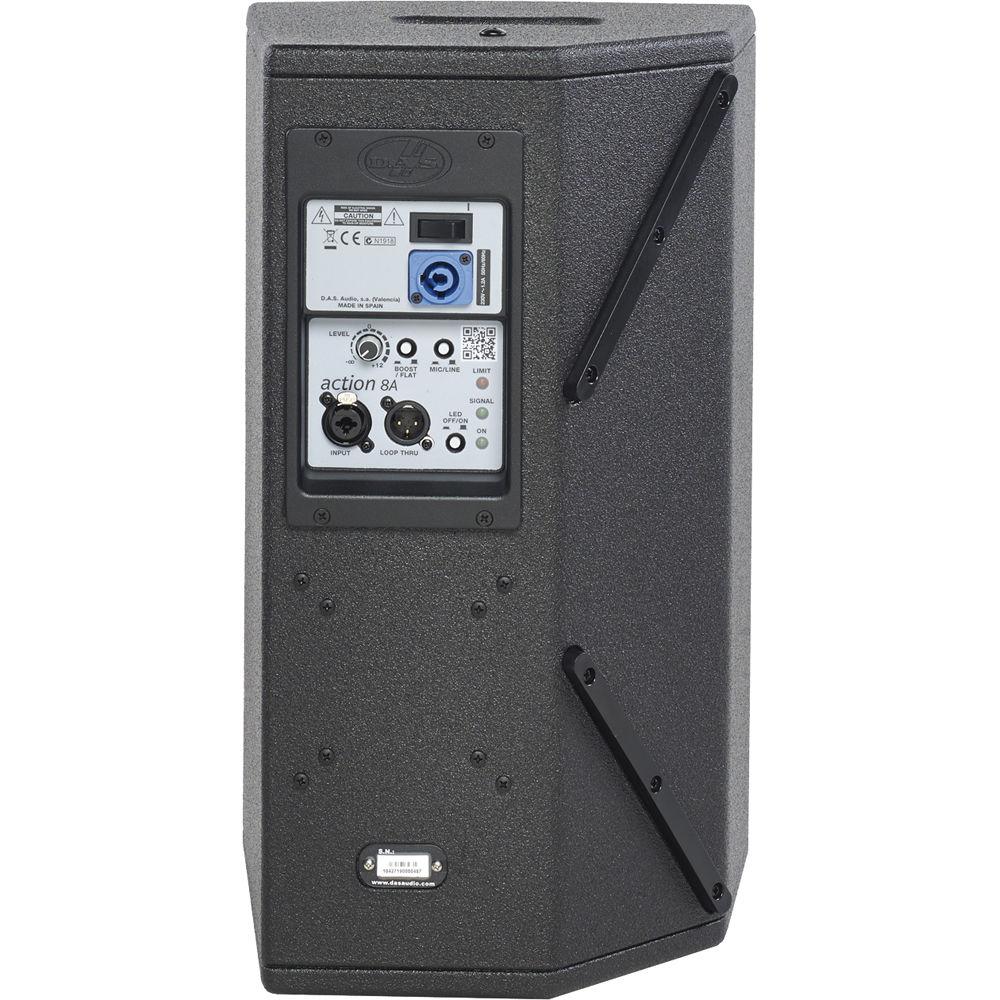

The rear panel of the speaker offers a switchable mic/line level XLR input and an XLR loop-thru output for connecting additional powered speakers. Additionally, the boost EQ switch adds high & low frequencies to the signal, while the two on-board limiters protect the electronics and drivers from overload. The ISO-flex painted birch plywood enclosure offers a flexible, multi-angle design and allows the speaker to double as a floor monitor, while a steel grille provides ample protection to the loudspeaker's drivers. The D.A.S. Action 8A ships with a power cord. -
- Compact multi-purpose system with monitor position
- Lightweight Class-D amplifier
- 8" woofer + 1" compression driver with a titanium diaphragm
- Switch-mode power supply
- 720W peak output
- Max SPL: 120 dB
- Reduced size and weight
- Pole-mount socket

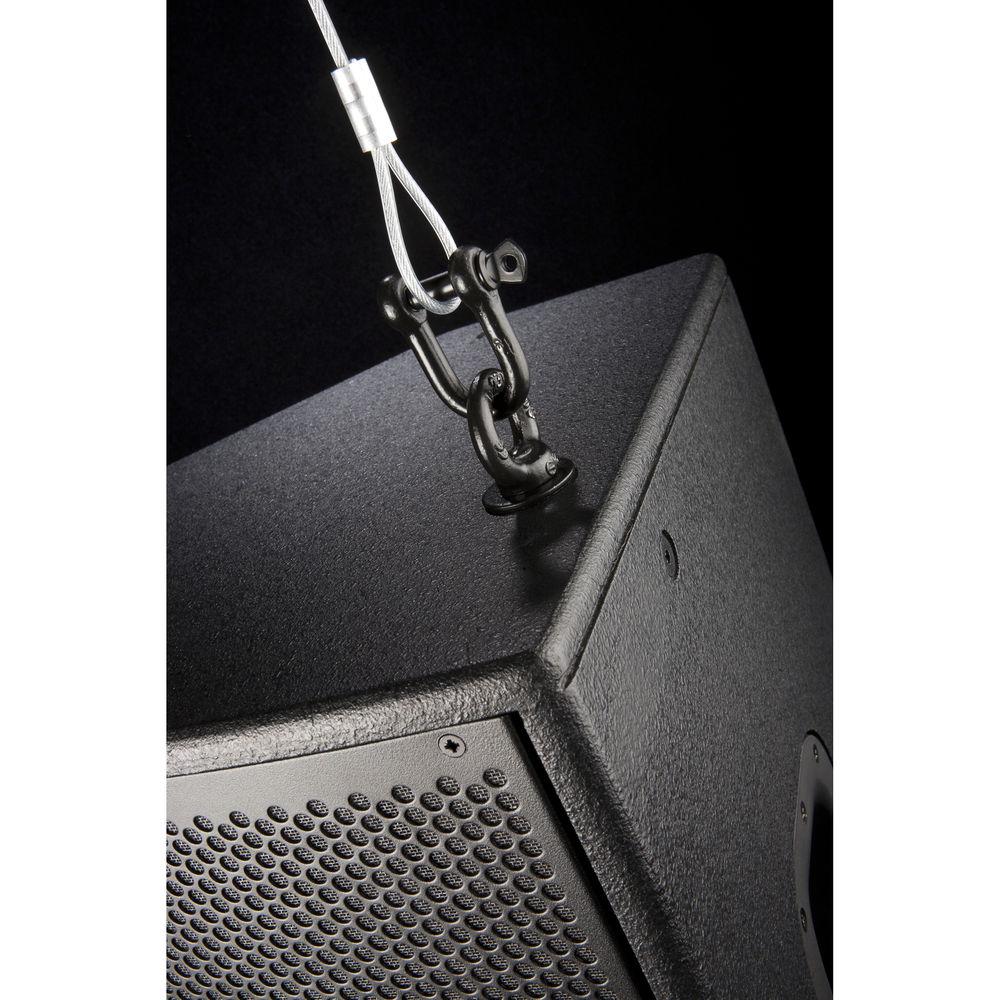

- Rigging points
In the Box D.A.S Audio Action 8A - Powered Full-Range 8" 2-Way Loudspeaker (Single) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Action 8A - Powered Full-Range 8" 2-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio ACTION-8A Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 720 W Peak
360 W RMS | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1" / 2.5 cm Compression Driver | | LF Driver | 1 x 8" / 20.3 cm Woofer | | | | Frequency Range | 60 Hz to 20 kHz -10 dB | | Maximum SPL | 120 dB | | Coverage Angle | 80° H x 80° V | | Input Sensitivity | Line Input:
+8 dBu
Mic Input:
-32 dBu | | I/O Impedance | Line Input:
20 kOhms
Mic Input:
20 kOhms | | | | Audio I/O | XLR Female Input
XLR Male Thru | | | | AC Input Power | 115 VAC, 50 / 60 Hz | | AC Power Connector | 1 x powerCON Input | | Current Consumption | 1.2 A | | | | Construction Material | Plywood | | Dimensions | 18.7 x 11.0 x 10.0" / 475.0 x 279.0 x 254.0 mm | | Weight | 21.8 lb / 9.9 kg |
