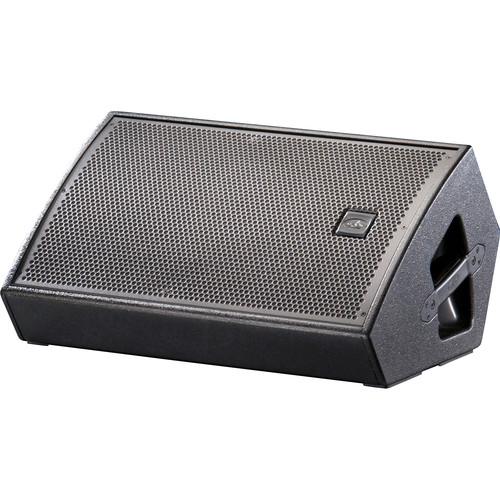

Product description The single D.A.S. Action M12 is a passive, full-range, two-way stage monitor designed for professional live sound reinforcement applications. The speaker offers a power handling of up to 1200W peak, which drives the 12" woofer and 1" compression driver that combine to provide frequency response of 63 Hz to 20 kHz and a peak SPL output of 130 dB.

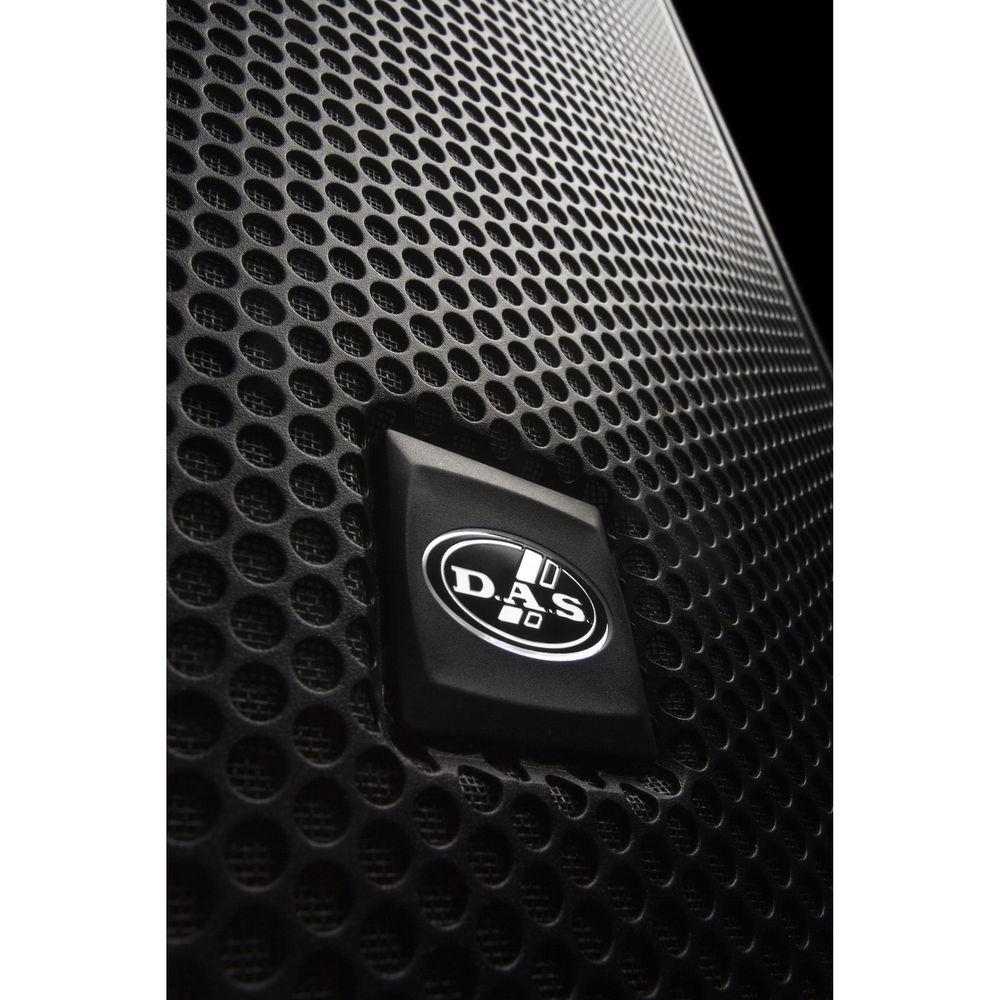

The ISO-flex painted birch plywood enclosure is a low-profile design, allowing it to be used with minimal visual impact. Two bar handles are offered for ease in transport, while the steel grille provides ample protection to the loudspeaker's drivers. The rear panel features two NL4 speakON connectors for daisy-chaining multiple speakers. For more flexibility, the D.A.S Action M12 is outfitted with a 35mm pole cup for speaker stand applications. -
- Dedicated stage monitor
- 12″ bass loudspeaker
- Compression driver with titanium diaphragm
- Low-profile enclosure design for minimum visual impact
- Black paint finish
- Stand mountable
In the Box D.A.S Audio Action M12 - Passive Full-Range 12" 2-Way Stage Monitor (Single) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Action M12 - Passive Full-Range 12" 2-Way Stage Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio ACTION-M12 Specs | | | Configuration | Passive | | Total Power Capacity | 300 W RMS
1200 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | HF Driver | 1 x 1" / 2.5 cm Compression Driver | | LF Driver | 1 x 12" / 30.5 cm Woofer | | | | Frequency Range | 63 Hz to 20 kHz -10 dB | | Maximum SPL | 130 dB | | Coverage Angle | 80° H x 50° V | | Speaker Sensitivity | 95 dB SPL | | | | Audio I/O | 2 x speakON NL4 | | | | Construction Material | Plywood | | Dimensions | 16.6 x 25.4 x 12.5" / 422.0 x 645.0 x 318.0 mm | | Weight | 38.5 lb / 17.5 kg |
