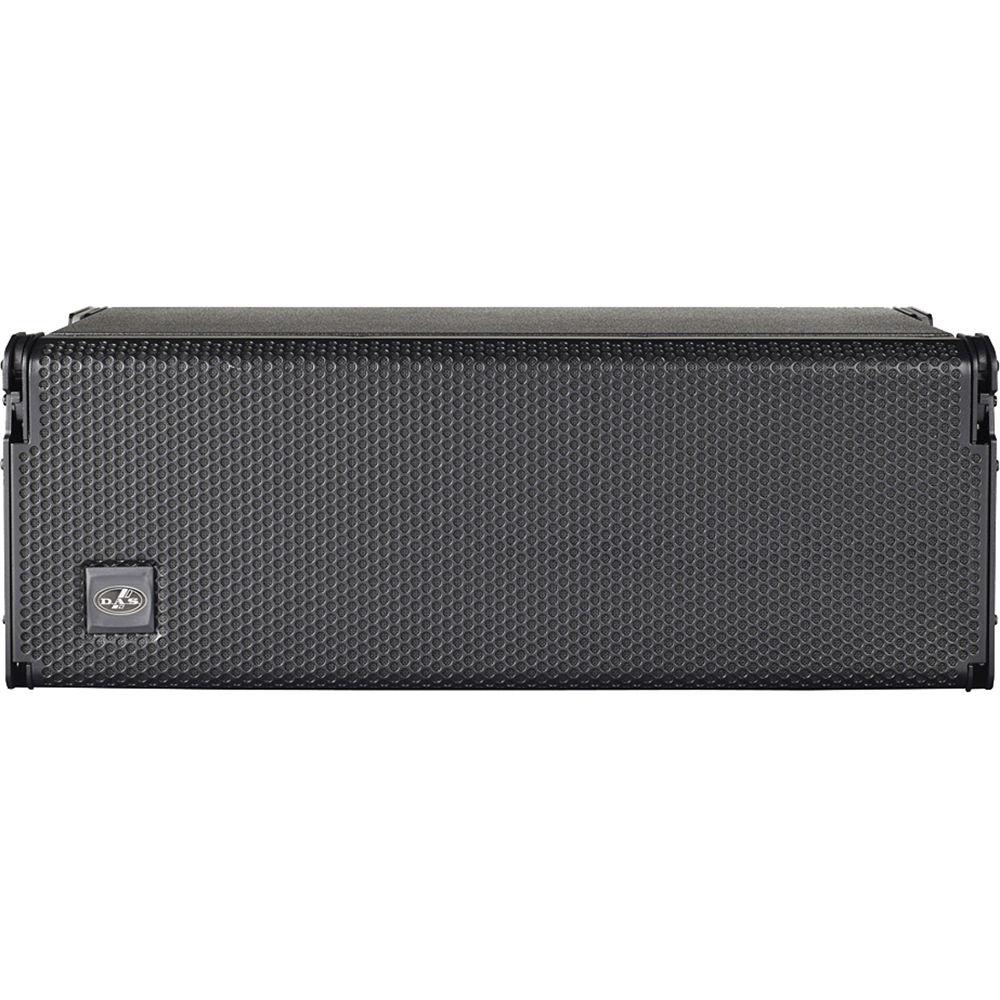

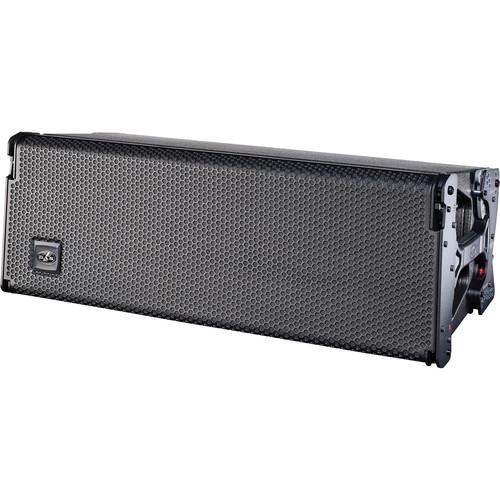

Product description The single D.A.S. Event 210A is a powered, full-range, three-way line array module designed for professional live sound reinforcement applications. The speaker features three built-in Class-D amplifiers, providing 360W of power to the two 10" woofers and the 1.5" compression driver that combine to offer a frequency response of 70 Hz to 20 kHz and a peak SPL output of 134 dB. The two 10" woofers use a "twin-band" configuration, where each speaker operates in a specific frequency range. Advanced digital signal processing feeds the mid signal to only one of the two low-frequency drivers, while the other is rolled off. This technique eliminates off-axis interference between the drivers, enabling the Event line arrays to maintain optimal polar and frequency response characteristics throughout the low and low-mid operating ranges. The injected aluminum wave-guide provides a nominal 90º horizontal dispersion.

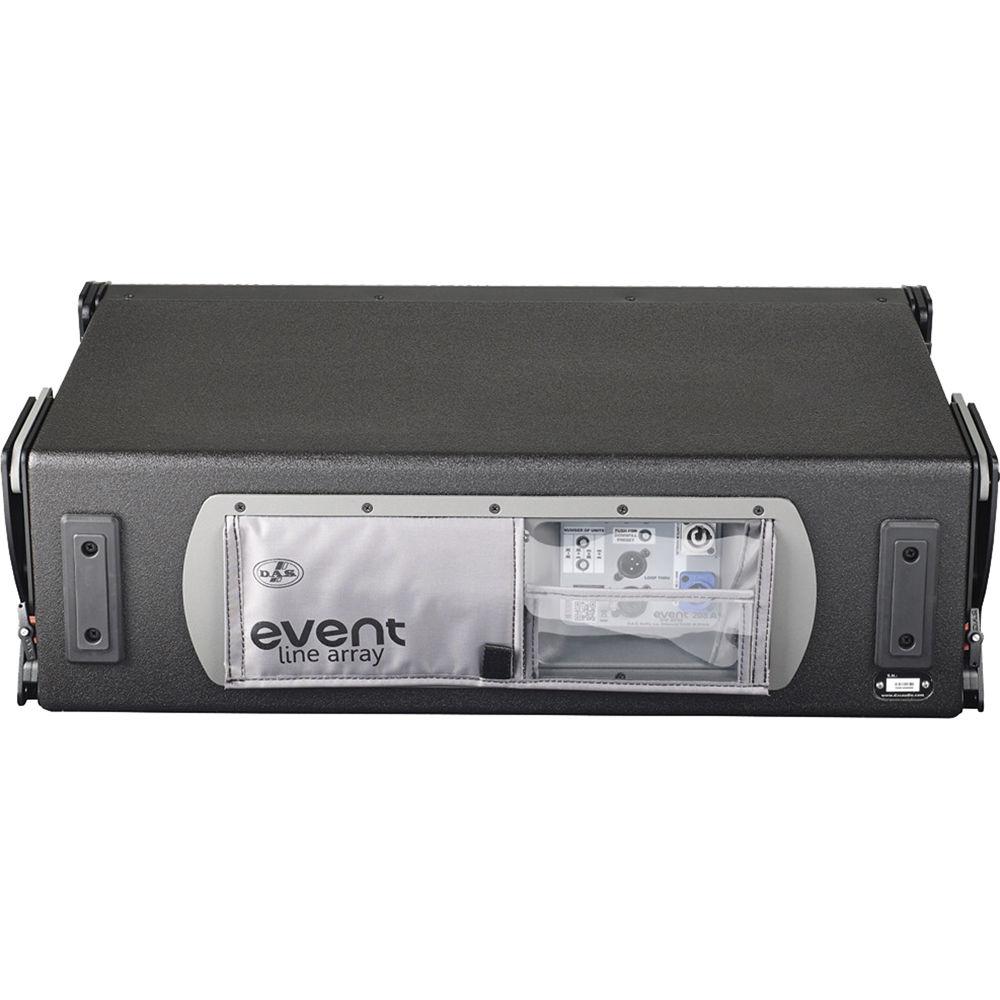

The rear panel of the speaker offers a line level XLR input and an XLR loop-thru output for connecting additional array modules. The integrated "Easy DSP" utilizes push-button combinations for adjusting the number of array modules. Additionally, there is a down-fill preset button for simplifying long and short throw for down-fill applications. Two on-board limiters protect the electronics and drivers from overload, while an amp cover protects the electronics from the sun and rain.

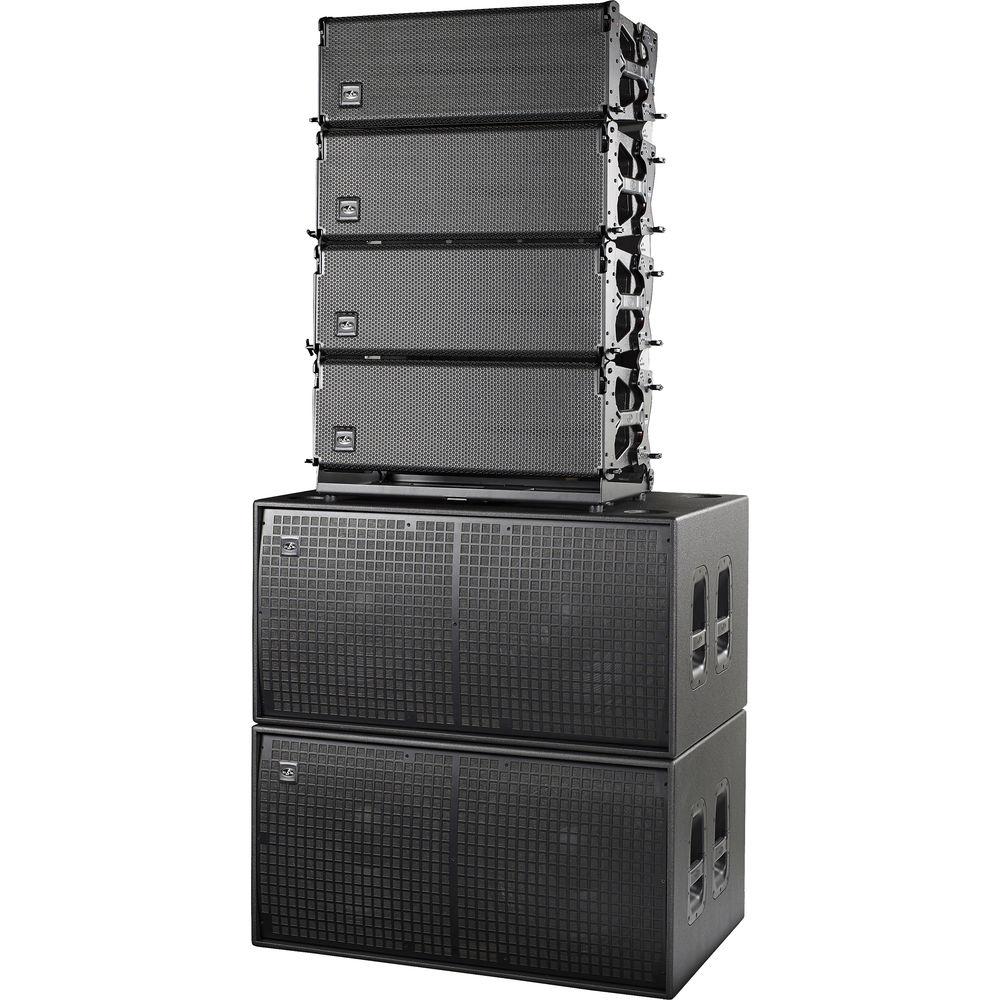

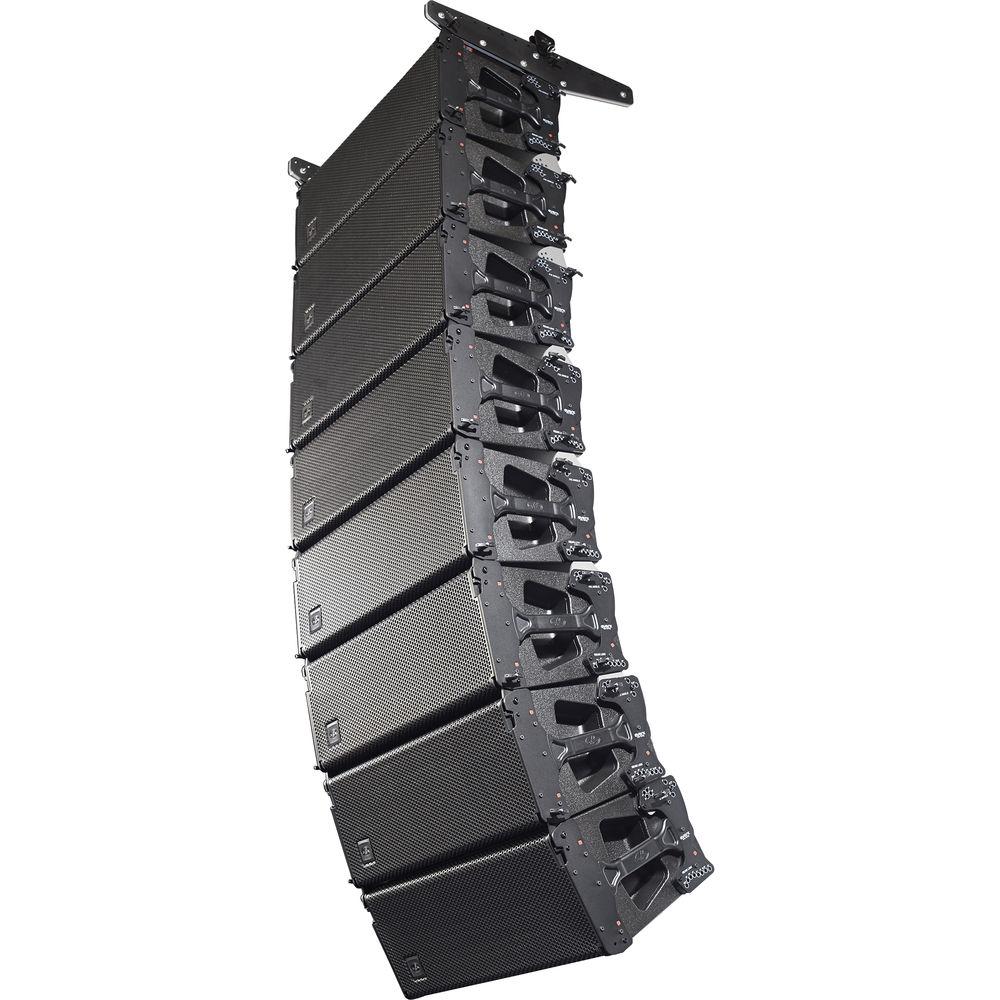

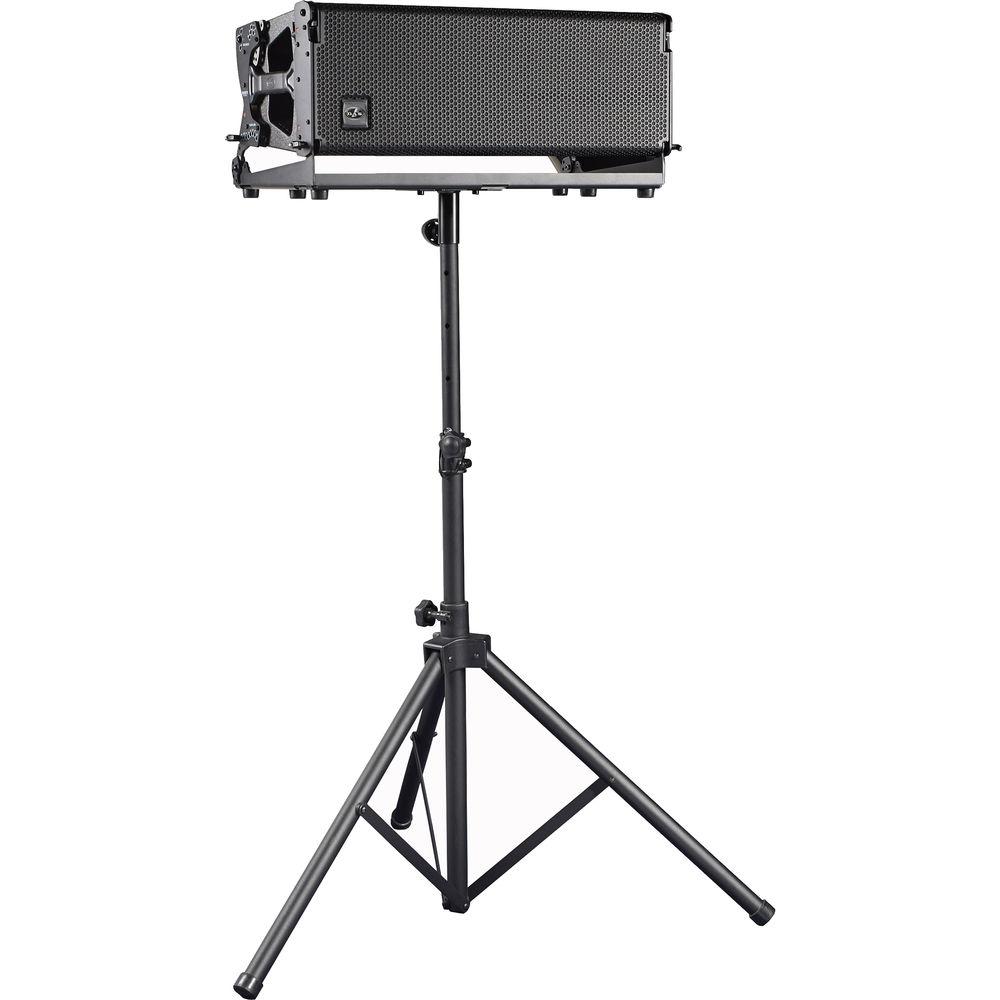

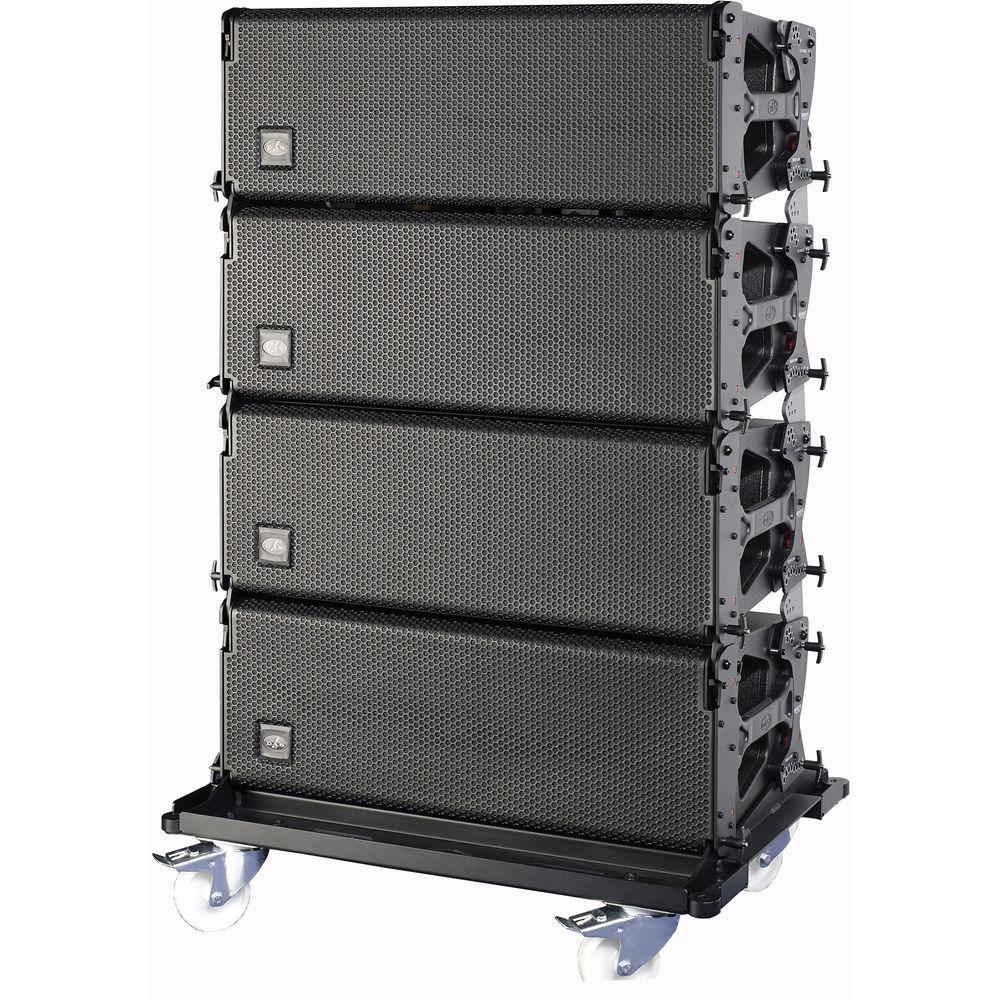

The ISO-flex painted birch plywood enclosure utilizes two bar handles for ease in transport, while the steel grille provides ample protection to the speaker's drivers. A single array module can be placed on a quality speaker stand, while multiples can be used in a ground-stack configuration. Up to 24 line array modules can be flown for the ultimate in large-scale sound reinforcement deployment. The D.A.S. Event 210A ships with a power cord. -
- Powered 3-way system
- Light-weight Class-D amplifiers
- High-end DSP chipsets
- Easy-DSP interface
- Quality Neutrik connectors
- Top-grade birch cabinet construction
- Durable ISO-flex finish

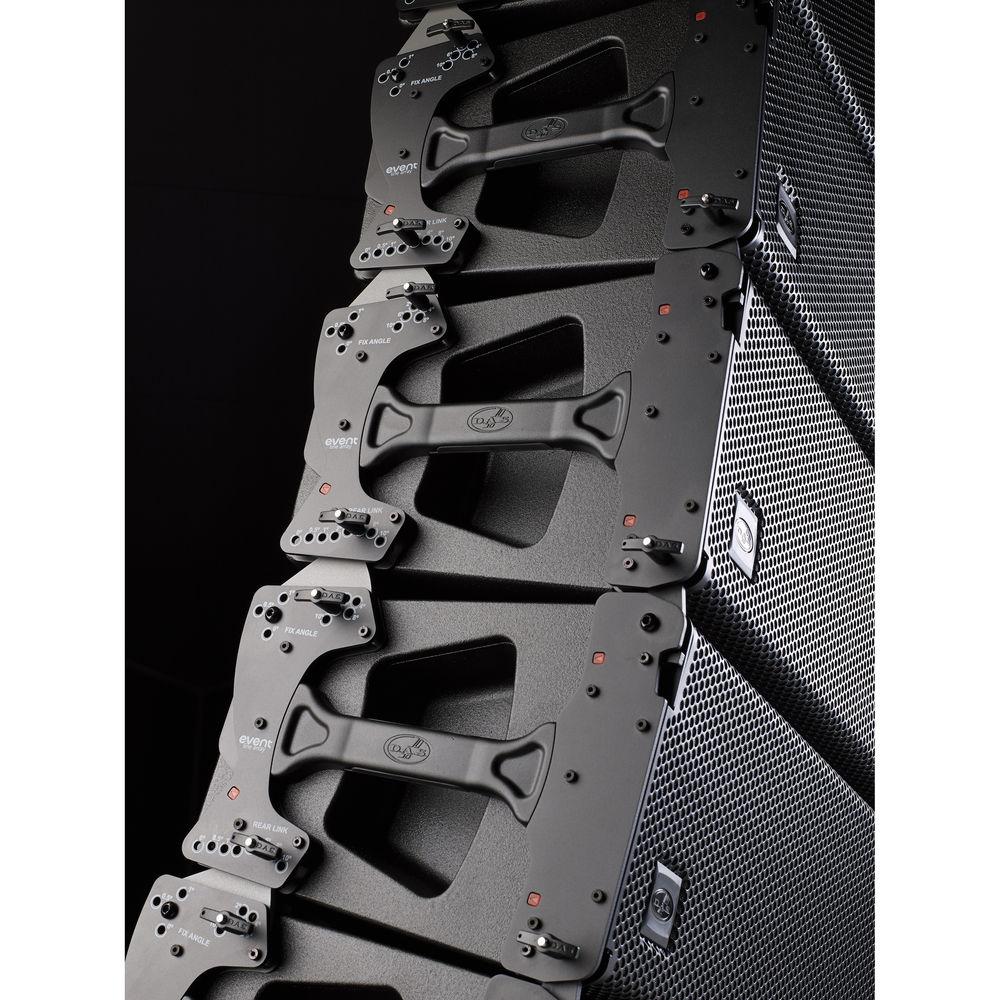

- Robust “quick-rig” professional rigging hardware
- Proprietary injected aluminum HF wave-guide (not plastic)
- D.A.S. M-75 compression driver and cone transducers
In the Box D.A.S Audio Event 210A Powered 3-Way Compact Line Array Module (Single) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Event 210A Powered 3-Way Compact Line Array Module in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio EVENT 210A Specs | | | Configuration | Active 3-Way | | Total Power Capacity | 1080 W Peak | | Amplifier Power Rating | LF:
360 W Peak
180 W RMS
MF:
360 W Peak
180 W RMS
HF:
360 W Peak
180 W RMS | | | | HF Driver | 1 x 1.5" / 3.8 cm Compression Driver | | LF Driver | 2 x 10" / 25.4 cm Woofer | | | | Frequency Range | 70 Hz to 20 kHz -10 dB | | Maximum SPL | 134 dB | | Coverage Angle | 90° H Vertical Coverage is Splay-Dependent | | Input Sensitivity | Line Input:
+18 dBu | | I/O Impedance | Line Input:
20 kOhms | | | | Audio I/O | XLR Female Input
XLR Male Thru | | | | AC Input Power | 115 VAC, 50 / 60 Hz | | AC Power Connector | 1 x powerCON Input
1 x powerCON Output | | Current Consumption | 3 A | | | | Construction Material | Plywood | | Dimensions | 10.6 x 28.7 x 14.4" / 269.0 x 729.0 x 366.0 mm | | Weight | 74.8 lb / 33.9 kg | | | | Package Weight | 76.35 lb | | Box Dimensions (LxWxH) | 32.5 x 17.1 x 13.2" |
