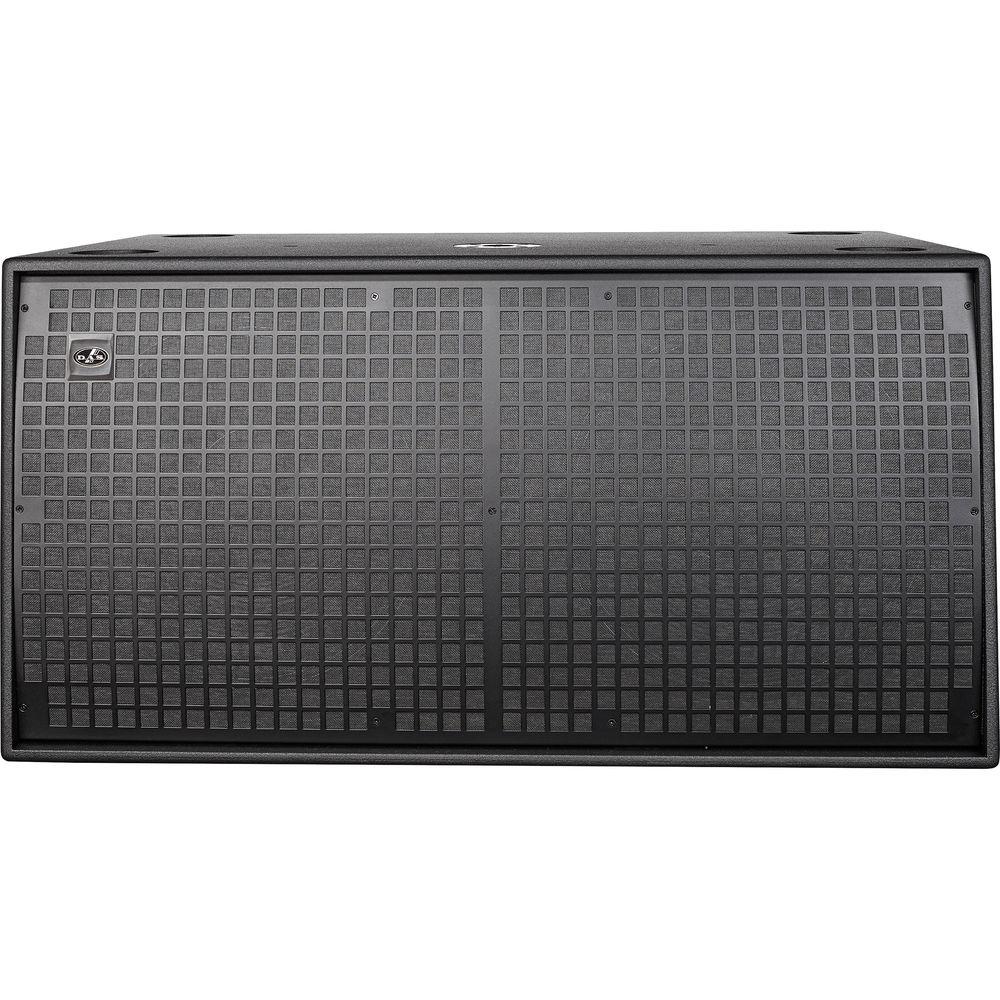

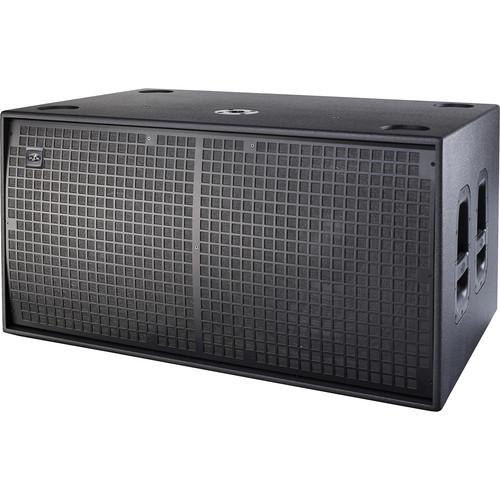

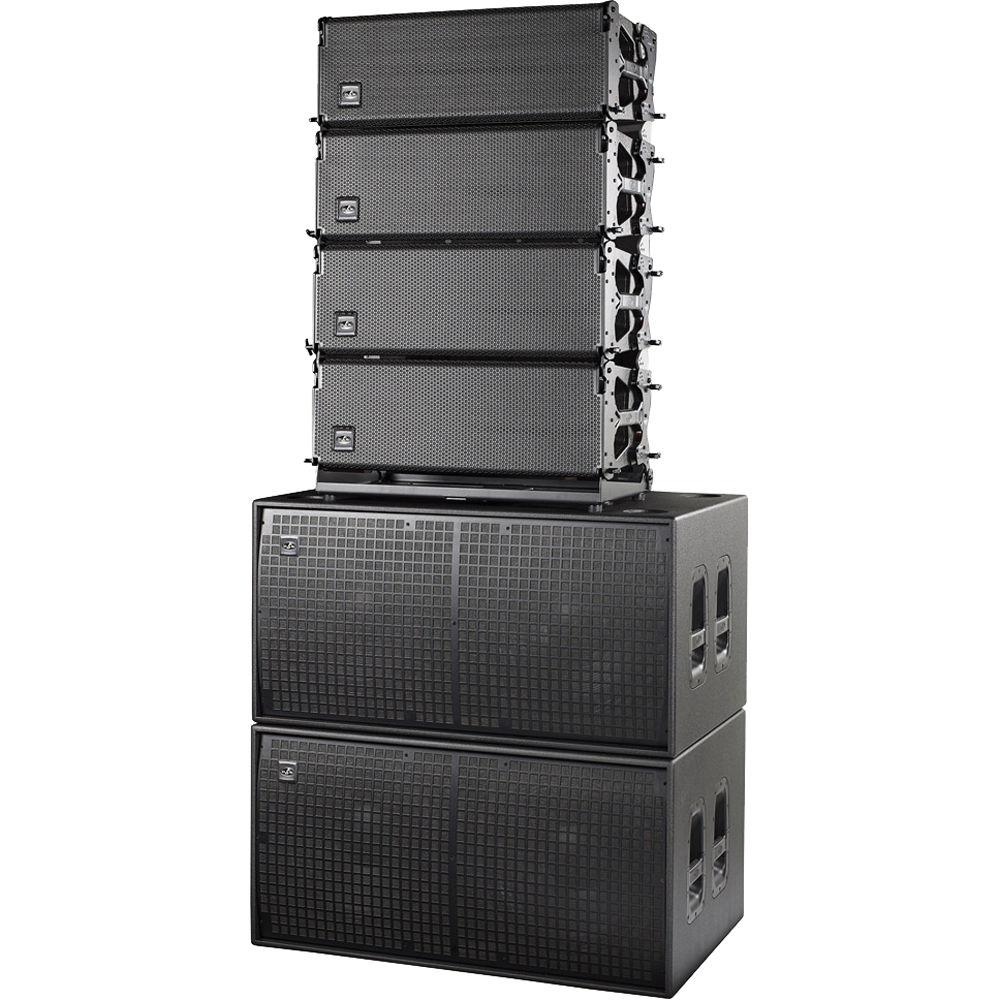

Product description The D.A.S. Event 218A is a powered, dual 18" bass-reflex subwoofer system designed to provide extended bass response to the Event line array series full-range cabinets, and is well suited for rental houses, bars, clubs, mobile DJs, or any pro audio application. The Event 218A utilizes a 3600W Class-D amplifier to power each of the 18" woofers to provide a frequency response of 32 to 125 Hz with a peak SPL output of 140 dB.

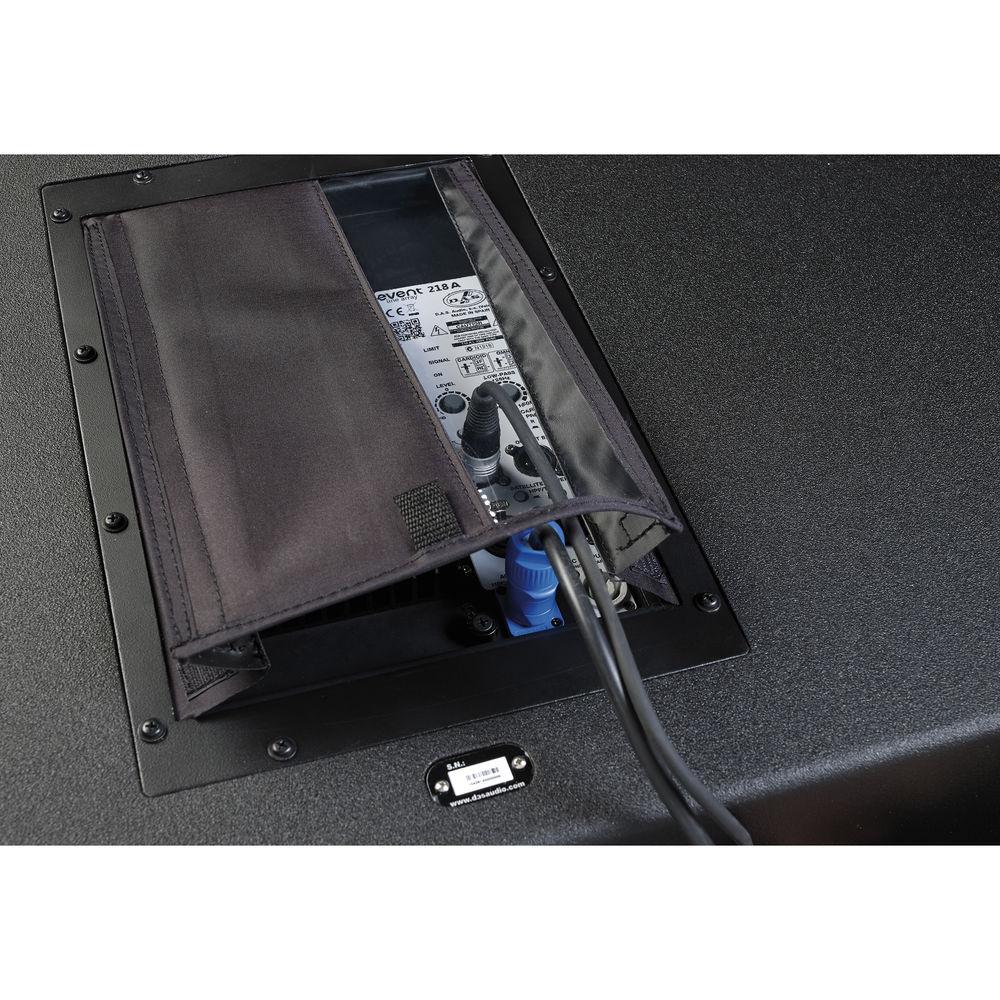

The birch plywood enclosure is finished with black ISO-flex paint and includes four handles (2 per side) for ease in transport. The rear panel offers two XLR inputs, two XLR loop-thru outputs, a level control, a 80 to 125 Hz low-pass filter control, and a dedicated polarity switch. When using two or three subwoofers, a cardioid switch is included to help reduce the bass response at the rear of the stacks, cutting down on stage volume and feedback issues. The top panel offers a pole-mount socket for use with 35mm speaker poles for mounting full-range speakers. Additionally, the D.A.S. Action 218A features a PowerCon input and pass-thru to daisy-chain power to multiple subwoofers and ships with a power cable. -
- Powered bass-reflex subwoofer system
- High-output dual 18" loudspeakers
- Voice Coil: 4"
- Phase switch
- HPF output defeat switch
- Variable 80 to 125 Hz low-pass filter
- Level control
In the Box D.A.S Audio Event 218A Powered Dual 18" Bass Reflex Subwoofer System PowerCon Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Event 218A Powered Dual 18" Bass Reflex Subwoofer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio EVENT 218A Specs | | | Configuration | Active Dual Subwoofer | | Total Power Capacity | 3600 W Peak
1800 W RMS | | Amplifier Class | Class-D | | | | LF Driver | 2 x 18" / 457.2 mm Woofer | | | | Frequency Range | 32 Hz to 125 Hz -10 dB | | Maximum SPL | 140 dB | | Input Sensitivity | Line Input:
+8 dBu | | I/O Impedance | Line Input:
20 kOhms | | | | Audio I/O | 2 x XLR Female Input
2 x XLR Male Thru/Output | | | | AC Input Power | 115 VAC, 50 / 60 Hz | | AC Power Connector | 1 x powerCON Input
1 x powerCON Output | | Current Consumption | 6 A | | | | Construction Material | Plywood | | Dimensions | 21.3 x 41.7 x 26.4" / 541.0 x 1059.0 x 671.0 mm | | Weight | 154 lb / 69.9 kg |
