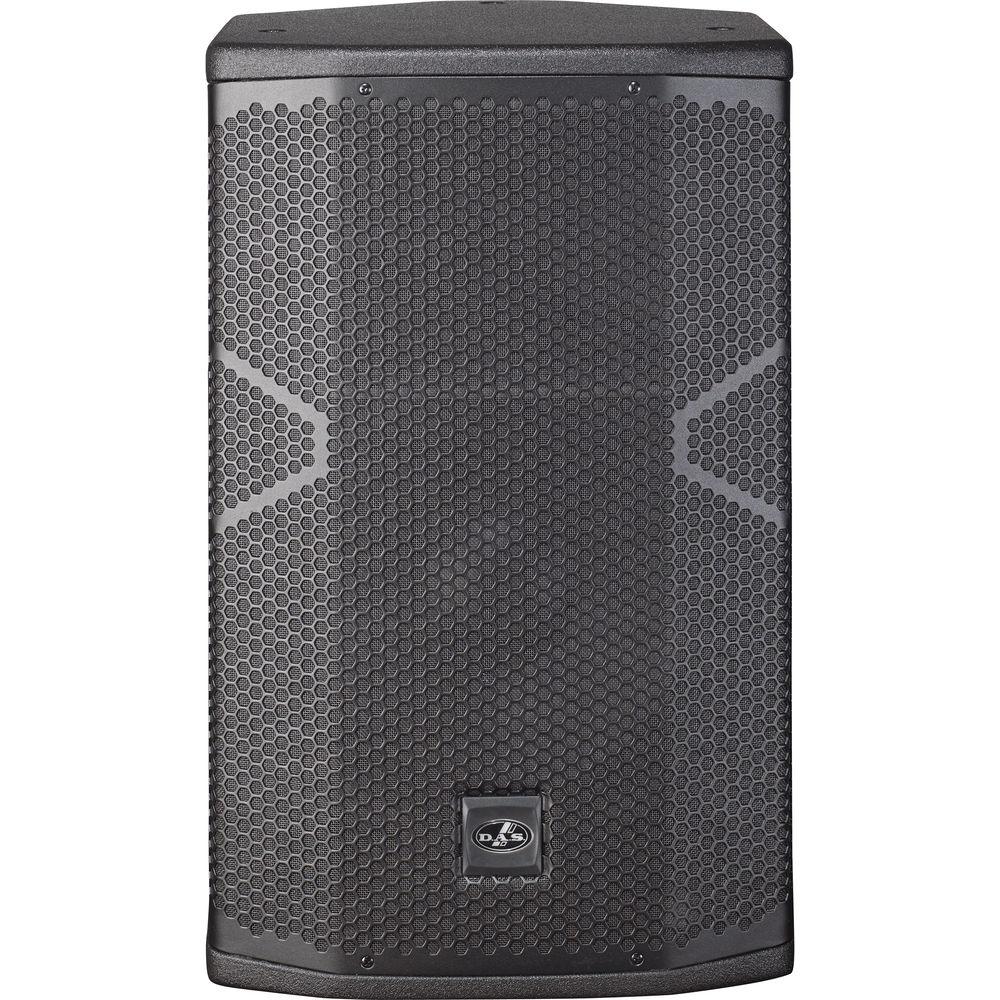

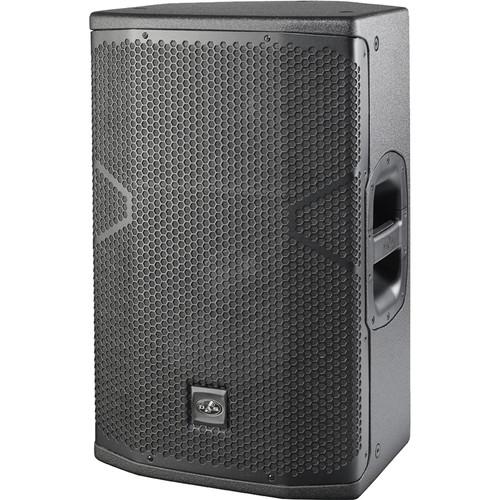

Product description The single D.A.S. Vantec 12 is a passive, full-range, two-way loudspeaker designed for professional live sound reinforcement applications. The speaker offers a power handling of up to 2000W peak, which drives the 12" F-series woofer and the 1" titanium compression driver that combine to provide frequency response of 65 Hz to 20 kHz and a peak SPL output of 135 dB.
The ISO-flex painted birch plywood enclosure offers a flexible, multi-angle design, and allows the speaker to double as a floor monitor. Two bar handles are offered for ease in transport, while the steel grille provides ample protection to the loudspeaker's drivers. The rear panel features two NL4 speakON connectors for daisy-chaining multiple speakers and a dual angle (0º/10º) 35mm pole cup is offered for speaker-stand applications. -
- 2-way, full-range system
- 12″ F-series bass loudspeaker
- 1″ FEM optimized compression driver

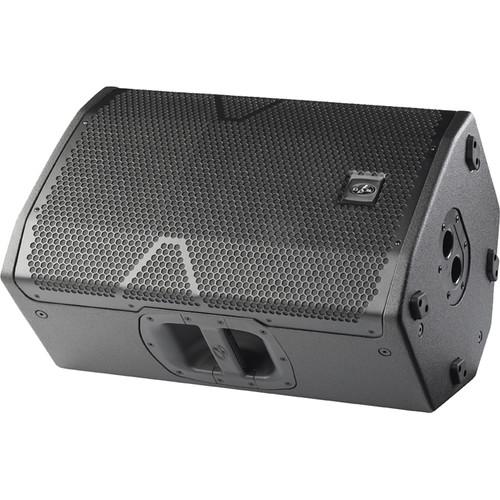

- Enclosure design allows for stage monitor use
- Built-in rigging points
- Dual angle (0º/10º) pole-mount socket
In the Box D.A.S Audio Vantec 12 - Passive 12" Full-Range 2-Way Loudspeaker (Single) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Vantec 12 - Passive 12" Full-Range 2-Way Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio VANTEC 12 Specs | | | Configuration | Passive | | Total Power Capacity | 500 W RMS
2000 W Peak | | System Impedance | 8 Ohms (Nominal) | | | | HF Driver | 1 x 1" / 2.5 cm Compression Driver | | LF Driver | 1 x 12" / 30.5 cm Woofer | | | | Frequency Range | 65 Hz to 20 kHz -10 dB | | Maximum SPL | 135 dB | | Coverage Angle | 90° H x 50° V | | Speaker Sensitivity | 98 dB SPL | | | | Audio I/O | 2 x speakON NL4 | | | | Construction Material | Plywood | | Dimensions | 24.0 x 15.0 x 14.8" / 610.0 x 381.0 x 376.0 mm | | Weight | 41.8 lb / 19 kg |
