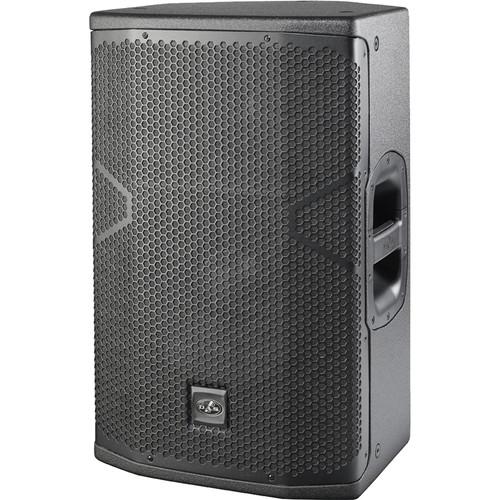

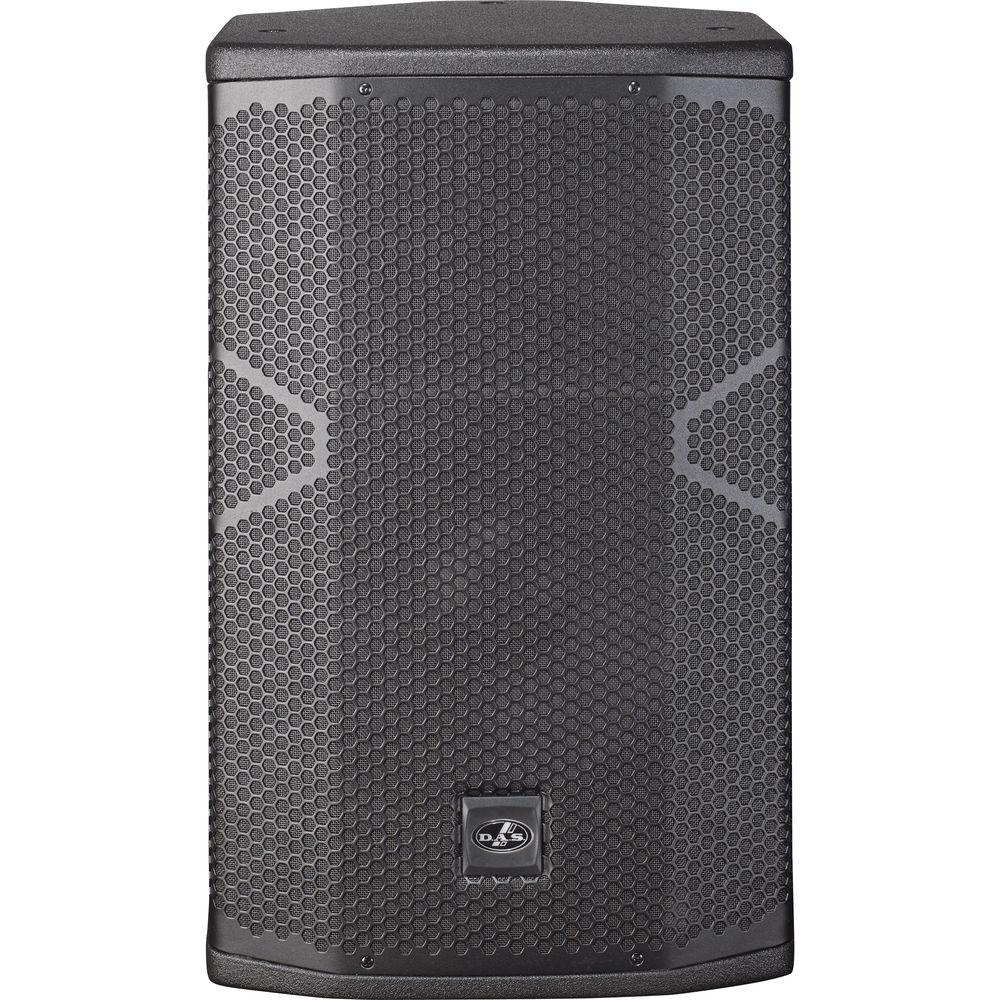

Product description The single D.A.S. Vantec 12A is a powered, full-range, two-way loudspeaker with wireless Bluetooth audio, designed for professional live sound reinforcement applications, and can function as a compact PA or a floor wedge monitor. The built-in Class-D amplifier provides up to 1500W peak output, which drives the 12" woofer and 1" titanium compression driver that combine to provide frequency response of 60 Hz to 20 kHz and a peak SPL output of 135 dB.

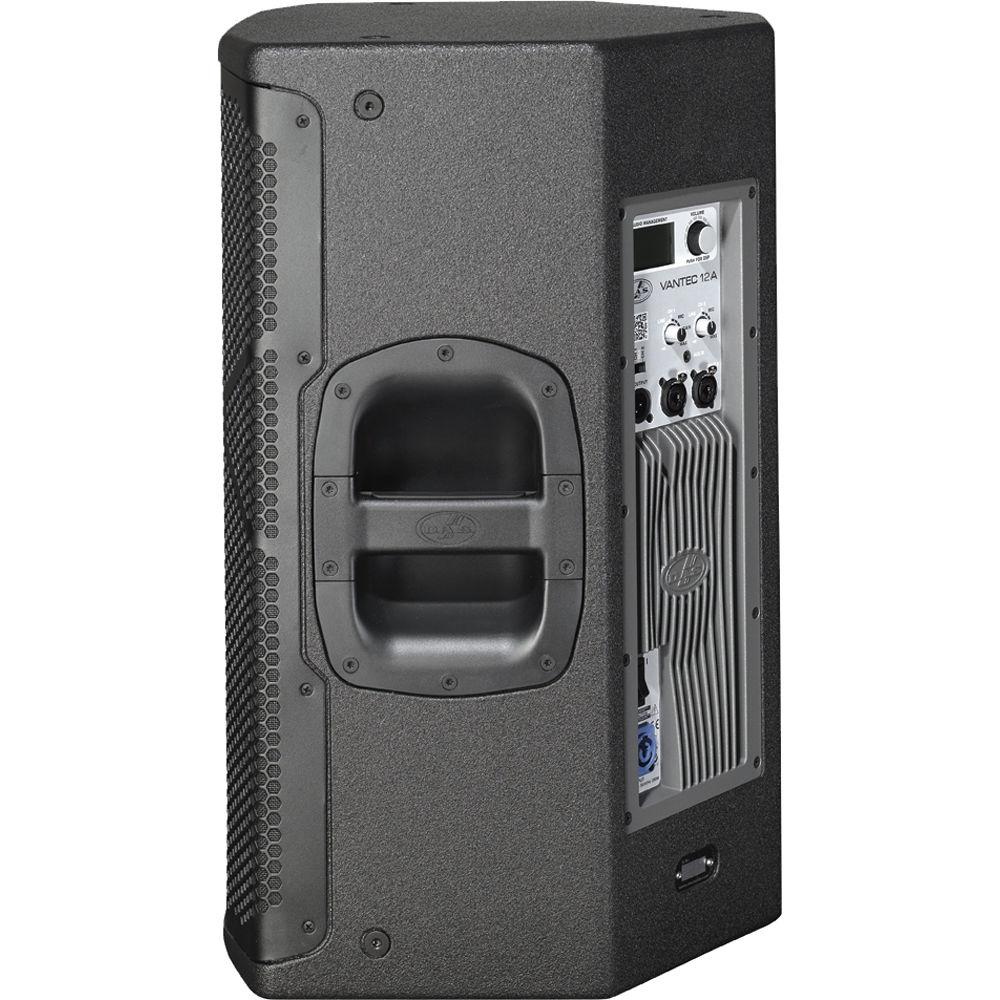

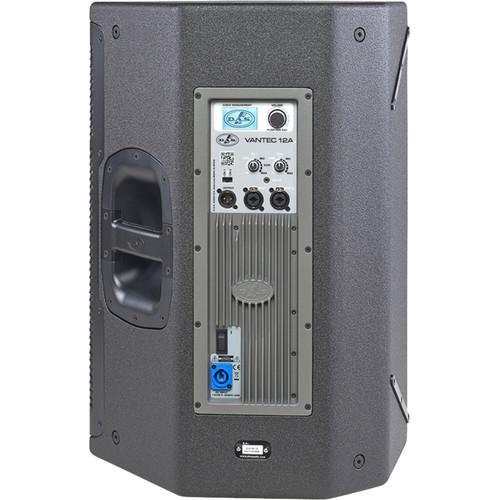

The rear panel offers two mic/line level XLR inputs and an XLR loop-thru output for connecting additional powered speakers. An 1/8" stereo aux input is included for connecting portable music players. The Vantec 12A utilizes Digital Finite Impulse Response (FIR) filters to provide a wide range of user configurable DSP voicing, filter, and EQ modes. Volume and DSP are controlled by the push-button volume level control, while an integrated LCD offers a clear view of settings. Additionally, the speaker uses Bluetooth to wirelessly stream music from a compatible Bluetooth device from up 65' away.

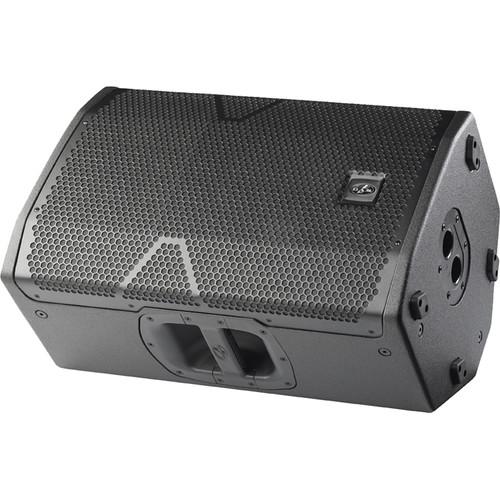

The ISO-flex painted birch plywood enclosure offers a flexible, multi-angle design and allows the speaker to double as a floor monitor. Two bar handles are offered for ease in transport, while the steel grille provides ample protection to the loudspeaker's drivers. A 35mm speaker pole socket features two angles (0° / 10°) for flexibility in your setup. The D.A.S. Vantec 12A ships with a power cord. -
- Compact multi-purpose system with monitor position
- Lightweight Class-D amplifier with SMPS
- User definable 24-bit DSP with LCD screen
- Presets: Live, dance, vocals, bass boost, and monitor mode
- Stackable 3-band EQ
- High-definition wireless streaming of music in stereo
- Pole mount socket with dual angles (0° / 10°)
- Monitor position
- Rigging points
- Selectable standby functionality
In the Box D.A.S Audio Vantec 12A - Powered 12" Full-Range 2-Way Loudspeaker with Bluetooth (Single) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Vantec 12A - Powered 12" Full-Range 2-Way Loudspeaker with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio VANTEC 12A Specs | | | Configuration | Active 2-Way | | Total Power Capacity | 1500 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1" / 2.5 cm Compression Driver | | LF Driver | 1 x 12" / 30.5 cm Woofer | | | | Frequency Range | 60 Hz to 20 kHz -10 dB | | Maximum SPL | 135 dB | | Coverage Angle | 90° H x 50° V | | Input Sensitivity | +12 dBu | | I/O Impedance | Input:
20 kOhms | | | | Audio I/O | 2 x XLR Female Input
1 x XLR Male Thru/Output
1 x 1/8" / 3.5 mm Aux Input | | | | AC Input Power | 115 VAC, 50 / 60 Hz | | AC Power Connector | 1 x powerCON Input | | Current Consumption | 2.4 A | | | | Construction Material | Plywood | | Dimensions | 24.0 x 15.0 x 14.8" / 610.0 x 381.0 x 376.0 mm | | Weight | 46.2 lb / 21 kg |
