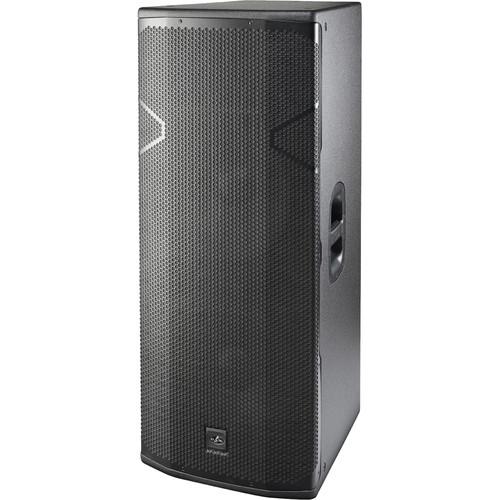

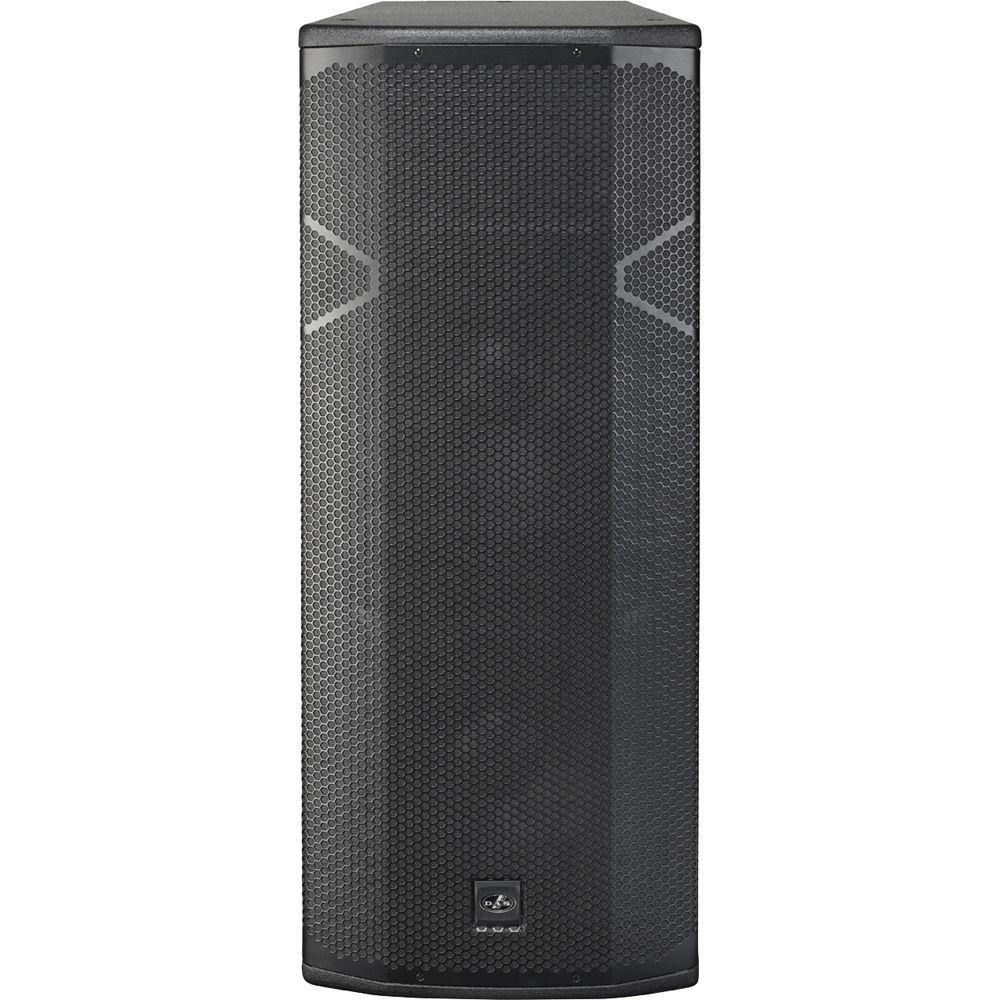

Product description The single D.A.S. Vantec 215A is a powered, full-range, three-way loudspeaker with wireless Bluetooth and designed for professional live sound reinforcement applications. The built-in Class-D amplifier provides up to 2250W peak output, which drives the two 15" woofers and 1" titanium compression driver that combine to provide frequency response of 40 Hz to 20 kHz and a peak SPL output of 138 dB.
The two 15" woofers use a "twin-band" configuration, where each speaker operates in a specific frequency range. Advanced digital signal processing feeds the mid signal to only one of the two low-frequency drivers, while the other is rolled off. This technique eliminates off-axis interference between the drivers, enabling the Vantec 215A to maintain optimal polar and frequency response characteristics throughout the low and low-mid operating ranges.

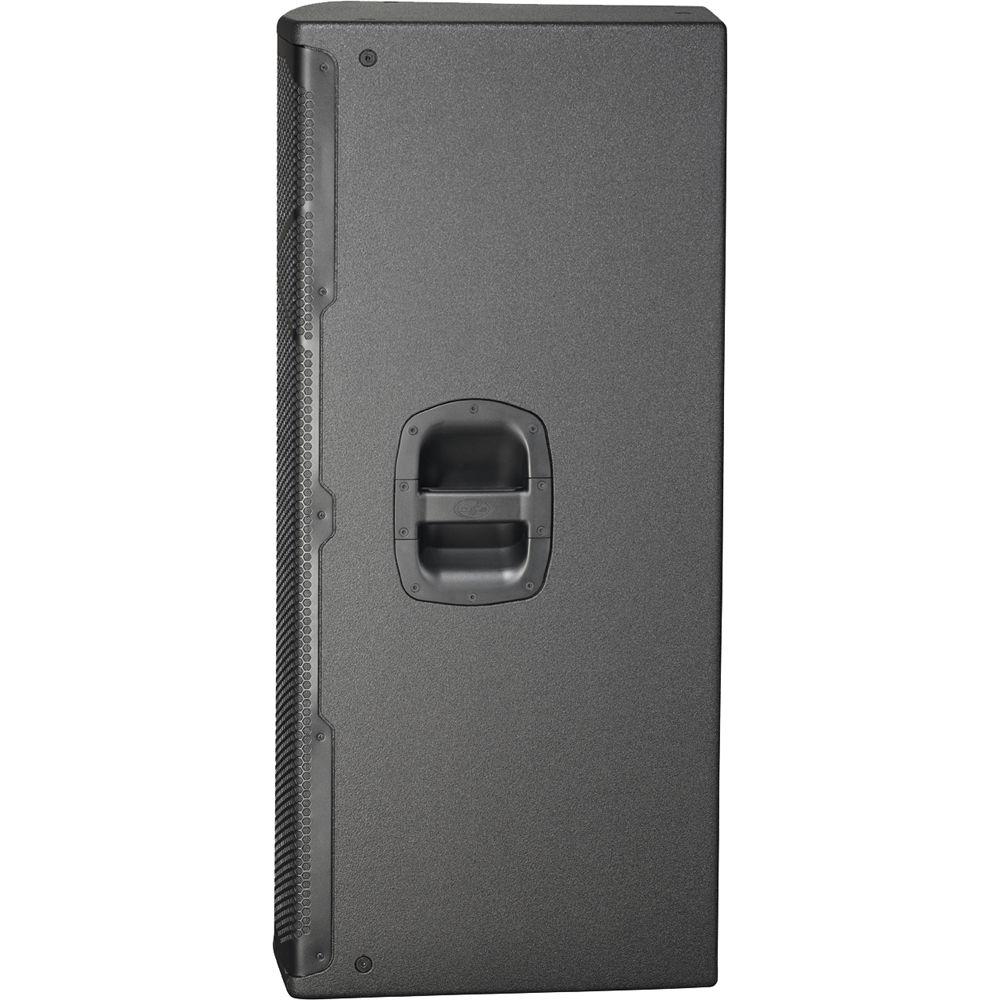

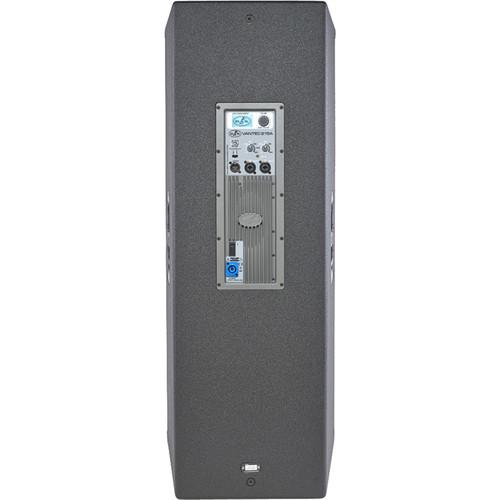

The rear panel offers two mic/line combo XLR-1/4" inputs and an XLR loop-thru output for connecting additional powered speakers. An 1/8" stereo aux input is also included for connecting portable music players. The Vantec 215A utilizes Digital Finite Impulse Response (FIR) filters to provide a wide range of user configurable DSP voicing, filter, and EQ modes. Volume and DSP are controlled by the push-button volume level control, while an integrated LCD offers a clear view of settings. Additionally, the speaker uses Bluetooth to wirelessly stream music from a compatible Bluetooth device from up 65' away. The ISO-flex painted birch plywood enclosure features two bar handles for ease in transport, while the steel grille provides ample protection to the loudspeaker's drivers. The D.A.S. Vantec 215A ships with a power cord. -
- Twin 15″ powered 3-way system
- Increased output capacity
- Lightweight Class-D amplifier with SMPS
- User definable 24-bit DSP with LCD screen
- Presets: Live, dance, vocals, bass boost, and monitor mode
- Stackable 3-band EQ
- High-definition wireless streaming of music in stereo
- Rigging points
- Selectable standby functionality
In the Box D.A.S Audio Vantec 215A - Powered Dual 15" Full-Range 3-Way Loudspeaker with Bluetooth (Single) Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Vantec 215A - Powered Dual 15" Full-Range 3-Way Loudspeaker with Bluetooth in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio VANTEC 215A Specs | | | Configuration | Active 3-Way | | Total Power Capacity | 2250 W Peak | | Amplifier Class | Class-D | | | | HF Driver | 1 x 1" / 2.5 cm Compression Driver | | LF Driver | 2 x 15" / 38 cm Woofer | | | | Frequency Range | 40 Hz to 20 kHz -10 dB | | Maximum SPL | 138 dB | | Coverage Angle | 90° H x 50° V | | Input Sensitivity | +12 dBu | | I/O Impedance | Input:
20 kOhms | | | | Audio I/O | 2 x Combo XLR / 1/4" Input
1 x XLR Male Thru/Output
1 x 1/8" / 3.5 mm Aux Input | | | | AC Input Power | 115 VAC, 50 / 60 Hz | | AC Power Connector | 1 x powerCON Input | | Current Consumption | 3 A | | | | Construction Material | Plywood | | Dimensions | 42.5 x 17.5 x 19.8" / 1.0 x 445.0 x 503.0 mm | | Weight | 90.2 lb / 40.9 kg |
