User Manual for D.A.S Audio Vantec 218A Dual 18" Class-D Powered Subwoofer System Click to enlarge the picture
Contents of the user manual for the D.A.S Audio Vantec 218A Dual 18"
- Product category: PA Speakers D.A.S Audio
- Brand: D.A.S Audio
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for D.A.S Audio PA Speakers
 |
User manual for the D.A.S Audio Vantec 218A Dual 18" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any D.A.S Audio product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official D.A.S Audio user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a D.A.S Audio product will considerably shorten its lifespan!
|

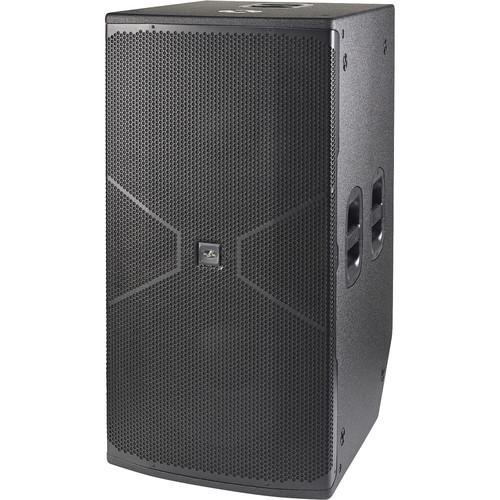

Product description The black Vantec 218A Dual 18" Class-D Powered Subwoofer System from D.A.S Audio is designed to provide extended bass response for the Vantec full-range cabinets. It is powered by a Class-D amplifier with switch mode power supply and a 4000W (peak) power rating. The system includes two balanced inputs (A-B) with stereo HPF filtered output connections for satellite systems. It has two 18LX long excursion bass loudspeakers with 4" voice coils and massive magnet structures. The variable LPF crossover ranges from 80 to 125 Hz. A gain control and polarity reverse feature increase user control over the system.

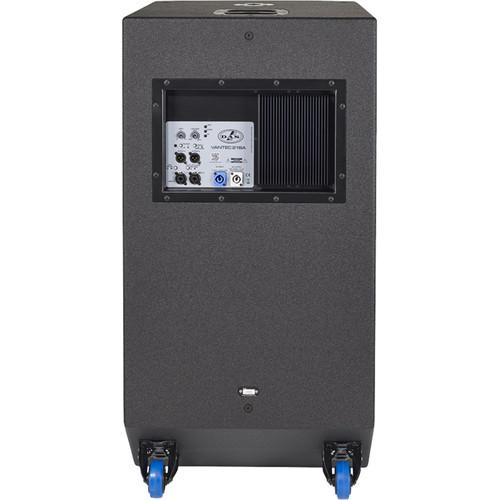

The compact Vantec 218A cabinet is manufactured using birch plywood and is finished with a coating of ISO-flex black paint for durability. The powder-coated steel front grille protects the D.A.S. components. It is also equipped with handles on the sides and the rear of the cabinet along with two rear located wheels. -
- HPF filter offers stereo "loop thru" connections
- 4000 W (peak) Class-D amplifier
- EQ Presets: Deep, Loud
- Variable low-pass filter
- Sub level gain control, polarity reverse
- Front logo on/off switch
- Rigging points
- Rear located wheels for easy movement
In the Box D.A.S Audio Vantec 218A Dual 18" Class-D Powered Subwoofer System Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the D.A.S Audio Vantec 218A Dual 18" Class-D Powered Subwoofer System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersD.A.S Audio VANTEC 218A Specs | Drivers | 2 x 18" (46 cm) | | Voice Coil | 4" (10.2 cm) | | Power Requirements | 4000 W (peak) Class-D | | Frequency Range | Frequency Range (-10 dB)
Loud: 35 to 125 Hz

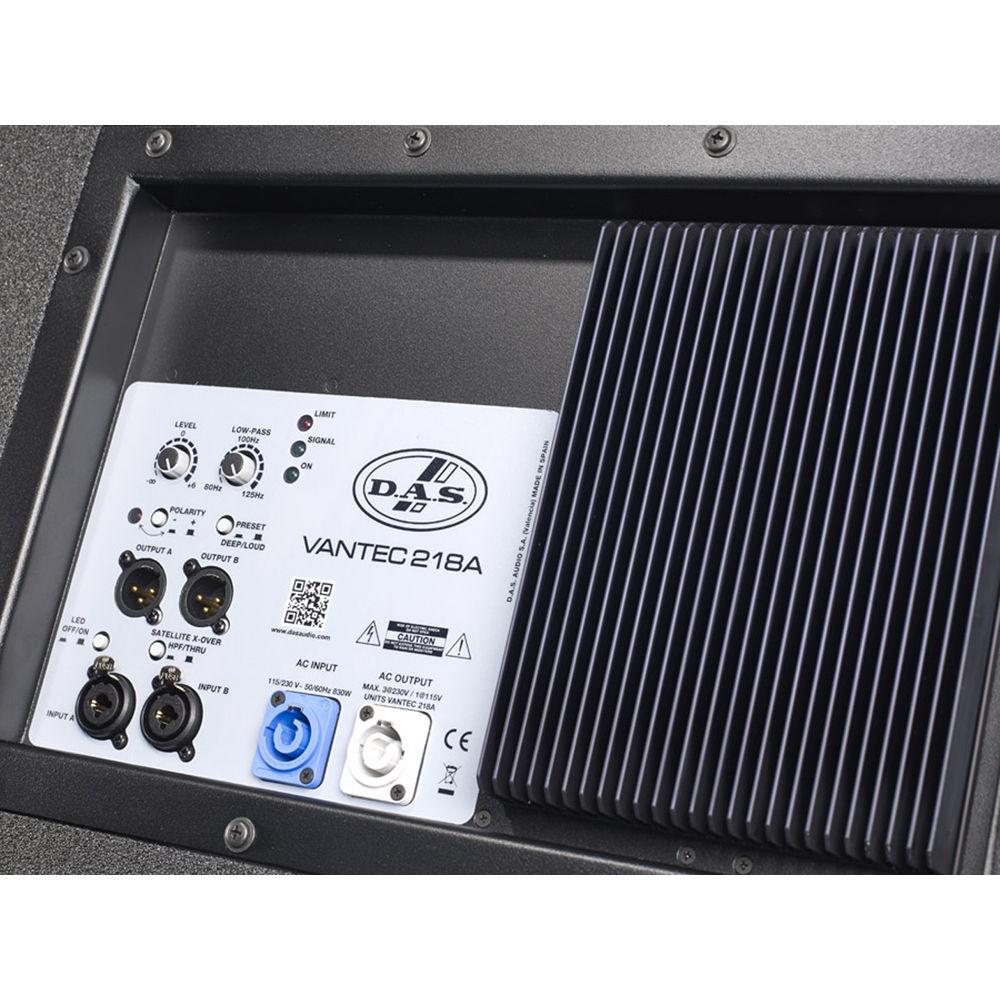

Deep: 30 to 125 Hz | | Max Peak SPL | 140 dB at 1 m | | Connectors | Audio Input: 2 x female XLR
Audio Loop: 2 x male XLR
AC Input: powerCON
AC Output: powerCON | | AC Power Requirements | Universal Mains
6 A, 115 VAC, 50/60 Hz
3 A, 230 VAC, 50/60 Hz | | Enclosure Material | Birch plywood | | Dimensions | 41.7 x 21.3 x 26.4" (106 x 54 x 67 cm) | | Weight | 158.4 lb (72 kg) |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 33 owners. Add your rating and experience with the product.
